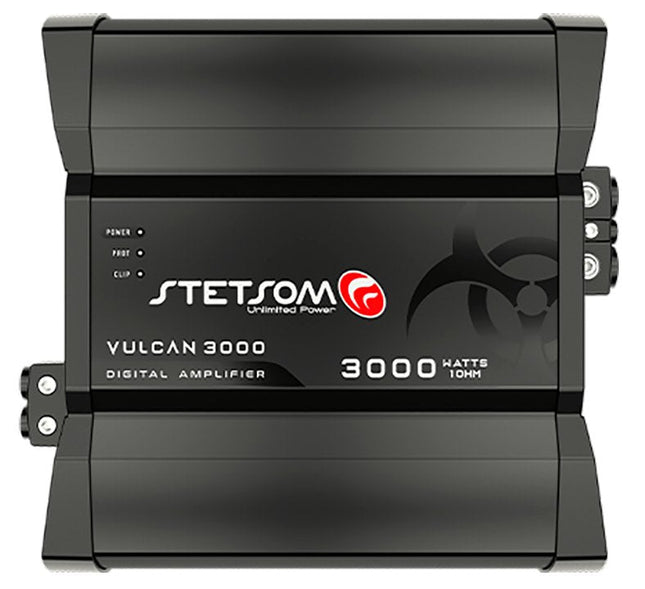

The Vulcan line is back in action in the automotive sound market, it is known for having superior high-performance sound quality.Vulcan 3K can reach 3900 Watts RMS of power at 14.4 volts, this product has an incredible size x performance ratio!In a Black design mounted on an aluminum housing, it leaves a differentiated look. The vulcan is Full range which ensures that it plays all frequencies in the right measure for you. •Known for superior high-performance sound quality.•The Vulcan 3K can reach 3900 Watts RMS of power at 14.4 volts.•A black design mounted in aluminum housing leaves a differentiated look.•The vulcan is Full range which ensures that it plays all frequencies in the right measure for you. TECHNICAL SPECIFICATIONS CHARACTERISTICS VULCAN 3000 – 1 OHM Number of Channels 01 RMS Power at 1 Ohm 12.6V 3100W RMS Power at 2 Ohm 12.6V 2000W RMS Power at 1 Ohm 14.4V 3500W RMS Power at 2 Ohm 14.4V 2100W Frequency Response 10Hz ~ 22KHz Crossover Low Pass 90Hz ~ 22KHz Crossover High Pass 10Hz ~ 90Hz Signal to Noise >90dB Harmonic Distortion THD+N à ≤1% Input Sensitivity 200mV Input Impedance 18K Ohms Impedance Output 1 OHM Consumption with Signal Musical 160A Consumption with Signal Bass 320A Dimensions (H x W x D) mm 78 x 231.5 x 239.5 mm Weight Kg 2.8 Kg CHARACTERISTICS VULCAN 3000 – 2 OHMS Number of Channels 01 RMS Power at 2 Ohm 12.6V 3000W RMS Power at 4 Ohm 12.6V 1700W RMS Power at 2 Ohm 14.4V 3900W RMS Power at 4 Ohm 14.4V 2200W Frequency Response 10Hz ~ 22KHz Crossover Low Pass 90Hz ~ 22KHz Crossover High Pass 10Hz ~ 90Hz Signal to Noise >90dB Input Sensitivity 200mV Input Impedance 12K Ohms Impedance Output 2 OHMS Consumption with Signal Musical 150A Consumption with Signal Bass 300A Dimensions (H x W x D) mm 78 x 231,5 x 239,5 mm Weight Kg 2.9 Kg CHARACTERISTICS VULCAN 3000 – 4 OHMS Number of Channels 1 RMS Power at 4 Ohm 12.6V 3000W RMS RMS Power at 8 Ohm 12,6V 1700W RMS RMS Power at 4 Ohm 14.4V 4000W RMS RMS Power at 8 Ohm 14,4V 2000W RMS Supply Voltage 9V ~ 16V DC Frequency Response 10Hz ~ 22KHz Crossover Low Pass 90Hz ~ 22KHz Crossover High Pass 10Hz ~ 90Hz Signal to Noise >90dB Input Sensitivity 200mV Input Impedance 8K Ohms Impedance Output 4 Ohms Consumption with Signal Musical 137A Consumption with Signal Bass 273A Dimensions (H x W x D) mm 78 x 231.5 x 239.5 mm Weight Kg 2.8 Kg

Read more less

Description Power, efficiency and high performance are some of the synonyms of this module. It has a maximum power of 40,000 Watts RMS at 0.5 ohm, thermal protection and anti-short-circuit. It is powered by batteries in series, as it uses batteries as its source of power. It is a unique line in its category, delivering extremely high power in mid and large car audio systems. Description Power, efficiency and high performance are some of the synonyms of this module. It has a maximum power of 40,000 Watts RMS at 0.5 ohm, thermal protection and anti-short-circuit. It is powered by batteries in series, as it uses batteries as its source of power. It is a unique line in its category, delivering extremely high power in mid and large car audio systems. Stands out in quality from sub-bass to mid-highs. High performance in timbres and audio quality. TECHNICAL INFORMATION NUMBER OF CHANNELS (PT) 01 OUTPUT VOLTAGE 227VDC @ 0.5 Ohm - 18 batteries INPUT SENSITIVITY (PT) 330mV ( Level 100%) @ 0.5 Ohm AUX INPUT STANDARD (PT) 0.3% SIGNAL TO NOISE RATIO >95dB FREQUENCY RESPONSE 10Hz ~ 15KHz (0.5dB) EFFICIENCY 92% @ 0.5 Ohm (full power) INPUT IMPEDANCE 27K Ohms PROTECTION SYSTEM Short-Circuit to Output,Short on output compared to GND,Low impedance at output,High/Low supply voltageThermal protection** POWER SUPPLY VOLTAGE 140VDC POWER SUPPLY VOLTAGE 275VDC CONSUMPTION AT REST 110mA MAXIMUM MUSIC CONSUMPTION @ 0.5 OHM 91.5A MAXIMUM SINUSOIDAL CONSUMPTION @ 0.5 OHM (100HZ) 183A DIMENSIONS (H X W X D) 8.98" x 2.52" x 22.07" (228 x 64 x 561mm) WEIGHT 12.54lb (5.70Kg) MAXIMUM OUTPUT POWER @ 227 VDC- 0.5 OHM* 40.000W RMS EAN 7898556844727

Read more less

Discover the true power of sound with the CHIPEO HV 80,000 amplifier module. With incomparable performance and a lot of performance, it is the perfect choice for those looking for an intense and powerful sound. In addition, it has thermal and short circuit protection, ensuring that you can enjoy the sound with peace of mind, without worrying about possible damage to the equipment. This amplifier is powered by batteries connected in series, as it uses them as its energy generating source. Member of a unique line in its category, the HV 80,000 CHIPEO delivers a power of up to 80,000 watts at 0.5 ohm, which makes it ideal for medium and large automotive sound systems. Highlighting everything from sub-bass to mid-range, this amplifier offers high performance and great sound quality. Experience the true power of sound with the CHIPEO HV 80,000 amplifier module and feel the difference.   TECHNICAL INFORMATION NUMBER OF CHANNELS 01 WORKING VOLTAGE 176 ~ 300VDC @ 0.5 Ohm - 14 ~ 24 Batteries MAXIMUM POWER @300VDC 0.5 Ohm: 80,000W RMS (For Competition)1 Ohm: 40,000W RMS INPUT SENSITIVITY 500mV (Level 100%) @ 1 Ohm TOTAL HARMONIC DISTORTION 0.3% SIGNAL/NOISE RATIO >95dB FREQUENCY RESPONSE 10Hz ~ 15KHz (-1dB) EFFICIENCY 90% @ 1 Ohm (Maximum power) INPUT IMPEDANCE 20K Ohms PROTECTION SYSTEM Output Short, output short in relation toGND Low Voltage, High Voltage andThermal Protection. MINIMUM SUPPLY VOLTAGE 150VDC CONSUMPTION AT REST 90mA MAXIMUM MUSICAL CONSUMPTION @ 0.5 OHM 71A MAXIMUM SINUSOIDAL CONSUMPTION @ 0.5 OHM (100HZ) 142A DIMENSION (W X HX D) 239 x 73 x 358mm WEIGHT 4,30Kg EAN 7908706600414

Read more less

Description Always dedicated to improving your experience with your car audio system, Taramps innovated again by producing the PRO2.6S audio processor.  DSP, 2 independent inputs and 6 outputs, it has features such as routing, crossover filters, delay adjustment, alignment, phase inversion, adjustable limiter, parametric equalizer on outputs, mirroring, mute, sinusoidal wave generator and memory for settings . Taramps, always working to make your audio system more complete and easier to handle. TECHNICAL INFORMATION INPUT IMPEDANCE 18k ohms OUTPUT IMPEDANCE 47 ohms MAXIMUM INPUT LEVEL 6Vpp (2.1V RMS) MAXIMUM OUTPUT LEVEL 10.2Vpp (3.6V RMS) FREQUENCY RESPONSE 10 Hz ~ 20 kHz SIGNAL TO NOISE RATIO >90dB CROSSTALK (SEPARATION BETWEEN CHANNELS) >80dB POWER SUPPLY VOLTAGE 9 ~ 16VDC INPUT CHANNELS 02 OUTPUT CHANNELS 06 ROUTING A,B,A+B GENERAL GAIN 80 ~ 0dB OUTPUT GAIN 24 ~ +6dB CROSSOVER HPF (Variable): Variable FiltersLPF (Variable): Variable Filters ALIGNMENT 5.7 mS - 76.38" (194cm) PHASE 0 / 180º THRESHOLD 24 ~ 0dB ATTACK 1ms ~ 900ms RELEASE 1ms ~ 4000ms PARAMETRIC EQUALIZER (3 BANDS) PER OUTPUT Central Frequency: 20Hz ~ 20KHzAttenuation - Gain: -12dB ~ +12dBQ Factor: 0.4 ~ 10 FREQUENCY RANGE 20 Hz ~ 20 kHz GAIN -60 ~ 0dB LANGUAGES Portuguese - English - Spanish MEMORY POSITIONS 3 + factory default DIMENSIONS (WXHXD) 8.27" x 1.7" x 4.80" (210 x 43 x 122 mm) WEIGHT 1.21 lbs (0.550 kg) EAN 7898556844093 ADDITIONAL INFORMATION Limiter AdjustableOutput mirroring functionIndividual MUTE Function on outputsAudio Generator

Read more less

Description SMART 3, a product developed with the highest technology and performance for automotive sound systems. The main differentials is its multi-impedance function (Power Control System), which allows the work of 1 to 2 ohms in the same product. It is a mono amplifier, with 3000Watts RMS power.TECHNICAL INFORMATIONOPERATION CLASS Class DNUMBER OF CHANNELS 01MAXIMUM POWER @ 12.6 VDC - 1 Ohm: 3000 Watts RMS@ 12.6 VDC - 2 Ohms: 3000 Watts RMS@ 12.6 VDC - 4 Ohms: 2000 Watts RMSINPUT SENSITIVITY 0.22V ~ 4VSIGNAL TO NOISE RATIO >90dBFREQUENCY RESPONSE 10Hz ~ 10KHz (-3dB)CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) VariableCROSSOVER LOW PASS (LPF) 90Hz ~ 10KHz (-12dB/8ª) VariableBASS BOOST Freq.: 35Hz ~ 55Hz / Boost: 0 ~ +10dBEFFICIENCY 79%INPUT IMPEDANCE 10K OhmsPROTECTION SYSTEM Output short circuit, low / high voltage protection and thermal protectionMIN. SUPPLY VOLTAGE 9 VDCMAXIMUM POWER SUPPLY VOLTAGE 16 VDCCONSUMPTION AT REST 2.40AMAXIMUM MUSIC CONSUMPTION 150AMAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 300ADIMENSIONS (H X W X D) 8.98" x 2.76" x 9.37"Included Items1 Module1 Sticker1 Manual and warranty certificate.Warranty12 months

Read more less

Description The SMART Line that you already know now has a new member! The SMART 5 amplifier present the highest technology and performance for car audio systems. With the advantage of being multi-impedance, delivering 5000WRMS between 1 and 2 ohms, additionally, the Power Control System technology ensures greater performance and safety. The renowned V.U. with Smart LED, distinctive of the line, assures a unique design. It has an input gain adjustment that allows the use of players up to 4V RMS output level. Its robust connector allows the use of larger gauge power cables for higher performance. It is an exclusive TARAMPS product with the best cost-benefit ratio in the car audio industry.  *This product comes with the M1 MONITOR LED. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 ohm: 5000 Watts RMS@ 12.6 VDC - 2 ohms: 5000 Watts RMS@ 12.6 VDC - 4 ohms: 2900 Watts RMS INPUT SENSITIVITY 0.22V ~ 4V SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 8KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 8KHz (-12dB/8ª) Variable BASS BOOST Freq.: 35Hz ~ 55HzBoost: 0 ~ +10dB EFFICIENCY 84% @ 1 ohm86% @ 2 ohms INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 1 ~ 2 ohms PROTECTION SYSTEM Output short circuitlow/high voltage protectionthermal protection. MIN. SUPPLY VOLTAGE 9.5VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 3.60A MAXIMUM MUSIC CONSUMPTION 236A @ 1 ohm230A @ 2 ohms MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 472A @ 1 ohm460A @ 2 ohms DIMENSIONS (WXHXD) 8.97" x 2.75" x 16.85" (228 x 70 x 428mm) WEIGHT 11.24 lbs (5,10Kg) EAN 7898556847391

Read more less

Description The SMART Line that you already know now has a new member! The SMART 5 amplifier present the highest technology and performance for car audio systems. With the advantage of being multi-impedance, delivering 8000WRMS between 1 and 2 ohms, additionally, the Power Control System technology ensures greater performance and safety. The renowned V.U. with Smart LED, distinctive of the line, assures a unique design. It has an input gain adjustment that allows the use of players up to 4V RMS output level. Its robust connector allows the use of larger gauge power cables for higher performance. It is an exclusive TARAMPS product with the best cost-benefit ratio in the car audio industry.    Description The SMART Line you already know now has a new member! The SMART 8 amplifier module features the highest technology  and performance for automotive sound systems. With the advantage of being  multi-impedance , it delivers  8000WRMS in the range of 1 to 2 ohms , in addition the  Power Control System technology guarantees greater performance and safety to the product. It has  input gain adjustment that allows the use of players with up to 4V RMS output level. Its robust double connector  allows the use of larger gauge power cables for  better performance . Finally, it is compatible with the M1 LED Monitor and the new Monitor level Remote. a productexclusive TARAMPS  and with the best cost-benefit ratio in the automotive sound market. TECHNICAL INFORMATION CLASS OF OPERATION D NUMBER OF CHANNELS 01 MAXIMUM POWER Rated Power @12.6VDC*1 OHM to 2 OHMS: 8000W RMS4 OHMS: 5000W RMS INPUT SENSITIVITY 0.22V ~ 4V SIGNAL/NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 5KHz (-3dB) HIGH PASS CROSSOVER (HPF) 10Hz ~ 90Hz (-12dB/8th) Variable LOW PASS CROSSOVER (LPF) 90Hz ~ 5KHz (-12dB/8th) Variable BASS BOOST Frequency: 35Hz ~ 55HzBoost: 0 ~ +10dB EFFICIENCY 82% @ 1 Ohm | 86% @ 2 Ohms INPUT IMPEDANCE 10K Ohms PROTECTION SYSTEM Output short circuit, low/high voltage protection and thermal protection. MINIMUM SUPPLY VOLTAGE 9.5VDC MAXIMUM SUPPLY VOLTAGE 17VDC CONSUMPTION AT REST 8A MAXIMUM MUSIC CONSUMPTION 387A | 369A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 774A | 738A DIMENSIONS (WXHXD) 228 x 70 x 513mm WEIGHT 6.60 kg EAN 7898556845229

Read more less

Description In this version, the 3000 Trio gained PLAYER technology, with remote control and various audio sources such as Bluetooth, AUX, USB and FM Radio. It is an ideal product for use in trio box systems, using a single amplifier for speakers, drivers and tweeters. Powerful and versatile, this amplifier features a variable crossover and two output paths, each with individual gain adjustment. The LOW track has a limiter with three actuation levels and variable bass-boost, while the HIGH track has a fixed limiter. Simplicity in installation and versatility of use are synonymous with this product. Welcome to the Taramps sound world! TECHNICAL INFORMATION CLASS OF OPERATION D NUMBER OF CHANNELS 01 MAXIMUM POWER Via Low@12,6 VDC – 2 Ohms: 3000 Watts RMS@12,6 VDC – 4 Ohms: 1920 Watts RMSVia High@12,6 VDC – 2 Ohms: 300 Watts RMS@12,6 VDC – 4 Ohms: 200 Watts RMS INPUT SENSITIVITY 200mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE Via Low10Hz ~ 700Hz (X-Over Low / High = 700)10Hz ~ 1200Hz (X-Over Low / High = 1200)Via High700Hz ~ 20KHz (X-Over Low / High = 700)1200Hz ~ 20KHz (X-Over Low / High = 1200) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8th) Variable CROSSOVER LOW PASS (LPF) 700Hz ~ 1200Hz (-12dB/8th) Variable BASS BOOST 0 ~ 10,5dB (50Hz) LIMITERS/ANTI-CLIPPING Low WaySelectable 1% / 5 % / 10%High WayAnticlip THERMAL MANAGEMENT Smart Cooler (cooler driven by temperature or audio, in 3 speeds) INPUT IMPEDANCE 13K Ohms OUTPUT IMPEDANCE 2 Ohms PROTECTION SYSTEM Output short, output short in relation to GND, low impedance, low/high voltage and thermal protection. MINIMUM SUPPLY VOLTAGE 9 VDC MAXIMUM SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.60A MAXIMUM MUSIC CONSUMPTION 165A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 315A DIMENSIONS (WXHXD) 228 x 64 x 216mm WEIGHT 2,40Kg EAN 7898556846790

Read more less

Description The TS 400X4 is designed with the highest performance to suit most types of car audio systems. It is multichannel, with 4 channels of 100 Watts RMS, with a maximum power of 400 Watts RMS at 2 ohms. The TS 400×4 is a FULL RANGE amplifier. It features thermal and short-circuit protection, plus LED indicator and crossover. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 04 MAXIMUM POWER @ 13,8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS)@ 13,8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS)Bridged @ 13,8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS) INPUT SENSITIVITY 200mV (Vol = max.) SIGNAL TO NOISE RATIO > 90dB FREQUENCY RESPONSE (Full Range): 18 Hz to 30 kHz (-1dB) CROSSOVER HIGH PASS (HPF) 90 Hz (-12dB/8th) CROSSOVER LOW PASS (LPF) 90 Hz (-12dB/8th) INPUT IMPEDANCE 22K ohms OUTPUT IMPEDANCE 2 ohms PROTECTION SYSTEM Thermal and Output Short MIN. SUPPLY VOLTAGE 8 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 0.8A MAXIMUM MUSIC CONSUMPTION @13,8VDC: 16.5A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @13,8VDC: 33A DIMENSIONS (WXHXD) 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm) WEIGHT 1.322 lbs (0.6 kg) EAN 7898556840682

Read more less

Description It is public knowledge that the demand for amplifiers suitable for factory radios and Multimedia is growing every day.With that in mind, we created the new TS 800×4 2 Ohms with 4-channel high-level individual input and automatic activation. This feature makes it ideal for this type of application, eliminating the need for adapters.With 800 watts of Power distributed in 4 channels and the possibility of connection in Bridge, it can be used with the most varied models of speakers, drivers and super tweeters.In addition, it has the traditional RCA inputs, gain adjustment and fixed Crossover (HPF, LPF and Full), typical feature of Taramps products.Another point to be highlighted is the new power and output connector, which, in addition to being robust, ensures more practicality and safety in the installation.All this and much more, so that your pleasure in listening to music is even greater. Product videos Technical information 2 Ohms VERSION Nominal Power @14.4VDC2 Ohms: 800W RMS (4 x 200W RMS)4 Ohms: 544W RMS (4 x 136W RMS)2 Bridged Channels4 Ohms: 800 W RMS (2 x 400W RMS) Number of Channels 04 Input Sensitivity (RCA): 4V (min.) / 250mV (max.)(WIRE): >10V (min.) / 3V (max.) Signal to Noise Ratio >90dB Frequency Response 10Hz ~ 20KHz (-3dB) Crossover high pass (HPF) 90Hz (-12dB/8ª) Fixed Crossover low pass (LPF) 90Hz (-12dB/8ª) Fixed Input Impedance 10K Ohms (RCA) Output Impedance 2 Ohms protection system Output Short Circuit Minimum Supply Voltage 9VDC Maximum Supply Voltage 16VDC Consumption at rest 0.9A Maximum music consumption 38A Maximum consumption in sinusoidal signal 76A Dimensions (WxHxD) 5.43" x 1.89" x 6.89" (138 x 48 x 175mm) Weight 1.91lb (0.87Kg) EAN 7898556849043

Read more less

Spark Usina Smart 120A Power Supply and Automotive Charger 12V Power Supply and Automotive Charger Usina 120A Smart - 12V - Battery MeterThe power supply USINA was created with the main objective of feeding the sound system of the car without letting its batteries discharge, even with the sound playing for several hours. It can also be used as a source and direct power supply (without the use of batteries), feeding CD players, power modules, etc.SpecificationsInput Voltage: Automatic BivoltAC 127Vca: 100 @ 140VcaAC 220Vca: 170 @ 250VcaConsumption 127Vca: 23A (maximum)Consumption 220Vca: 13A (maximum)Output Voltage: 12.5V @ 14.4Vdc (+-1%)Output Current: 120A @ 12.5Vdc (+-5%)*Output Power: 1500 Watts (maximum)**Efficiency: 85%Input Power: 1800 Watts (maximum) ** Input Cable :3x1 . (HxWxD): 308mmX186mmX75mm*** Notes: *Current and power measured in resistive load **Output power may vary according to network voltage and usage conditions ***The measurements referring to the dimensions of the sources have a variation of approximately 2mm

Read more less
