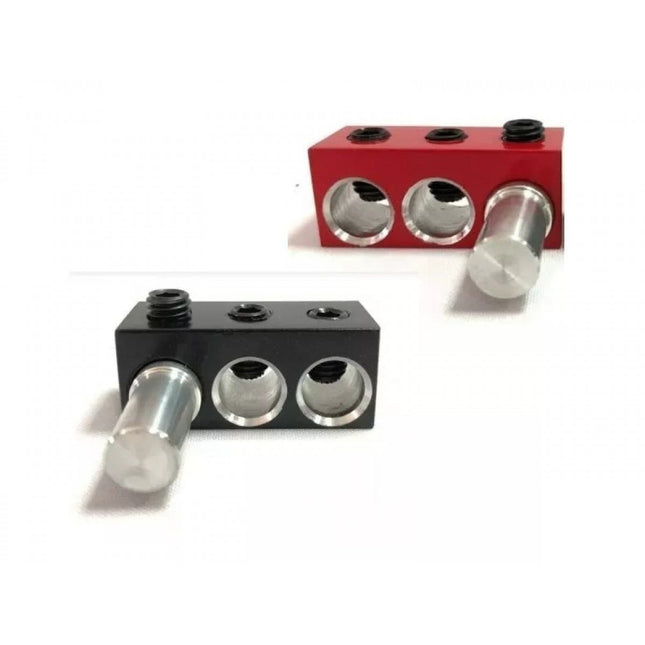

The ROTNER 2-way adapter was developed to meet all high power automotive sound projects, making it possible to use more cables in the module's power supply, improving its power supply, consequently the amplifier will obtain a superior performance. Technical Characteristics:Made of Aluminum (Pure aluminum has an electrical conductivity of 62% of the IACS (International Annealed Copper Standard), which associated with its low density means that an aluminum conductor can conduct as much current as a copper conductor, which is two times heavier and proportionately more expensive.) Electrostatic painting that, in addition to helping to easily identify the polarity (red-positive and black-negative), also prevents the creation of an aluminum oxide layer that forms on the surface of the material. Technical Specifications:Material 22.22mm thick and 55mm in total lengthFitting pin for 50mm² terminals with 12.5mm in diameter and 25mm in lengthWith 2 ways to fix cables from 16 to 70mm²Supports up to 2500ahWeight 160g.Included Items:01 Pair of 2 Way Adapter

Read more less

The ROTNER 3-way adapter was developed to meet all high-power automotive sound projects, making it possible to use more cables in the module's power supply, improving its power supply, consequently the amplifier will obtain a superior performance. Technical Characteristics:Made of Aluminum (Pure aluminum has an electrical conductivity of 62% of the IACS (International Annealed Copper Standard), which associated with its low density means that an aluminum conductor can conduct as much current as a copper conductor, which is two times heavier and proportionately more expensive.) Electrostatic painting that, in addition to helping to easily identify the polarity (red-positive and black-negative), also prevents the creation of an aluminum oxide layer that forms on the surface of the material. Technical Specifications:Material 22.22mm thick and 71mm in total lengthFitting pin for 50mm² terminals with 12.5mm in diameter and 25mm in lengthWith 2 ways to fix cables from 16 to 70mm²Supports up to 2500ahWeight 190g.Included Items:01 Pair of 3 Way Adapter

Read more less

The ROTNER 3-way adapter was developed to meet all high-power automotive sound projects, making it possible to use more cables in the module's power supply, improving its power supply, consequently the amplifier will obtain a superior performance. Technical Characteristics:Made of Aluminum (Pure aluminum has an electrical conductivity of 62% of the IACS (International Annealed Copper Standard), which associated with its low density means that an aluminum conductor can conduct as much current as a copper conductor, which is two times heavier and proportionately more expensive.) Electrostatic painting that, in addition to helping to easily identify the polarity (red-positive and black-negative), also prevents the creation of an aluminum oxide layer that forms on the surface of the material. Technical Specifications:Material 22.22mm thick and 105mm in total lengthFitting pin for 50mm² terminals with 12.5mm in diameter and 25mm in lengthWith 2 ways to fix cables from 16 to 70mm²Supports up to 2500ahWeight 270g.Included Items:01 Pair of 5 Way Adapter

Read more less

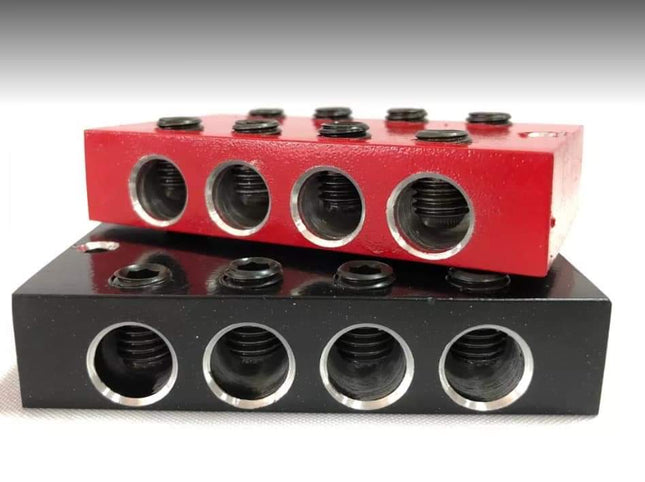

The ROTNER 4×4-Way Distributor Block was developed to meet all high-power and high-performance automotive sound projects, making it possible to connect all equipment that supplies and consumes energy in the system at a single point, preventing the system’s batteries from suffering with different charging and discharging cycles, leaving all stabilized with the same voltage and current, always seeking to obtain a superior performance. Technical Characteristics:Made of Aluminum (Pure aluminum has an electrical conductivity of 62% of the IACS (International Annealed Copper Standard), which associated with its low density means that an aluminum conductor can conduct as much current as a copper conductor, which is two times heavier and proportionately more expensive.) Electrostatic painting that, in addition to helping to easily identify the polarity (red-positive and black-negative), also prevents the creation of an aluminum oxide layer that forms on the surface of the material. Technical Specifications:Material measuring 51x19mm thick and 91mm in total lengthWith 8 ways to fix cables from 16 to 70mm²Supports up to 5000ahWeight 420g.Included Items:01 Pair of Distributor Block 4×4 Ways

Read more less

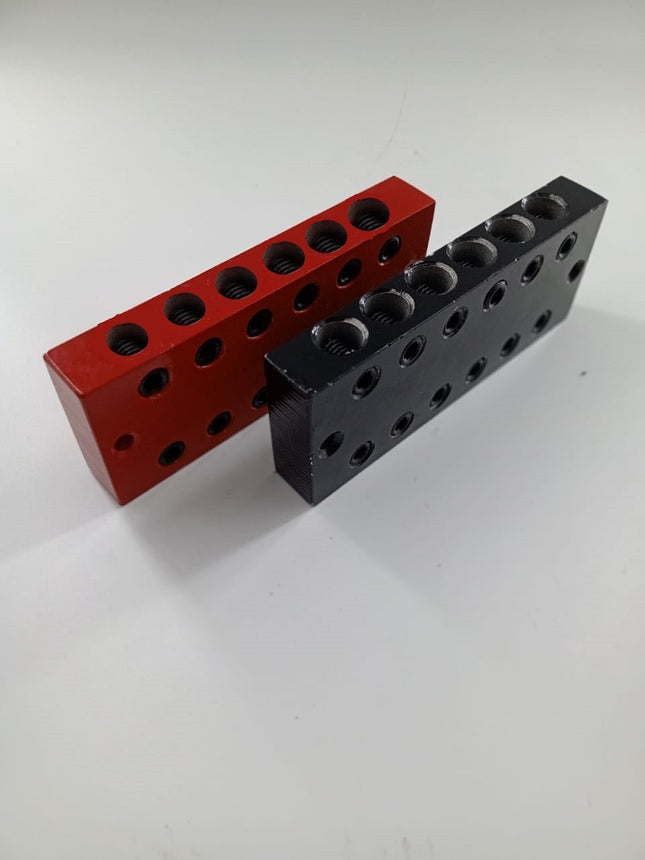

The ROTNER 6×6-Way Distributor Block was developed to meet all high-power and high-performance automotive sound projects, making it possible to connect all equipment that supplies and consumes energy in the system at a single point, preventing the system’s batteries from suffering with different charging and discharging cycles, leaving all stabilized with the same voltage and current, always seeking to obtain a superior performance. Technical Characteristics:Made of Aluminum (Pure aluminum has an electrical conductivity of 62% of the IACS (International Annealed Copper Standard), which associated with its low density means that an aluminum conductor can conduct as much current as a copper conductor, which is two times heavier and proportionately more expensive.) Electrostatic painting that, in addition to helping to easily identify the polarity (red-positive and black-negative), also prevents the creation of an aluminum oxide layer that forms on the surface of the material. Technical Specifications:Material measuring 51x19mm thick and 127mm in total lengthWith 12 ways to fix cables from 16 to 70mm²Supports up to 5000ahWeight 570g.Included Items:01 Pair of Distributor Block 6×6 Ways

Read more less

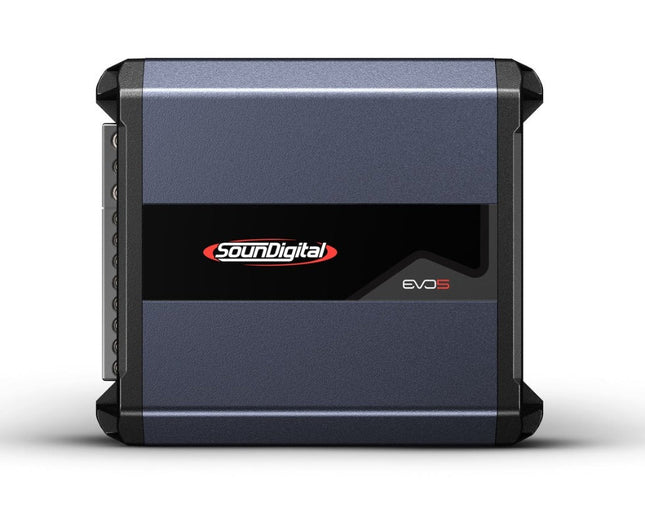

The 600.4 EVO 5 is an amplifier with a compact and modern design that delivers 600W RMS of power across 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. General Specifications  Power @ 2Ω: 4 x 150W Power @ 4Ω: 4 x 100W Bridged Power @ 4Ω: 2 x 300W Bridged Power @ 8Ω: 2 X 198W Frequency Response (-3dB): 10Hz ~ 20kHz Low Pass Filter: 80Hz High Pass Filter: 80Hz Supply Voltage: 8V ~ 16V Signal-to-Noise Ratio: 88dB Input Sensitivity: 0.2V ~ 2V Music Consumption: 27A Consumption With Resistive Load: 54A Total Efficiency: 88% Damping Factor: 200 Power cable: 10mm² (7AWG) Audio Output Cable: 2 x 1.5 mm² (15 AWG) Fuse (Musical Use): 40A Recommended Battery: 40Ah Width: 11.3 cm Length: 13.5 cm Height: 5.09 cm Weight: 0.72 kg   Differentials of the EVO 5 Line Technologies:Line 5 products have the most modern audio solutions from SounDigital. Modern components, with high performance distributed in intelligent projects guarantee better performance, temperature management and a lot of quality and power. Performance:Flatter and more extensive frequency responses, refined timbre, more accurate bass and treble are the best definition of the performance of SounDigital products. The performance of the products has been substantially improved due to new concepts of sources, output filters and audio processing circuits. Reliability:SounDigital products are increasingly robust and reliable. State-of-the-art solutions make the temperature control and vibration resistance of the EVO5 line the best on the market.SounDigital products are increasingly robust and reliable. State-of-the-art solutions make the temperature control and vibration resistance of the EVO5 line the best on the market. The protections have been modernized, and are more reliable and faster, that is, any failure in the power supply or in a speaker connected to the amplifier will not cause any problem to the amplifier of the EVO5 line, as the intelligent protection systems will protect it. Installation solutions:The products of the EVO5 line are designed to facilitate installation, they use solid connectors, with ALLEN steel screws that guarantee the best fixation for the wires, the screws that fix the product to the installation point are protected by removable covers, which guarantee a cleaner and more refined installation.Some products in the line now have a high signal input with SSS, SounDigital Smart Start, a system that uses the conventional audio outputs of the vehicle's audio units and does not require the use of a remote trigger wire. These and other facilities help in a correct, neat and reliable installation of the product.

Read more less

DetailsThinking about the efficiency of large automotive projects, Soundigital launches the new HV line with much more versatile and extreme quality amplifiers. Now with the new Full HV system, all amplifiers are powered by the battery bank and no longer require 12V power. This ensures greater system autonomy and makes the cost more flexible.The big innovation was to create products that work on different impedances and variable power. In high power amplifiers, the impedance can be adjusted according to customer requirements. To complete the set, medium power amplifiers have been developed with an intelligent flexible power system. This allows to unify the two systems with any voltage without interfering with power delivery. ADDITIONAL INFORMATIONProduct SKU Code 1348300Availability On Order - Add 5-10 business days to delivery timeModule Application For subs and woofersChannels 1 Mono ChannelOperation class DigitalClass DRCA Connections 2Maximum Music Consumption (A) 308Max Sine Consumption (A) 616Resting Consumption 0.2Frequency Response (Hz) 5Hz - 10000HzImpedance Ω 0.5 OhmsBridge Impedance Ω No Bridge SupportLed clip YesActual Power per Channel (Watts RMS) 100000Real Power per Channel with Double Impedance (Watts RMS) 50000Total Actual Power (Watts RMS) 100000Signal to Noise Ratio (dB) 76Protection systems High voltageInput Voltage High voltageTHD (Total Harmonic Distortion) 2%Approximate Product Weight (kg) 5.56 Package Contents:• 01 Amplifier Module SOUNDIGITAL HV100K EVO 4.0• Manual and Warranty CertificateImportant:• 1 Year Warranty.• Unit Value.• All of our products are new, original and follow the invoice.• recommends that the installation be done by a specialized professional and is not responsible for the misuse of the product.

Read more less

1200.2 EVO 5 The 1200.2 EVO 5 is an amplifier with a compact and modern design that delivers 1200W RMS of power in 2 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.   General Specifications + 1200.2 EVO 5 – 2 OHMS Power @ 1Ω: 2 X 600W RMS Power @ 2Ω: 2 X 396W RMS Power @ 4Ω: 2 X 262W RMS Bridged Power @ 2Ω: 1 X 1200W RMS Bridged Power @ 4Ω: 1 X 792W RMS 1200.2 EVO 5 – 4 OHMS Power @ 1Ω: N/A Power @ 2Ω: 2 X 600W RMS Power @ 4Ω: 2 X 396W RMS Bridged Power @ 2Ω: N/A Bridged Power @ 4Ω: 1 X 1200W RMS Supply Voltage: 8V – 16V Music Consumption: 2Ω: 57A 4Ω: 58A Maximum Consumption: 2Ω: 115A 4Ω: 116A Recommended Fuse (Musical): 60A Total Efficiency: 2Ω: 83% 4Ω: 82% Damping Factor: 200 Frequency Response (-3dB): 10Hz - 20kHz SNR: 91dB Crossover HPF: 80Hz LPF: 80Hz Width: 13,6 cm Length: 17 cm Height: 5,5 cm Weight: 1 Kg   Differentials of the EVO 5 Line + Technologies: Line 5 products have the most modern audio solutions from SounDigital. Modern components, with high performance distributed in intelligent projects guarantee better performance, temperature management and a lot of quality and power. Performance: Flatter and more extensive frequency responses, refined timbre, more accurate bass and treble are the best definition of the performance of SounDigital products. The performance of the products has been substantially improved due to new concepts of sources, output filters and audio processing circuits. Reliability: SounDigital products are increasingly robust and reliable. State-of-the-art solutions make the temperature control and vibration resistance of the EVO5 line the best on the market. SounDigital products are increasingly robust and reliable. State-of-the-art solutions make the temperature control and vibration resistance of the EVO5 line the best on the market. The protections have been modernized, and are more reliable and faster, that is, any failure in the power supply or in a speaker connected to the amplifier will not cause any problem to the amplifier of the EVO5 line, as the intelligent protection systems will protect it. Installation solutions: The products of the EVO5 line are designed to facilitate installation, they use solid connectors, with ALLEN steel screws that guarantee the best fixation for the wires, the screws that fix the product to the installation point are protected by removable covers, which guarantee a cleaner and more refined installation. Some products in the line now have a high signal input with SSS, SounDigital Smart Start, a system that uses the conventional audio outputs of the vehicle's audio units and does not require the use of a remote trigger wire. These and other facilities help in a correct, neat and reliable installation of the product.

Read more less

DETAILS Our new 12000.1 EVO 4.0 features a symmetrical dual power connector.This novelty ensures a more efficient supply of the amplifier, with the entry of more cables and internally ensures greater symmetry in the circuits.With tracks of exactly the same length and thickness on both sides of the amplifier, we have greater energy efficiency and a substantial improvement in the bass and sub-bass response of the system.TECHNICAL SPECIFICATIONS 12000.1 EVO 4.0 1ΩPower @ 12.6V @ 1Ω: 1 x 12000 W RMSPower @ 12.6V @ 2Ω: 1 x 7920 W RMSPower @ 12.6V @ 4Ω: 1 x 5227 W RMSPower @ 14.4V @ 1Ω: 1 x 13380 W RMSPower @ 14.4V @ 2Ω: 1 x 8831 W RMSPower @ 14.4V @ 4Ω: 1 x 5828 W RMSFrequency Response: 5Hz - 6kHzCrossover: LP 50Hz ~ 6kHz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 200Maximum Consumption: 1287ADimensions (LxWxH): 53.0 X 22.5 X 7.1 CMWeight: 7kg 12000.1 EVO 4.0 2ΩPower @ 12.6V @ 1Ω: N / APower @ 12.6V @ 2Ω: 1 x 12000 W RMSPower @ 12.6V @ 4Ω: 1 x 7920 W RMSPower @ 14.4V @ 1Ω: N / APower @ 14.4V @ 2Ω: 1 x 13380 W RMSPower @ 14.4V @ 4Ω: 1 x 8831 W RMSFrequency Response: 5Hz - 6kHzCrossover: LP 50Hz ~ 6kHz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 200Maximum Consumption: 1287ADimensions (LxWxH): 53.0 X 22.5 X 7.1 CMWeight: 7kg Package Contents:• 01 Amplifier Module 12000.1 EVO 4.0• Manual and Warranty CertificateImportant:• 1 Year Warranty.• Unit Value.• All of our products are new, original and follow the invoice.• recommends that the installation be done by a specialized professional and is not responsible for the misuse of the product.

Read more less

DETAILS The 1600.4 EVO 4.0 amplifier comes with exclusive patented * DTR technology.The DTR * is a dynamic thermal recovery system that makes the amplifier always maintain high efficiency by accelerating the thermal exchange of electronic components with the heatsink.Do you know what that means? An even more reliable and resistant product for you!* Globally patented technology required by SounDigitalnd is not responsible for the misuse of the product. TECHNICAL SPECIFICATIONS1600.1 EVO 4.0 1ΩPower @ 12.6V @ 1Ω: 1 x 1600 W RMSPower @ 12.6V @ 2Ω: 1 x 880 W RMSPower @ 12.6V @ 4Ω: 1 x 484 W RMSPower @ 14.4V @ 1Ω : 1 x 2090 W RMSPower @ 14.4V @ 2Ω: 1 x 1149 W RMSPower @ 14.4V @ 4Ω: 1 x 632 W RMSFrequency Response: 5Hz ~ 20kHzCrossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 1000Maximum Consumption: 174ADimensions (LxWxH): 23.6 X 18.1 X 5.7 CMWeight: 1.6 kg1600.1 EVO 4.0 2ΩPower @ 12.6V @ 1Ω: N / APower @ 12.6V @ 2Ω: 1 x 1600 W RMSPower @ 12.6V @ 4Ω: 1 x 880 W RMSPower @ 14.4V @ 1Ω: N / APower @ 14.4V @ 2Ω: 1 x 2090 W RMSPower @ 14.4V @ 4Ω: 1 x 1149 W RMSFrequency Response: 5Hz ~ 20kHzCrossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8thFactor Damping:> 1000Maximum Consumption: 174ADimensions (LxWxH): 23.6 X 18.1 X 5.7 CMWeight: 1.6 kg 1600.1 EVO 4.0 4Ω Power @ 12.6V @ 1Ω: N / APower @ 12.6V @ 2Ω: N / APower @ 12.6V @ 4Ω: 1 x 1600 W RMSPower @ 14.4V @ 1Ω: N / APower @ 14.4V @ 2Ω: N / APower @ 14.4V @ 4Ω: 1 x 2090 W RMSFrequency Response: 5Hz ~ 20kHzCrossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 1000Maximum Consumption: 174ADimensions (LxWxH): 23.6 X 18.1 X 5.7 CMWeight: 1.6kg Package Contents:• 01 Amplifier Module 1600.1 EVO 4.0• Manual and Warranty CertificateImportant:• 1 Year Warranty.• Unit Value.• All of our products are new, original and follow the invoice.• recommends that the installation be done by a specialized professional and is not responsible for the misuse of the product.
