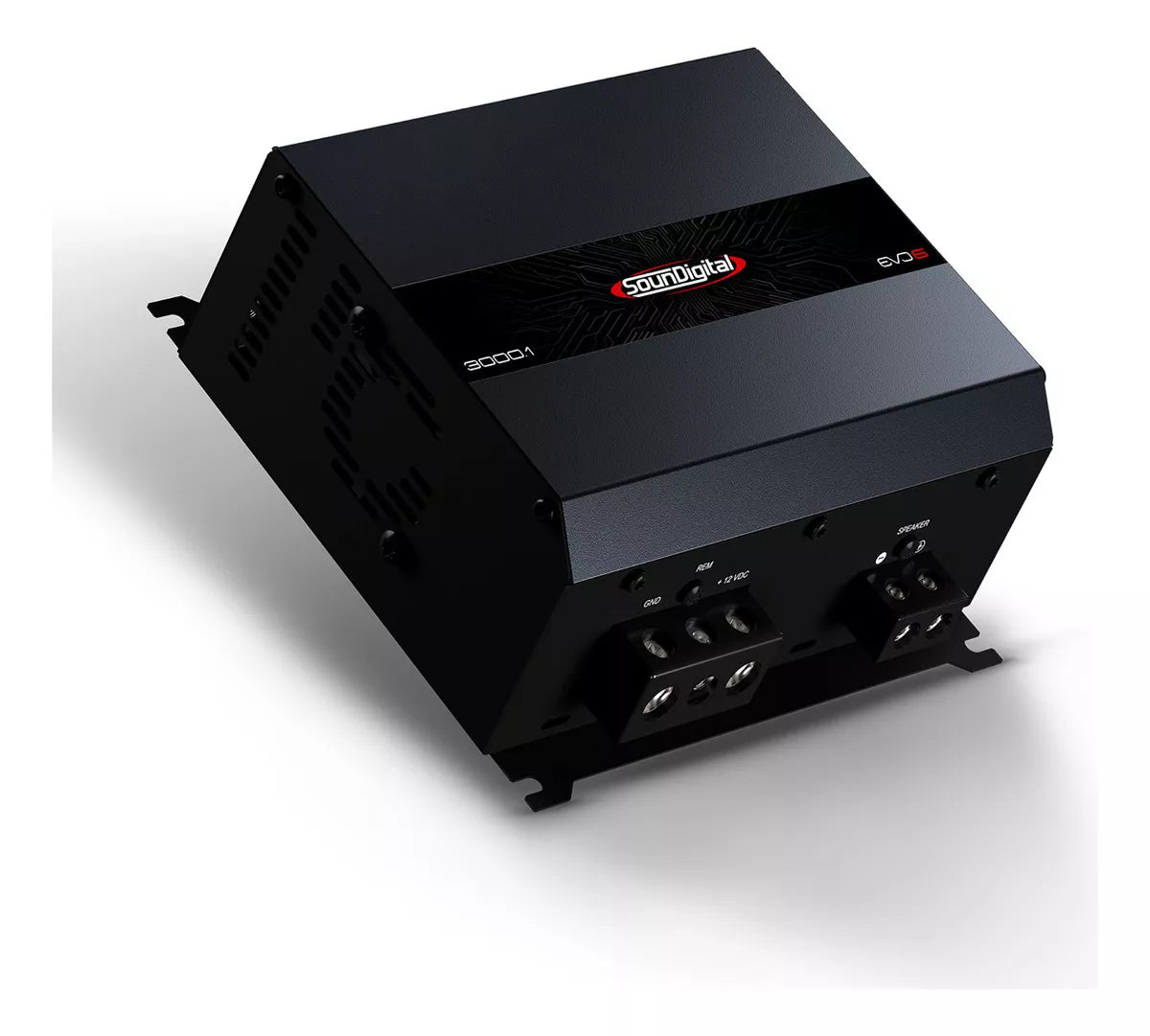

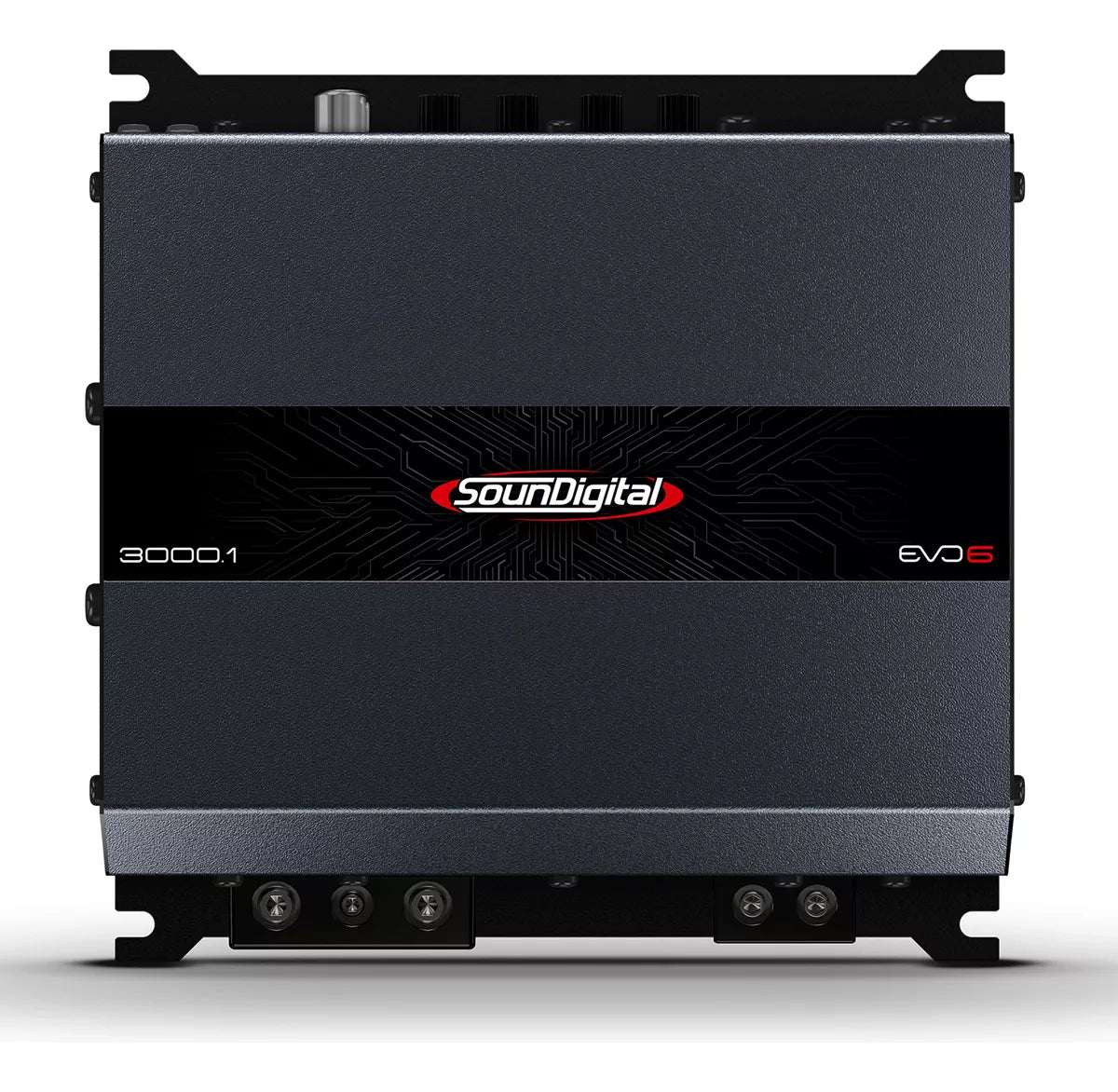

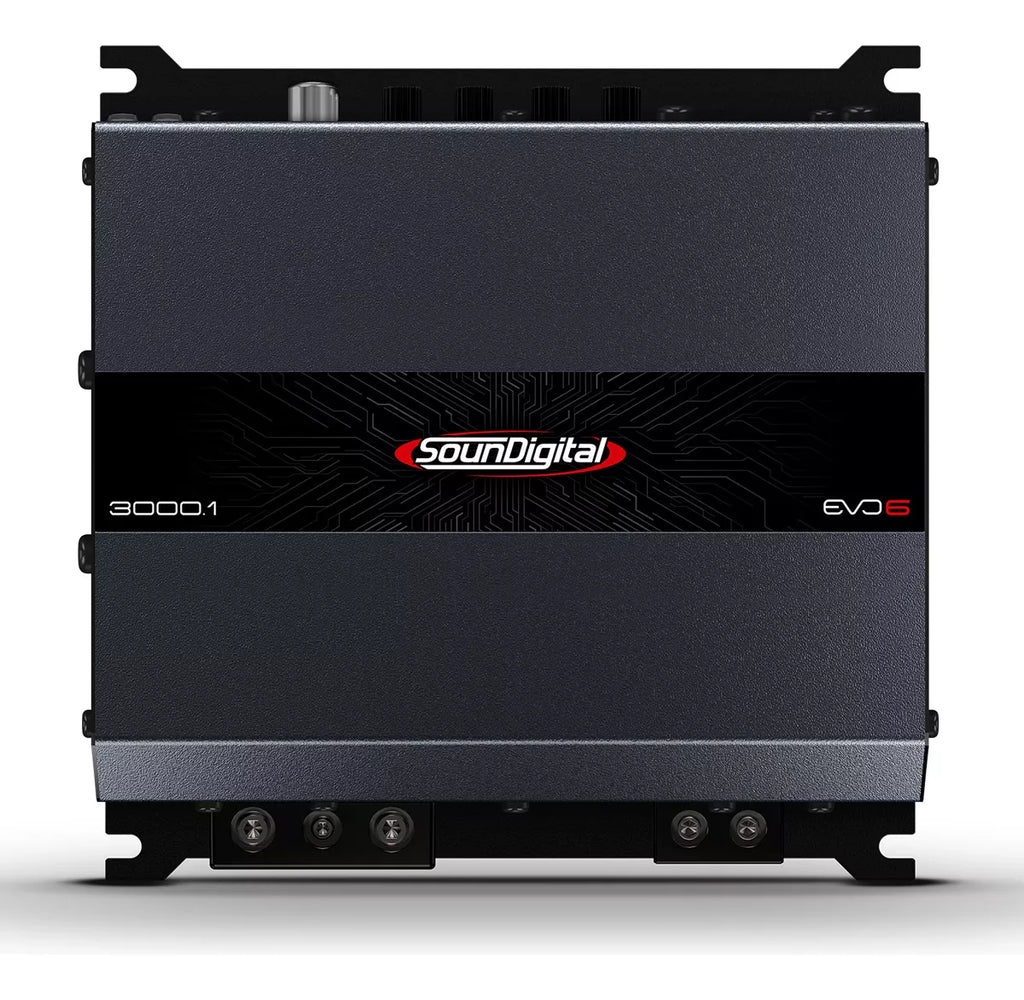

The 3000.1 EVO 5 is a compact, modern amplifier that delivers 3000W RMS of power distributed over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Technical specifications:
- Brand: Soundigital
- Model: 3000.1 EVO 5.0
- Power @ 1 Ohms: N/A
- Power @ 2 Ohms: 1 X 3000W RMS
- Power @ 4 Ohms: 1 X 1980W RMS
- Frequency Response (-3db): 5Hz ~ 25kHz
- Subsonic Filter: 5Hz ~ 80Hz
- Low Pass Filter: 50Hz ~ 1kHz
- Bass Boost: 0dB ~ 12dB @ 50Hz
- Supply Voltage: 8V – 16V
- Signal-to-Noise Ratio: 92dB
- Input Sensitivity: 0.2V ~ 2V
- Music Consumption: 139A
- Consumption with Resistive Load: 277A
- Total Efficiency: 86%
- Damping Factor: >2000
- Power Cable: 35mm² (2AWG)
- Audio Output Cable: 2 x 2.5 mm² (13 AWG)
- Fuse (Musical Use): 150A
- Recommended Battery: 150Ah
- Width: 13.6cm
- Length: 22.8cm
- Height: 5.48 cm
- Weight: 1.75 kg
