Description

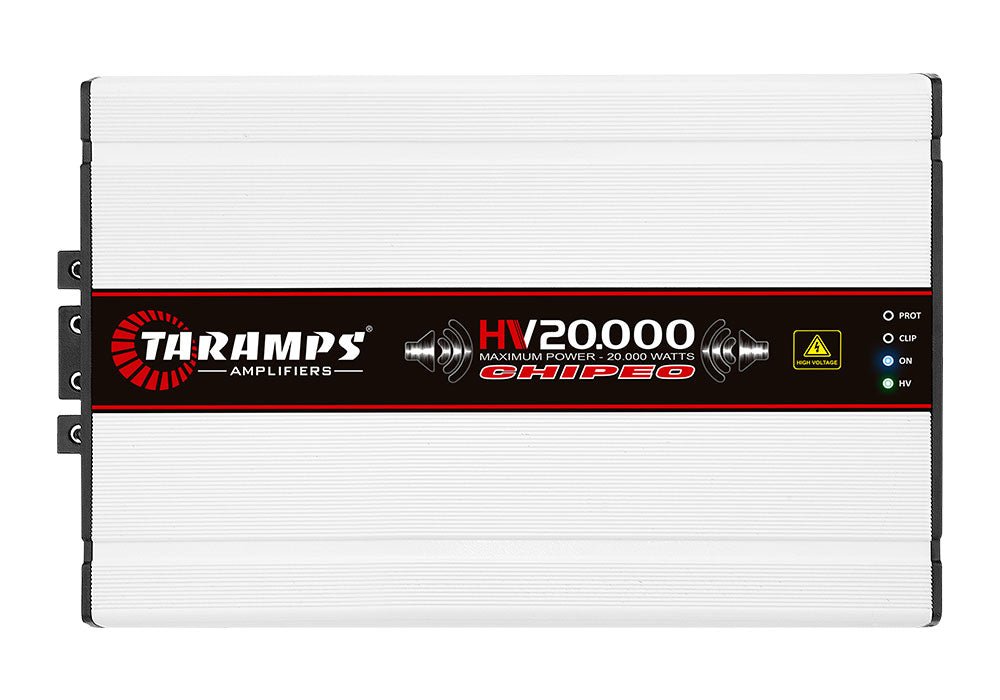

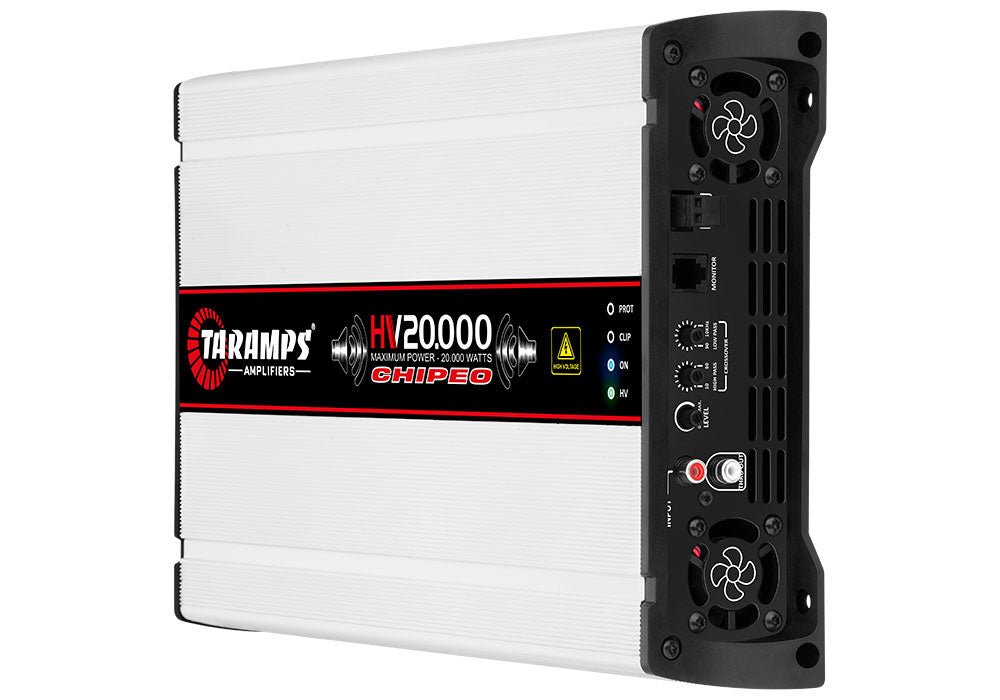

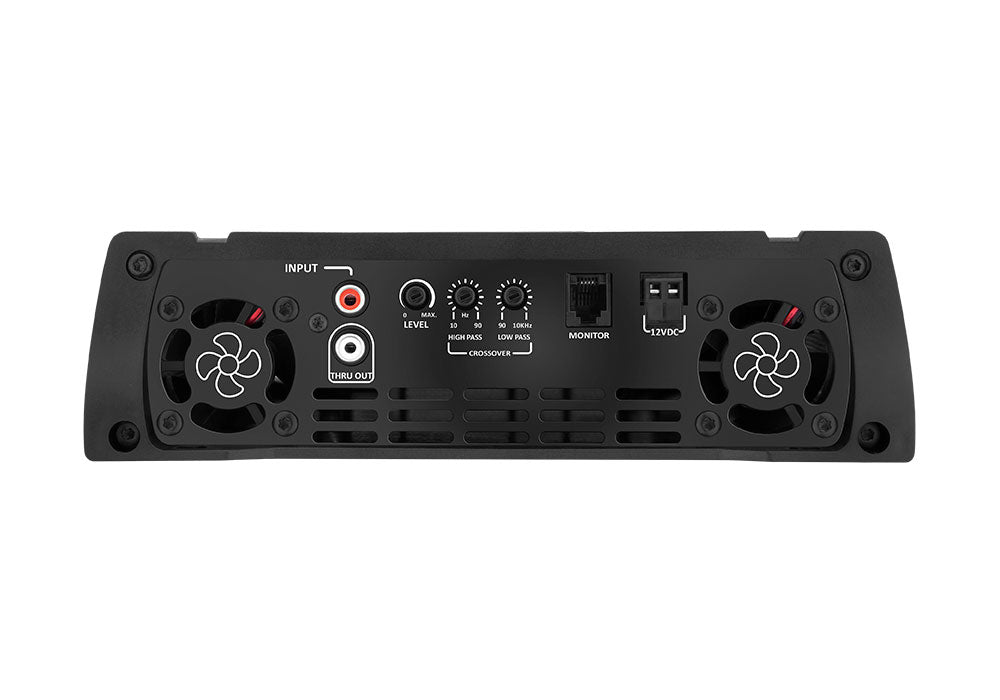

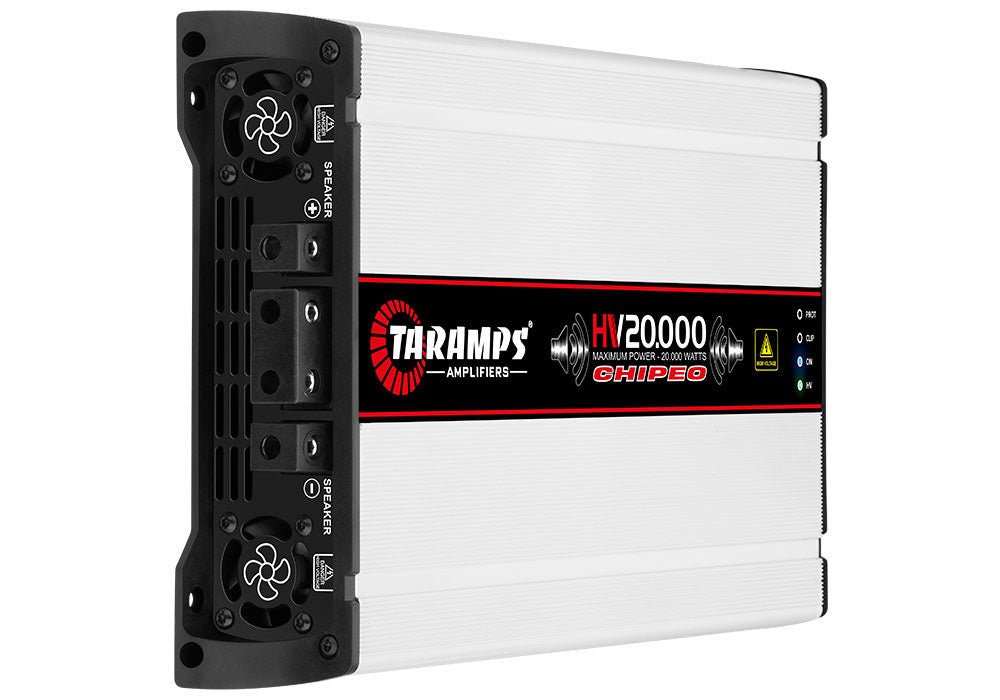

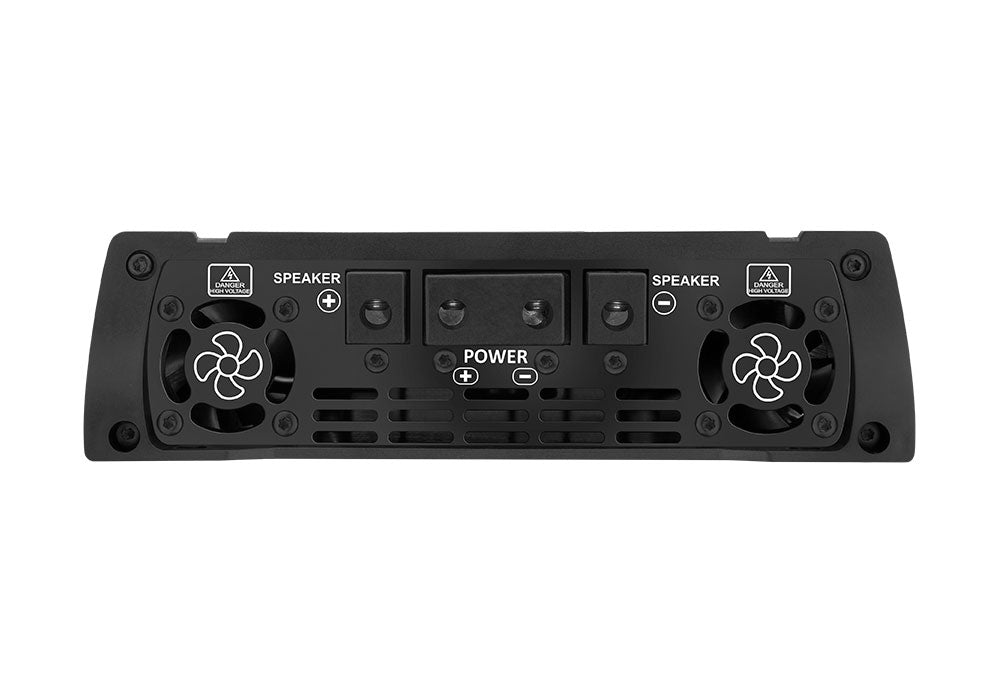

Power, efficiency and high performance are some of the synonyms of this module. It has a maximum power of 20,000 Watts RMS at 0.5 ohm, thermal protection and anti-short-circuit. It is powered by batteries in series, as it uses batteries as its source of power. It is a unique line in its category, delivering extremely high power in mid and large car audio systems. Stands out in quality from sub-bass to mid-highs. High performance in timbres
Description
Power, efficiency and high performance are some of the synonyms of this module. It has a maximum power of 20,000 Watts RMS at 0.5 ohm, thermal protection and anti-short-circuit. It is powered by batteries in series, as it uses batteries as its source of power. It is a unique line in its category, delivering extremely high power in mid and large car audio systems. Stands out in quality from sub-bass to mid-highs. High performance in timbres and audio quality.
| NUMBER OF CHANNELS |
01 |
| OUTPUT VOLTAGE |
164VDC @ 0.5 Ohm - 13 Batteries |
| INPUT SENSITIVITY |
330mV ( Level 100%) @ 0.5 Ohm |
| AUX INPUT STANDARD |
0.2% |
| SIGNAL TO NOISE RATIO |
>98dB |
| FREQUENCY RESPONSE |
10Hz ~ 10KHz (1dB) |
| EFFICIENCY |
91% @ 0.5 Ohm (full power) |
| INPUT IMPEDANCE |
22K Ohms |
| PROTECTION SYSTEM |
Short-Circuit to Output,
Short on output compared to GND,
Low impedance at output,
High/Low supply voltage
Thermal protection** |
| POWER SUPPLY VOLTAGE |
100VDC |
| POWER SUPPLY VOLTAGE |
190VDC |
| CONSUMPTION AT REST |
150mA |
| MAXIMUM MUSIC CONSUMPTION @ 0.5 OHM |
67A |
| MAXIMUM SINUSOIDAL CONSUMPTION @ 0.5 OHM (100HZ) |
134A |
| DIMENSIONS (H X W X D) |
8.98" x 2.52" x 14.09" (228 x 64 x 358mm) |
| WEIGHT |
7.92lb (3.60Kg) |
| MAXIMUM OUTPUT POWER @ 164VDC- 0.5 OHM* |
20.000W RMS |
| EAN |
7898556845007 |
