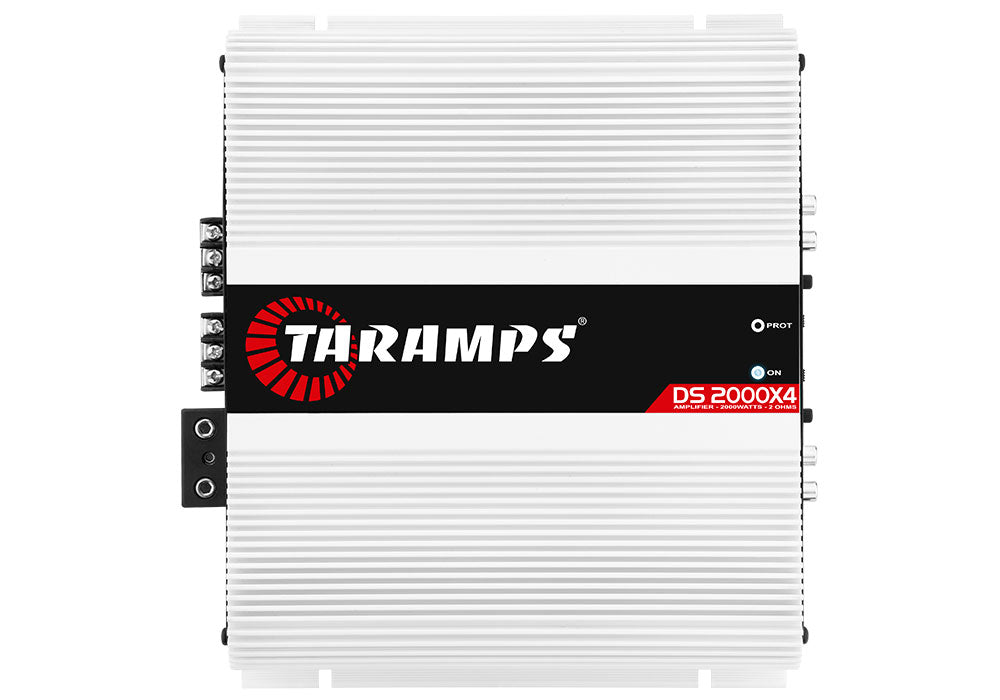

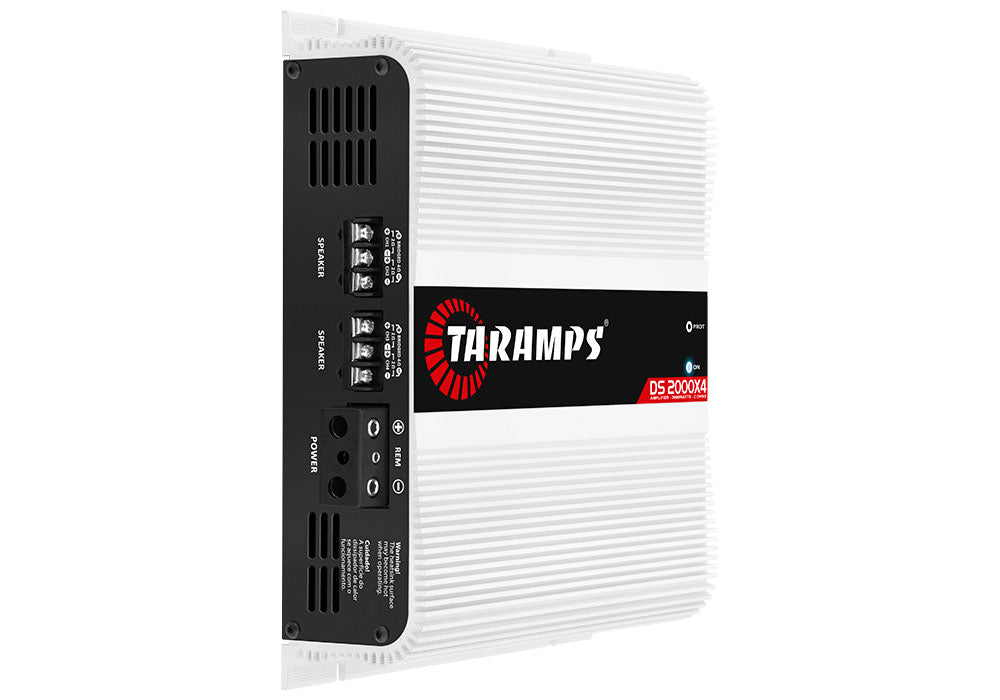

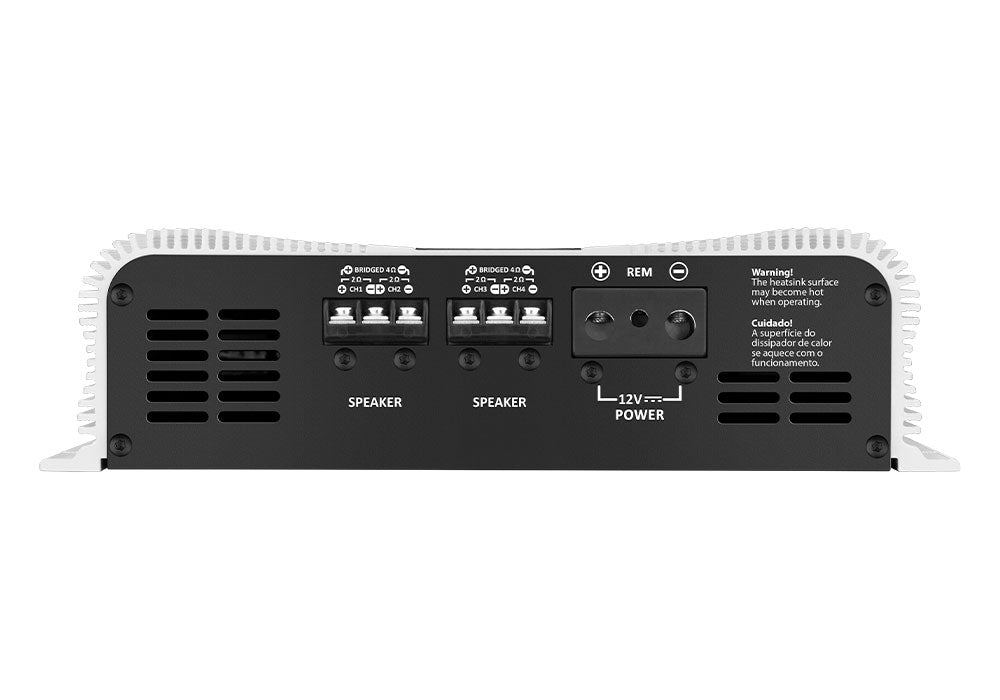

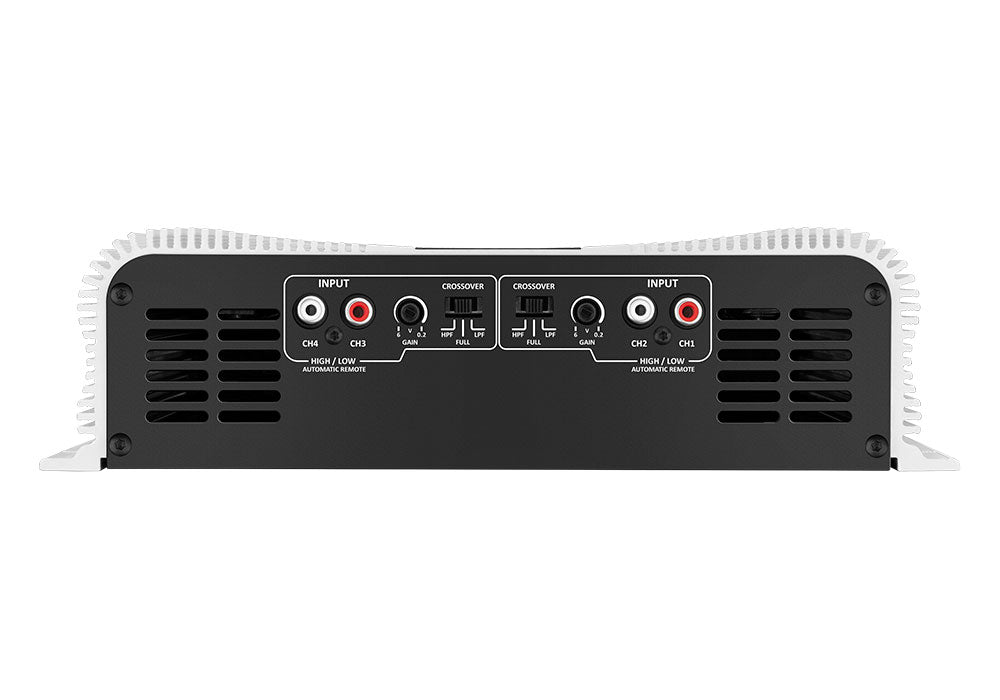

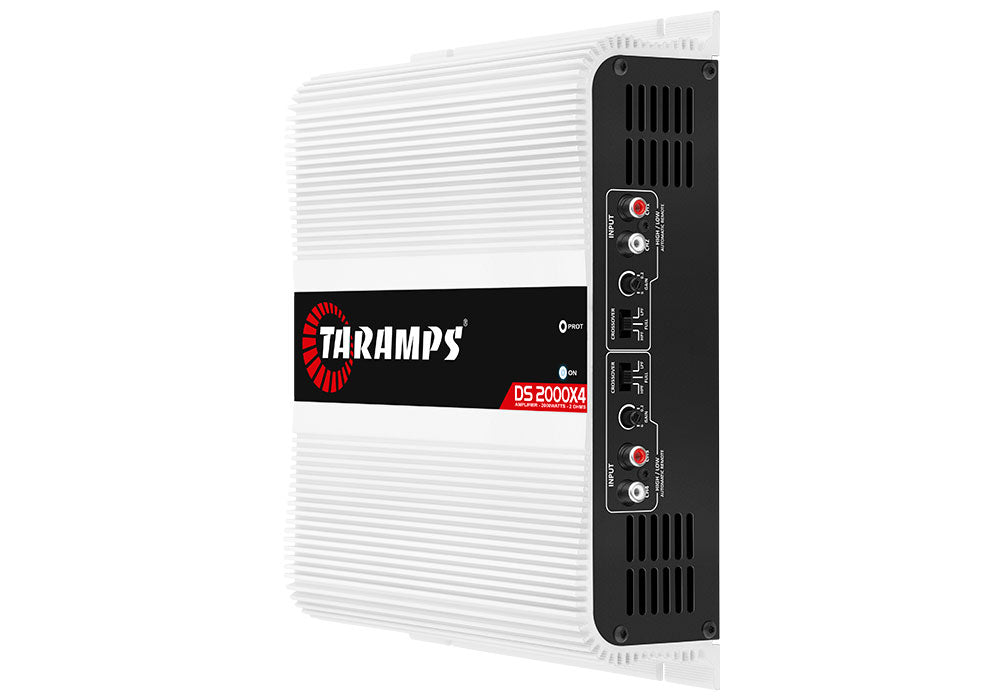

The DS 2000×4 is a Taramps multi-channel amplifier, carefully designed with the latest technology. It features 4 channels of 500 Watts RMS each, with maximum power of 2000 Watts RMS altogether, at 2 ohms and is suitable for any frequency, that is to say, it is FULL RANGE. Versatility, efficiency and quality in a single Taramps product.
| OPERATION CLASS |
D |
| NUMBER OF CHANNELS |
04 |
| MAXIMUM POWER |
@ 14.4 VDC - 2 Ohms: 2000W RMS (4 x 500W RMS)
@ 14.4 VDC - 4 Ohms: 1300W RMS (4 x 325W RMS)
2 Bridged Channels (2 x 1000WRMS) at 4 Ohms |
| INPUT SENSITIVITY |
250mV |
| SIGNAL TO NOISE RATIO |
>86dB |
| FREQUENCY RESPONSE |
8Hz~20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) |
90Hz (-12dB/8a) Fixed |
| CROSSOVER LOW PASS (LPF) |
90Hz (-12dB/8a) Fixed |
| INPUT IMPEDANCE |
18K Ohms |
| PROTECTION SYSTEM |
Output Overload |
| MIN. SUPPLY VOLTAGE |
9VDC |
| MAXIMUM POWER SUPPLY VOLTAGE |
17VDC |
| CONSUMPTION AT REST |
2.2A |
| MAXIMUM MUSIC CONSUMPTION |
100A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
200A |
| DIMENSIONS (WXHXD) |
10,55" x 2,83" x 9,64" (268 x 72 x 245mm) |
| WEIGHT |
7,42lbs (3,37Kg) |
| EAN |
7898556847902 |
