Description

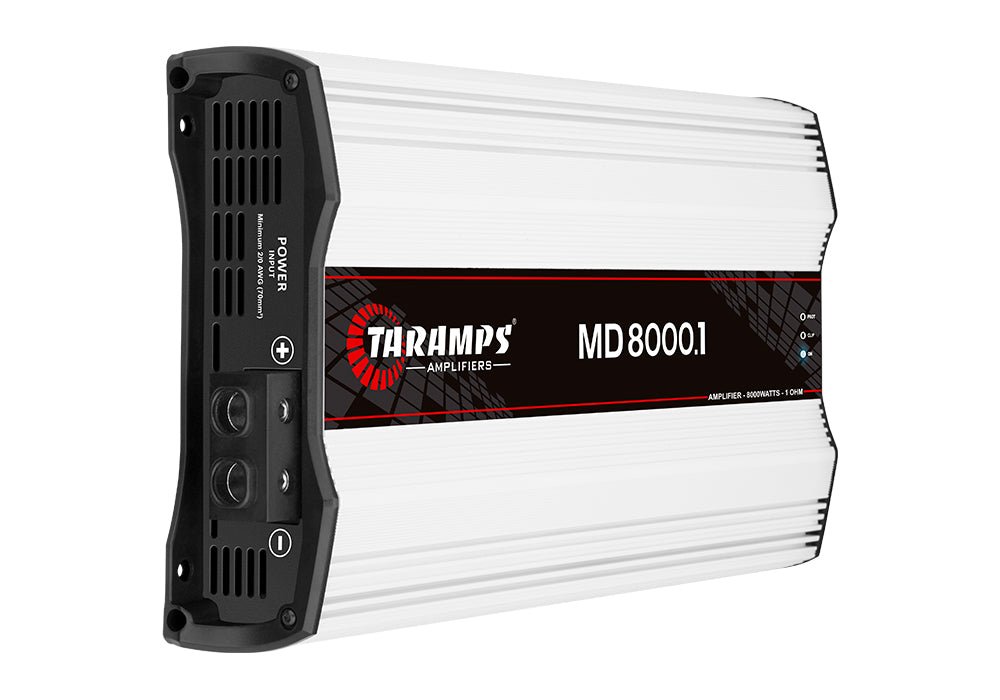

Taramps presents the MD 8000.1 amplifier module in the 1,2 ohms version. It was carefully developed with the highest technology, offering high performance and performance for the most varied automotive sound systems, meeting the entire frequency range, in other words, it is a FULL RANGE module (10Hz ~10KHz(-3dB). amplifier classified as mono, has a channel with maximum power of 8000 Watts RMS. Welcome to the sound world of Taramps.
TECHNICAL INFORMATION
OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12.6 VDC - 1 OHM: 8000W RMS
@ 12.6 VDC - 2 OHMS: 5120W RMS
INPUT SENSITIVITY 220mV
SIGNAL/NOISE RATIO >90dB
FREQUENCY RESPONSE 10Hz ~10KHz(-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~90Hz(-12dB/8th) Variable
CROSSOVER LOW PASS (LPF) 90Hz ~10KHz(-12dB/8th) Variable
BASS BOOST Freq.: 35Hz ~55Hz
Boost: 0~10dB(50Hz)
EFFICIENCY 85%
INPUT IMPEDANCE 22K OHMS
OUTPUT IMPEDANCE 1 Ohm
PROTECTION SYSTEM Output Short, Output Short to GND, Low Impedance Protection, High/Low Voltage Protection and Thermal Protection.
9VDC MINIMUM SUPPLY VOLTAGE
MAXIMUM SUPPLY VOLTAGE 16VDC
CONSUMPTION AT REST 2A
MAXIMUM MUSIC CONSUMPTION 373.40A
MAXIMUM CONSUMPTION IN SINUSUAL SIGNAL 746.90a
DIMENSIONS (LXAXP) 228 x 70 x 419mm
WEIGHT 6.10Kg
EAN 7898556844468
TECHNICAL INFORMATION
OPERATION CLASS Class D
NUMBER OF CHANNELS 01
MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 8000W RMS
@ 12.6 VDC - 4 OHMS: 5120W RMS
INPUT SENSITIVITY 220mV
SIGNAL/NOISE RATIO >90dB
FREQUENCY RESPONSE 10Hz ~10KHz(-3dB)
CROSSOVER HIGH PASS (HPF) 10Hz ~90Hz(-12dB/8th) Variable
CROSSOVER LOW PASS (LPF) 90Hz ~10KHz(-12dB/8th) Variable
BASS BOOST Freq.: 35Hz ~55Hz
Boost: 0~10dB(50Hz)
EFFICIENCY 87%
INPUT IMPEDANCE 22K OHMS
OUTPUT IMPEDANCE 2 OHMS
PROTECTION SYSTEM Output Short, Output Short to GND, Low Impedance Protection, High/Low Voltage Protection and Thermal Protection
9VDC MINIMUM SUPPLY VOLTAGE
MAXIMUM SUPPLY VOLTAGE 16VDC
CONSUMPTION AT REST 2.5A
MAXIMUM MUSIC CONSUMPTION 364.90A
MAXIMUM CONSUMPTION IN SINUSUAL SIGNAL 729.80A
DIMENSIONS (LXAXP) 228 x 70 x 419mm
WEIGHT 6.10Kg
EAN 7898556844406
