Details

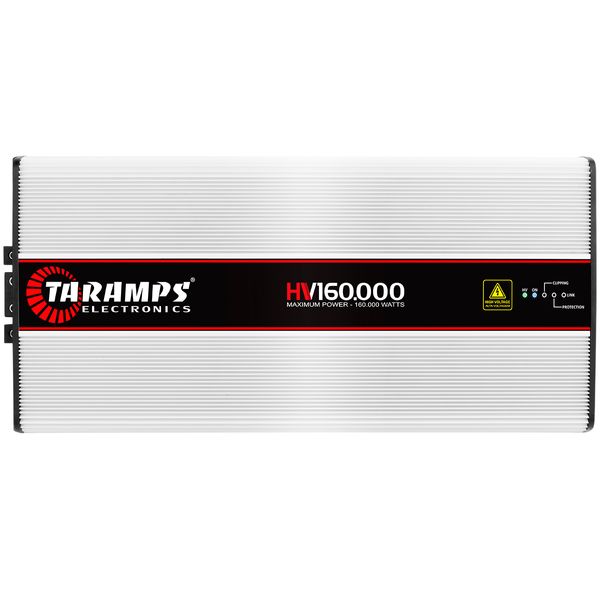

The car sound monster ! Simply the strongest Taramps ever made to date.With 0.25 Ohms of final impedance and operation at 300 volts, resulting in the connection of batteries in series, this module is capable of generating an incredible 160,000 Watts RMS of power!It has low harmonic distortion and a frequency response ranging from 5 Hz to 15 Khz. It has variable Crossovers at 12dB/8A, to precisely regulate the sound system.
Additional Information
| Product SKU Code |
1307600 |
| Availability |
Made to Order - Add 5 to 15 business days to delivery time |
| Module Application |
For subs and woofers |
| Channels |
1 Mono Channel |
| Operation Class |
Digital
Class D
|

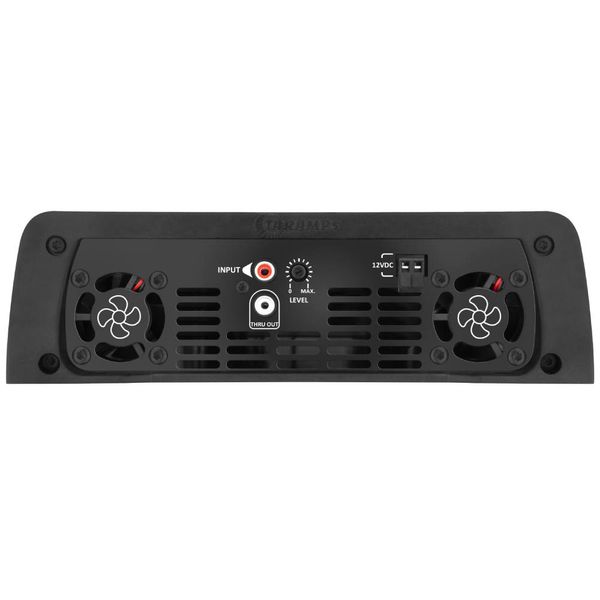

| RCA connections |
two |
| Maximum musical consumption (A) |
280 |
| Maximum sinusoidal consumption (A) |
560 |
| consumption at rest |
125mA |
| Frequency Response (Hz) |
10Hz - 15000Hz |
| Ω impedance |
0,5 Ohms |
| Bridge impedance Ω |
Does not accept bridge |
| Led Clip |
Yes |
| Actual Power per Channel (Watts RMS) |
160000 |
| True Power per Channel with Double Impedance (Watts RMS) |
80000 |
| Total Real Power (Watts RMS) |
160000 |
| Signal-to-noise ratio (dB) |
95 |
| protection systems |
High Voltage
Heating
Low Voltage
Short Circuit at Output
|
| Input Voltage |
High voltage |
| THD (Total Harmonic Distortion) |
0.2% |
| Approximate Product Weight (kg) |
7.64 |
Included Items
1 Taramps Digital Amplifier Module T-160 KW High Voltage - 160000 Watts RMS Manual
Box
