Usina Smart 240A Automotive Source Digital Spark Power Plant 240A Smart Bivolt Voltmeter

Description

Details

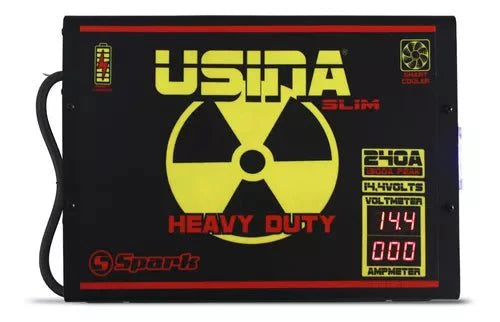

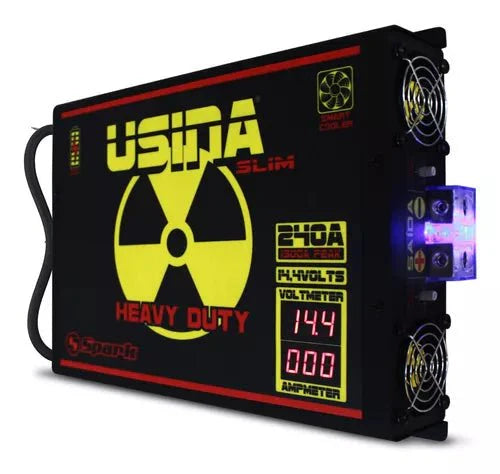

A product of excellent quality, the Automotive Power Supply Digital Spark Usina 240 Amperes 14.4 V – Bivolt - Integrated Voltmeter is another member of the Usina family.
With its nominal output of 160 amps, the output voltage is 12.5 to 14.4 volts (adjustable) and the input voltage is 100 to 250 Vac (Bivolt). In addition, this source already comes with an integrated voltmeter, for greater control of the electric current.
Spark is one of the leading manufacturers of automotive sources, as it produces excellent quality equipment with great components.
Leadership and quality available for your needs in automotive sound systems.



Additional Information

Product SKU Code 1337600
Availability Immediate dispatch
Recommended Gauge (mm²) 50
Maximum consumption (A) 34A 110V - 24A 220V
Output Current 240A
Recommended generator (KVA) 4 KVA or greater
Voltage Adjustment Yes
Total input power (Watts) 3600
Output Power (Watts) 3000
Performance % 85
Adjustable Output Current Yes
Input Voltage bivolt
Output Voltage 12,5V a 14,4V
Approximate Product Weight (kg) 4.75
Technical specifications
Product SKU: 1337600

Input Voltage: Bivolt
AC 127Vca: 100 @ 140Vca
AC 220Vca: 180 @ 250Vca
Consumption 127Vca: 34A Maximum
Consumption 127Vca: 24A Maximum
Output Voltage: 12.5 to 14.4 volts adjustable
Output Current: 240A @ 12.5V Output Power :
3000 Watts
Efficiency: 85%
Input Power: 3600 Watts
Input Cable: 3x2. : 32 x 28 x 65 Recommended generator: 4Kva or greater



Included Items
Fonte
Manual
Adesivo
Guarantee
12 months
