Description

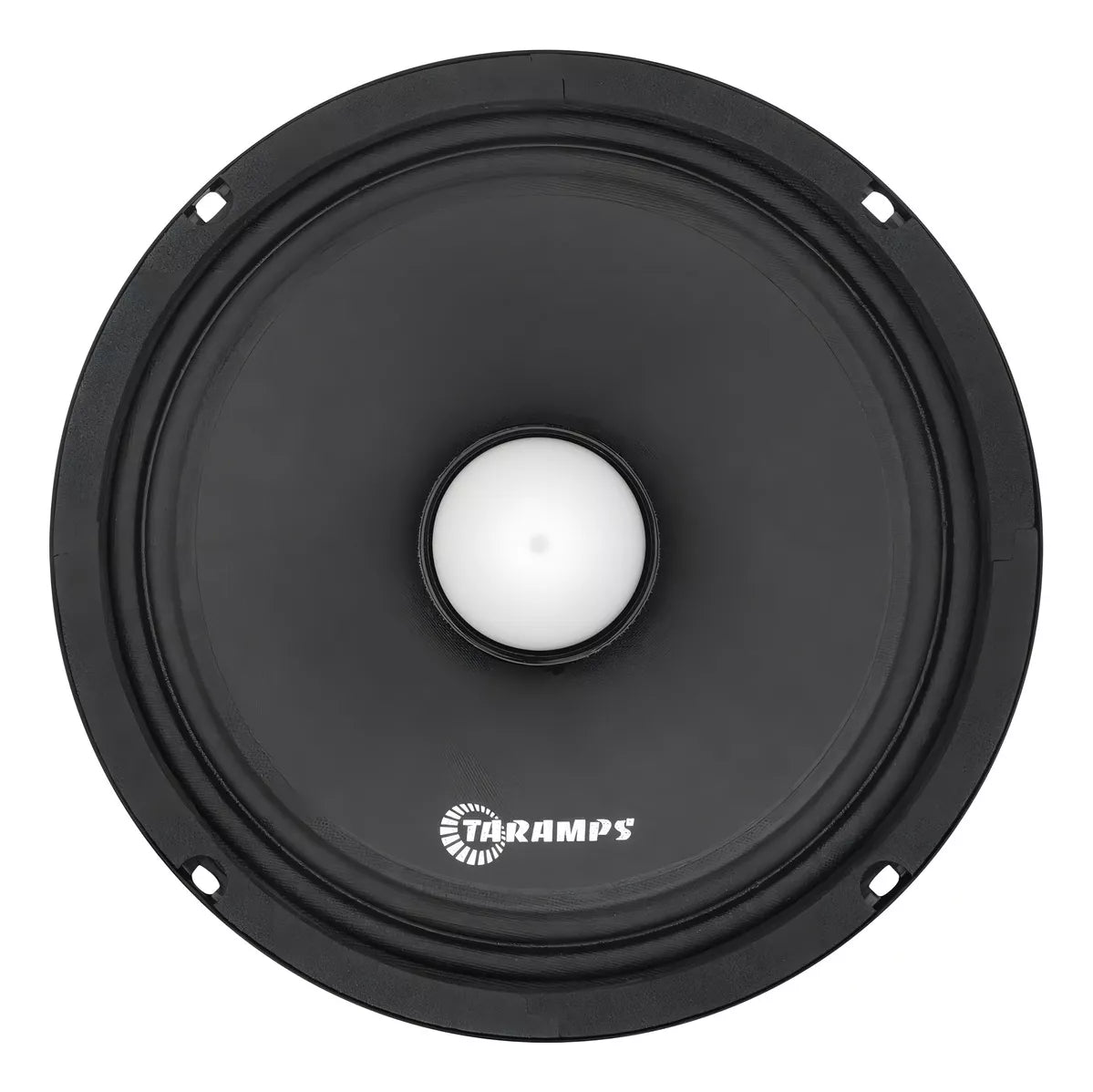

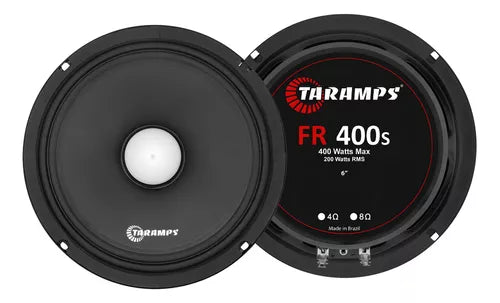

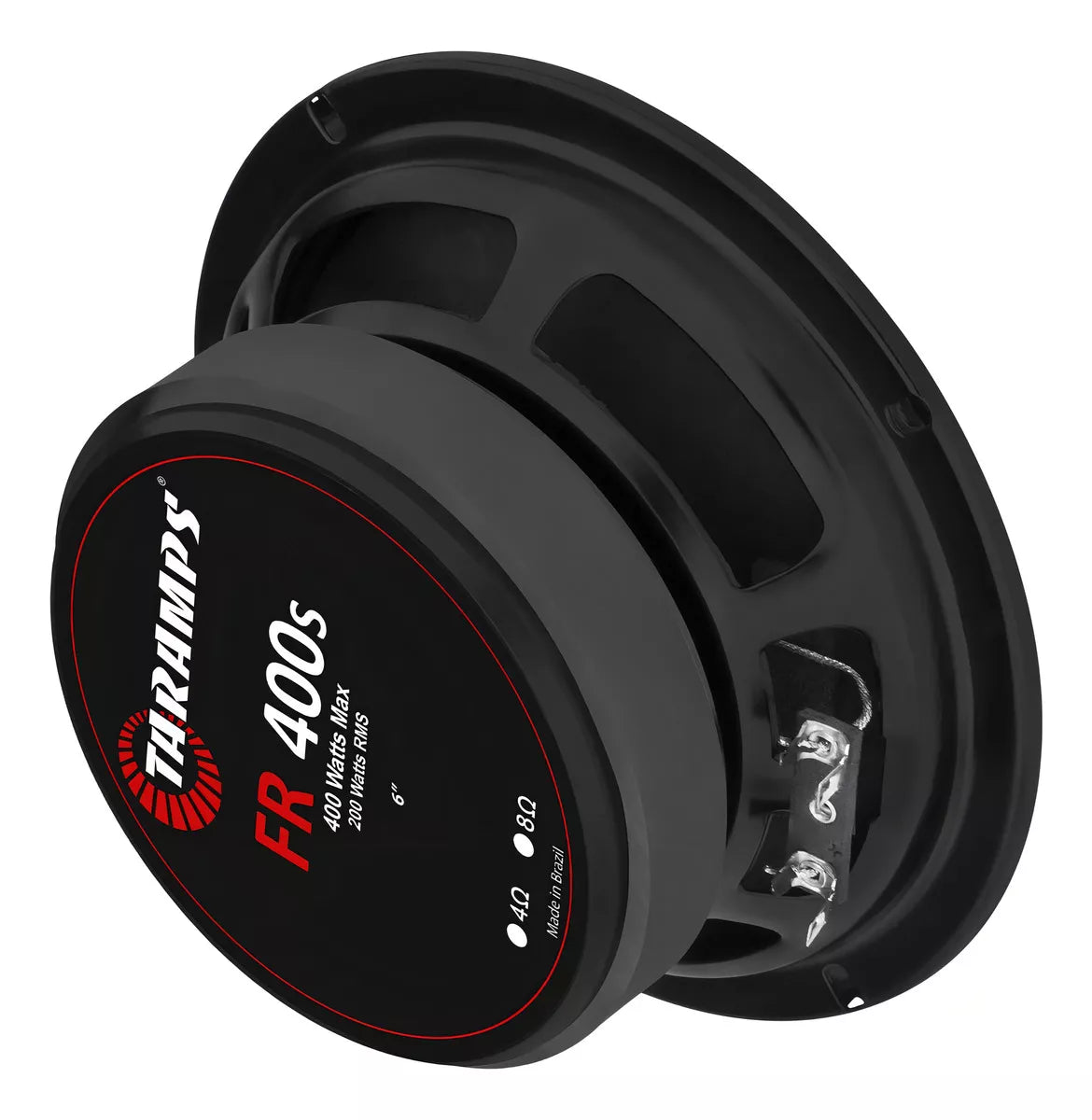

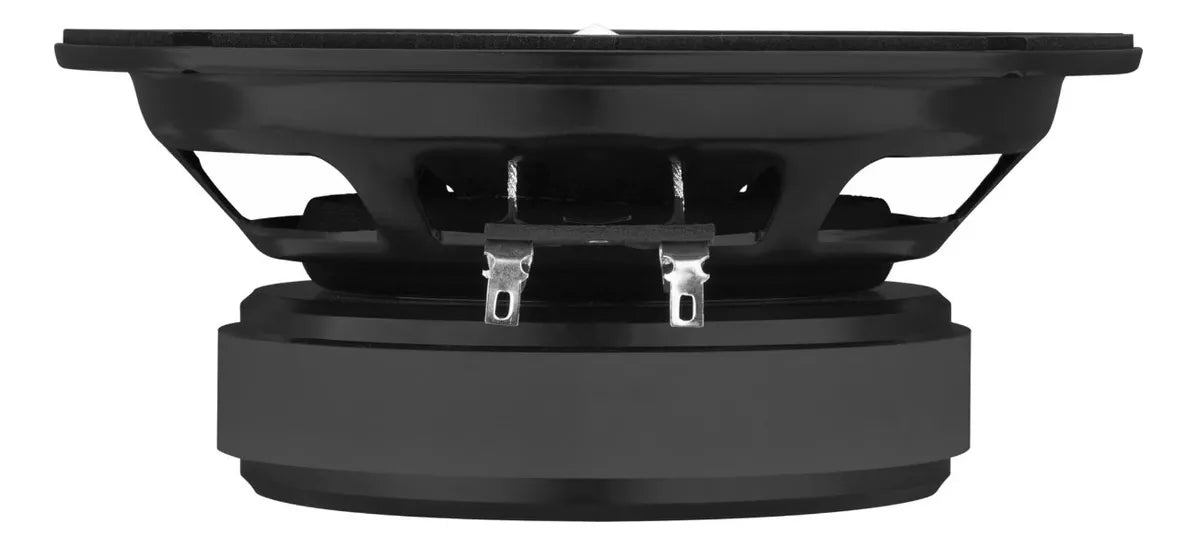

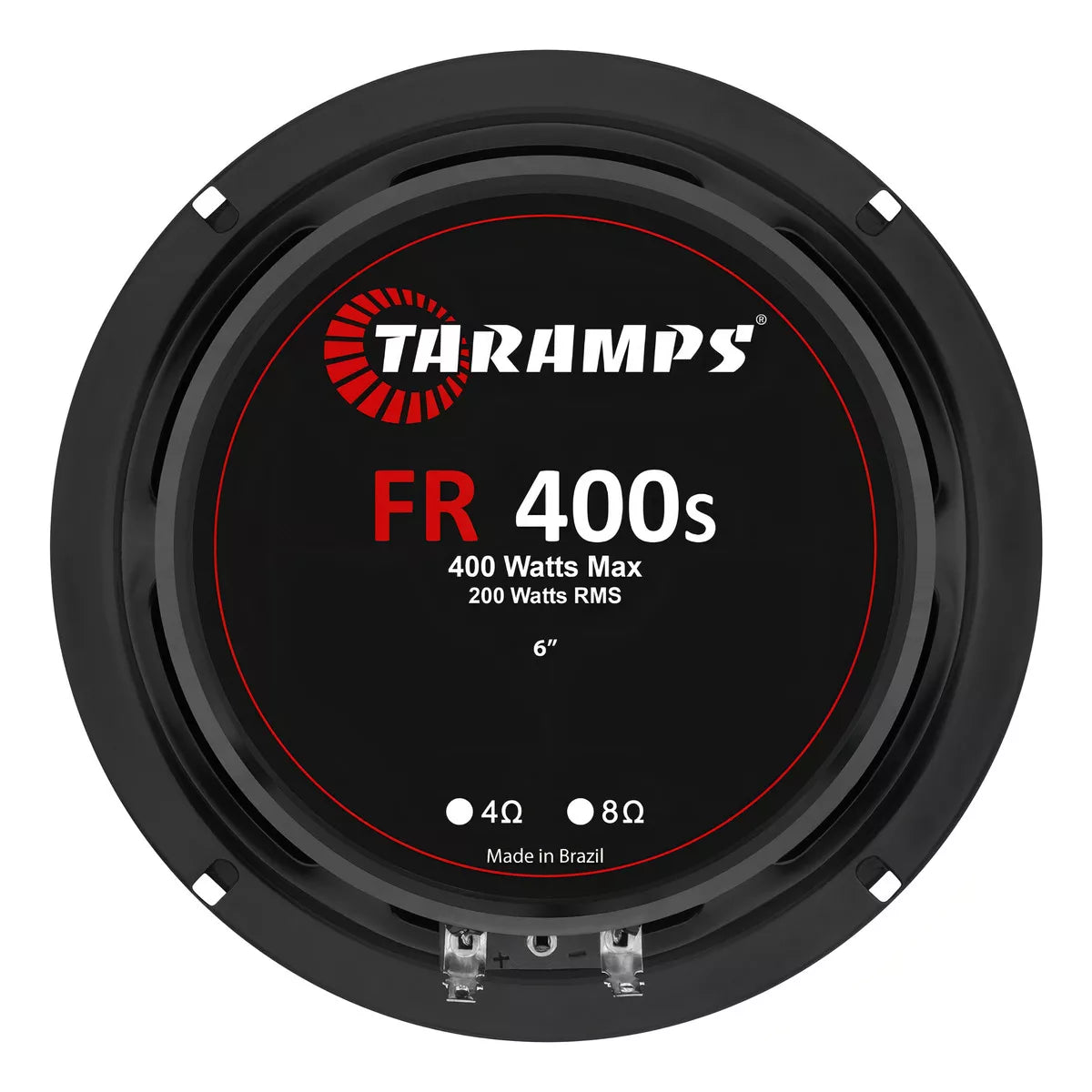

The FR-400S is a 6-inch speaker with a nominal impedance of 4 ohms, designed to deliver outstanding performance across a wide frequency range, from mid-bass to highs, in sound systems. The precise selection of its components ensures a broad frequency response.

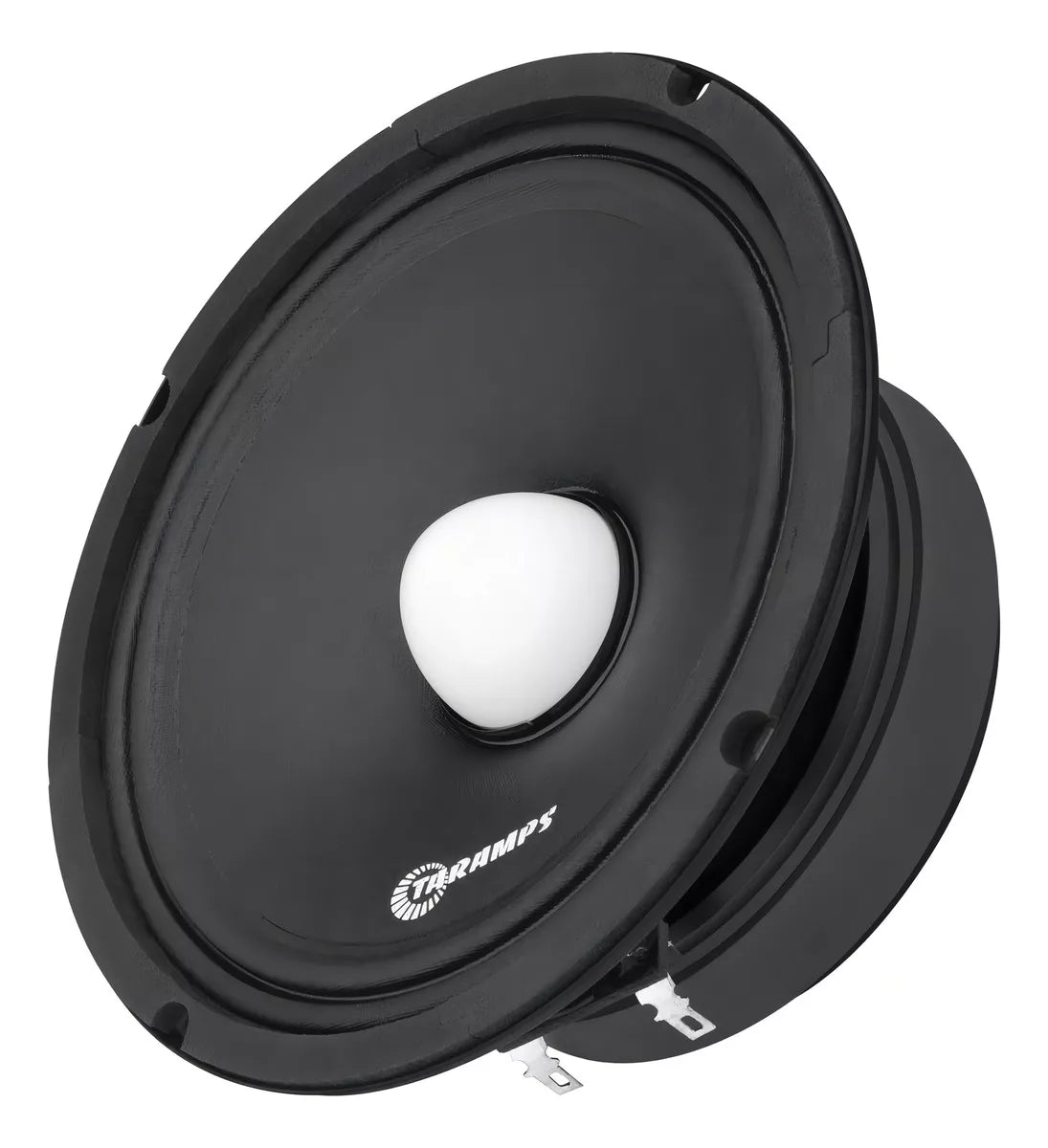

One of this model's key features is the replacement of the traditional dust cap with a phase plug at the pole center, providing cleaner and more defined high-frequency reproduction. Additionally, it reduces harmonic distortion and enhances voice coil ventilation, allowing it to operate at lower temperatures, which contributes to greater durability and superior performance.
Technical Specifications:
-
RMS Power: 200 W
-
Nominal Impedance: 4 Ohms
-
Voice Coil Electrical Resistance: 3.1 / 6.2 ohms/VCC
-
Efficiency Reference (NO): 2.193%
-
Sensitivity (@ 1W, 1M - FREE-AIR): 95.428 dB
-
Diaphragm Mass (MMD): 6.842 g
-
Total Mass (MMS): 7.871 g
-
BL Product: 5.917 TM
-
Mechanical Q (QMS): 3.530
-
Electrical Q (QES): 0.464
-
Total Q (QTS): 0.410
-
Compliance (CMS): 287.149u M/N
-
Equivalent Volume (VAS): 8.860 L
-
Frequency Response: 100 Hz to 6,000 Hz
-
Resonance Frequency: 105.862 Hz
-
LE @ 10 kHz (Voice Coil Inductance at 10 kHz): 0.2008 mH
-
Effective Cone Area (SD): 0.0147 Sq.m
-
Cone Excursion without Distortion (X MAX): ±4 mm
-
Flux Density in GAP: 11,850 GAUSS
-
Nominal Diameter: 6 Inches
-
Ferrite Dimensions: 115 x 56 x 18 mm
-
Voice Coil Diameter: 1 1/2 Inches
-
Voice Coil Height: 10.5 mm
-
Voice Coil Wire Material: CCAW
-
Voice Coil Wire Section: Round
-
Voice Coil Former: Kapton®
-
GAP Height: 6 mm
-
Frame Material: Steel
-
Ferrite Material: Barium
-
Weight: 1.96 kg
-
Cabinet Occupied Volume: 0.60 liters
Recommendations:
Before installation, verify the product’s compatibility with your existing equipment. For optimal performance and safety, it is highly recommended that the installation is carried out by a qualified professional.
