Description

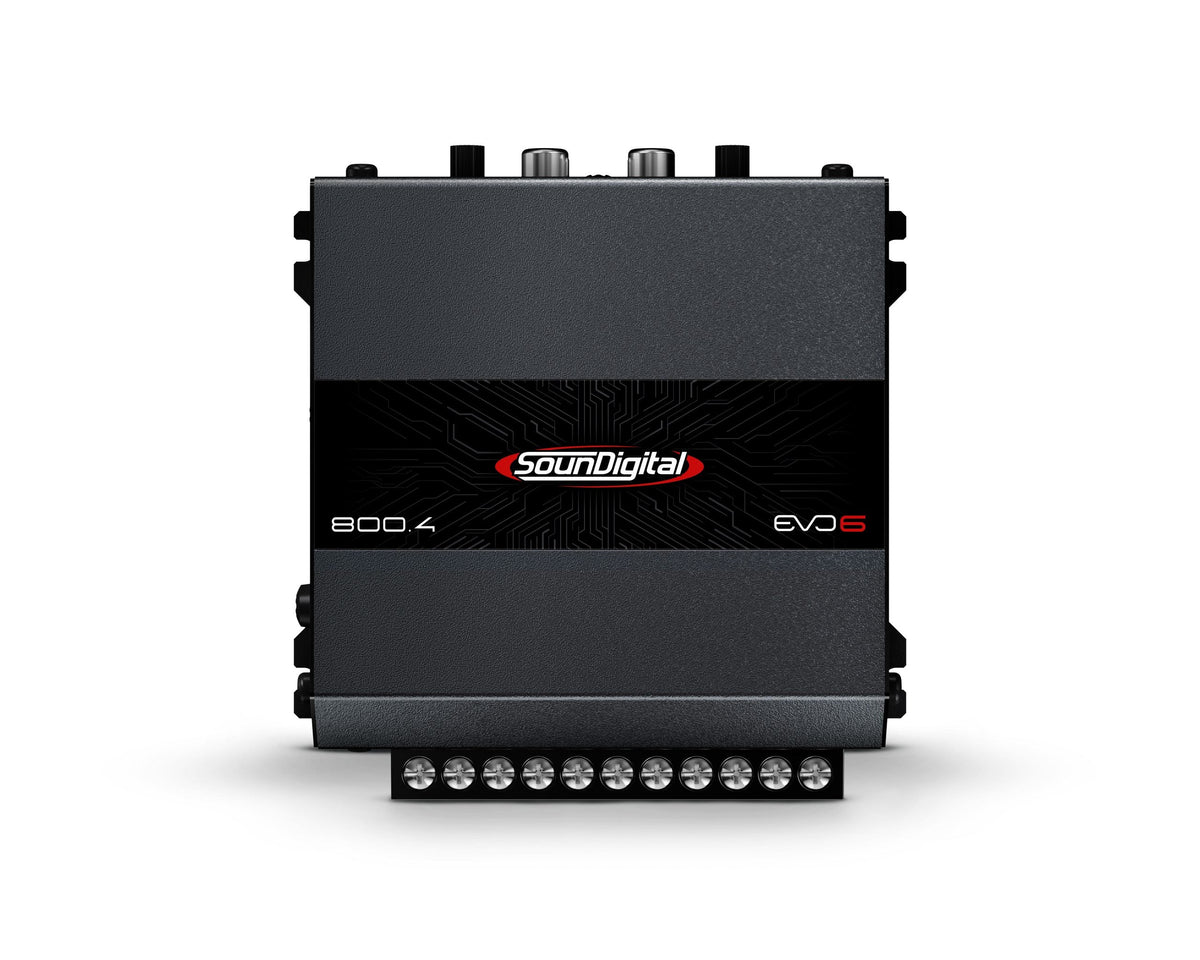

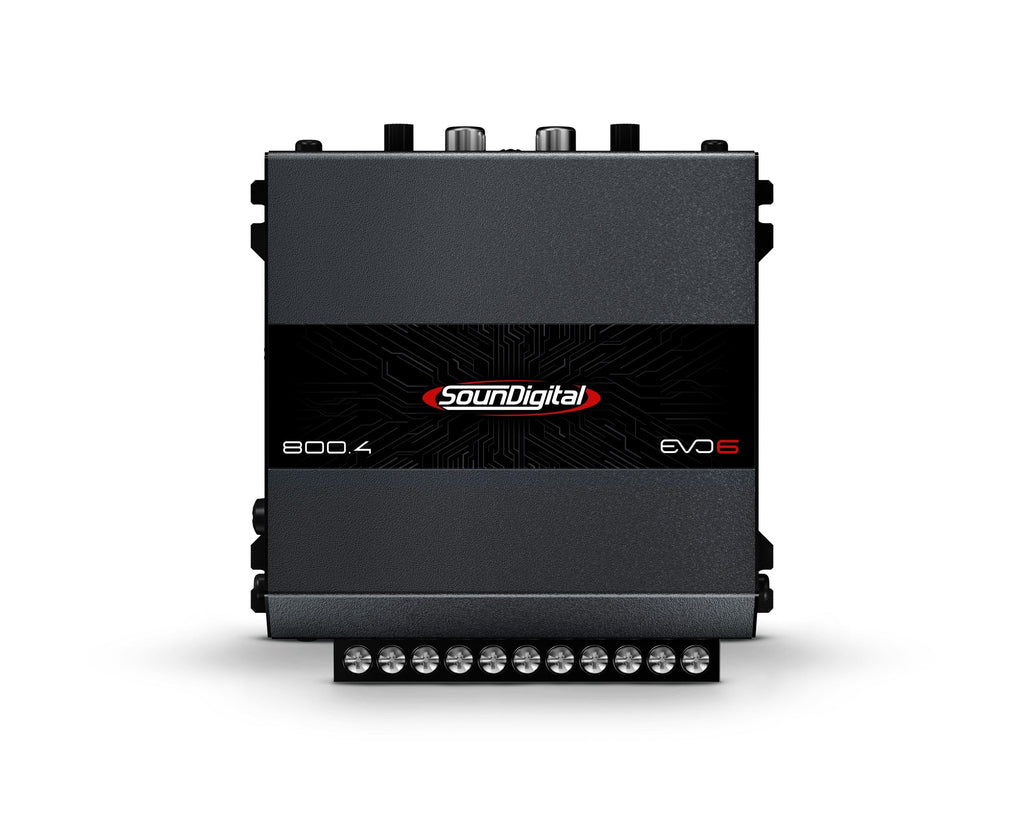

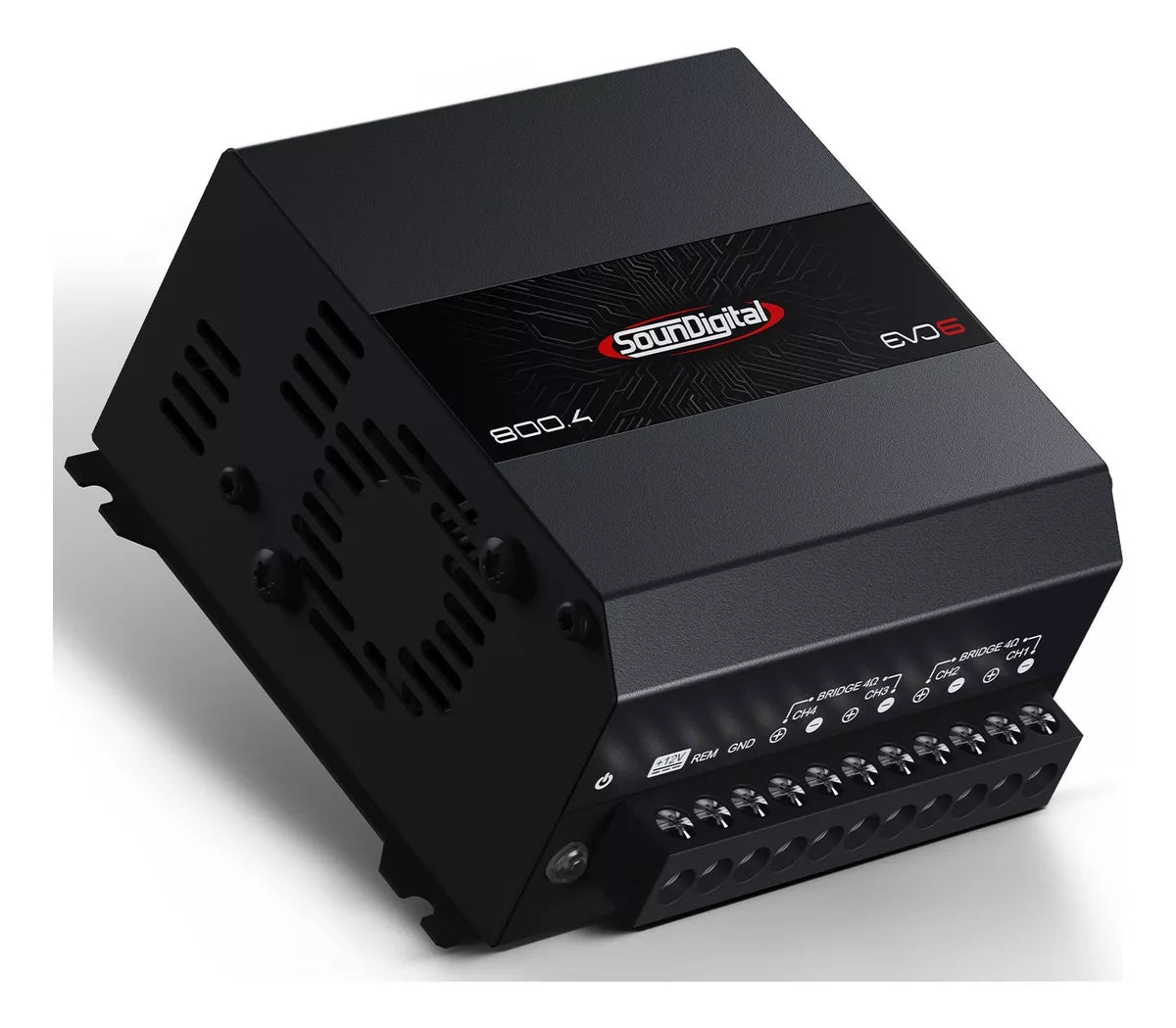

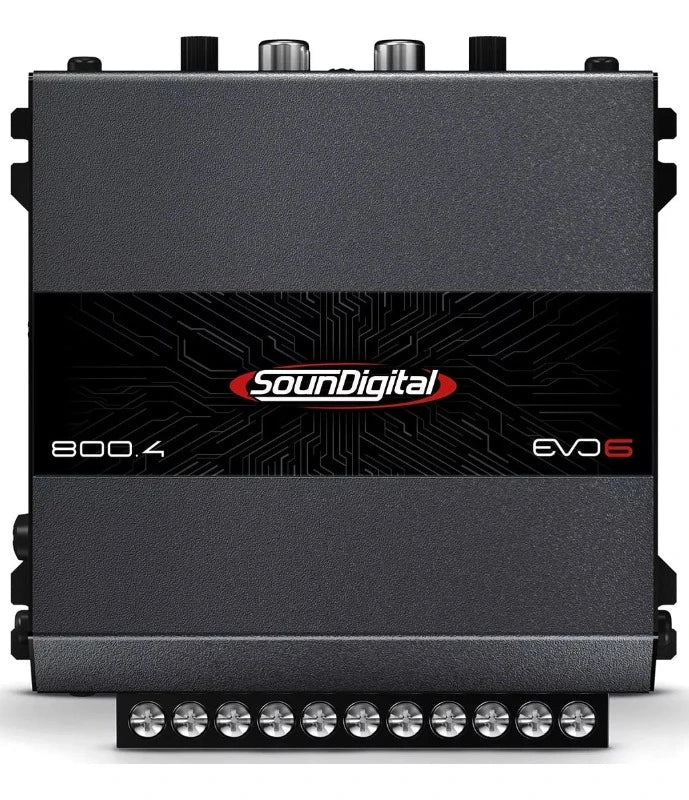

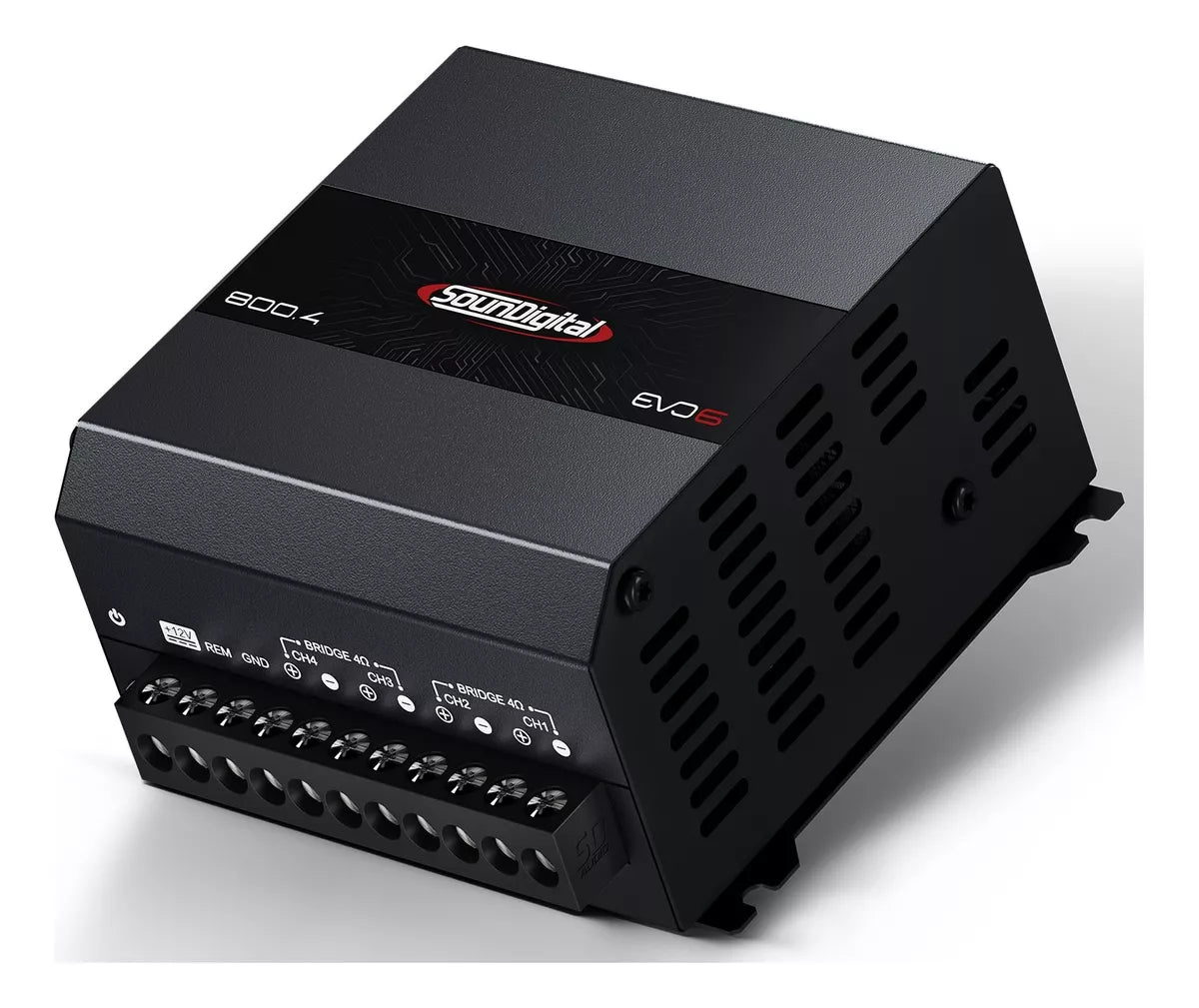

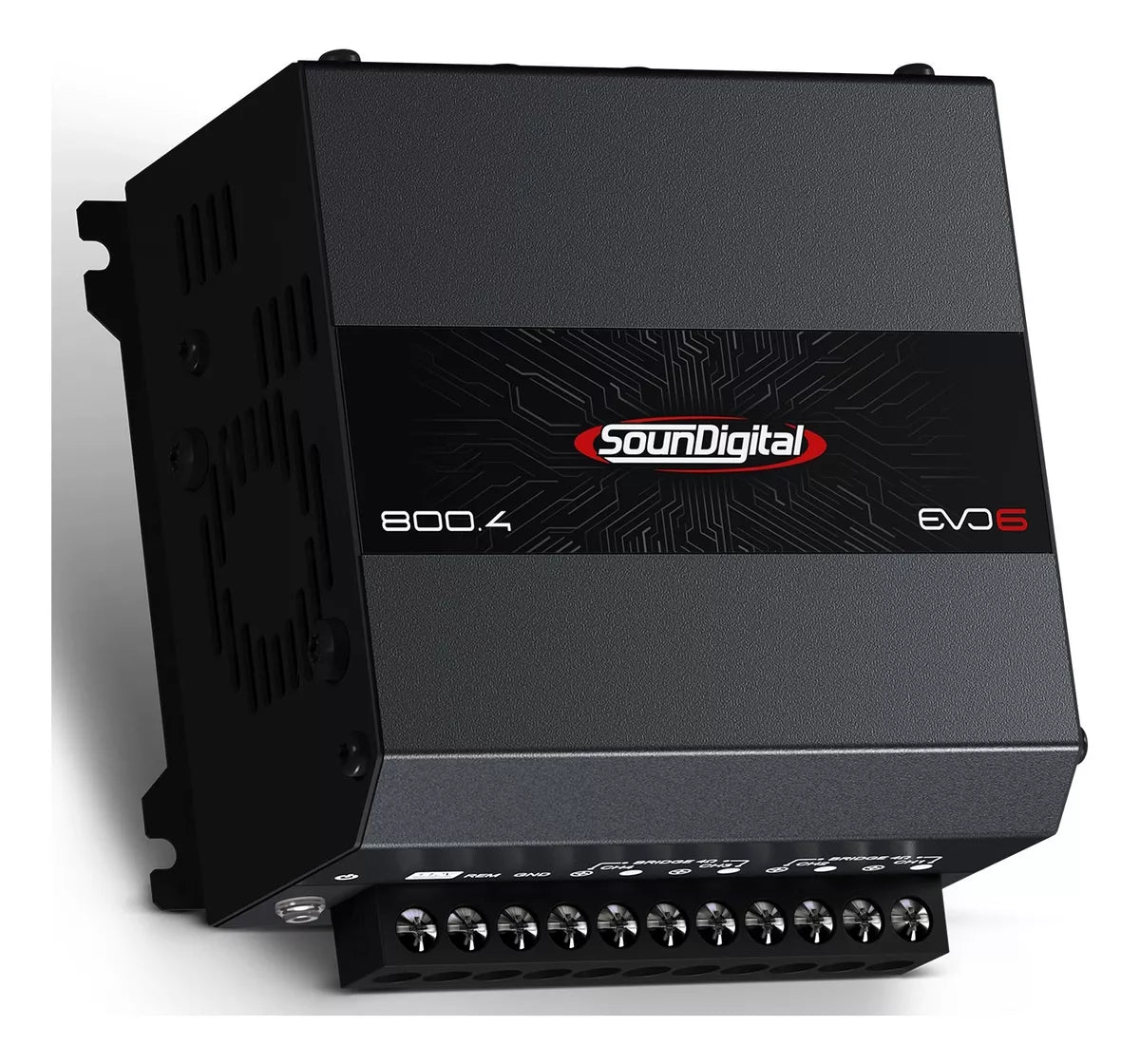

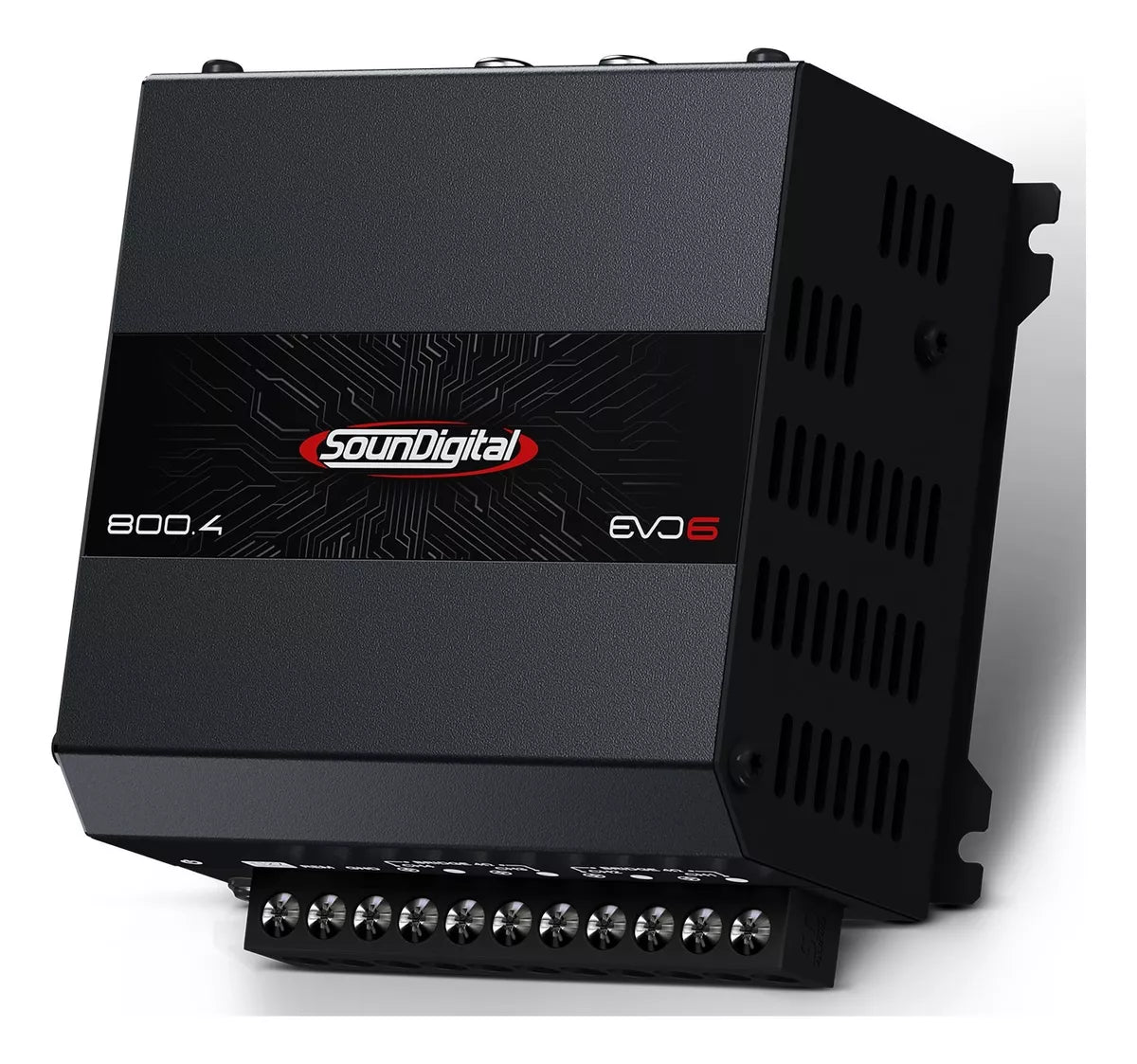

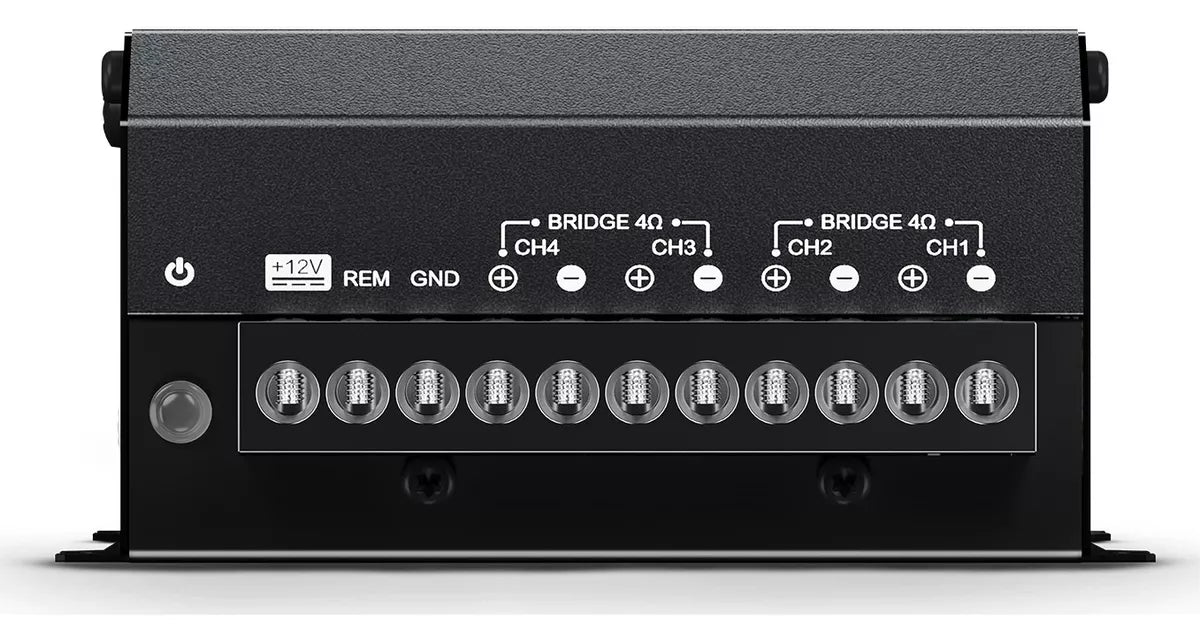

The 800.4 EVO6 is an ultra-compact and modern amplifier designed to deliver a total power of 800W RMS across 4 channels. With patented, exclusive technologies, this amplifier provides a cleaner and more accurate sound experience, ensuring excellent performance and high efficiency for demanding audio projects.
Available in 4-ohm version.
General Specifications:
800.4 EVO6 – 4 OHMS
-
Power @ 4Ω: 4 x 132W RMS
-
Power @ 2Ω: 4 x 200W RMS
-
Bridge Power @ 4Ω: 2 x 400W RMS
-
Bridge Power @ 2Ω: N/A
-
Frequency Response (-3dB): 5Hz ~ 20kHz
-
Low-Pass Filter (12dB/octave): 80Hz
-
High-Pass Filter (12dB/octave): 80Hz
-
Operating Voltage: 9V ~ 16V
-
Signal-to-Noise Ratio: 93dB
-

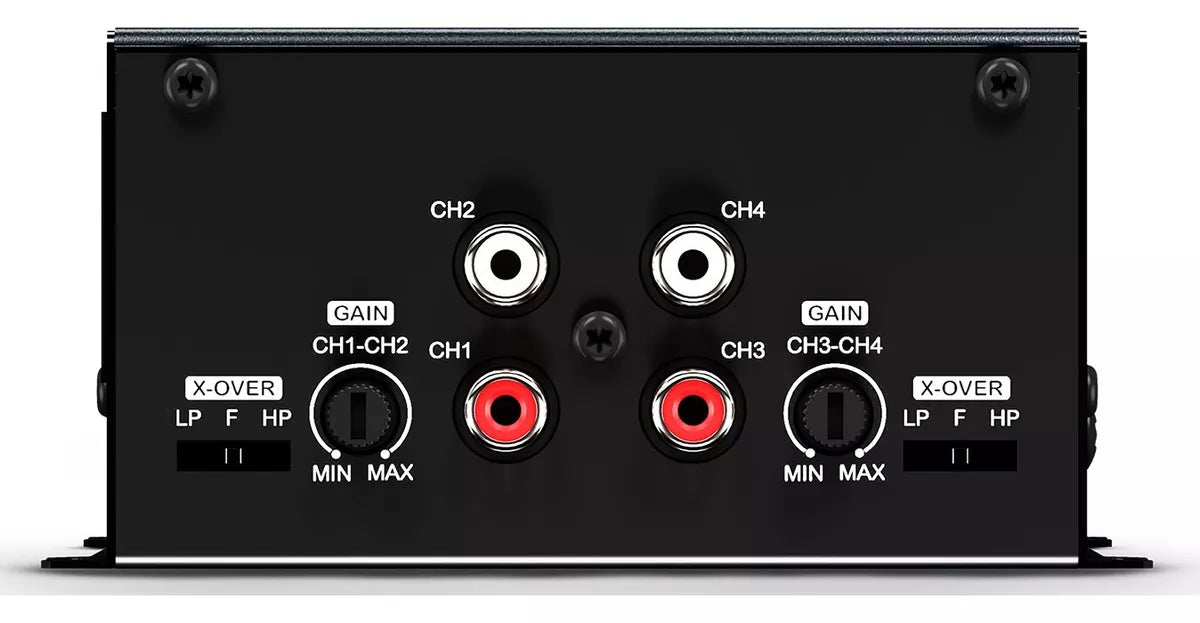

Input Sensitivity (RCA): 0.2V ~ 2V
-
Music Power Consumption: 39A
-
Resistive Load Consumption: 78.7A
-
Total Efficiency: 80%
-
Damping Factor (@100Hz nominal impedance): 200
-
Power Cable: 10mm² (7 AWG)
-
Speaker Cable: 2 x 2.5mm² (13 AWG)
-
Recommended Fuse (musical use): 40A
-
Recommended Battery (minimum): 60Ah
-
Dimensions:
- Width: 11.2 cm
- Length: 10.7 cm
- Height: 5.2 cm
-
Weight: 0.609 kg
