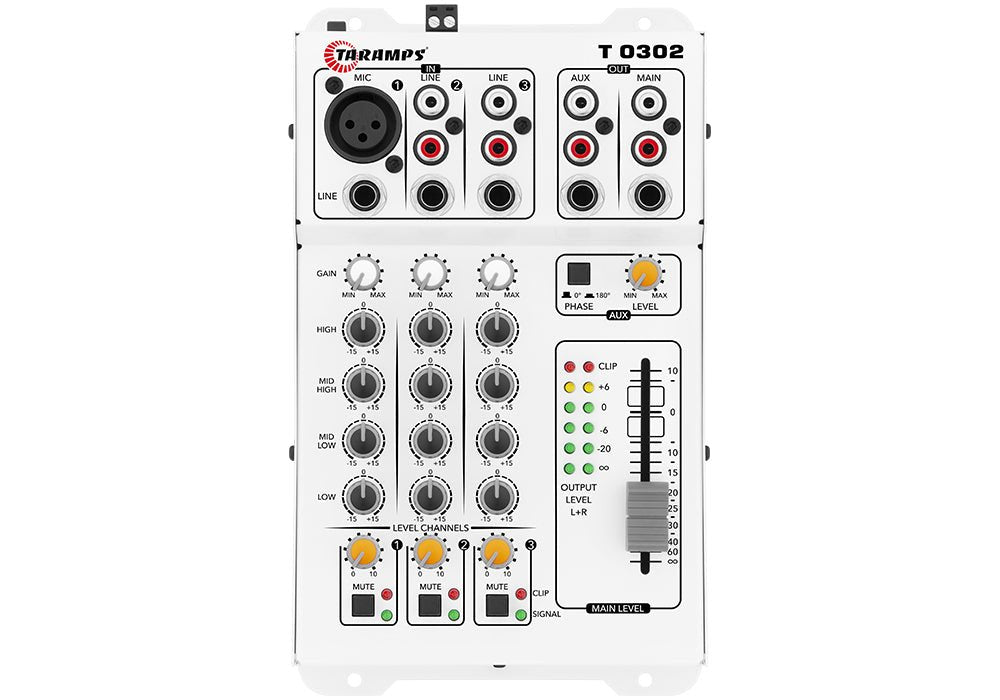

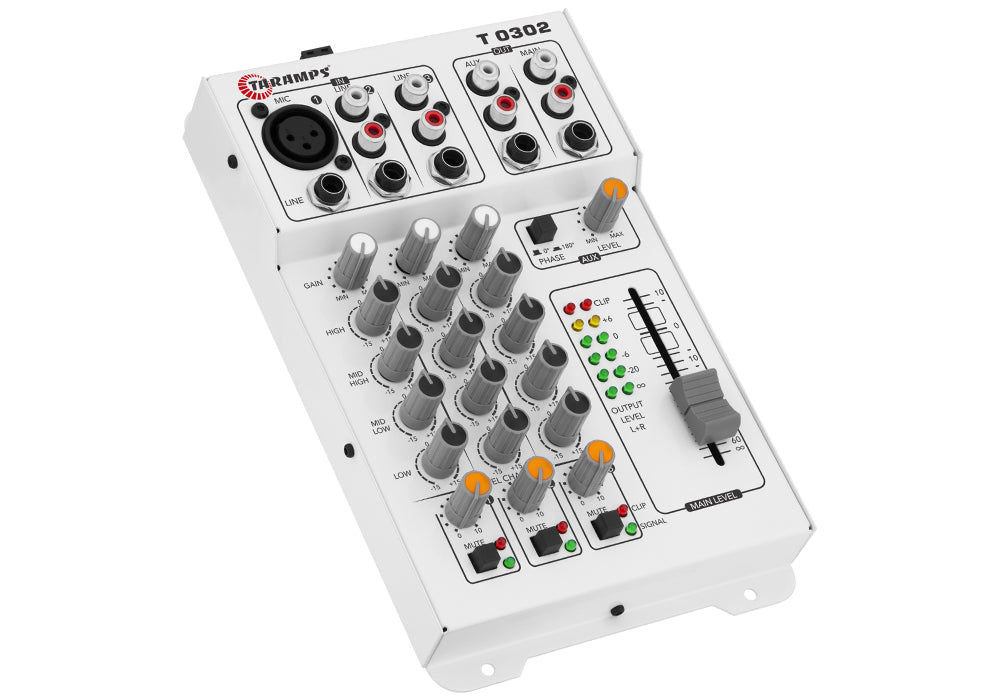

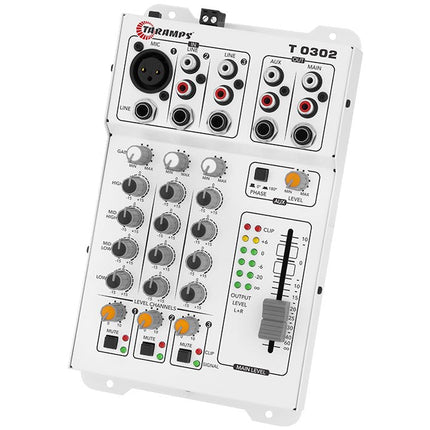

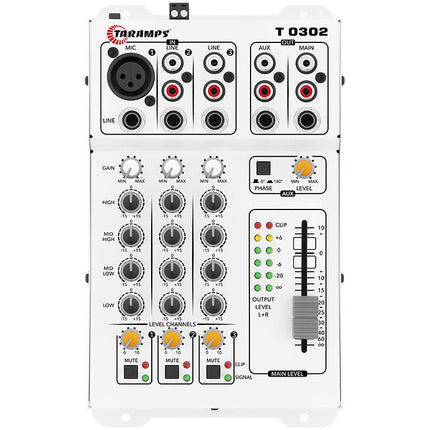

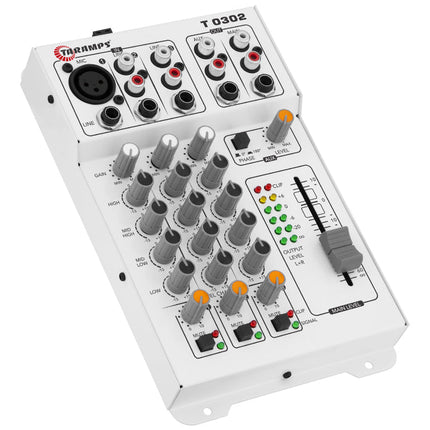

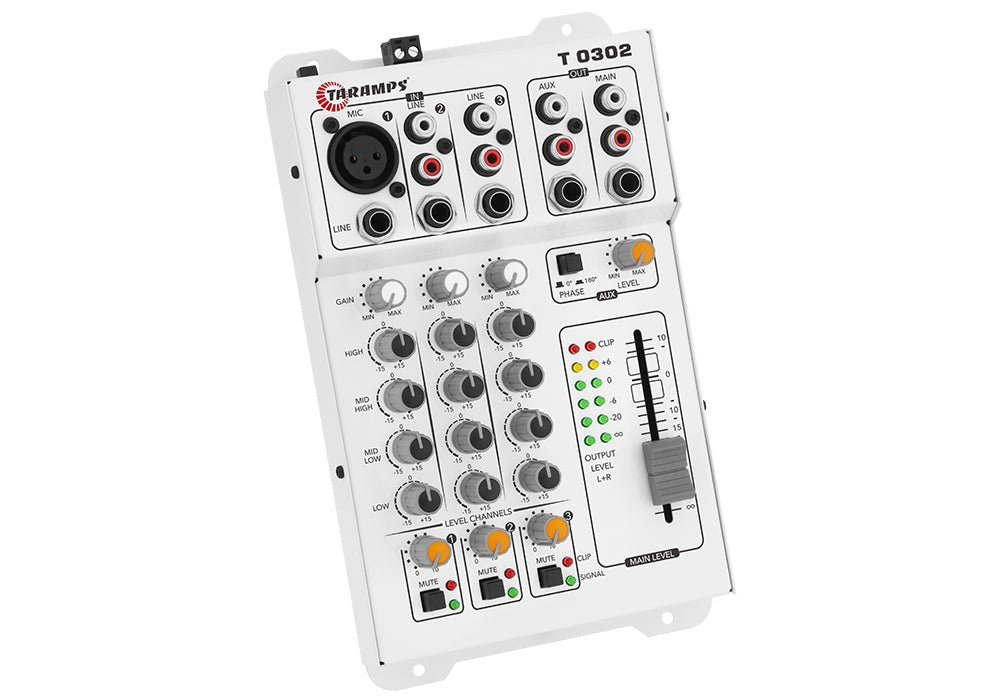

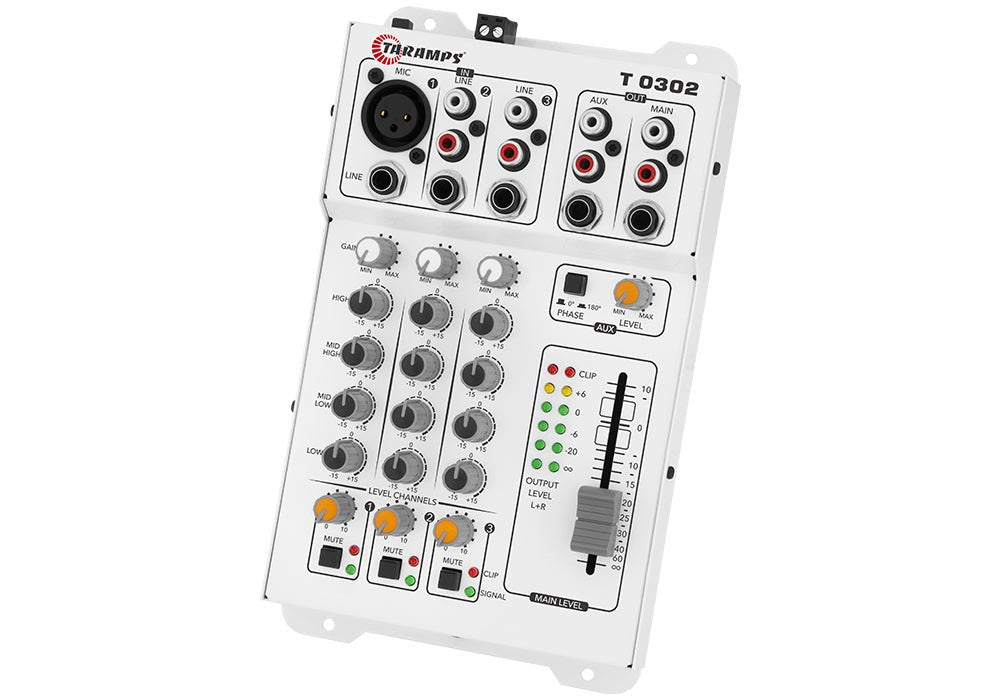

Taramps Audio Mixer T 0302 Automotive Sound Desk

Description

Description

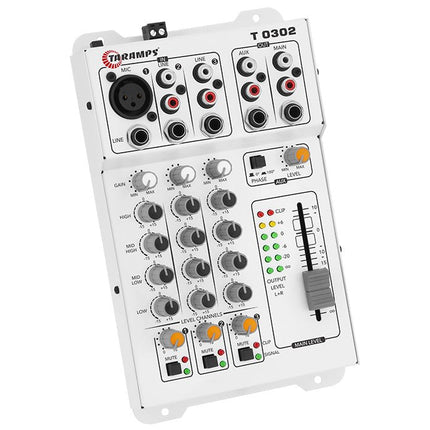

With the T 0302 mixer, you can control and mix your sound system with much more peace of mind and simplicity. The 3 input channels, with 8 connections allow several mixing possibilities, among them are: microphone, players, musical instruments (eg keyboard and guitar), and etc. With gain and Level adjustment on all channels, it allows your gain structure to be impeccable. In addition, to give that special touch to the “regulation”, all channels have tonal equalization in 4 bands (bass, low mid, high mid and high). And the visual indication of each of the channels with LEDs for On, Clipping and Signal could not be missing, also having an output VU where we can guarantee more sound volume without unwanted distortions, guaranteeing a very low level of noise or hiss.
Through the two output channels, we can send audio signal to peripherals such as equalizers, audio processors or directly to amplifiers. It is also possible to use the auxiliary output to send audio to other systems, making it possible to control the volume and adjust the phase, correcting possible cancellations.
T 0302, quality and control at your fingertips.


TECHNICAL INFORMATION
EAN 7898556848268
ADDITIONAL INFORMATION
Frequency Response (-3dB): 2Hz ~ 76Khz

Total Harmonic Distortion: <0.009% (THD)

Signal to Noise Ratio (SNR): 112dB

Channel 1 Input Sensitivity:
Mic (XLR) Min: 500mV ~ Max 7mV
Line (P10) Min: 620mV ~ Max 7.6mV

Sensitivity of channel 2/3 inputs: Line (P10/RCA) Min: 2.55V ~ Max: 60mV

4 EQ bands per channel:
High +15dB (18KHz)
Mid High +15dB ( 2.4KHz)
Mid Low +15dB (240Hz)
LOW +15dB (30Hz)

Channel 1 input impedance:
Mic (XRL): Unbalanced 4K Ohms
Balanced 8K Ohms
Line (P10): Unbalanced 8.5K Ohms
Balanced 17KOhms

Input impedance from channel 2:
Line (P10): Unbalanced 10K Ohms
Line (RCA): Unbalanced 10K Ohms

Output impedance:
Main Out (P10/RCA): 47R
Aux Out (P10/RCA): 47R

Maximum output level:
Main Out (P10/RCA) : 18 dBu/6.3 Vac
Aux Out (P10/RCA): 18 dBu/6.3 Vac

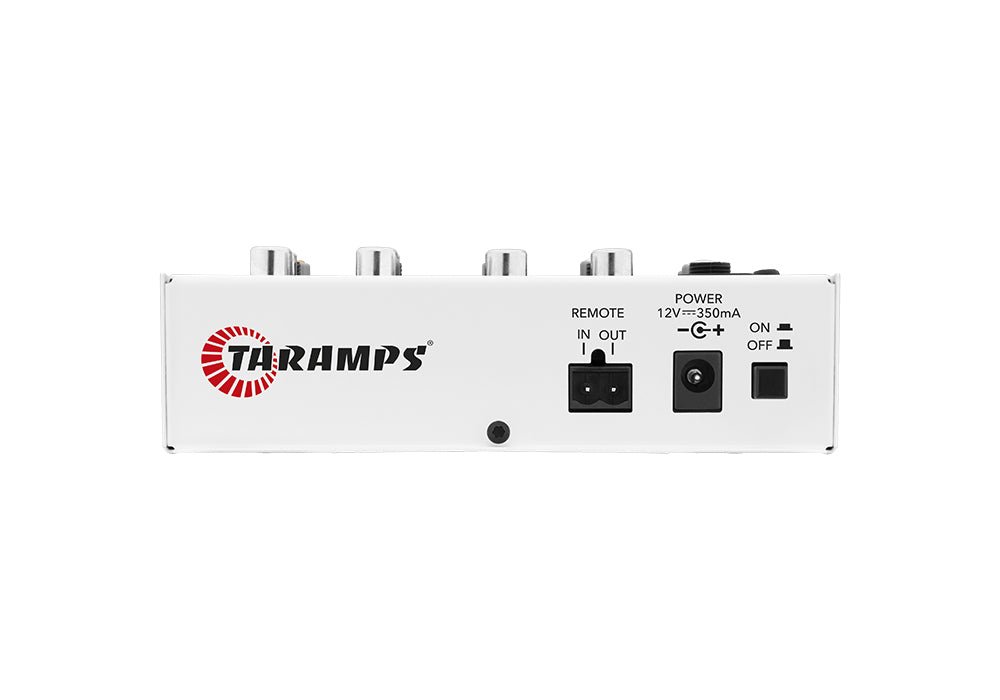

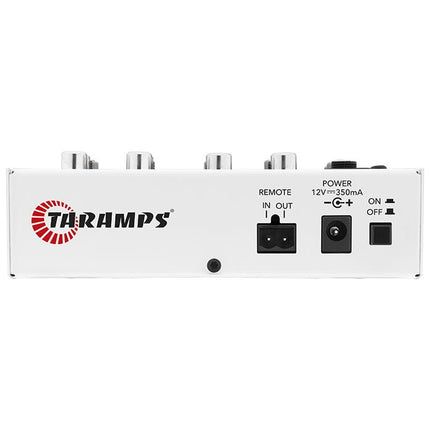

Supply Voltage (POWER): 9 ~ 16 Vdc

Maximum Consumption: 350 mA

Remote Input (Connector REM): 9 ~ 16 Vdc

Remote Output (REM Connector): 350 mA

Dimensions (WxHxD): 134 × 42 x 220 mm

Weight: 0.70 Kg


Taramps Audio Mixer T 0302 Automotive Sound Desk

Product form

Description With the T 0302 mixer, you can control and mix your sound system with much more peace of mind... Read more

$182.00 $152.00

    • Shipped today? Order within: Aug 29, 2025 17:00:00 -0300

    Description

    Description

    With the T 0302 mixer, you can control and mix your sound system with much more peace of mind and simplicity. The 3 input channels, with 8 connections allow several mixing possibilities, among them are: microphone, players, musical instruments (eg keyboard and guitar), and etc. With gain and Level adjustment on all channels, it allows your gain structure to be impeccable. In addition, to give that special touch to the “regulation”, all channels have tonal equalization in 4 bands (bass, low mid, high mid and high). And the visual indication of each of the channels with LEDs for On, Clipping and Signal could not be missing, also having an output VU where we can guarantee more sound volume without unwanted distortions, guaranteeing a very low level of noise or hiss.
    Through the two output channels, we can send audio signal to peripherals such as equalizers, audio processors or directly to amplifiers. It is also possible to use the auxiliary output to send audio to other systems, making it possible to control the volume and adjust the phase, correcting possible cancellations.
    T 0302, quality and control at your fingertips.


    TECHNICAL INFORMATION
    EAN 7898556848268
    ADDITIONAL INFORMATION
    Frequency Response (-3dB): 2Hz ~ 76Khz

    Total Harmonic Distortion: <0.009% (THD)

    Signal to Noise Ratio (SNR): 112dB

    Channel 1 Input Sensitivity:
    Mic (XLR) Min: 500mV ~ Max 7mV
    Line (P10) Min: 620mV ~ Max 7.6mV

    Sensitivity of channel 2/3 inputs: Line (P10/RCA) Min: 2.55V ~ Max: 60mV

    4 EQ bands per channel:
    High +15dB (18KHz)
    Mid High +15dB ( 2.4KHz)
    Mid Low +15dB (240Hz)
    LOW +15dB (30Hz)

    Channel 1 input impedance:
    Mic (XRL): Unbalanced 4K Ohms
    Balanced 8K Ohms
    Line (P10): Unbalanced 8.5K Ohms
    Balanced 17KOhms

    Input impedance from channel 2:
    Line (P10): Unbalanced 10K Ohms
    Line (RCA): Unbalanced 10K Ohms

    Output impedance:
    Main Out (P10/RCA): 47R
    Aux Out (P10/RCA): 47R

    Maximum output level:
    Main Out (P10/RCA) : 18 dBu/6.3 Vac
    Aux Out (P10/RCA): 18 dBu/6.3 Vac

    Supply Voltage (POWER): 9 ~ 16 Vdc

    Maximum Consumption: 350 mA

    Remote Input (Connector REM): 9 ~ 16 Vdc

    Remote Output (REM Connector): 350 mA

    Dimensions (WxHxD): 134 × 42 x 220 mm

    Weight: 0.70 Kg
