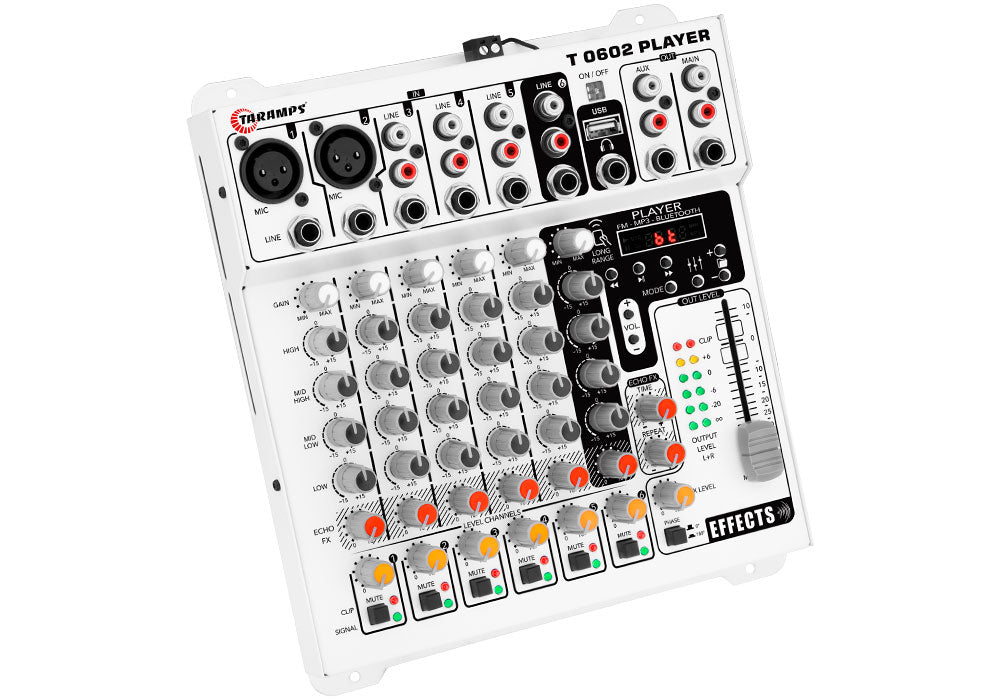

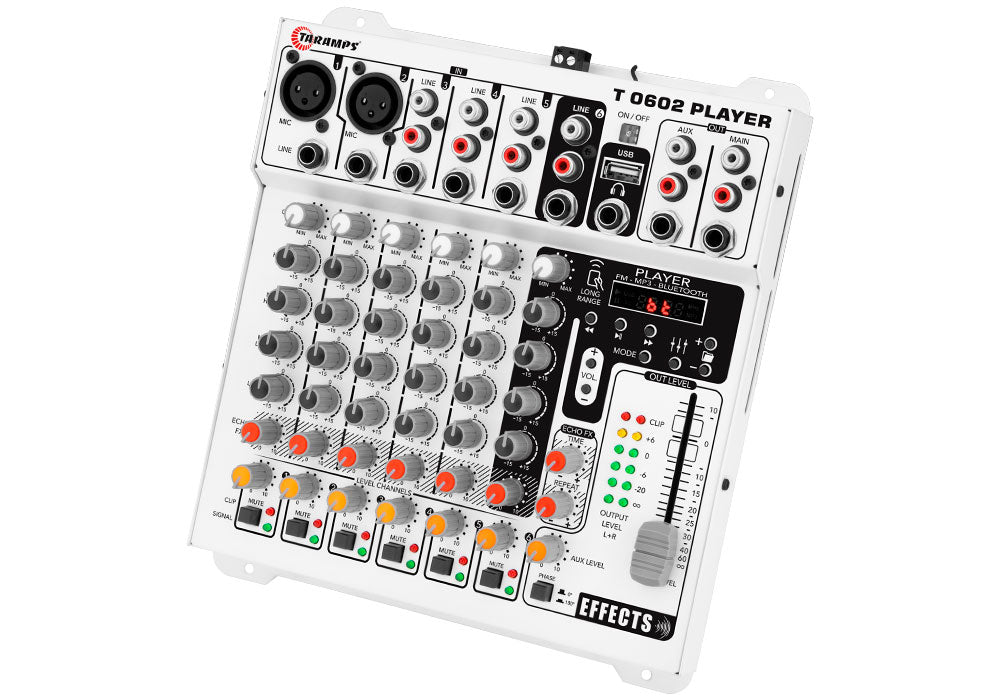

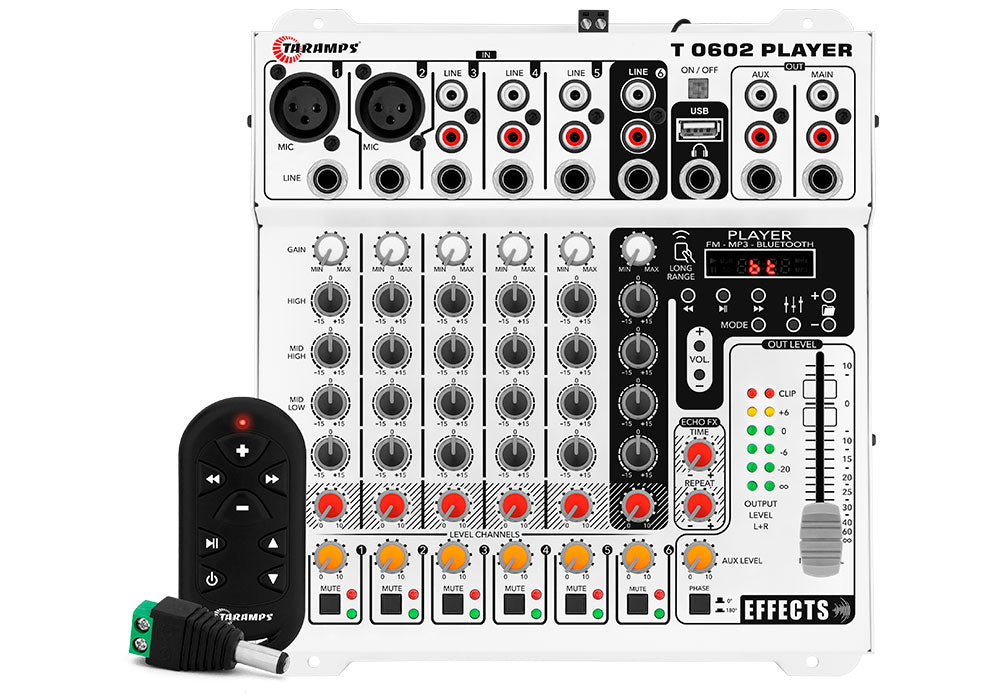

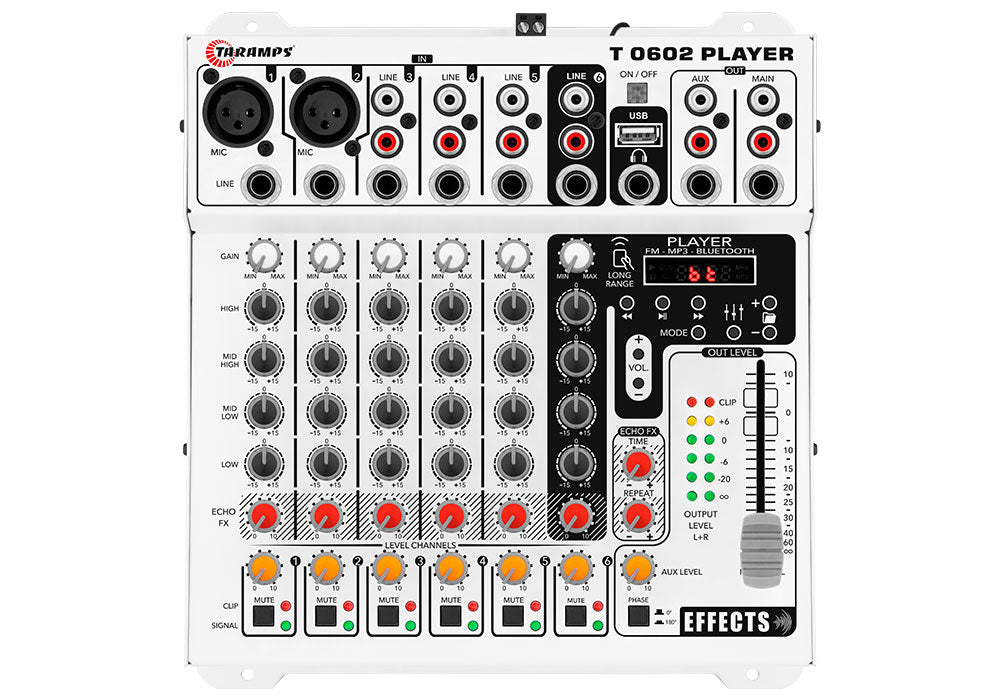

Taramps Audio Mixer T 0602 Player Automotive Sound Desk Six Channels

Description


Description

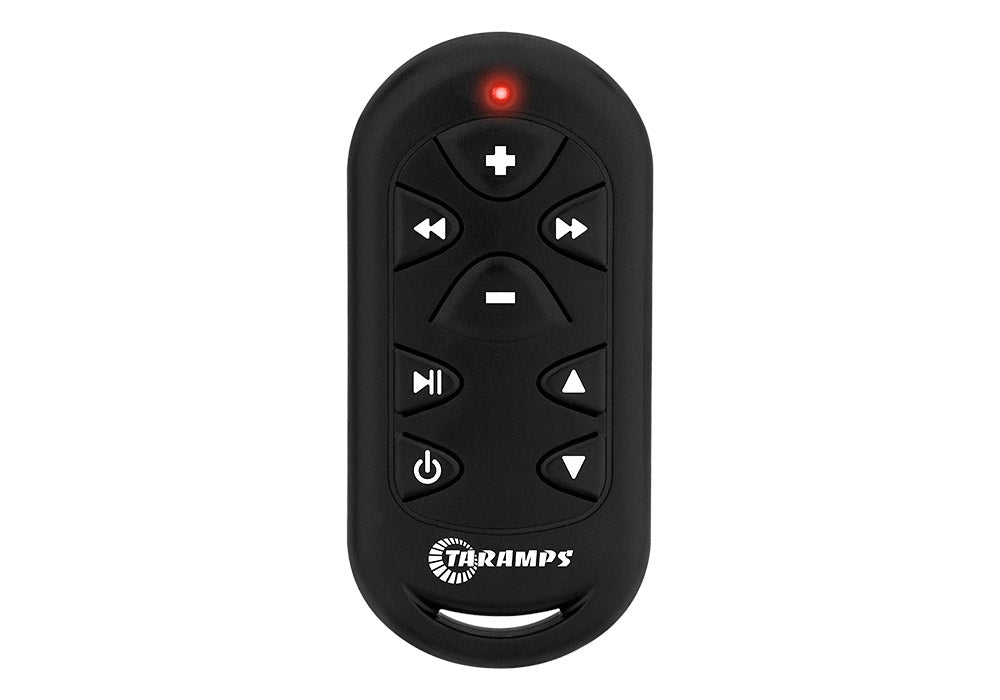

In addition to controlling and mixing your sound system, the T-0602 PLAYER is capable of playing your favorite playlist without the need to use a “conventional player”. The integrated Player has a BT connection to connect your smartphone, tablet and other devices. It also has a USB input, FM reception and headphone output. And to get even better, it has the Echo FX feature, which makes it possible to add the Echo effect to your music or voice. Finally, we have included the long-distance remote control, which allows you to increase or decrease the volume, change tracks and folders, among other functions, when using the Player function.
Among the product's main applications, we can mention the famous "Bob Boxes" and the most varied automotive sound systems, for semi-professional and professional use. Simplicity in installation and versatility of use are synonymous with this product.


TECHNICAL INFORMATION
EAN 7898556849630
ADDITIONAL INFORMATION
ADDITIONAL INFORMATION
Frequency Response (-3dB): 2Hz ~ 76Khz

Total Harmonic Distortion: <0.009% (THD)

Signal to Noise Ratio (SNR): 112dB

Channel 1 and 2 input sensitivity:
Mic (XLR) Min: 500mV ~ Max 7mV
Line (P10) Min: 620mV ~ Max 7.6mV

Channel 3~6 input sensitivity:
Line (P10/RCA) Min: 2.55V ~ Max: 60mV

4 EQ bands per channel:
High +15dB (12KHz)
Mid High +15dB (2.5KHz)
Mid Low +15dB (300Hz)
LOW +15dB (80Hz)

Impedance of channel 1 and 2 inputs:
Mic (XRL): Unbalanced 4K Ohms
Balanced 8K Ohms
Line (P10): Unbalanced 8.5K Ohms
Balanced 17KOhms

Channel 3~6 input impedance:
Line (P10): Unbalanced 10K Ohms
Line (RCA): Unbalanced 10K Ohms

Bluetooth Version: 4.0 SBC / A2DP

Audio Format: Mp3 / WMA

Maximum Bit Rate: 320Kbps

FM: 87.5MHz to 108MHz

Equalization mode: POP, ROCK, JAZZ, COUNTRY, NORMAL

Remote Control: 433.5MHz 10dBm

Output impedance:
Main Out (P10/RCA): 47R
Aux Out (P10/RCA): 47R

Maximum output level:
Main Out (P10/ RCA): 18 dBu/6.3 Vac
Aux Out (P10/RCA): 18 dBu/6.3 Vac

Supply Voltage (POWER): 9 ~ 15 Vdc

Maximum Consumption: 5 mA (standby by) / 670 mA (max )

Remote Input (REM Connector): 9 ~ 16 Vdc

Remote Output (REM Connector): 350 mA

Dimensions (WxHxD): 215 × 42 x 236 mm

Weight: 1.16 Kg
