Taramps Audio Mixer T 0602 Automotive Sound Desk Six Channels

Description

Description

With the T 0602 mixer, you can control and mix your sound system with much more peace of mind and simplicity. The six input channels, with 16 connections allow several mixing possibilities, among them are: microphone, players, musical instruments (eg keyboard and guitar), etc. With gain and Level adjustment on all channels, it allows your gain structure to be impeccable. In addition, to give that special touch to the “regulation”, all channels have tonal equalization in 4 bands (bass, low mid, high mid and high). And the visual indication of each of the channels with LEDs for On, Clipping and Signal could not be missing, also having an output VU where we can guarantee more sound volume without unwanted distortions, guaranteeing a very low level of noise or hiss.
Through the two output channels, we can send audio signal to peripherals such as equalizers, audio processors or directly to amplifiers. It is also possible to use the auxiliary output to send audio to other systems, making it possible to control the volume and adjust the phase, correcting possible cancellations.
T 0602, quality and control at your fingertips.


TECHNICAL INFORMATION
EAN 7898556848282
ADDITIONAL INFORMATION
Frequency Response (-3dB): 2Hz ~ 76Khz

Total Harmonic Distortion: <0.009% (THD)

Signal-to-Noise Ratio (SNR): 112dB

Channel 1 and 2 input sensitivity:
Mic (XLR) Min: 500mV ~ Max 7mV
Line ( P10) Min: 620mV ~ Max 7.6mV

Sensitivity of channel 3~6 inputs: Line (P10/RCA) Min: 2.55V ~ Max: 60mV

4 EQ bands per channel:
High +15dB (18KHz)
Mid High + 15dB (2.4KHz)
Mid Low +15dB (240Hz)
LOW +15dB (30Hz)

Impedance of channel 1 and 2 inputs:
Mic (XRL): Unbalanced 4K Ohms
Balanced 8K Ohms
Line (P10): Unbalanced 8.5K Ohms
Balanced 17KOhms

Impedance of channel 3~6 inputs:
Line (P10): Unbalanced 10K Ohms
Line (RCA): Unbalanced 10K Ohms

Output impedance:
Main Out (P10/RCA): 47R
Aux Out (P10/RCA): 47R

Maximum output level:
Main Out (P10/RCA) : 18 dBu/6.3 Vac
Aux Out (P10/RCA): 18 dBu/6.3 Vac

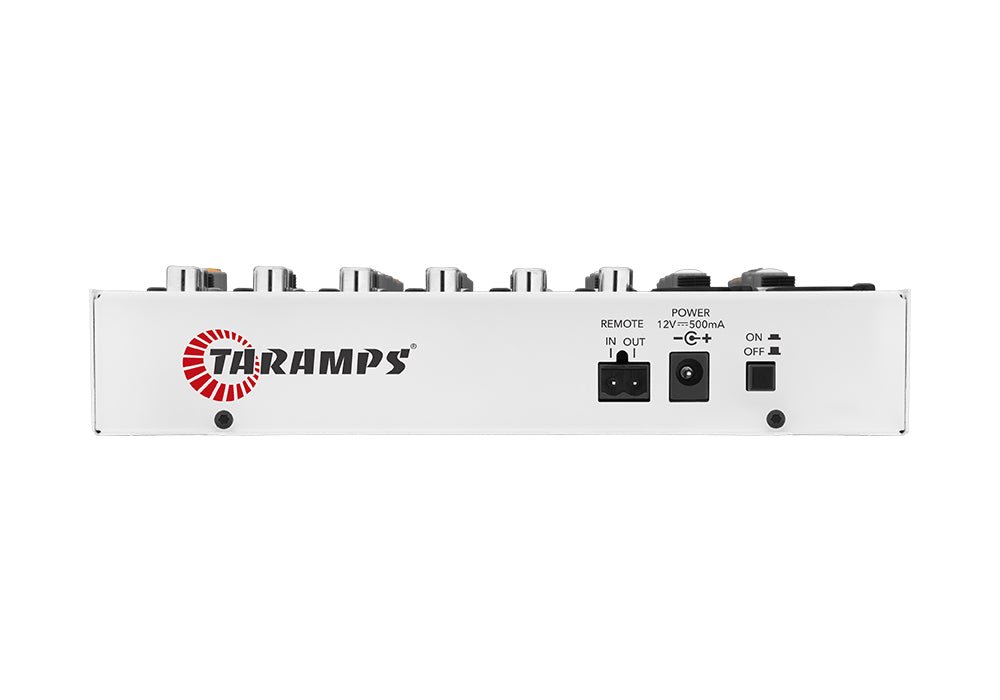

Supply Voltage (POWER): 9 ~ 16 Vdc

Maximum Consumption: 500 mA

Remote Input (Connector REM): 9 ~ 16 Vdc

Remote Output (REM connector): 350 mA

Dimensions (WxHxD): 194 × 42 x 220 mm

Weight: 0.98 Kg
