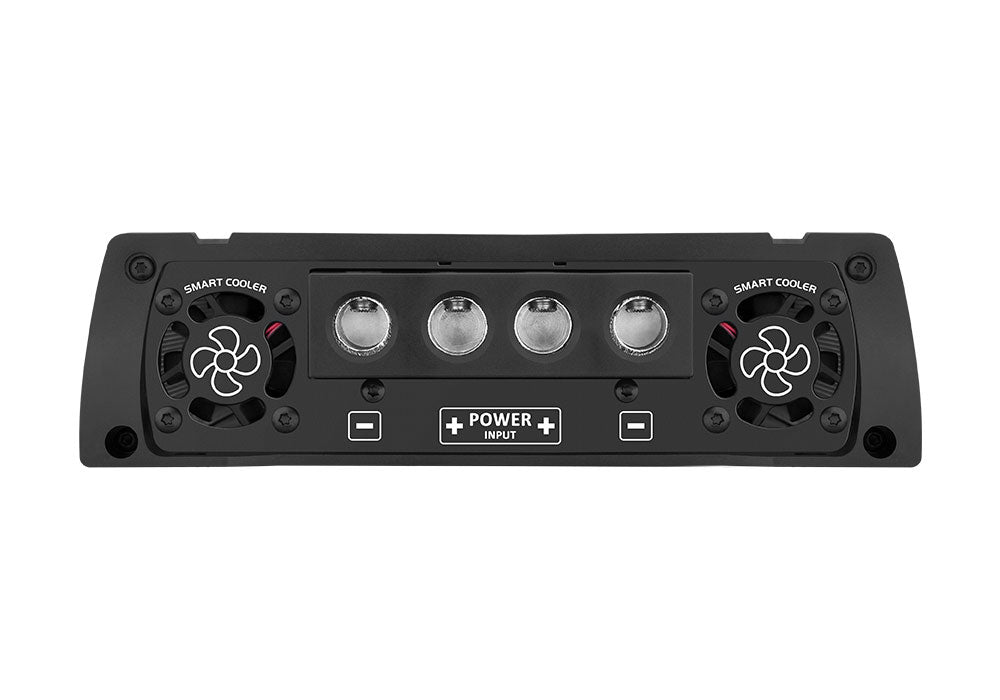

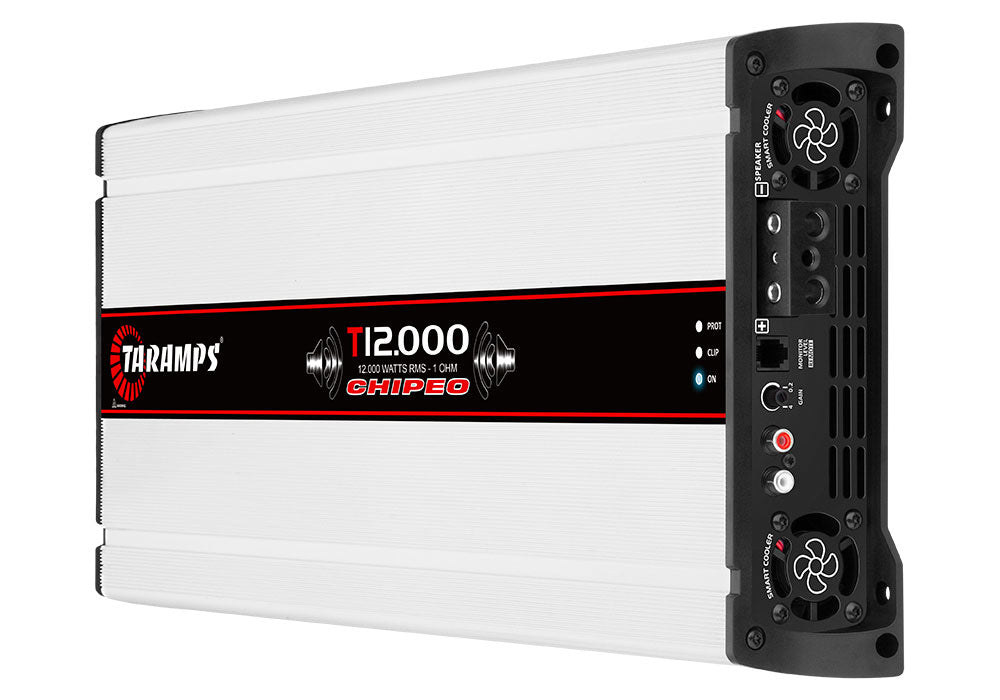

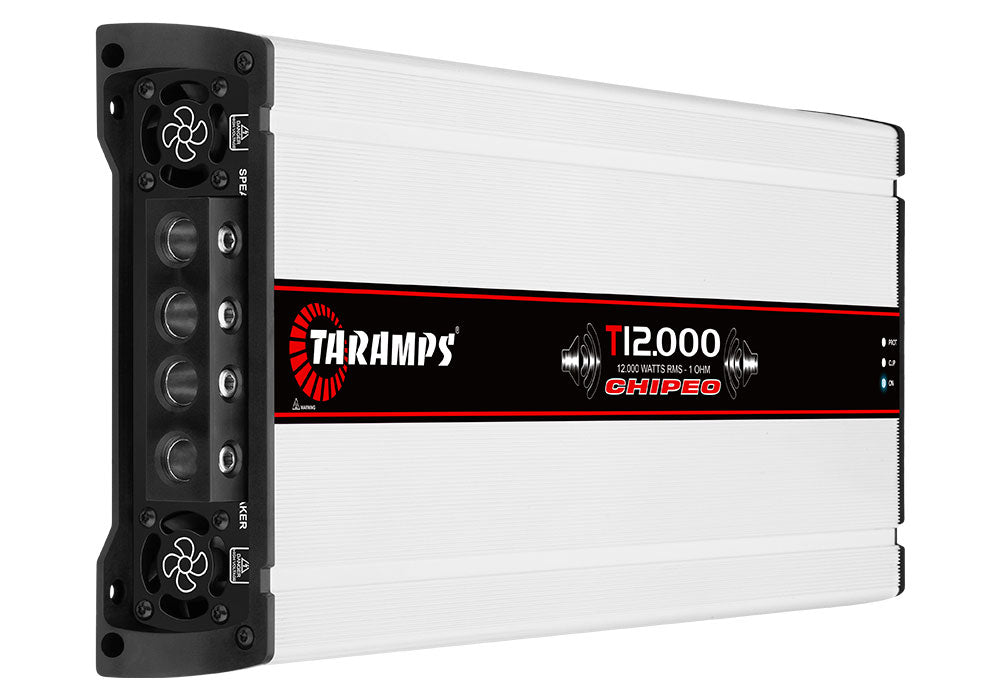

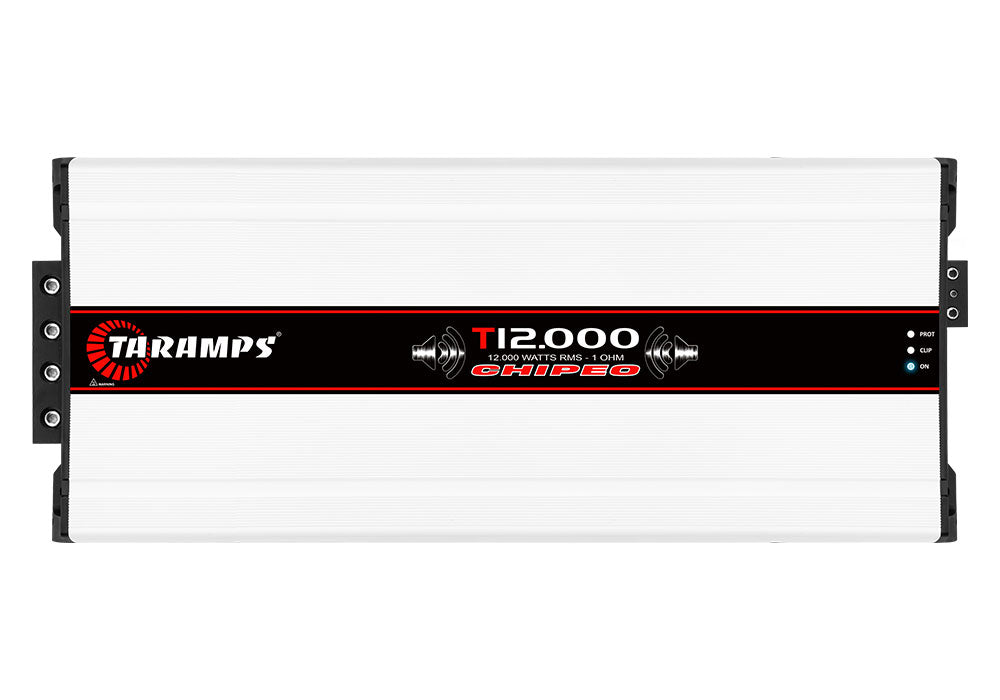

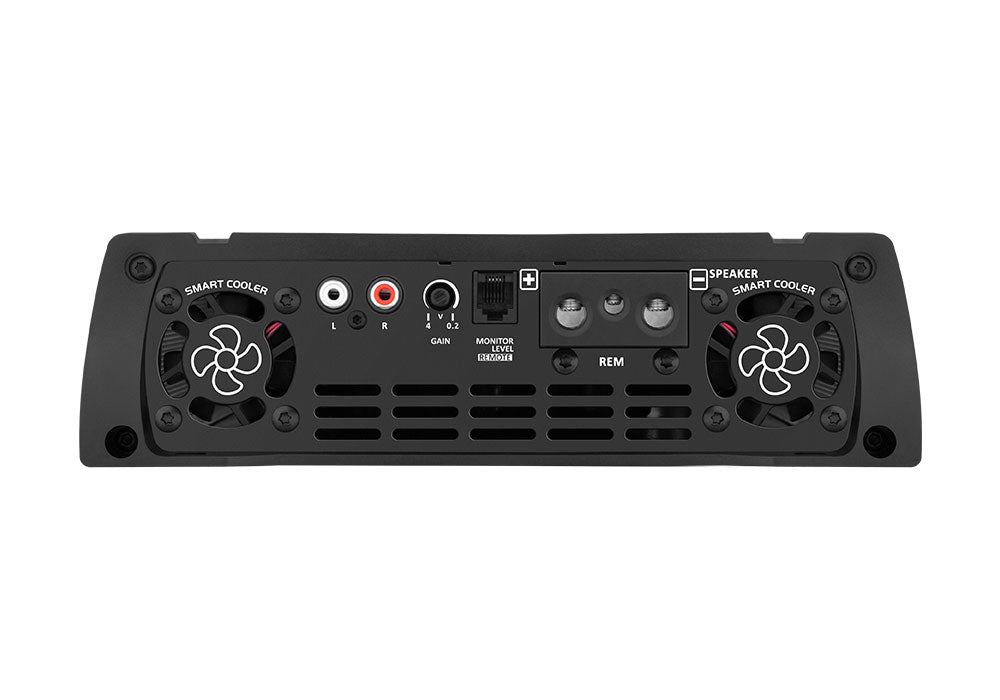

Taramps T12.000 Chipeo 12000 Watts RMS 1 or 2 ohms 1 Channel

Description

Are you ready to change levels? With the Taramps T12000 Chipeo, you'll feel every beat, every note and every detail of your favorite music like never before. Available in 1 or 2 Ohm versions, this fantastic amplifier delivers 12300 WRMS at 12.6 Volts and can reach an incredible 13300 WRMS operating at 14.4 Volts. Experience much more strength, quality, efficiency and resistance, and take your sound experience to a new level. Get ready for an intense and exciting musical journey!


TECHNICAL INFORMATION
CLASS OF OPERATION D
MINIMUM OUTPUT IMPEDANCE 1 Ohm or 2 Ohms
NUMBER OF CHANNELS 01
MAXIMUM POWER Nominal Power @12.6VDC
1 OHM: 12300W RMS
2 OHMS: 7626W RMS
4 OHMS: ---------------

Nominal Power @13.8VDC
1 OHM: 13000W RMS
2 OHMS: 8060W RMS
4 OHMS: ---------------

Nominal Power @14.4VDC
1 OHM: 13300W RMS
2 OHMS: 7980W RMS
4 OHMS: ------------- --
INPUT SENSITIVITY 220mV ~ 4V Rms
SIGNAL TO NOISE RATIO >90dB
FREQUENCY RESPONSE 5Hz ~ 5KHz (-3dB)
EFFICIENCY 81% | 86%
INPUT IMPEDANCE 10K Ohms
PROTECTION SYSTEM Output Short, output short in relation to GND, low impedance protection, high/low voltage protection and thermal protection.
MINIMUM SUPPLY VOLTAGE 9VDC
MAXIMUM SUPPLY VOLTAGE 17VDC
CONSUMPTION AT REST 5.60A
MAXIMUM MUSIC CONSUMPTION 588A | 554A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 1176A | 1108A
DIMENSIONS (WXHXD) 228 x 64 x 532mm
WEIGHT 7.60kg
EAN 7908706600063

Taramps T12.000 Chipeo 12000 Watts RMS 1 or 2 ohms 1 Channel
