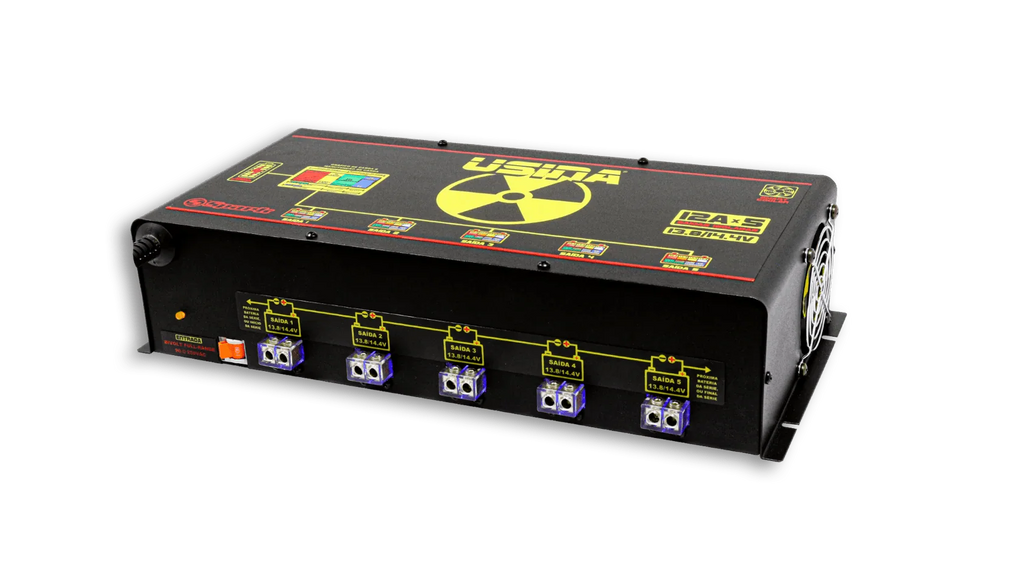

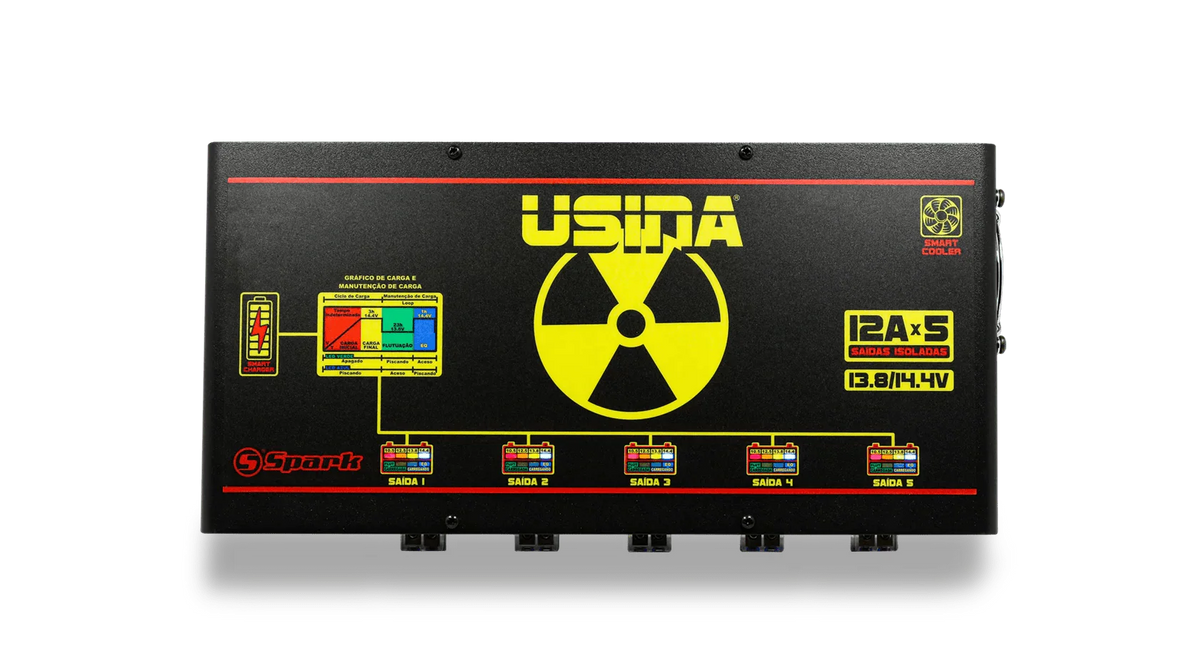

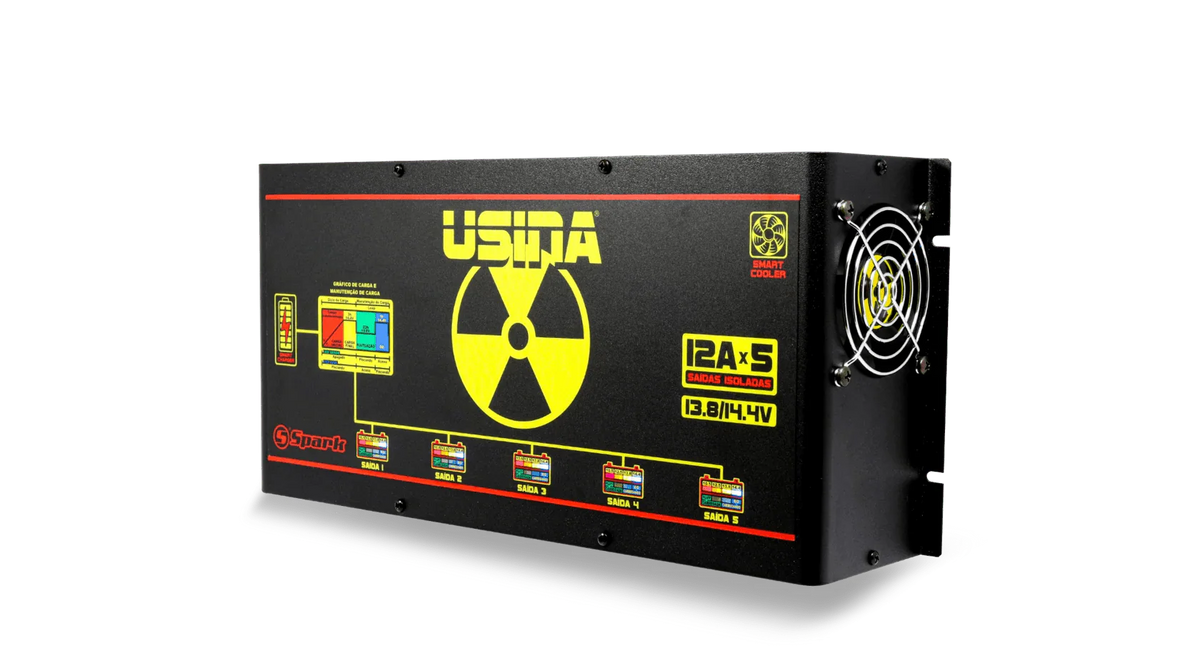

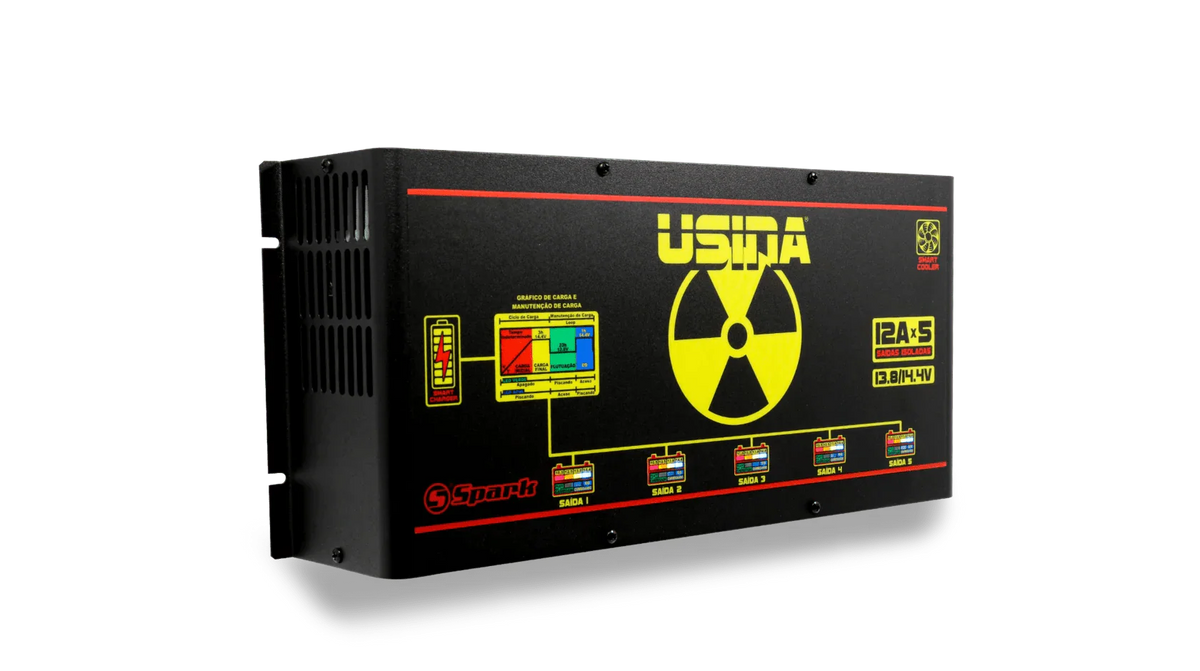

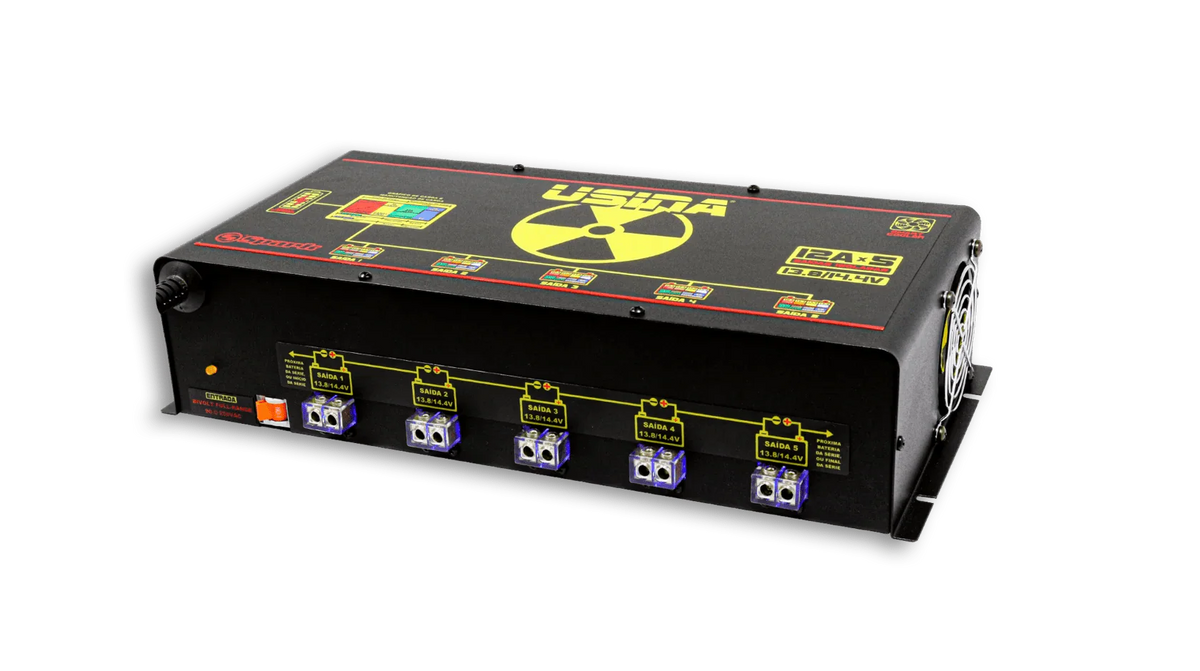

The USINA HV source was developed for recharging and maintaining the charge of High Voltage systems (batteries connected in series), its outputs are isolated from each other, providing perfect load equalization of its battery bank, as it recharges each battery individually. Totally safe, its outputs are isolated from the mains, so it can be used while the sound is playing without problems of noise or electric shock.
Input Voltage: Full Range 90 - 250 Vac
Consumption 127Vca: 10A (maximum)
Consumption 220Vca: 6A (maximum)
Output Voltage: 13.8V @ 14.4Vdc (+-1%)
Output Current: 5x 12A @ 12, 5Vdc (+-5%)*
Output Power: 5x 150 Watts (maximum)**
Efficiency: 80%
Input Power: 900 Watts (maximum)
Input Cable: 3x1.5mm² - 2P+T
Input Protection: 16A Circuit Breaker
Output Cable: 4mm²
Recommended Extension: 1.5mm² (max 20 meters)
Weight: 4Kg
Approximate Dimensions (HxWxD): 92mmx187mmx384mm***
Notes:
*Current and power measured in resistive load
**The output power may vary according to the network voltage and conditions of use
***The measurements referring to the dimensions of the sources have a variation of approximately 2mm
