Details Sophistication and quality in a single product.The EVO line promises to revolutionize the SounDigital amplifier line as well as national amplifiers in general.See below the main differentials of the line:Integrated crossoverTHD less than 0.025%More than 90% proven efficiency;Hi-Fi (high fidelity) even at high powersHigher damping factorAccuracy and linearity   Additional Information Product SKU Code ASD8004 Availability Immediate dispatch Module Application ForST horns and midsFor light internal soundFor subs and woofersFor playing the full soundProject Trio Bass Boost, Bass Boost Yes Channels 4 Stereo Channels Operation Class DigitalClass D RCA connections 4 Maximum sinusoidal consumption (A) 80 consumption at rest - HPF Filter, High Pass Yes HPL Filter, Low Pass Yes Frequency Response (Hz) 10 - 20000 Impedance Ω 2 Ohms Accept Bridge Yes Bridge Impedance Ω 4 Ohms Led Clip No Actual Power Per Channel (Watts RMS) 200 Real Power per Channel with Double the Impedance (Watts RMS) 132 Total Real Power (Watts RMS) 800 Actual Power Per Bridge (Watts RMS) 400 protection systems High VoltageHeatingLow ImpedanceLow VoltageOutput Short Circuit Input Voltage 12V THD (Total Harmonic Distortion) 1% Approximate Product Weight (kg) 0.66 Included Items 01 SounDigital Digital Amplifier Module Guarantee 12 months

Read more less

The 800.4 EVO6 is an ultra-compact and modern amplifier designed to deliver a total power of 800W RMS across 4 channels. With patented, exclusive technologies, this amplifier provides a cleaner and more accurate sound experience, ensuring excellent performance and high efficiency for demanding audio projects. Available in 4-ohm version. General Specifications: 800.4 EVO6 – 4 OHMS Power @ 4Ω: 4 x 132W RMS Power @ 2Ω: 4 x 200W RMS Bridge Power @ 4Ω: 2 x 400W RMS Bridge Power @ 2Ω: N/A Frequency Response (-3dB): 5Hz ~ 20kHz Low-Pass Filter (12dB/octave): 80Hz High-Pass Filter (12dB/octave): 80Hz Operating Voltage: 9V ~ 16V Signal-to-Noise Ratio: 93dB Input Sensitivity (RCA): 0.2V ~ 2V Music Power Consumption: 39A Resistive Load Consumption: 78.7A Total Efficiency: 80% Damping Factor (@100Hz nominal impedance): 200 Power Cable: 10mm² (7 AWG) Speaker Cable: 2 x 2.5mm² (13 AWG) Recommended Fuse (musical use): 40A Recommended Battery (minimum): 60Ah Dimensions: Width: 11.2 cm Length: 10.7 cm Height: 5.2 cm Weight: 0.609 kg

Read more less

The 800.5 EVO6 is an ultra-compact and modern amplifier designed to deliver a total power of 800W RMS across 5 channels. Featuring patented, exclusive technologies, this amplifier ensures superior sound quality, providing a cleaner and more accurate audio experience. With outstanding performance and high efficiency, the 800.5 EVO6 is the perfect choice for demanding audio projects. Available in 4-ohm version. General Specifications: 800.5 EVO6 – 4 OHMS Power @ 4Ω: 4 x 100W RMS Power @ 8Ω: 4 x 66W RMS Subwoofer (4Ω): 1 x 400W Bridge Power @ 8Ω: 2 x 200W RMS Subwoofer @ 8Ω: N/A Frequency Response (-3dB): General: 80Hz ~ 25kHz Subwoofer: 5Hz ~ 80Hz Low-Pass Filter (12dB/octave): 80Hz High-Pass Filter (12dB/octave): 80Hz Operating Voltage: 9V ~ 16V Signal-to-Noise Ratio: General: 103.88dB Subwoofer: 102dB Input Sensitivity (RCA): 0.2V ~ 2V Music Power Consumption: 39A Resistive Load Consumption: 78.7A Total Efficiency: 80% Damping Factor (@100Hz nominal impedance): 200 Power Cable: 10mm² (7 AWG) Speaker/Subwoofer Cable: Speakers: 1.5mm² (15 AWG) Subwoofer: 2.5mm² (13 AWG) Recommended Fuse (musical use): 40A Recommended Battery (minimum): 60Ah Dimensions: Width: 15.7 cm Length: 11.7 cm Height: 5.5 cm Weight: 0.75 kg

Read more less

DETAILS The 8000.1 EVO 4.0 amplifier comes with exclusive patented * DTR technology.The DTR * is a dynamic thermal recovery system that makes the amplifier always maintain high efficiency by accelerating the thermal exchange of electronic components with the heatsink.Do you know what that means? An even more reliable and resistant product for you!* Globally patented technology required by SounDigitalnd is not responsible for the misuse of the product. TECHNICAL SPECIFICATIONS8000.1 EVO 4.0 1ΩPower @ 12.6V @ 1Ω: 1 x 8000 W RMSPower @ 12.6V @ 2Ω: 1 x 5280 W RMSPower @ 12.6V @ 4Ω: 1 x 3485 W RMSPower @ 14.4V @ 1Ω : 1 x 8920 W RMSPower @ 14.4V @ 2Ω: 1 x 5887 W RMSPower @ 14.4V @ 4Ω: 1 x 3886 W RMSFrequency Response: 5Hz ~ 20kHzCrossover: LP 50Hz ~ 20kHz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 1000Maximum Consumption: 804ADimensions (LxWxH): 35.4 X 22.5 X 7.1 cmWeight: 4.41kg 8000.1 EVO 4.0 2ΩPower @ 12.6V @ 1Ω: N / APower @ 12.6V @ 2Ω: 1 x 8000 W RMSPower @ 12.6V @ 4Ω: 1 x 5280 W RMSPower @ 14.4V @ 1Ω: N / APower @ 14.4V @ 2Ω: 1 x 8920 W RMSPower @ 14.4V @ 4Ω: 1 x 5887 W RMSFrequency Response: 5Hz ~ 20kHzCrossover: LP 50Hz ~ 20kHz / HP 5Hz ~ 80Hz 12dB / 8thFactor Damping:> 1000Maximum Consumption: 804ADimensions (LxWxH): 35.4 X 22.5 X 7.1 cmWeight: 4.41kg Package Contents:• 01 Amplifier Module 8000.1 EVO 4.0• Manual and Warranty CertificateImportant:• 1 Year Warranty.• Unit Value.• All of our products are new, original and follow the invoice.• recommends that the installation be done by a specialized professional and is not responsible for the misuse of the product.

Read more less

Spark Usina Slim 180A Power Supply and Automotive Charger 14.4V A product of excellent quality, the Automotive Power Supply Digital Spark Usina 180 Amperes 14.4 V – Bivolt - Integrated Voltmeter is another member of the Usina family.With its nominal output at 160 amps, the output voltage is 12.5 to 14.4 volts (adjustable) and the input voltage is 100 to 250 Vac (Bivolt). In addition, this source already comes with an integrated voltmeter, for greater control of the electric current.Spark is one of the leading manufacturers of automotive sources, as it produces excellent quality equipment with great components.Leadership and quality available for your needs in automotive sound systems.Input Voltage: BivoltAC 127Vca: 100 @ 140VcaAC 220Vca: 180 @ 250VcaConsumption 127Vca: 28A MaximumConsumption 127Vca: 18A MaximumOutput Voltage: 12.5 to 14.4 volts adjustableOutput Current: 180A @ 12.5V Output Power: 2250 WattsEfficiency: 85% InputPower: 2700 Watts InputCable: 3x2.5mm² - 2P+Tcable Output: 35mm²Recommended Length: 4mm², maximum 25 metersDimensions (cm): 32 x 27 x 65Recommended Generator: 3Kva or greater

Read more less

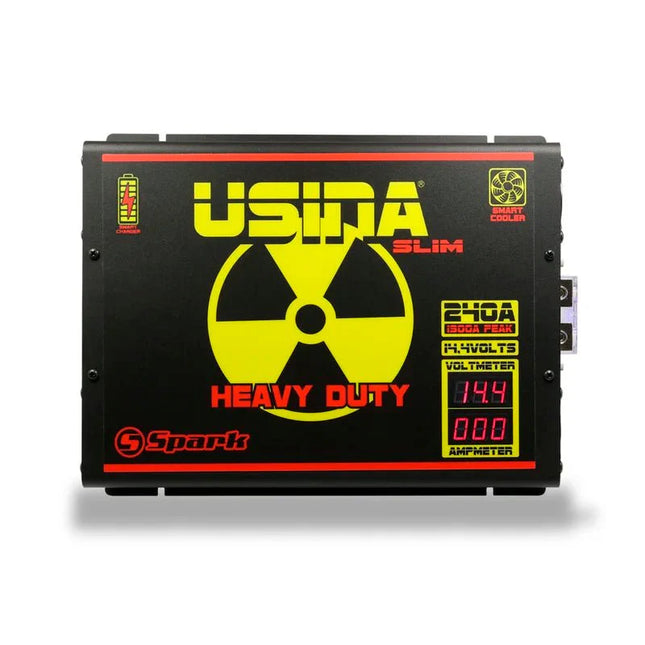

Spark Usina Slim 240A Power Supply and Automotive Charger 14.4V Automotive Power Supply Digital Spark Usina 240A Slim Smart Cooler Bivolt Multimeter Voltmeter and AmmeterPRODUCT DETAILS:An excellent quality product, the Automotive Power Supply Digital Spark Usina 240 Amperes 14.4 V – Bivolt with Integrated Voltmeter and Ammeter is another member of the Usina family.Spark is one of the leading manufacturers of automotive sources, as it produces excellent quality equipment with great components.Leadership and quality available for your needs in automotive sound systems.CHARACTERISTICS AND TECHNICAL DETAILS:Brand: USINA SPARKModel: Automotive Source Digital Spark Power Plant 240A Slim Smart Cooler Bivolt Multimeter Voltmeter and AmmeterAC 127Vca: 100 @ 140VcaAC 220Vac : 180 @ 250Vac Input Cable:3x2 . )* Recommended Extension: 6mm² (max 25 meters) Fp: - Recommended Generator: 4Kva or larger Measurements LxWxH (mm): 320x180x65 Weight: 4.4Kg Input Power: 3600 Watts (maximum) Output Power: 3000 Watts (maximum)* Input Protection: 32A Circuit Breaker Efficiency: 85% Input Voltage: Bivolt Output Voltage: 12.5 @ 14.4V (+- 1%) PACKAGE CONTENTS: 01 Automotive Power Supply Digital Spark Usina 240A Slim Smart Cooler Bivolt;01 User Manual;Seller Warranty: 12 months

Read more less

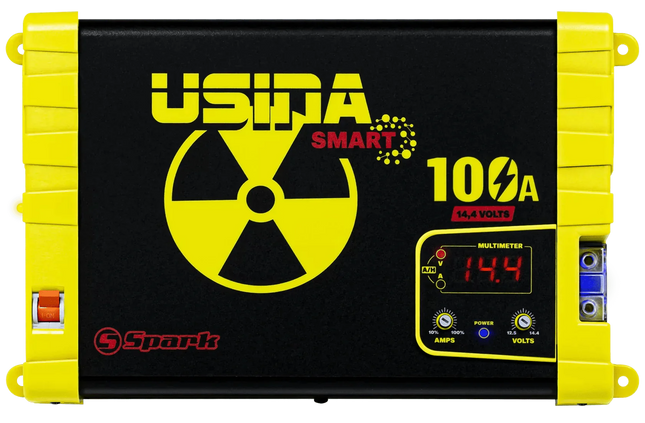

Spark Usina Smart 100A Power Supply and Automotive Charger 12V The power supply USINA was created with the main objective of feeding the sound system of the car without letting its batteries discharge, even with the sound playing for several hours. It can also be used as a source and direct power supply (without the use of batteries), feeding CD players, power modules, etc.SpecificationsInput Voltage: Automatic BivoltAC 127Vca: 100 @ 140VcaAC 220Vca: 170 @ 250Vca127Vca Consumption: 20A (maximum)220Vca Consumption: 11A (maximum)Output Voltage: 12.5V @ 14.4Vdc (+-1%)Output Current: 100A @ 12.5Vdc (+-5%)*Output Power: 1250 Watts (maximum)**Efficiency: 84%Input Power: 1580 Watts (maximum)**Input Cable: 3x1. _ _ _ Current and power measured in resistive load **The output power may vary according to the network voltage and conditions of use ***The measurements referring to the dimensions of the sources have a variation of approximately 2mm

Read more less

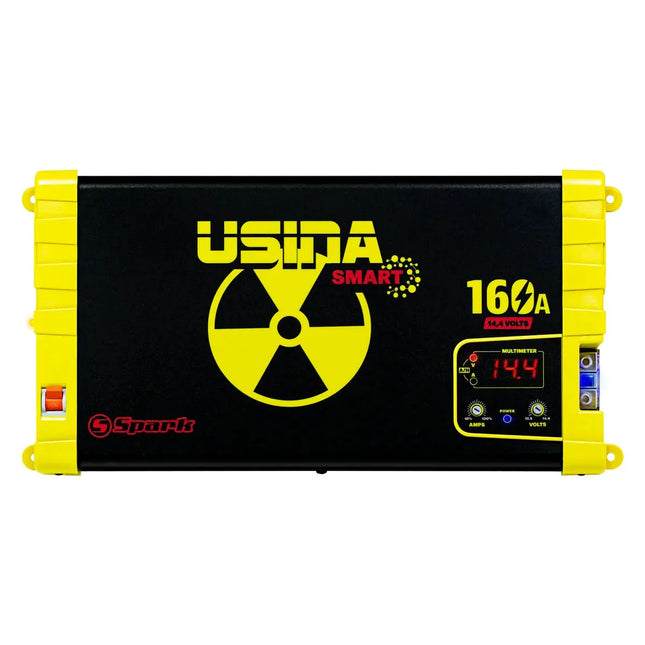

Spark Usina Smart 160A Power Supply and Automotive Charger 12V Power Supply and Car Charger Usina 160A Smart - 12VThe power supply USINA was created with the main objective of feeding the sound system of the car without letting its batteries discharge, even with the sound playing for several hours. It can also be used as a source and direct power supply (without the use of batteries), feeding CD players, power modules, etc.SpecificationsInput Voltage: Automatic BivoltAC 127Vca: 100 @ 140VcaAC 220Vca: 170 @ 250VcaConsumption 127Vca: 33A (maximum)Consumption 220Vca: 17A (maximum)Output Voltage: 12.5V @ 14.4Vdc (+-1%)Output Current: 160A @ 12.5Vdc (+-5%)*Output Power: 2000 Watts (maximum)**Efficiency: 85%Input Power: 2400 Watts (maximum)**InputCable :3x2 . _ _ _ power measured in resistive load **The output power may vary according to the network voltage and conditions of use ***The measurements referring to the dimensions of the sources have a variation of approximately

Read more less
