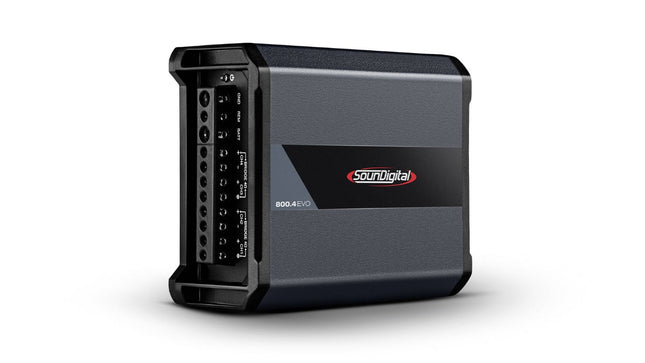

The 800.4 EVO6 is an ultra-compact and modern amplifier designed to deliver a total power of 800W RMS across 4 channels. With patented, exclusive technologies, this amplifier provides a cleaner and more accurate sound experience, ensuring excellent performance and high efficiency for demanding audio projects. Available in 4-ohm version. General Specifications: 800.4 EVO6 – 4 OHMS Power @ 4Ω: 4 x 132W RMS Power @ 2Ω: 4 x 200W RMS Bridge Power @ 4Ω: 2 x 400W RMS Bridge Power @ 2Ω: N/A Frequency Response (-3dB): 5Hz ~ 20kHz Low-Pass Filter (12dB/octave): 80Hz High-Pass Filter (12dB/octave): 80Hz Operating Voltage: 9V ~ 16V Signal-to-Noise Ratio: 93dB Input Sensitivity (RCA): 0.2V ~ 2V Music Power Consumption: 39A Resistive Load Consumption: 78.7A Total Efficiency: 80% Damping Factor (@100Hz nominal impedance): 200 Power Cable: 10mm² (7 AWG) Speaker Cable: 2 x 2.5mm² (13 AWG) Recommended Fuse (musical use): 40A Recommended Battery (minimum): 60Ah Dimensions: Width: 11.2 cm Length: 10.7 cm Height: 5.2 cm Weight: 0.609 kg

Read more less

The 400.4 EVO6 is an amplifier with an ultra-compact and modern design that delivers 400W RMS of power across 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. General Specifications 400.4 EVO6 – 4 OHMS Power @ 4Ω: 2 x 66W RMSPower @ 2Ω: 4 x 100W RMSBridge Power @ 4Ω: 2 x 200WBridge Power @ 2Ω: N/A Frequency response (-3dB): 8Hz~20kHz Low Pass Filter (12dB/octave): 80Hz High Pass Filter (12dB/octave): 80Hz Supply voltage: 9V~16V Signal-to-noise ratio: 94dB Input Sensitivity (RCA): 0.2V ~ 2V Music consumption: 20A Consumption with resistive load: 40.5A Total efficiency: 78% Damping factor (@100Hz nominal impedance): 200 Power cable: 6mm² (9 AWG) Speaker cable: 2 x 1.5mm² (15 AWG) Recommended fuse (musical use): 25A Recommended battery (minimum): 40Ah Width: 8.6cm Length: 10.7cm Height: 4.6cm Weight: 0.437kg Package Contents:• 01 Amplifier Module 400.4 EVO 6.0• Manual and Warranty CertificateImportant:• 1 Year Warranty.• Unit Value.

Read more less

The 800.5 EVO6 is an ultra-compact and modern amplifier designed to deliver a total power of 800W RMS across 5 channels. Featuring patented, exclusive technologies, this amplifier ensures superior sound quality, providing a cleaner and more accurate audio experience. With outstanding performance and high efficiency, the 800.5 EVO6 is the perfect choice for demanding audio projects. Available in 4-ohm version. General Specifications: 800.5 EVO6 – 4 OHMS Power @ 4Ω: 4 x 100W RMS Power @ 8Ω: 4 x 66W RMS Subwoofer (4Ω): 1 x 400W Bridge Power @ 8Ω: 2 x 200W RMS Subwoofer @ 8Ω: N/A Frequency Response (-3dB): General: 80Hz ~ 25kHz Subwoofer: 5Hz ~ 80Hz Low-Pass Filter (12dB/octave): 80Hz High-Pass Filter (12dB/octave): 80Hz Operating Voltage: 9V ~ 16V Signal-to-Noise Ratio: General: 103.88dB Subwoofer: 102dB Input Sensitivity (RCA): 0.2V ~ 2V Music Power Consumption: 39A Resistive Load Consumption: 78.7A Total Efficiency: 80% Damping Factor (@100Hz nominal impedance): 200 Power Cable: 10mm² (7 AWG) Speaker/Subwoofer Cable: Speakers: 1.5mm² (15 AWG) Subwoofer: 2.5mm² (13 AWG) Recommended Fuse (musical use): 40A Recommended Battery (minimum): 60Ah Dimensions: Width: 15.7 cm Length: 11.7 cm Height: 5.5 cm Weight: 0.75 kg

Read more less

DETAILS Our new 12000.1 EVO 4.0 features a symmetrical dual power connector.This novelty ensures a more efficient supply of the amplifier, with the entry of more cables and internally ensures greater symmetry in the circuits.With tracks of exactly the same length and thickness on both sides of the amplifier, we have greater energy efficiency and a substantial improvement in the bass and sub-bass response of the system.TECHNICAL SPECIFICATIONS 12000.1 EVO 4.0 1ΩPower @ 12.6V @ 1Ω: 1 x 12000 W RMSPower @ 12.6V @ 2Ω: 1 x 7920 W RMSPower @ 12.6V @ 4Ω: 1 x 5227 W RMSPower @ 14.4V @ 1Ω: 1 x 13380 W RMSPower @ 14.4V @ 2Ω: 1 x 8831 W RMSPower @ 14.4V @ 4Ω: 1 x 5828 W RMSFrequency Response: 5Hz - 6kHzCrossover: LP 50Hz ~ 6kHz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 200Maximum Consumption: 1287ADimensions (LxWxH): 53.0 X 22.5 X 7.1 CMWeight: 7kg 12000.1 EVO 4.0 2ΩPower @ 12.6V @ 1Ω: N / APower @ 12.6V @ 2Ω: 1 x 12000 W RMSPower @ 12.6V @ 4Ω: 1 x 7920 W RMSPower @ 14.4V @ 1Ω: N / APower @ 14.4V @ 2Ω: 1 x 13380 W RMSPower @ 14.4V @ 4Ω: 1 x 8831 W RMSFrequency Response: 5Hz - 6kHzCrossover: LP 50Hz ~ 6kHz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 200Maximum Consumption: 1287ADimensions (LxWxH): 53.0 X 22.5 X 7.1 CMWeight: 7kg Package Contents:• 01 Amplifier Module 12000.1 EVO 4.0• Manual and Warranty CertificateImportant:• 1 Year Warranty.• Unit Value.• All of our products are new, original and follow the invoice.• recommends that the installation be done by a specialized professional and is not responsible for the misuse of the product.

Read more less

DETAILS The 400.4 EVO 4.0 amplifier comes with exclusive patented * DTR technology.The DTR * is a dynamic thermal recovery system that makes the amplifier always maintain high efficiency by accelerating the thermal exchange of electronic components with the heatsink.Do you know what that means? An even more reliable and resistant product for you!* Globally patented technology required by SounDigitalTECHNICAL SPECIFICATIONS400.4 EVO4.0 4ΩPower @ 12.6V @ 2Ω: 4 x 100 W RMSPower @ 12.6V @ 4Ω: 4 x 66 W RMSPower @ 14.4V @ 2Ω: 4 x 112 W RMSPower @ 14.4V @ 4Ω: 4 x 74 W RMSBridge Power @ 12.6V @ 4Ω: 2 x 200 W RMSTHD + N - (10% of nominal power): 0.1%THD + N - (100% of nominal power): 1%Frequency Response: 10Hz - 20kHzCrossover: LP / HP: 80Hz 12dB / 8thDamping Factor:> 200Maximum Consumption: 39ADimensions (LxWxH): 10.9 x 11.3 x 5.0 cmWeight: 0, 46 kg Package Contents:• 01 Amplifier Module 400.4 EVO 4.0• Manual and Warranty Certificate Important:• 1 Year Warranty.• Unit Value.• All of our products are new, original and follow the invoice.• recommends that the installation be done by a specialized professional and is not responsible for the misuse of the product.

Read more less

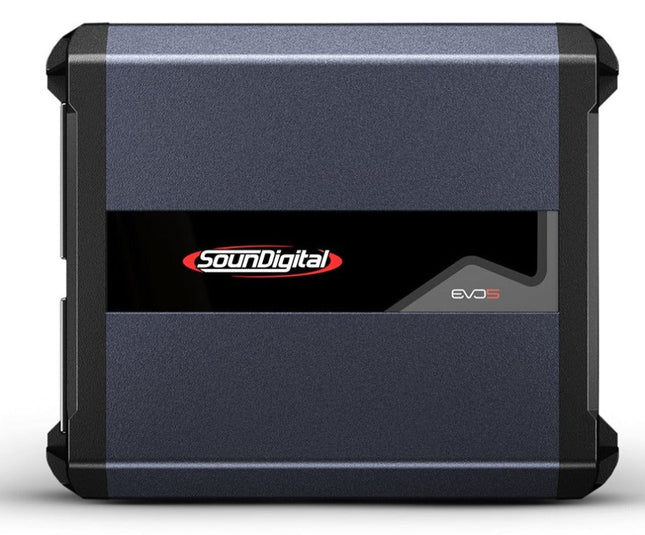

1200.2 EVO 5 The 1200.2 EVO 5 is an amplifier with a compact and modern design that delivers 1200W RMS of power in 2 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.   General Specifications + 1200.2 EVO 5 – 2 OHMS Power @ 1Ω: 2 X 600W RMS Power @ 2Ω: 2 X 396W RMS Power @ 4Ω: 2 X 262W RMS Bridged Power @ 2Ω: 1 X 1200W RMS Bridged Power @ 4Ω: 1 X 792W RMS 1200.2 EVO 5 – 4 OHMS Power @ 1Ω: N/A Power @ 2Ω: 2 X 600W RMS Power @ 4Ω: 2 X 396W RMS Bridged Power @ 2Ω: N/A Bridged Power @ 4Ω: 1 X 1200W RMS Supply Voltage: 8V – 16V Music Consumption: 2Ω: 57A 4Ω: 58A Maximum Consumption: 2Ω: 115A 4Ω: 116A Recommended Fuse (Musical): 60A Total Efficiency: 2Ω: 83% 4Ω: 82% Damping Factor: 200 Frequency Response (-3dB): 10Hz - 20kHz SNR: 91dB Crossover HPF: 80Hz LPF: 80Hz Width: 13,6 cm Length: 17 cm Height: 5,5 cm Weight: 1 Kg   Differentials of the EVO 5 Line + Technologies: Line 5 products have the most modern audio solutions from SounDigital. Modern components, with high performance distributed in intelligent projects guarantee better performance, temperature management and a lot of quality and power. Performance: Flatter and more extensive frequency responses, refined timbre, more accurate bass and treble are the best definition of the performance of SounDigital products. The performance of the products has been substantially improved due to new concepts of sources, output filters and audio processing circuits. Reliability: SounDigital products are increasingly robust and reliable. State-of-the-art solutions make the temperature control and vibration resistance of the EVO5 line the best on the market. SounDigital products are increasingly robust and reliable. State-of-the-art solutions make the temperature control and vibration resistance of the EVO5 line the best on the market. The protections have been modernized, and are more reliable and faster, that is, any failure in the power supply or in a speaker connected to the amplifier will not cause any problem to the amplifier of the EVO5 line, as the intelligent protection systems will protect it. Installation solutions: The products of the EVO5 line are designed to facilitate installation, they use solid connectors, with ALLEN steel screws that guarantee the best fixation for the wires, the screws that fix the product to the installation point are protected by removable covers, which guarantee a cleaner and more refined installation. Some products in the line now have a high signal input with SSS, SounDigital Smart Start, a system that uses the conventional audio outputs of the vehicle's audio units and does not require the use of a remote trigger wire. These and other facilities help in a correct, neat and reliable installation of the product.

Read more less

DETAILS The 800.4 EVO 4.0 amplifier comes with exclusive patented * DTR technology.The DTR * is a dynamic thermal recovery system that makes the amplifier always maintain high efficiency by accelerating the thermal exchange of electronic components with the heatsink.Do you know what that means? An even more reliable and resistant product for you!* Globally patented technology required by SounDigitalnd is not responsible for the misuse of the product.TECHNICAL SPECIFICATIONS800.4 EVO 4.0 4ΩPower @ 12.6V @ 2Ω: 4 x 200 W RMSPower @ 12.6V @ 4Ω: 4 x 132 W RMSPower @ 14.4V @ 2Ω: 4 x 223 W RMSPower @ 14.4V @ 4Ω : 4 x 147 W RMSBridge Power @ 12.6V @ 4Ω: 2 x 400 W RMSTHD + N - (10% of rated power): 0.1%THD + N - (100% of rated power): 1 %Frequency Response: 10Hz - 20kHzCrossover: LP / HP: 80Hz 12dB / 8thDamping Factor: 200Maximum Consumption: 80ADimensions (LxWxH): 14.8 X 11.3 X 5.0 CMWeight: 0.66 kg Package Contents:• 01 Amplifier Module 800.4 EVO 4.0• Manual and Warranty CertificateImportant:• 1 Year Warranty.• Unit Value.

Read more less

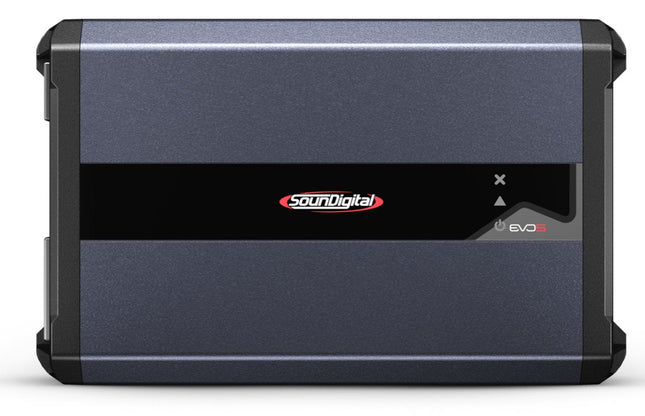

DETAILS The 3000.1 EVO 5 is a compact, modern amplifier that delivers 3000W RMS of power distributed over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Technical specifications:- Brand: Soundigital- Model: 3000.1 EVO 5.0- Power @ 1 Ohms: N/A- Power @ 2 Ohms: 1 X 3000W RMS- Power @ 4 Ohms: 1 X 1980W RMS- Frequency Response (-3db): 5Hz ~ 25kHz- Subsonic Filter: 5Hz ~ 80Hz- Low Pass Filter: 50Hz ~ 1kHz- Bass Boost: 0dB ~ 12dB @ 50Hz- Supply Voltage: 8V – 16V- Signal-to-Noise Ratio: 92dB- Input Sensitivity: 0.2V ~ 2V- Music Consumption: 139A- Consumption with Resistive Load: 277A- Total Efficiency: 86%- Damping Factor: >2000- Power Cable: 35mm² (2AWG)- Audio Output Cable: 2 x 2.5 mm² (13 AWG)- Fuse (Musical Use): 150A- Recommended Battery: 150Ah- Width: 13.6cm- Length: 22.8cm- Height: 5.48 cm- Weight: 1.75 kg

Read more less

DETAILS The 1600.4 EVO 4.0 amplifier comes with exclusive patented * DTR technology.The DTR * is a dynamic thermal recovery system that makes the amplifier always maintain high efficiency by accelerating the thermal exchange of electronic components with the heatsink.Do you know what that means? An even more reliable and resistant product for you!* Globally patented technology required by SounDigitalnd is not responsible for the misuse of the product. TECHNICAL SPECIFICATIONS1600.1 EVO 4.0 1ΩPower @ 12.6V @ 1Ω: 1 x 1600 W RMSPower @ 12.6V @ 2Ω: 1 x 880 W RMSPower @ 12.6V @ 4Ω: 1 x 484 W RMSPower @ 14.4V @ 1Ω : 1 x 2090 W RMSPower @ 14.4V @ 2Ω: 1 x 1149 W RMSPower @ 14.4V @ 4Ω: 1 x 632 W RMSFrequency Response: 5Hz ~ 20kHzCrossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 1000Maximum Consumption: 174ADimensions (LxWxH): 23.6 X 18.1 X 5.7 CMWeight: 1.6 kg1600.1 EVO 4.0 2ΩPower @ 12.6V @ 1Ω: N / APower @ 12.6V @ 2Ω: 1 x 1600 W RMSPower @ 12.6V @ 4Ω: 1 x 880 W RMSPower @ 14.4V @ 1Ω: N / APower @ 14.4V @ 2Ω: 1 x 2090 W RMSPower @ 14.4V @ 4Ω: 1 x 1149 W RMSFrequency Response: 5Hz ~ 20kHzCrossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8thFactor Damping:> 1000Maximum Consumption: 174ADimensions (LxWxH): 23.6 X 18.1 X 5.7 CMWeight: 1.6 kg 1600.1 EVO 4.0 4Ω Power @ 12.6V @ 1Ω: N / APower @ 12.6V @ 2Ω: N / APower @ 12.6V @ 4Ω: 1 x 1600 W RMSPower @ 14.4V @ 1Ω: N / APower @ 14.4V @ 2Ω: N / APower @ 14.4V @ 4Ω: 1 x 2090 W RMSFrequency Response: 5Hz ~ 20kHzCrossover: LP 50Hz ~ 500Hz / HP 5Hz ~ 80Hz 12dB / 8thDamping Factor:> 1000Maximum Consumption: 174ADimensions (LxWxH): 23.6 X 18.1 X 5.7 CMWeight: 1.6kg Package Contents:• 01 Amplifier Module 1600.1 EVO 4.0• Manual and Warranty CertificateImportant:• 1 Year Warranty.• Unit Value.• All of our products are new, original and follow the invoice.• recommends that the installation be done by a specialized professional and is not responsible for the misuse of the product.
