The SounDigital SD5000.1 EVO 5 is a high-performance monoblock amplifier designed for powerful and efficient audio systems, particularly in car audio applications. Below is a detailed breakdown of its key features and specifications:
Key Features
-
Massive Power Output
-
5000W RMS @ 1Ω (stable operation)
-
3300W RMS @ 2Ω, 2178W RMS @ 4Ω (flexible impedance options)
-
Patented technologies for cleaner sound and improved efficiency.
-

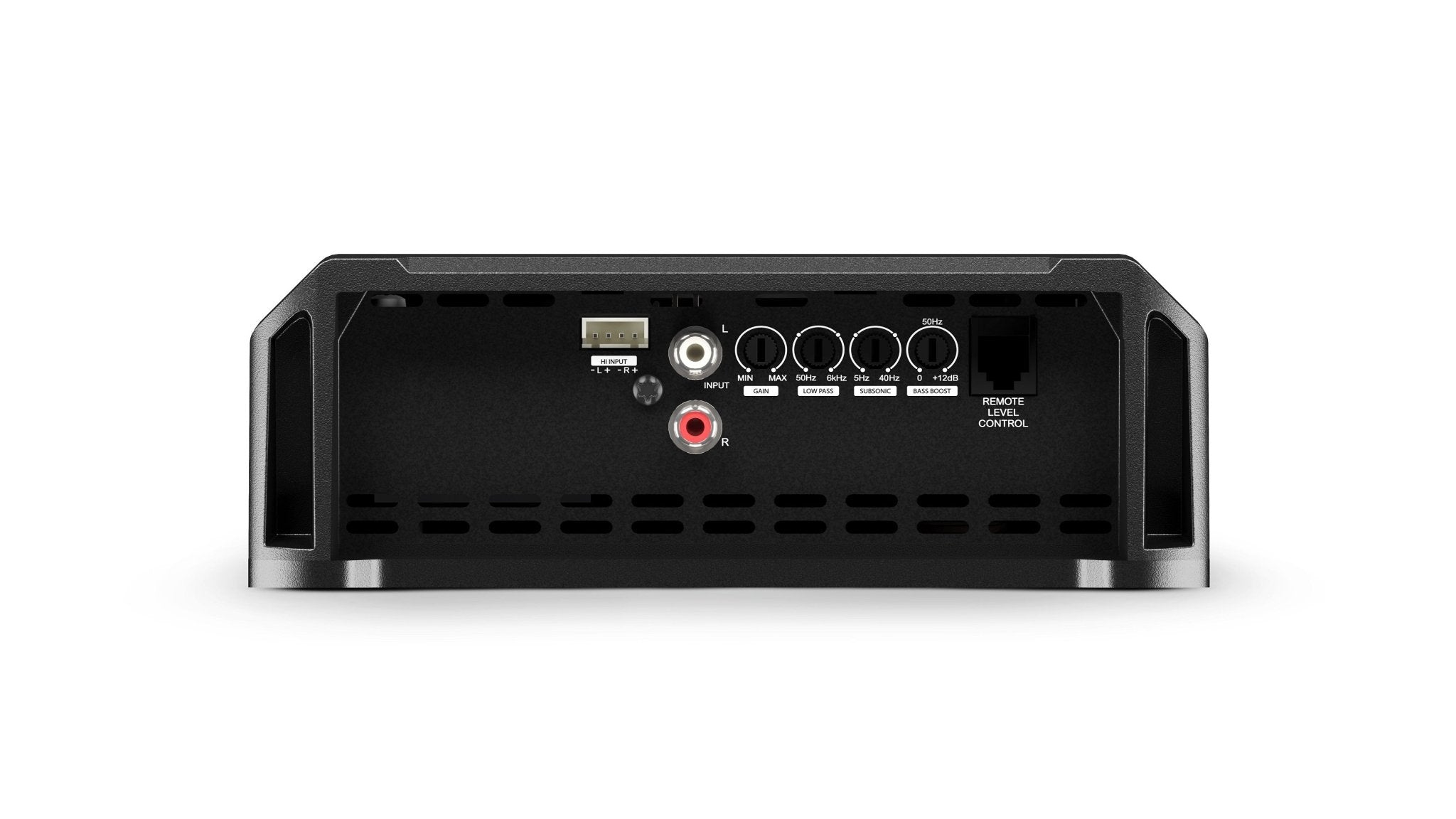

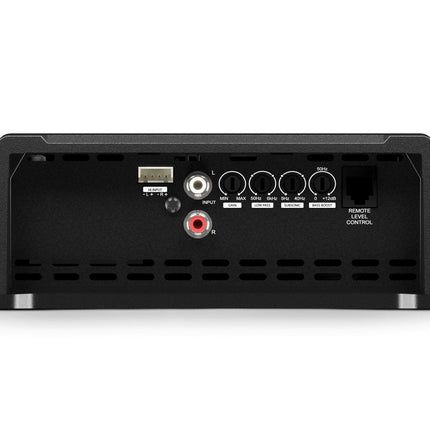

Advanced Filtering & Controls
-
Low-pass filter (12dB/octave): 50Hz–6kHz (adjustable)
-
Subsonic filter (12dB/octave): 5Hz–80Hz (prevents distortion from ultra-low frequencies)
-
Frequency response: 5Hz–6kHz (-3dB)
-
High-Efficiency Design
-
86% total efficiency (minimizes power loss)
-
Damping factor >2000 @100Hz (tight bass control)
-
Stable voltage range: 8V–16V (works even with slight voltage drops)
-
Robust Build & Protection
-
Intelligent protection systems (overload, short-circuit, overheating)
-
Vibration-resistant construction
-
Compact dimensions (25 x 18 x 6.32 cm) and lightweight (2.75 kg)
-

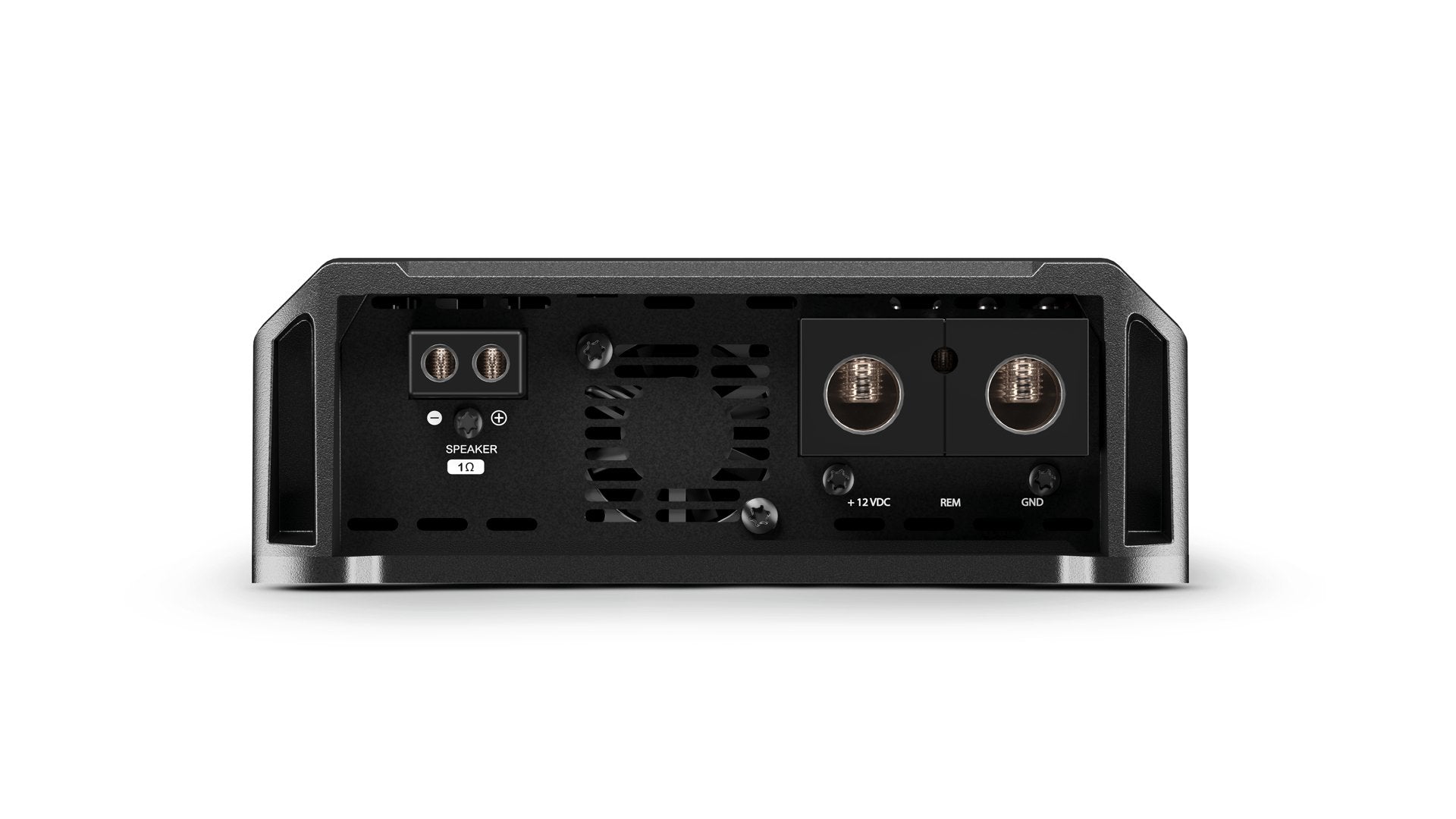

Installation-Friendly
-
High-input option (1.5V–15V) with Smart Start (SSS) (no remote wire needed)
-

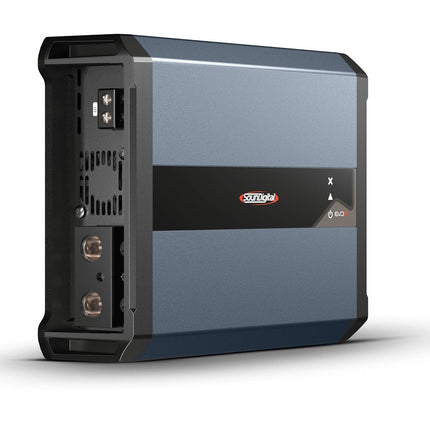

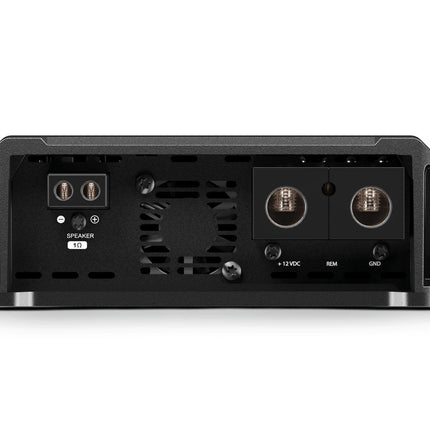

Solid Allen-screw terminals for secure wiring
-
50mm² (0 AWG) power cable support
Power & Electrical Specs
| Parameter |
Value |
| RMS Power (1Ω) |
5000W |
| RMS Power (2Ω) |
3300W |
| RMS Power (4Ω) |
2178W |
| Music Current Draw |
230A |
| Max Current Draw |
461A |
| Recommended Fuse |
250A |
| Min. Battery |
250Ah (for stable operation) |
Input/Output
-
Input Sensitivity (RCA): 0.2V–2V
-
Input Sensitivity (High-Level): 1.5V–15V
-
Signal-to-Noise Ratio: 90dB (low noise)
-
Speaker Output Wire Gauge:
-
1Ω: 2x 10mm² (7 AWG)
-
2Ω: 2x 6mm² (9 AWG)
Package Contents
Ideal For
-
Competition-grade subwoofer setups
-
High-power car audio systems
-
SPL (Sound Pressure Level) builds
-
Low-voltage applications (works down to 8V)
This amplifier is a top-tier choice for users seeking extreme power, reliability, and advanced features in a compact design. Its high efficiency and smart protection make it suitable for demanding audio projects.
