TARAMPS Taramps T12.000 Chipeo 12000 Watts RMS 1 or 2 ohms 1 Channel
Are you ready to change levels? With the Taramps T12000 Chipeo, you'll feel every beat, every note and every detail of your favorite music like never before. Available in 1 or 2 Ohm versions, this fantastic amplifier delivers 12300 WRMS at 12.6 Volts and can reach an incredible 13300 WRMS operating at 14.4 Volts. Experience much more strength, quality, efficiency and resistance, and take your sound experience to a new level. Get ready for an intense and exciting musical journey! TECHNICAL INFORMATION CLASS OF OPERATION D MINIMUM OUTPUT IMPEDANCE 1 Ohm or 2 Ohms NUMBER OF CHANNELS 01 MAXIMUM POWER Nominal Power @12.6VDC1 OHM: 12300W RMS2 OHMS: 7626W RMS4 OHMS: ---------------Nominal Power @13.8VDC1 OHM: 13000W RMS2 OHMS: 8060W RMS4 OHMS: ---------------Nominal Power @14.4VDC1 OHM: 13300W RMS2 OHMS: 7980W RMS4 OHMS: ------------- -- INPUT SENSITIVITY 220mV ~ 4V Rms SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 5Hz ~ 5KHz (-3dB) EFFICIENCY 81% | 86% INPUT IMPEDANCE 10K Ohms PROTECTION SYSTEM Output Short, output short in relation to GND, low impedance protection, high/low voltage protection and thermal protection. MINIMUM SUPPLY VOLTAGE 9VDC MAXIMUM SUPPLY VOLTAGE 17VDC CONSUMPTION AT REST 5.60A MAXIMUM MUSIC CONSUMPTION 588A | 554A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 1176A | 1108A DIMENSIONS (WXHXD) 228 x 64 x 532mm WEIGHT 7.60kg EAN 7908706600063
$746.00 $699.00
-
TARAMPS Taramps HV80.000 Car Audio Amplifier 0.5 Ohm 1 Channel 80.000 Watts RMS
Discover the true power of sound with the CHIPEO HV 80,000 amplifier module. With incomparable performance and a lot of performance, it is the perfect choice for those looking for an intense and powerful sound. In addition, it has thermal and short circuit protection, ensuring that you can enjoy the sound with peace of mind, without worrying about possible damage to the equipment. This amplifier is powered by batteries connected in series, as it uses them as its energy generating source. Member of a unique line in its category, the HV 80,000 CHIPEO delivers a power of up to 80,000 watts at 0.5 ohm, which makes it ideal for medium and large automotive sound systems. Highlighting everything from sub-bass to mid-range, this amplifier offers high performance and great sound quality. Experience the true power of sound with the CHIPEO HV 80,000 amplifier module and feel the difference. TECHNICAL INFORMATION NUMBER OF CHANNELS 01 WORKING VOLTAGE 176 ~ 300VDC @ 0.5 Ohm - 14 ~ 24 Batteries MAXIMUM POWER @300VDC 0.5 Ohm: 80,000W RMS (For Competition)1 Ohm: 40,000W RMS INPUT SENSITIVITY 500mV (Level 100%) @ 1 Ohm TOTAL HARMONIC DISTORTION 0.3% SIGNAL/NOISE RATIO >95dB FREQUENCY RESPONSE 10Hz ~ 15KHz (-1dB) EFFICIENCY 90% @ 1 Ohm (Maximum power) INPUT IMPEDANCE 20K Ohms PROTECTION SYSTEM Output Short, output short in relation toGND Low Voltage, High Voltage andThermal Protection. MINIMUM SUPPLY VOLTAGE 150VDC CONSUMPTION AT REST 90mA MAXIMUM MUSICAL CONSUMPTION @ 0.5 OHM 71A MAXIMUM SINUSOIDAL CONSUMPTION @ 0.5 OHM (100HZ) 142A DIMENSION (W X HX D) 239 x 73 x 358mm WEIGHT 4,30Kg EAN 7908706600414
$626.00 $599.00
-
TARAMPS Taramps Trio 3000 Player Car Audio Amplifier 3000 Watts Rms
Description In this version, the 3000 Trio gained PLAYER technology, with remote control and various audio sources such as Bluetooth, AUX, USB and FM Radio. It is an ideal product for use in trio box systems, using a single amplifier for speakers, drivers and tweeters. Powerful and versatile, this amplifier features a variable crossover and two output paths, each with individual gain adjustment. The LOW track has a limiter with three actuation levels and variable bass-boost, while the HIGH track has a fixed limiter. Simplicity in installation and versatility of use are synonymous with this product. Welcome to the Taramps sound world! TECHNICAL INFORMATION CLASS OF OPERATION D NUMBER OF CHANNELS 01 MAXIMUM POWER Via Low@12,6 VDC – 2 Ohms: 3000 Watts RMS@12,6 VDC – 4 Ohms: 1920 Watts RMSVia High@12,6 VDC – 2 Ohms: 300 Watts RMS@12,6 VDC – 4 Ohms: 200 Watts RMS INPUT SENSITIVITY 200mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE Via Low10Hz ~ 700Hz (X-Over Low / High = 700)10Hz ~ 1200Hz (X-Over Low / High = 1200)Via High700Hz ~ 20KHz (X-Over Low / High = 700)1200Hz ~ 20KHz (X-Over Low / High = 1200) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8th) Variable CROSSOVER LOW PASS (LPF) 700Hz ~ 1200Hz (-12dB/8th) Variable BASS BOOST 0 ~ 10,5dB (50Hz) LIMITERS/ANTI-CLIPPING Low WaySelectable 1% / 5 % / 10%High WayAnticlip THERMAL MANAGEMENT Smart Cooler (cooler driven by temperature or audio, in 3 speeds) INPUT IMPEDANCE 13K Ohms OUTPUT IMPEDANCE 2 Ohms PROTECTION SYSTEM Output short, output short in relation to GND, low impedance, low/high voltage and thermal protection. MINIMUM SUPPLY VOLTAGE 9 VDC MAXIMUM SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.60A MAXIMUM MUSIC CONSUMPTION 165A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 315A DIMENSIONS (WXHXD) 228 x 64 x 216mm WEIGHT 2,40Kg EAN 7898556846790
$279.00 $229.00
-
TARAMPS Taramps TS800X4 800 Watts Rms Car Audio Amplifier 4 Channels
Description It is public knowledge that the demand for amplifiers suitable for factory radios and Multimedia is growing every day.With that in mind, we created the new TS 800×4 2 Ohms with 4-channel high-level individual input and automatic activation. This feature makes it ideal for this type of application, eliminating the need for adapters.With 800 watts of Power distributed in 4 channels and the possibility of connection in Bridge, it can be used with the most varied models of speakers, drivers and super tweeters.In addition, it has the traditional RCA inputs, gain adjustment and fixed Crossover (HPF, LPF and Full), typical feature of Taramps products.Another point to be highlighted is the new power and output connector, which, in addition to being robust, ensures more practicality and safety in the installation.All this and much more, so that your pleasure in listening to music is even greater. Product videos Technical information 2 Ohms VERSION Nominal Power @14.4VDC2 Ohms: 800W RMS (4 x 200W RMS)4 Ohms: 544W RMS (4 x 136W RMS)2 Bridged Channels4 Ohms: 800 W RMS (2 x 400W RMS) Number of Channels 04 Input Sensitivity (RCA): 4V (min.) / 250mV (max.)(WIRE): >10V (min.) / 3V (max.) Signal to Noise Ratio >90dB Frequency Response 10Hz ~ 20KHz (-3dB) Crossover high pass (HPF) 90Hz (-12dB/8ª) Fixed Crossover low pass (LPF) 90Hz (-12dB/8ª) Fixed Input Impedance 10K Ohms (RCA) Output Impedance 2 Ohms protection system Output Short Circuit Minimum Supply Voltage 9VDC Maximum Supply Voltage 16VDC Consumption at rest 0.9A Maximum music consumption 38A Maximum consumption in sinusoidal signal 76A Dimensions (WxHxD) 5.43" x 1.89" x 6.89" (138 x 48 x 175mm) Weight 1.91lb (0.87Kg) EAN 7898556849043
$125.00 $97.00
-
TARAMPS Taramps TLC 3000 is a Long Range Remote Control
The TLC 3000 is a long-range remote control designed to be compatible with most players that come with factory-configured remotes. Ideal for devices with rear USB ports, it is suitable for the majority of audio players on the market. It delivers high performance, with control range up to 300 meters in outdoor areas. The system is equipped with security codes that prevent signal copying and retransmission, minimizing external interference thanks to FSK modulation. Additionally, it comes pre-configured and allows synchronization of up to 3 remotes (1 main and 2 spare), ensuring easy installation and use. Technical Specifications: Power Supply Voltage (POWER): Receiver Base: 6 ~ 16VDC Transmitter (Remote): 1.8 ~ 3.6V (CR2032 Battery) Maximum Consumption: Receiver Base: 30mA Transmitter (Remote): 7mA (CR2032 Battery) Modulation: FSK Frequency: 433.92 MHz Maximum Power: +10dBm Weight: Receiver Base: 0.1 kg Transmitter (Remote): 0.1 kg EAN Codes: No cover: 7898556841863 Red: 7898556842464 White: 7898556842440 Black: 7898556842433 Package Contents: 1 Remote Control (Transmitter) 1 Receiver Base 1 Pre-connected 4-wire cable 1 Taramps personalized lanyard
$29.00 $22.00
-
TARAMPS Taramps Smart 3 – 1~2 Ohms 3000 Watts Rms Car Audio Amplifier
Description SMART 3, a product developed with the highest technology and performance for automotive sound systems. The main differentials is its multi-impedance function (Power Control System), which allows the work of 1 to 2 ohms in the same product. It is a mono amplifier, with 3000Watts RMS power.TECHNICAL INFORMATIONOPERATION CLASS Class DNUMBER OF CHANNELS 01MAXIMUM POWER @ 12.6 VDC - 1 Ohm: 3000 Watts RMS@ 12.6 VDC - 2 Ohms: 3000 Watts RMS@ 12.6 VDC - 4 Ohms: 2000 Watts RMSINPUT SENSITIVITY 0.22V ~ 4VSIGNAL TO NOISE RATIO >90dBFREQUENCY RESPONSE 10Hz ~ 10KHz (-3dB)CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) VariableCROSSOVER LOW PASS (LPF) 90Hz ~ 10KHz (-12dB/8ª) VariableBASS BOOST Freq.: 35Hz ~ 55Hz / Boost: 0 ~ +10dBEFFICIENCY 79%INPUT IMPEDANCE 10K OhmsPROTECTION SYSTEM Output short circuit, low / high voltage protection and thermal protectionMIN. SUPPLY VOLTAGE 9 VDCMAXIMUM POWER SUPPLY VOLTAGE 16 VDCCONSUMPTION AT REST 2.40AMAXIMUM MUSIC CONSUMPTION 150AMAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 300ADIMENSIONS (H X W X D) 8.98" x 2.76" x 9.37"Included Items1 Module1 Sticker1 Manual and warranty certificate.Warranty12 months
$300.00 $277.00
-
TARAMPS Taramps Smart 5 – 1~2 Ohms 5000 Watts Rms Car Audio Amplifier
Description The SMART Line that you already know now has a new member! The SMART 5 amplifier present the highest technology and performance for car audio systems. With the advantage of being multi-impedance, delivering 5000WRMS between 1 and 2 ohms, additionally, the Power Control System technology ensures greater performance and safety. The renowned V.U. with Smart LED, distinctive of the line, assures a unique design. It has an input gain adjustment that allows the use of players up to 4V RMS output level. Its robust connector allows the use of larger gauge power cables for higher performance. It is an exclusive TARAMPS product with the best cost-benefit ratio in the car audio industry. *This product comes with the M1 MONITOR LED. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 ohm: 5000 Watts RMS@ 12.6 VDC - 2 ohms: 5000 Watts RMS@ 12.6 VDC - 4 ohms: 2900 Watts RMS INPUT SENSITIVITY 0.22V ~ 4V SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 8KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 8KHz (-12dB/8ª) Variable BASS BOOST Freq.: 35Hz ~ 55HzBoost: 0 ~ +10dB EFFICIENCY 84% @ 1 ohm86% @ 2 ohms INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 1 ~ 2 ohms PROTECTION SYSTEM Output short circuitlow/high voltage protectionthermal protection. MIN. SUPPLY VOLTAGE 9.5VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 3.60A MAXIMUM MUSIC CONSUMPTION 236A @ 1 ohm230A @ 2 ohms MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 472A @ 1 ohm460A @ 2 ohms DIMENSIONS (WXHXD) 8.97" x 2.75" x 16.85" (228 x 70 x 428mm) WEIGHT 11.24 lbs (5,10Kg) EAN 7898556847391
$577.00 $537.00
-
TARAMPS Taramps MD250.1 250 Watts Rms Car Audio Amplifier
Description The Taramps MD 250.1 in the 4, 2-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the entire frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 250-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 13.8 VDC - 2 OHMS: 250W RMS@ 13.8 VDC - 4 OHMS: 160W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 2 ohms PROTECTION SYSTEM Output short-circuit / thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 0.5 A MAXIMUM MUSIC CONSUMPTION 12.5 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 25 A DIMENSIONS (WXHXD) 5.43" x 1.92" x 5.19" (138 x 49 x 132mm) WEIGHT 1.43lb (0,65kg) EAN 7898556845090 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 13.8 VDC - 2 OHMS: 250W RMS@ 13.8 VDC - 4 OHMS: 160W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 4 ohms PROTECTION SYSTEM Short-circuit and thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 0.55 A MAXIMUM MUSIC CONSUMPTION 12 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 24 A DIMENSIONS (WXHXD) 5.43" x 1.92" x 5.19" (138 x 49 x 132mm) WEIGHT 1.43lb (0,65kg) EAN 7898556845106
$99.00 $89.00
-
TARAMPS Taramps MD800.1 800 Watts Rms Car Audio Amplifier
Description The Taramps MD 250.1 in the 4, 2-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the entire frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 250-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 13.8 VDC - 2 OHMS: 250W RMS@ 13.8 VDC - 4 OHMS: 160W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 2 ohms PROTECTION SYSTEM Output short-circuit / thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 0.5 A MAXIMUM MUSIC CONSUMPTION 12.5 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 25 A DIMENSIONS (WXHXD) 5.43" x 1.92" x 5.19" (138 x 49 x 132mm) WEIGHT 1.43lb (0,65kg) EAN 7898556845090 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 13.8 VDC - 2 OHMS: 250W RMS@ 13.8 VDC - 4 OHMS: 160W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 4 ohms PROTECTION SYSTEM Short-circuit and thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 0.55 A MAXIMUM MUSIC CONSUMPTION 12 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 24 A DIMENSIONS (WXHXD) 5.43" x 1.92" x 5.19" (138 x 49 x 132mm) WEIGHT 1.43lb (0,65kg) EAN 7898556845106
$125.00 $119.00
-

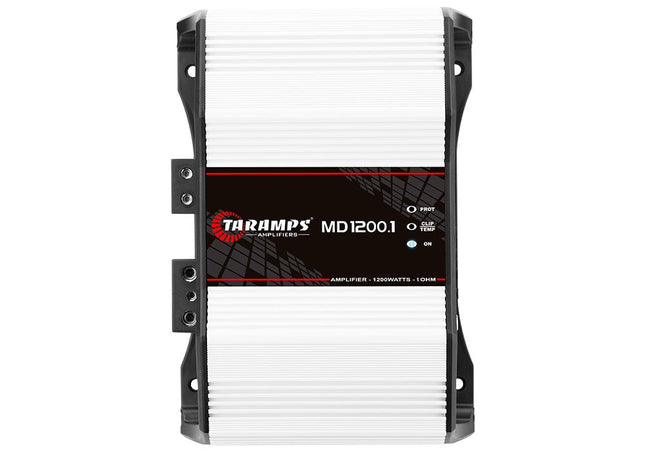

TARAMPS Taramps MD1200.1 Car Audio Amplifier 1200 Watts RMS
Description The Taramps MD 1200 in the 1,2,4-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 1200-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 OHM: 1200W RMS@ 12.6 VDC - 2 OHMS: 1000W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz to 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB(50Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 77% INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 1 ohm PROTECTION SYSTEM Output Short circuitHigh or Low supply voltageThermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.7A MAXIMUM MUSIC CONSUMPTION @ 12,6 VDC: 62A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @ 12,6VDC: 124A DIMENSIONS (WXHXD) 8.98" x 2.76" x 6.22" (228 x 70 x 158mm) WEIGHT 3.96lb (1,80Kg) EAN 7898556844802 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 1200W RMS@ 12.6 VDC - 4 OHMS: 800W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variável CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variável BASS BOOST 0 ~ 10,5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (Cooler acionado por temperatura ou áudio em 3 velocidades EFFICIENCY 80% INPUT IMPEDANCE 10K OHMS OUTPUT IMPEDANCE 2 OHMS PROTECTION SYSTEM Curto na saída / Tensão de alimentação baixa e alta / Proteção térmica MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1,8 A MAXIMUM MUSIC CONSUMPTION 60 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 119 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 6.22" WEIGHT 3.96 lbs (1,80Kg) EAN 7898556844604 TECHNICAL INFORMATION OPERATION CLASS D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 4 OHMS: 1200W RMS@ 12.6 VDC - 8 OHMS: 855W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 82% INPUT IMPEDANCE 10K Ohms OUTPUT IMPEDANCE 4 Ohms PROTECTION SYSTEM Output short circuit / High or Low supply voltage / Thermal protection MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.8A MAXIMUM MUSIC CONSUMPTION 58A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 116A DIMENSIONS (WXHXD) 8.98" x 2.76" x 6.22" (228 x 70 x 158mm) WEIGHT 3.96lb (1,80kg) EAN 7898556844819
$199.00 $179.00
-

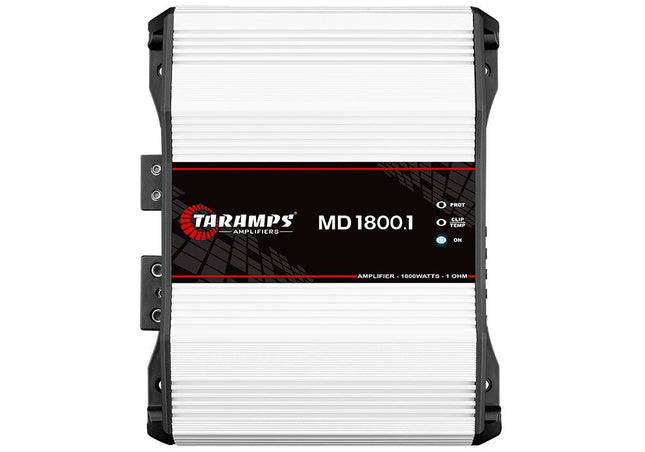

TARAMPS Taramps MD1800 Mono Car Audio Amplifier 1800 Watts RMS
Description The Taramps MD 1800.1 in the 1,2,4-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 1800-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 OHM: 1800W RMS@ 12.6 VDC - 2 OHMS: 1410W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 78% INPUT IMPEDANCE 10k OHMS OUTPUT IMPEDANCE 1 OHM PROTECTION SYSTEM Output Short / High/Low Supply Voltage / Thermal Protection MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.7 A MAXIMUM MUSIC CONSUMPTION 91 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 182 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 7.40" (228 x 70 x 188mm) WEIGHT 4.80lb (2.18kg) EAN 7898556844390 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 1800W RMS@ 12.6 VDC - 4 OHMS: 1100W RMS@ 12.6 VDC - 8 OHMS: 515W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) THERMAL MANAGEMENT Smart Cooler (Cooler powered by temperature or audio at 3 speeds) EFFICIENCY 78% INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 2 ohms PROTECTION SYSTEM Short circuit at the output, low/high supply voltage, thermal protection. MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.7 A MAXIMUM MUSIC CONSUMPTION 91 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 182 A DIMENSIONS (WXHXD) 8.6" x 2.75" x 7.40" (228 x 70 x 188mm) WEIGHT 4.80lb (2,18kg) EAN 7898556844376 TECHNICAL INFORMATION OPERATION CLASS Classe D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 4 OHMS: 1800W RMS@ 12.6 VDC - 8 OHMS: 1050W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 84% INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 4 ohms PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection. MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.5 A MAXIMUM MUSIC CONSUMPTION 85 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 170 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 7.40" (228 x 70 x 188mm) WEIGHT 4.80lb (2,18Kg) EAN 7898556844383
$299.00
-

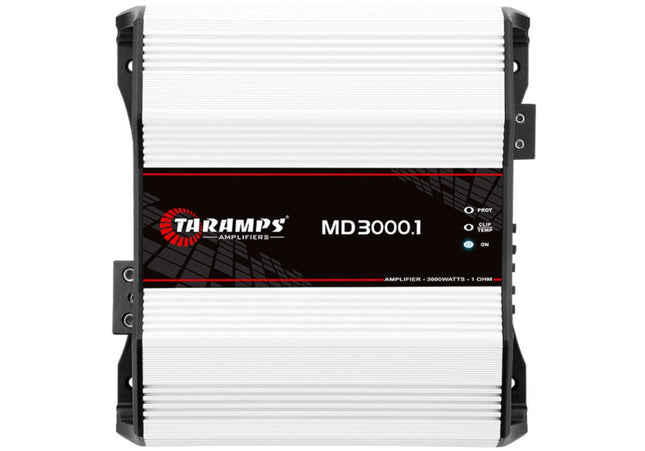

TARAMPS Taramps MD3000 Car Audio Amplifier 3000 Watts Rms
Description The Taramps MD 3000.1 in the 1,2,4-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is to say that it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 3000-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 OHM: 3000W RMS@ 12.6 VDC - 2 OHMS: 1920W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55) EFFICIENCY 79% INPUT IMPEDANCE 15K Ohms OUTPUT IMPEDANCE 1 OHM PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.0 A MAXIMUM MUSIC CONSUMPTION 150 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 300 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 8.58" (228 x 70 x 218mm) WEIGHT 5.5lb (2,5kg) EAN 7898556844628 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 3000W RMS@ 12.6 VDC - 4 OHMS: 1920W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) Freq. Variable (35 ~ 55) EFFICIENCY 82% INPUT IMPEDANCE 15K Ohms OUTPUT IMPEDANCE 2 OHMS PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection. MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.50 A MAXIMUM MUSIC CONSUMPTION 145 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 290 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 8.58" (228 x 70 x 218mm) WEIGHT 5.5lb (2,5kg) EAN 7898556844710 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 4 OHMS: 3000W RMS@ 12.6 VDC - 8 OHMS: 1920W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55) EFFICIENCY 85% INPUT IMPEDANCE 15K Ohms OUTPUT IMPEDANCE 4 OHMS PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection. MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.2 A MAXIMUM MUSIC CONSUMPTION 138.8 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 277.7 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 8.58" (228 x 70 x 218mm) WEIGHT 5.5lb (2,5kg) EAN 7898556844666
$299.00 $259.00
