Description

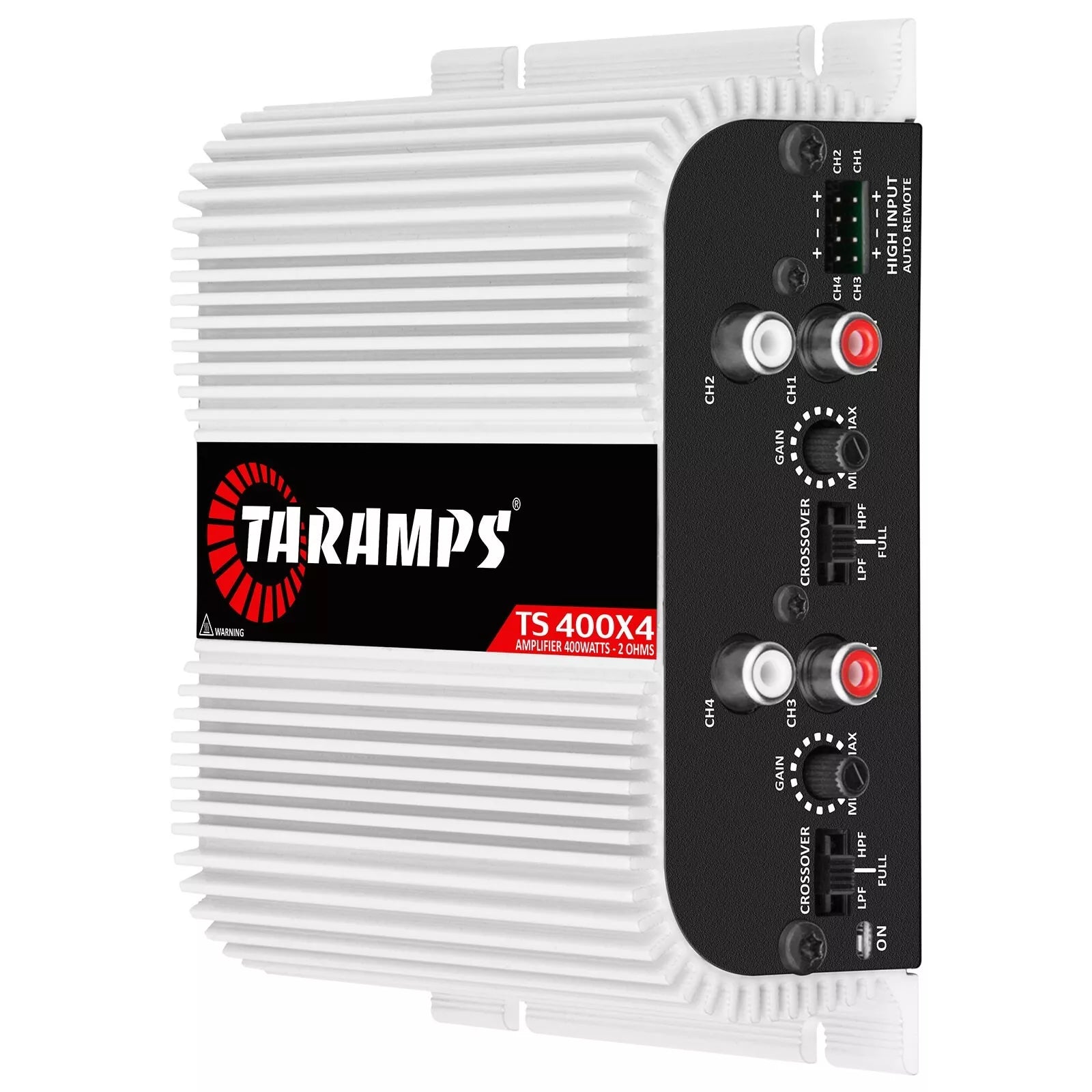

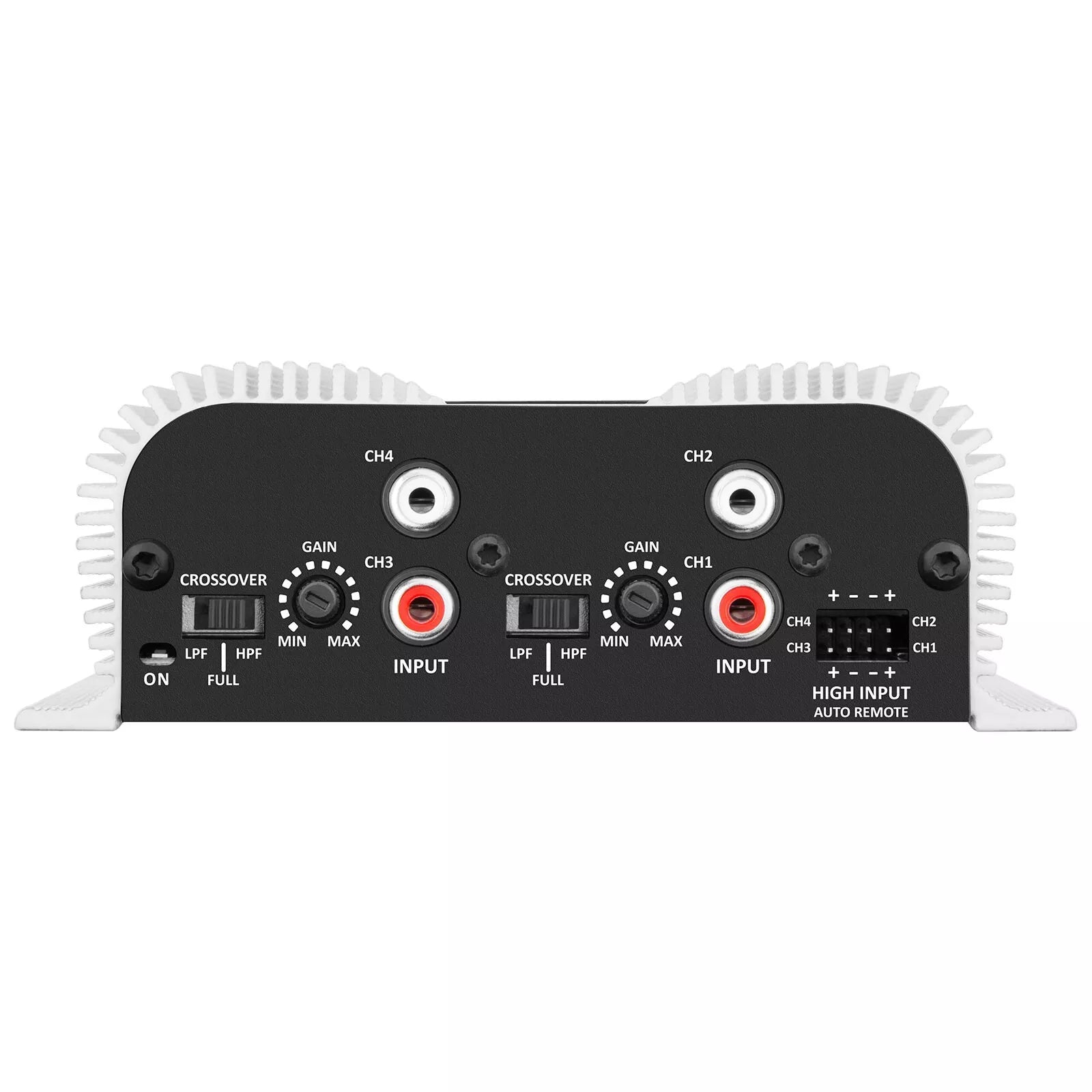

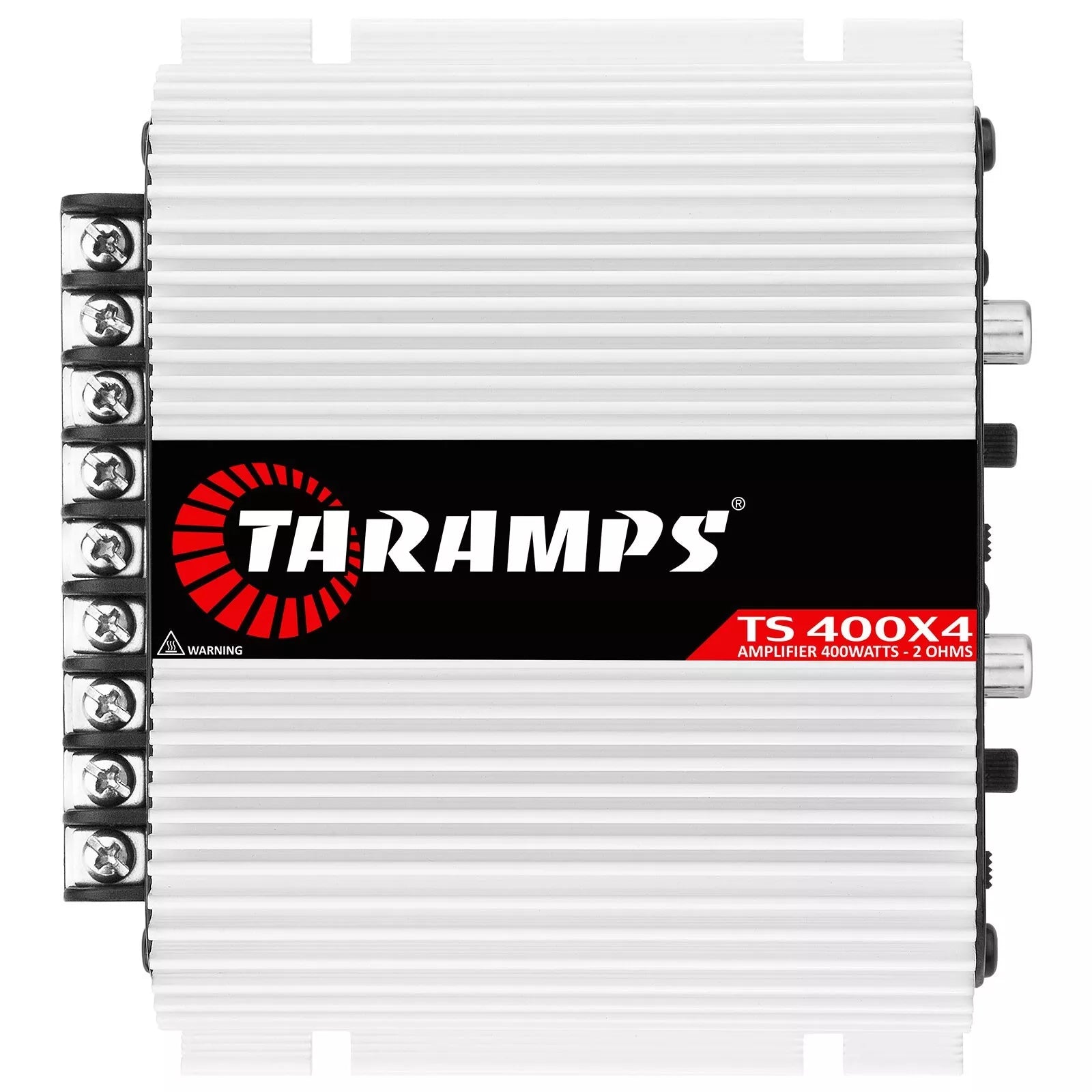

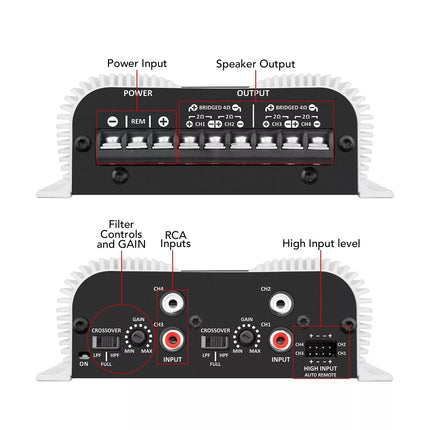

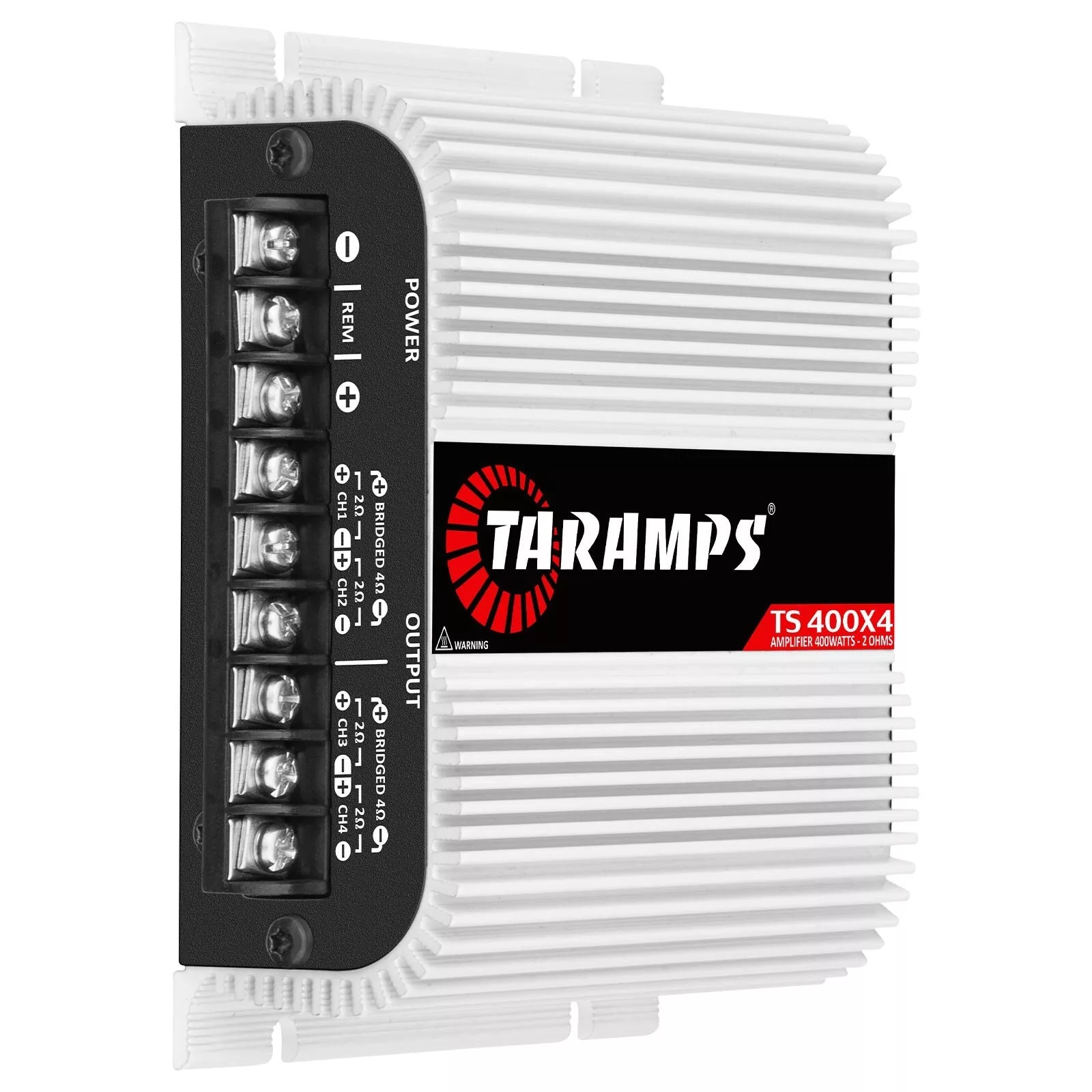

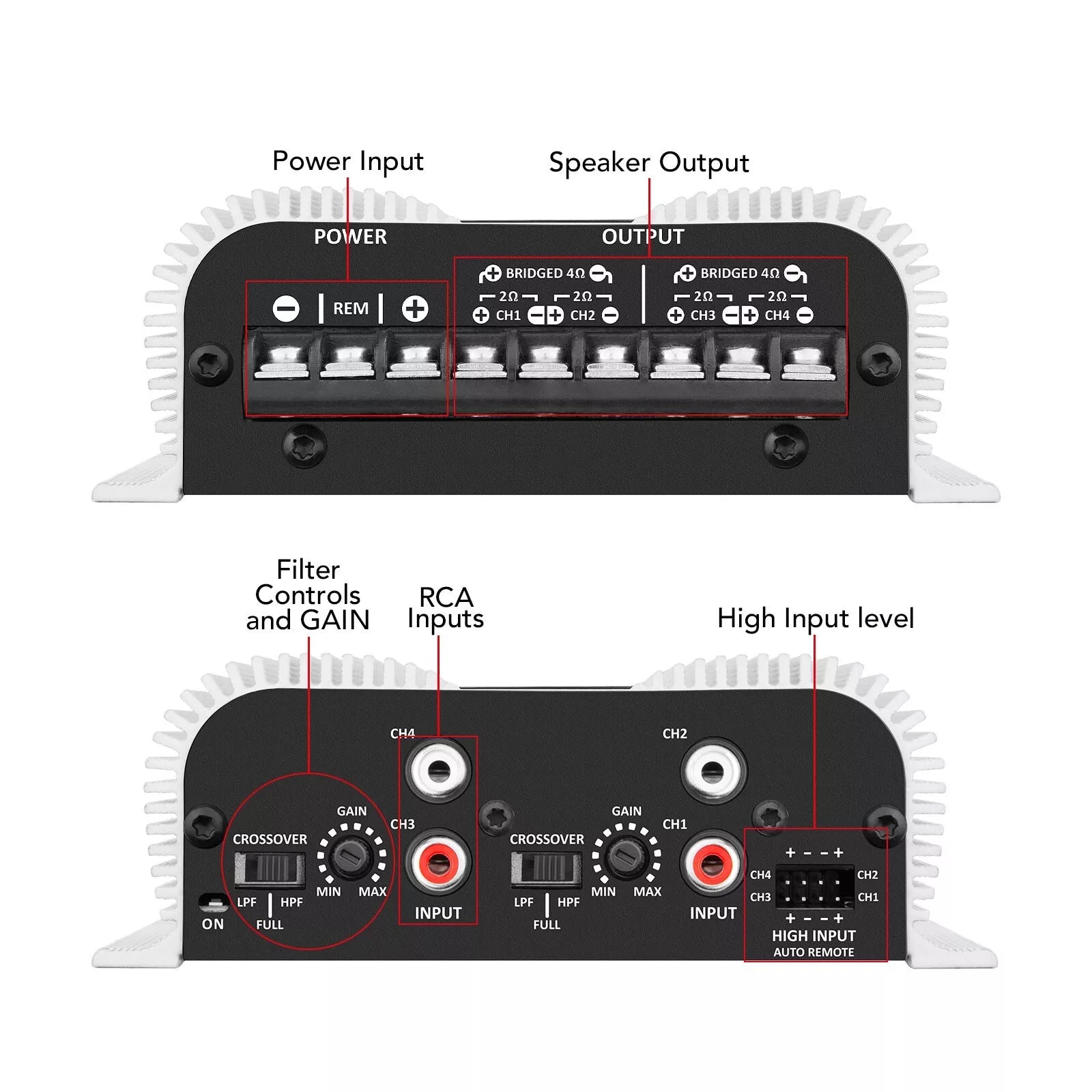

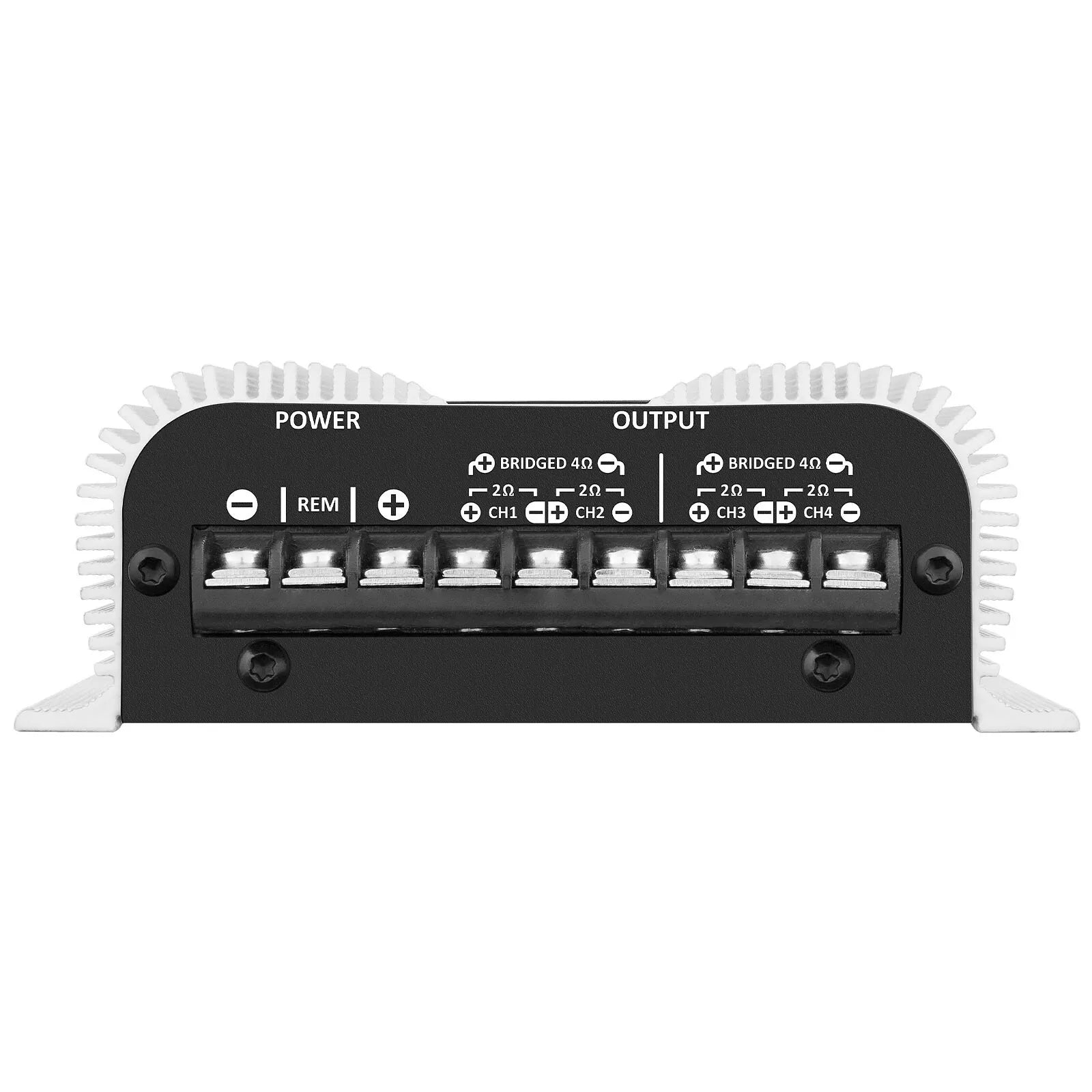

The TS 400X4 is designed with the highest performance to suit most types of car audio systems. It is multichannel, with 4 channels of 100 Watts RMS, with a maximum power of 400 Watts RMS at 2 ohms. The TS 400×4 is a FULL RANGE amplifier. It features thermal and short-circuit protection, plus LED indicator and crossover.
| OPERATION CLASS |
Class D |
| NUMBER OF CHANNELS |
04 |
| MAXIMUM POWER |
@ 13,8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS)
@ 13,8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS)

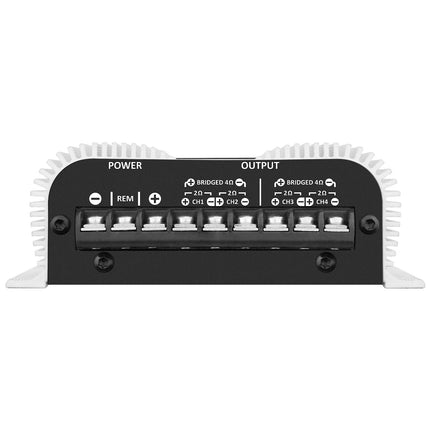

Bridged @ 13,8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS) |
| INPUT SENSITIVITY |
200mV (Vol = max.) |
| SIGNAL TO NOISE RATIO |
> 90dB |
| FREQUENCY RESPONSE |
(Full Range): 18 Hz to 30 kHz (-1dB) |
| CROSSOVER HIGH PASS (HPF) |
90 Hz (-12dB/8th) |
| CROSSOVER LOW PASS (LPF) |
90 Hz (-12dB/8th) |
| INPUT IMPEDANCE |
22K ohms |
| OUTPUT IMPEDANCE |
2 ohms |
| PROTECTION SYSTEM |
Thermal and Output Short |
| MIN. SUPPLY VOLTAGE |
8 VDC |
| MAXIMUM POWER SUPPLY VOLTAGE |
16 VDC |
| CONSUMPTION AT REST |
0.8A |
| MAXIMUM MUSIC CONSUMPTION |
@13,8VDC: 16.5A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
@13,8VDC: 33A |

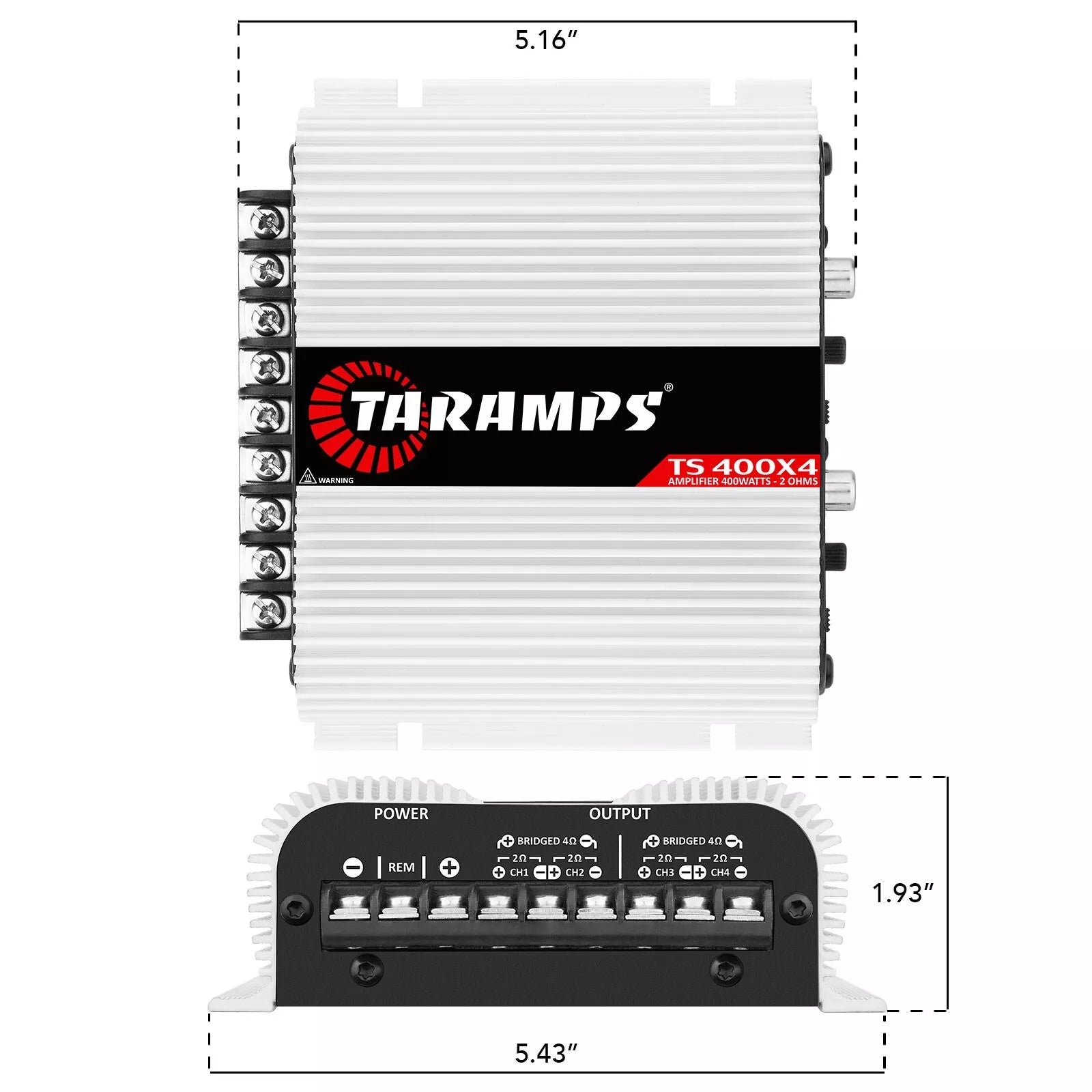

| DIMENSIONS (WXHXD) |
5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm) |
| WEIGHT |
1.322 lbs (0.6 kg) |
| EAN |
7898556840682 |
