Descripción

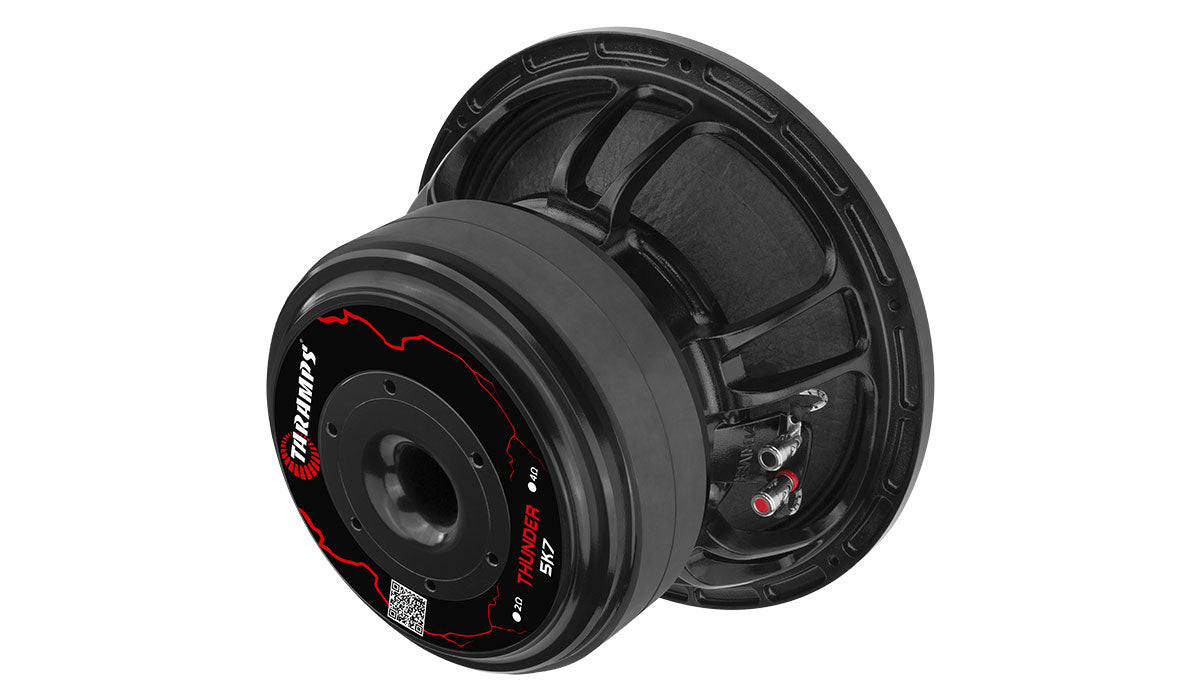

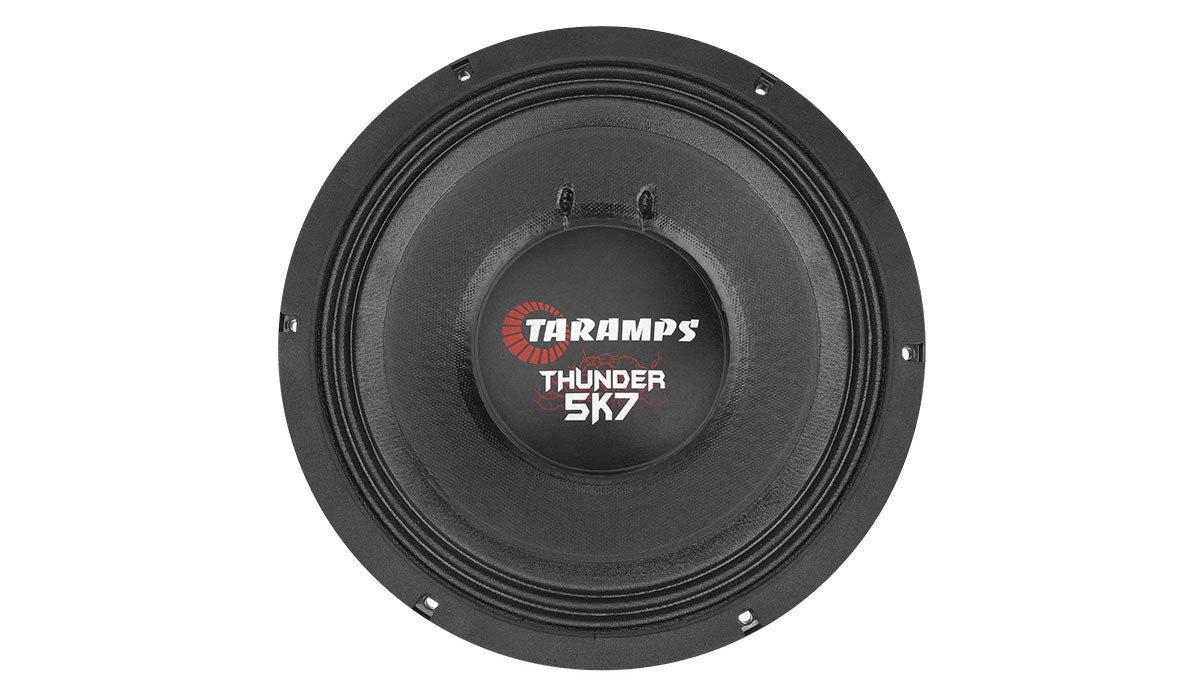

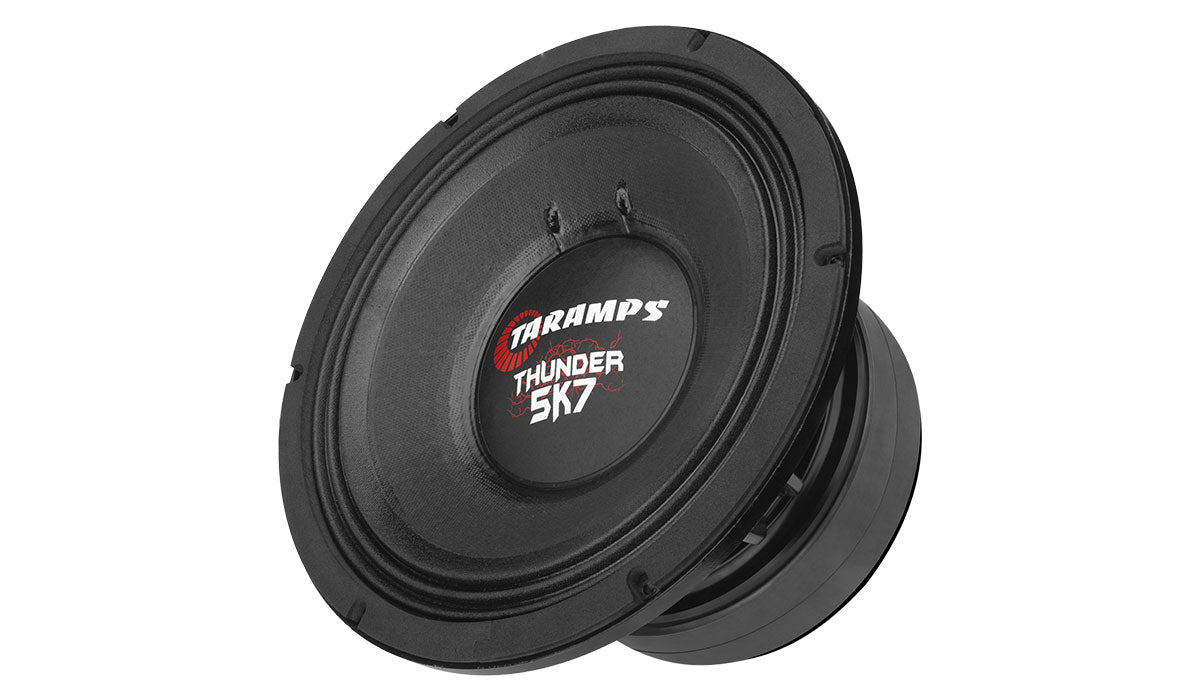

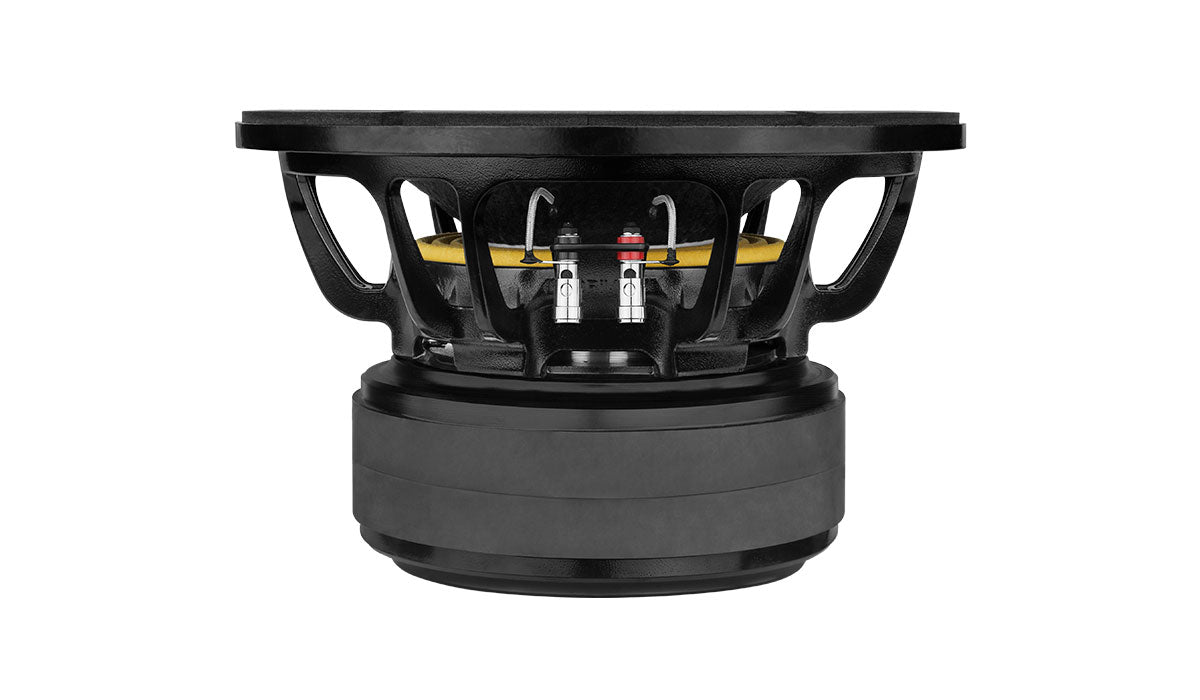

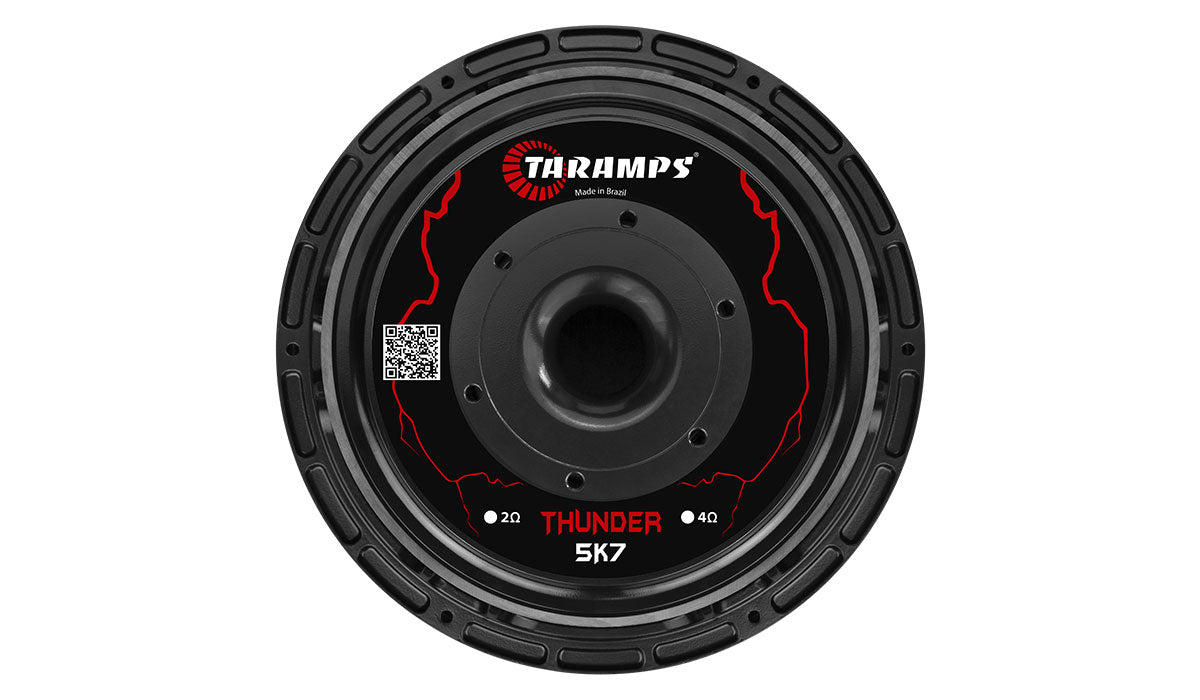

Introducing the 12" Woofer Thunder 5K7 by Grupo Taramps, a high-performance driver designed for powerful bass and mid-bass reproduction. Engineered for automotive sound systems (especially trio elétrico setups), this subwoofer delivers deep, intense lows with a premium build and high sound pressure.
Key Features:
-
Power Handling:
-
RMS: 2,850W
-
Peak (Program): 5,700W
-
Impedance: 2 or 4 Ohms (dual-configurable)
-
Frequency Response: 50Hz – 2,400Hz (covers bass and mid-bass)
-
Sensitivity: 92.163 dB (1W/1m, free-air) – efficient for high-output systems
-
Xmax (Cone Excursion): ±10mm – good displacement for strong bass
-
Voice Coil: 4" Kapton former, CCAW wire (28mm height) – handles extreme power
-
Magnet Structure: Dual ferrite (220x25mm) + 11,000 Gauss flux density – strong motor force
-
Frame: Aluminum – lightweight yet rigid
-
Weight: 21.1 kg (46.5 lbs) – heavy-duty construction
Technical Highlights:
-
BL Factor: 15.819 Tm (high force for tight bass control)
-
Qts (Total Q): 0.454 – optimized for ported/bandpass enclosures
-
Vas (Equivalent Volume): 8.7L – requires a medium-sized enclosure
-
Fs (Resonance Frequency): 84.711 Hz – best for SPL (loudness) applications
-
Recommended Enclosure Volume: 6.4L (for optimal performance)
Installation Notes:
⚠️ Professional installation required – ensure compatibility with your amplifier and electrical system.
⚠️ Verify impedance (2Ω or 4Ω) and power ratings to avoid damage.
⚠️ Best for high-power car audio, sound competitions, or trio elétrico setups.
SEO Keywords:
12-inch subwoofer, Thunder 5K7, Taramps subwoofer, 2850W RMS, 5700W peak, 2-ohm sub, car audio woofer, high-power subwoofer, bass driver, SPL subwoofer, trio elétrico speakers, dual ferrite magnet, Kapton voice coil, aluminum frame, loud bass, automotive sound system, low-frequency response, heavy-duty subwoofer, 4-inch voice coil, high-sensitivity sub.
Final Thoughts:
This Thunder 5K7 12" subwoofer is built for extreme power and durability, making it ideal for bass-heavy applications. Its high sensitivity (92dB) and strong motor structure ensure high output with minimal distortion. Perfect for competitions or high-energy music setups, but requires proper amplification and enclosure tuning for best results.
Would you like enclosure recommendations or amplifier pairings? 🚗🔊
