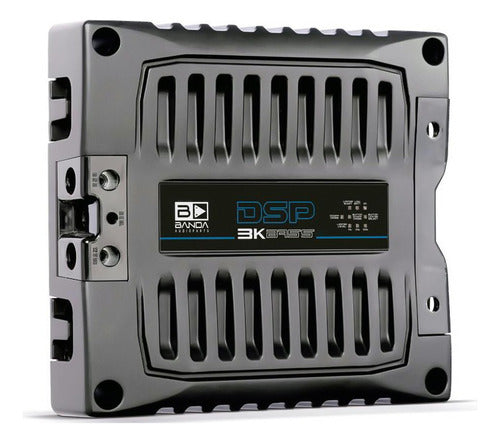

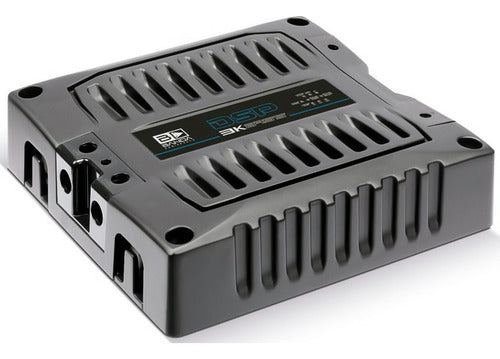

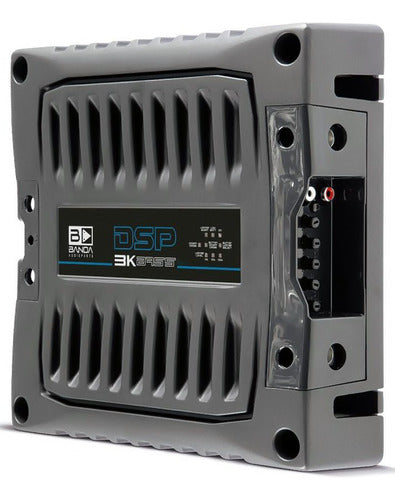

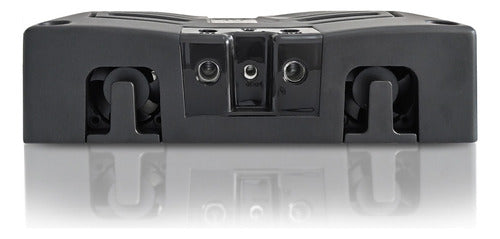

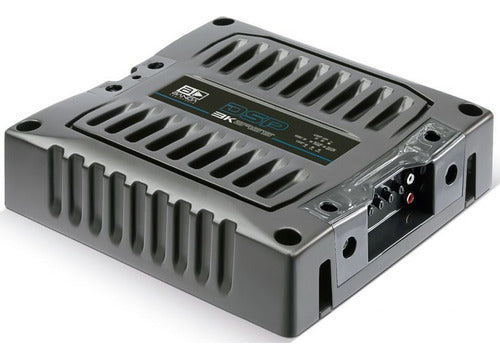

DSP BASS Series – 2 Ohms Version
Smart Power, Precision Protection
The DSP BASS 2 Ohms amplifier features a built-in limiter, offering greater safety and efficiency for your audio system. Unlike external limiters, the integrated design ensures stable protection even during voltage drops, making the system more secure and precise while helping to prevent speaker damage and reduce power consumption.
This model offers three selectable limiter levels—1%, 5%, and 10%, easily adjusted via a tactile switch, giving users control over dynamics and thermal protection.
With 3200 WRMS @ 2 Ohms, a Bass Boost (30Hz to 80Hz) of up to +12dB, and precision HPF/LPF filtering, this amplifier is engineered to deliver powerful and controlled low-frequency performance. Its durable aluminum chassis and advanced protection systems (thermal and short-circuit) ensure reliability, even under high-demand conditions.
Technical Specifications – DSP BASS 2 Ohms
-
Maximum Power @ 12.6V / 2 Ohms: 1 x 3200 WRMS
-
Maximum Power @ 12.6V / 4 Ohms: 1 x 1700 WRMS
-
Efficiency: 83%
-
Input Voltage: 9V – 15V
-
Input Impedance: 100K Ohms
-
THD+N: Minimum 1.5%, Maximum 7.5%
-
Input Sensitivity: 300mV – 8V
-
Signal-to-Noise Ratio: 80dB
-
Frequency Response: 22Hz – 1000Hz
-
Bass Boost: 30Hz – 80Hz (0 to +12dB)
-
HPF (Subsonic Filter): 22Hz – 65Hz
-
LPF (Crossover): 80Hz – 250Hz
-
Limiter Levels: Selectable – 1%, 5%, or 10%
-
Recommended Fuse: 150A
-
Idle Current Draw: 2.5A
-
Maximum Current Draw (musical signal): 220A
-
Maximum Current Draw (sine signal): 440A
-
Recommended Power Cable (min.): 50mm²
-
Weight: 3.7kg (8.16 lbs)
-
Height: 63mm (2.48 in)
-
Width: 225mm (8.86 in)
-
Depth: 236mm (9.29 in)
Additional Information
-
All products come with official invoice
-
1-year manufacturer warranty
-
Orders ship within 24 business hours
-
Images are for illustrative purposes only
-
Professional installation is highly recommended. We are not responsible for damage due to incorrect installation or misuse.
