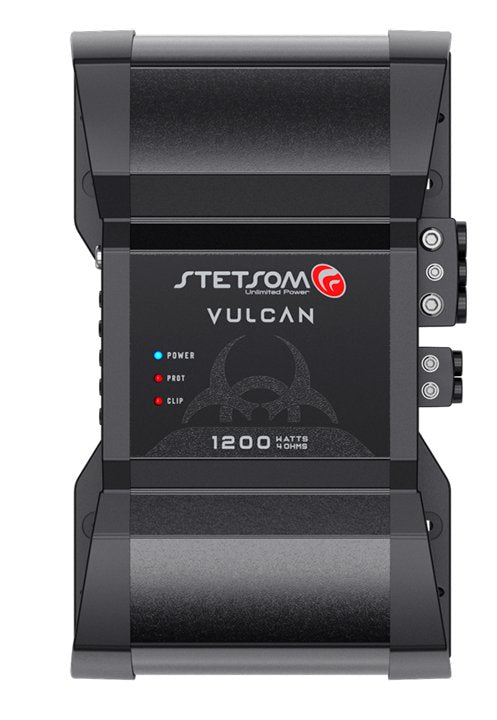

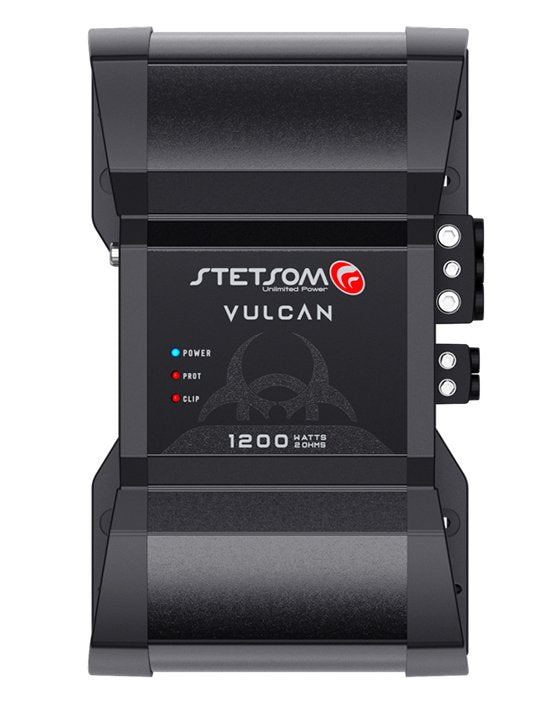

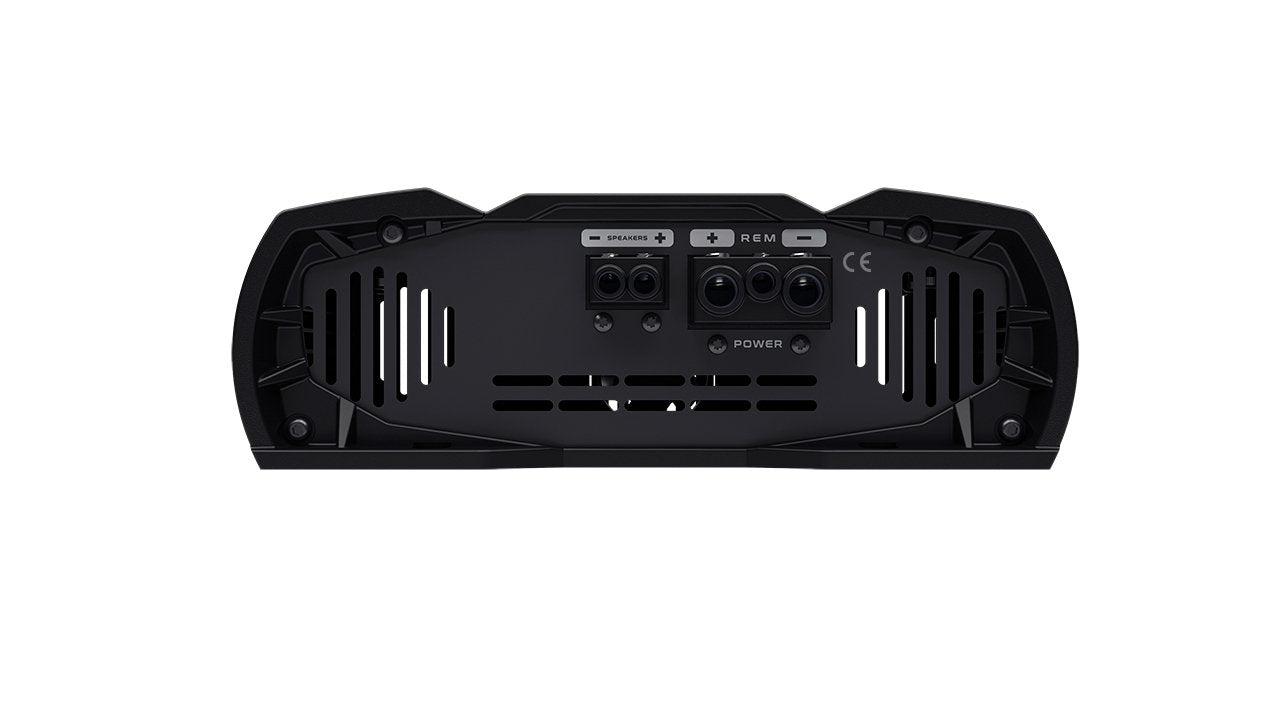

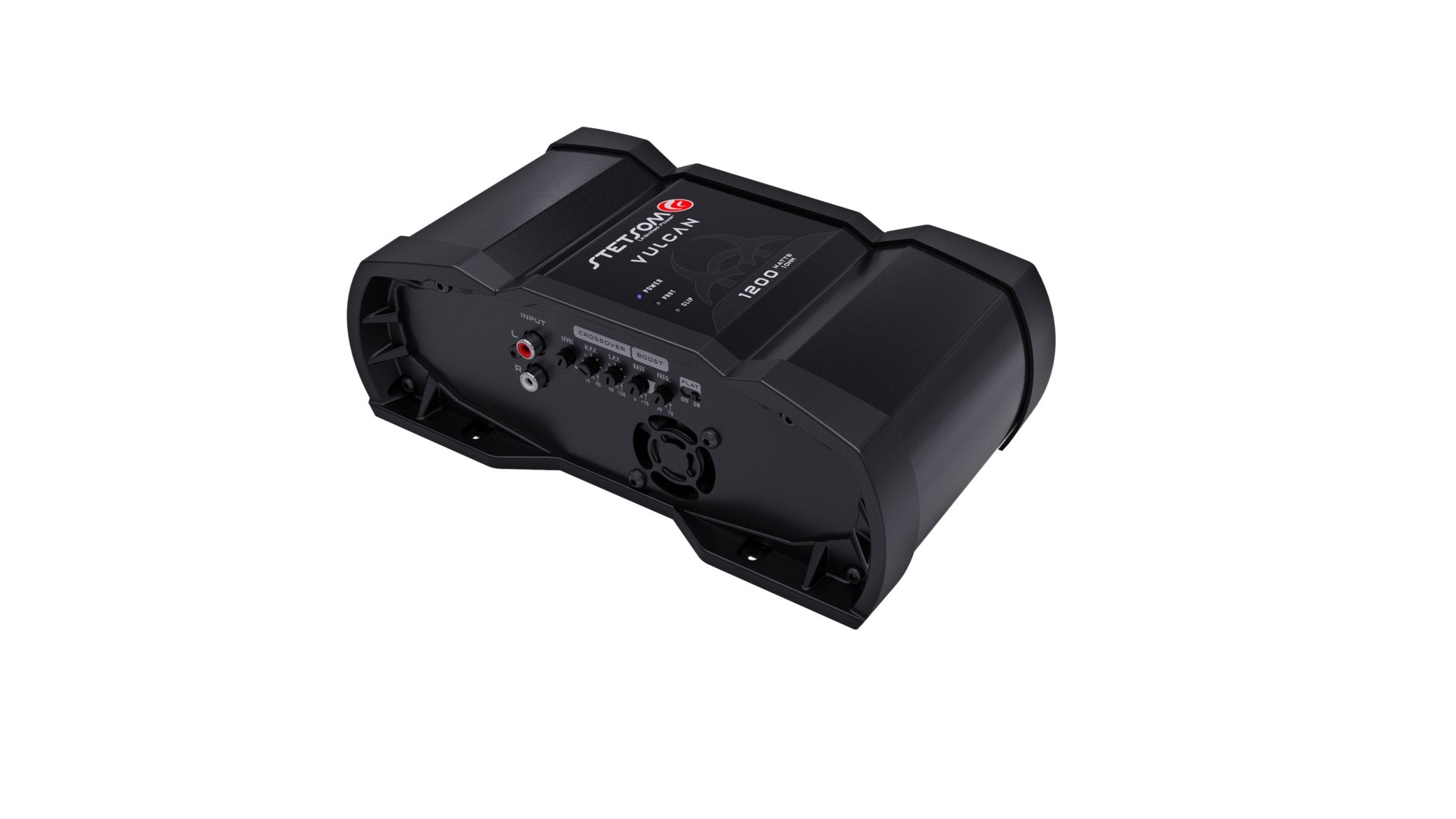

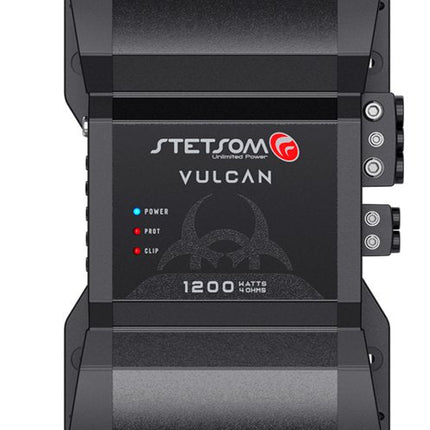

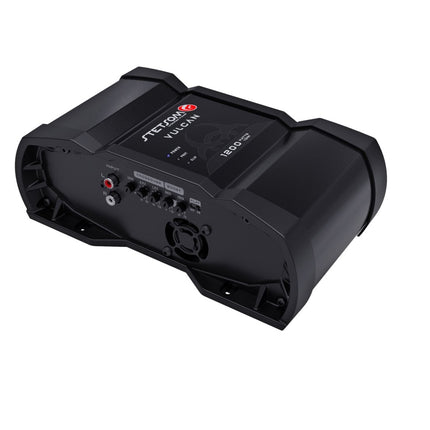

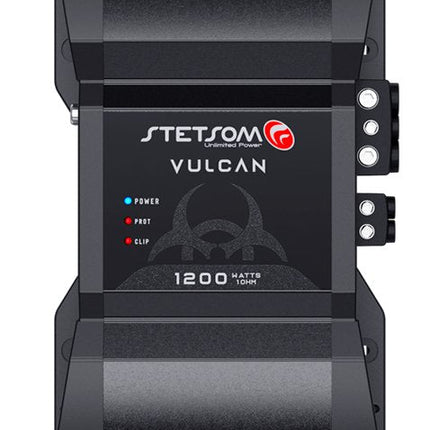

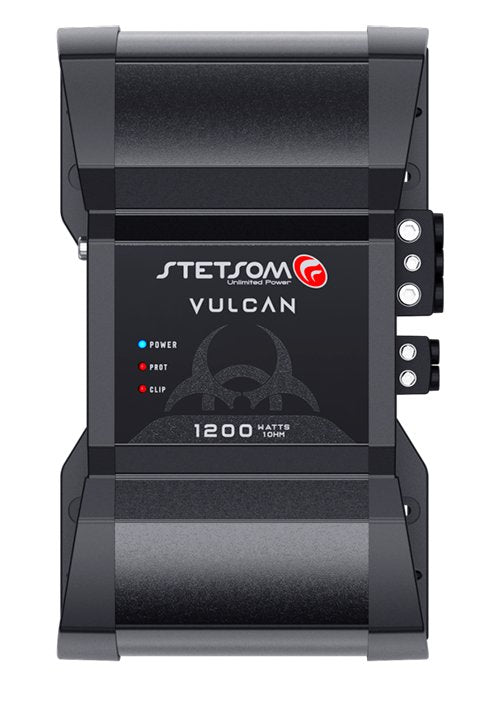

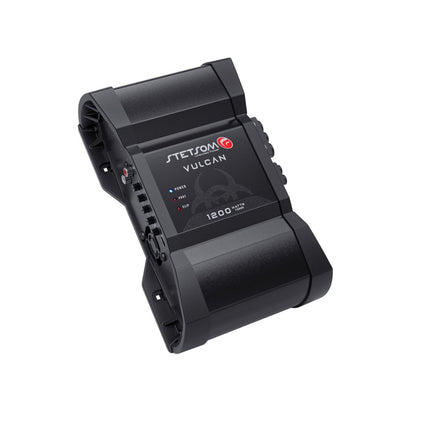

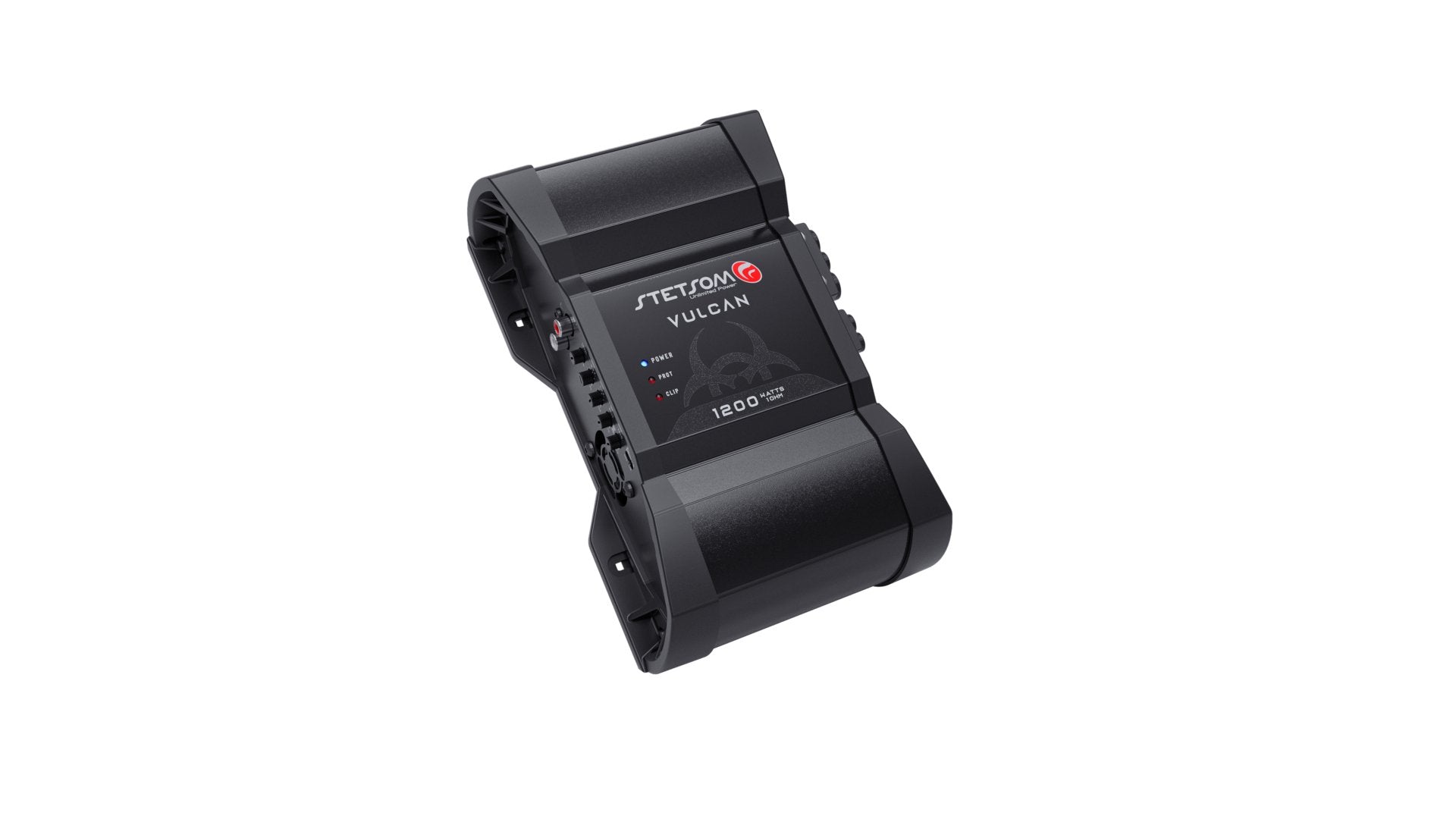

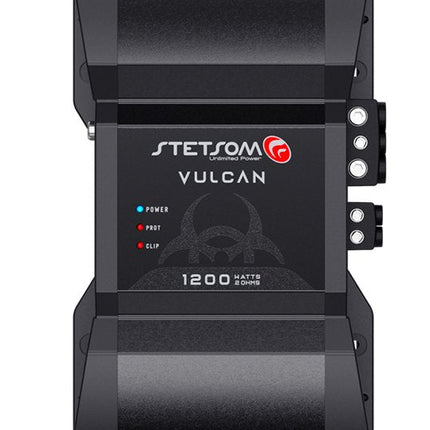

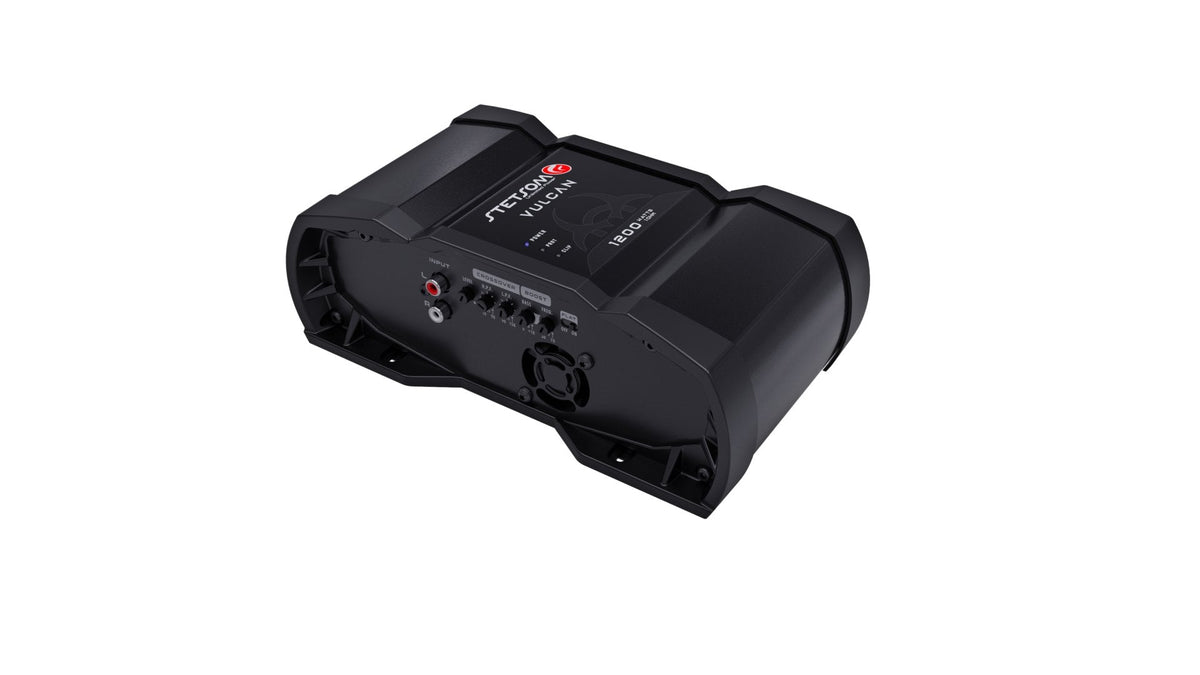

Stetsom Vulcan 1200 - Power Amplifier for Audio Car.
Introducing the Stetsom Vulcan 1200, a one-channel amplifier designed to elevate your audio experience to new heights. This powerhouse device boasts impressive technical specifications that make it a top choice for discerning enthusiasts.
Key Features:
Versatile Power Options: Choose between 1, 2, or 4 ohms configurations to tailor the amplifier's performance to your specific setup.
RMS Power: Enjoy robust and clear audio with varying power outputs depending on the impedance:
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS |
VULCAN 1200 – 1 OHM |
| Number of Channels |
1 |
| RMS Power at 1 Ohm 12.6V |
1250W RMS |
| RMS Power at 2 Ohm 12.6V |
750W RMS |
| RMS Power at 1 Ohm 14.4V |
1600W RMS |
| RMS Power at 2 Ohm 14.4V |
1050W RMS |
| Supply Voltage |
9V ~15V DC |
| Frequency Response |
10Hz ~ 15KHz |
| Crossover Low Pass |
90Hz ~ 15KHz |
| Crossover High Pass |
10Hz ~ 90Hz |
| Signal to Noise |
>90dB |
| Input Sensitivity |
200mV |
| Input Impedance |
10K Ohms |
| Impedance Output |
1 Ohm |
| Consumption with Signal Musical |
63.5A |
| Consumption with Signal Bass |
127A |
| Dimensions (H x W x D) mm |
78 x 231.5 x 141 mm |
| Weight Kg |
1.7 Kg |
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS |
VULCAN 1200 – 2 OHMS |
| Number of Channels |
1 |
| RMS Power at 2 Ohm 12.6V |
1240W |
| RMS Power at 4 Ohm 12.6V |
700W |
| RMS Power at 2 Ohm 14.4V |
1600W |
| RMS Power at 4 Ohm 14.4V |
900W |
| Supply Voltage |
9V ~15V DC |
| Frequency Response |
10Hz ~15KHz |
| Crossover Low Pass |
90Hz ~ 15KHz |
| Crossover High Pass |
10Hz ~ 90Hz |
| Signal to Noise |
>90dB |
| Input Sensitivity |
200mV |
| Input Impedance |
12K Ohms |
| Impedance Output |
2 Ohms |
| Consumption with Signal Musical |
60A |
| Consumption with Signal Bass |
120A |
| Dimensions (H x W x D) mm |
78 x 231.5 x 141 mm |
| Weight Kg |
1.7 Kg |
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS |
VULCAN 1200 – 4 OHMS |
| Number of Channels |
1 |
| RMS Power at 4 Ohm 12.6V |
1.200W RMS |
| RMS Power at 8 Ohm 12,6V |
700W RMS |
| RMS Power at 4 Ohm 14.4V |
1.600W RMS |
| RMS Power at 8 Ohm 14,4V |
900W RMS |
| Supply Voltage |
9V ~ 15V DC |
| Frequency Response |
10Hz ~15KHz |
| Crossover Low Pass |
90Hz ~ 15KHz |
| Crossover High Pass |
10Hz ~ 90Hz |
| Signal to Noise |
>90dB |
| Input Sensitivity |
200mV |
| Input Impedance |
17K Ohms |
| Impedance Output |
4 Ohms |
| Consumption with Signal Musical |
57A |
| Consumption with Signal Bass |
112A |
| Dimensions (H x W x D) mm |
78 x 231,5 x 141 mm |
| Weight Kg |
1,64 Kg |
Wide Frequency Response: Immerse yourself in a broad frequency range from 10Hz to 15KHz, ensuring every note is delivered with precision.
Adjustable Crossovers: Fine-tune your audio with low pass and high pass crossovers ranging from 10Hz to 90Hz.
Low Signal Interference: Benefit from a signal-to-noise ratio exceeding 90dB, minimizing unwanted interference for a crisp and clear sound.
Sleek and Compact Design: The amplifier's dimensions of 78 x 231.5 x 141 mm make it compact and versatile for easy integration into various setups.
User-Friendly Setup: With an input sensitivity of 200mV and user-friendly controls, the Vulcan 1200 ensures a hassle-free installation process.
Durable Build: Weighing in at 1.7 kg (for 1 and 2 ohms configurations) and 1.64 kg (for 4 ohms configuration), the Vulcan 1200 combines power with a lightweight, durable design.
Upgrade your car audio system or home entertainment setup with the Stetsom Vulcan 1200, where precision meets power for an unparalleled auditory experience.
