Descripción

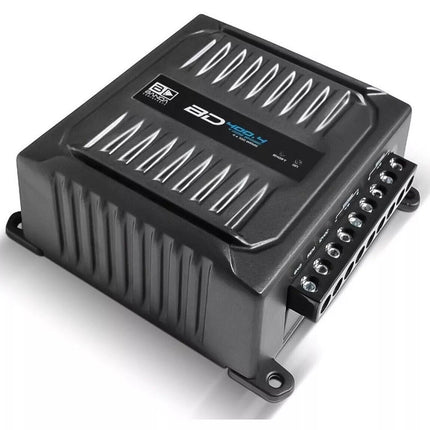

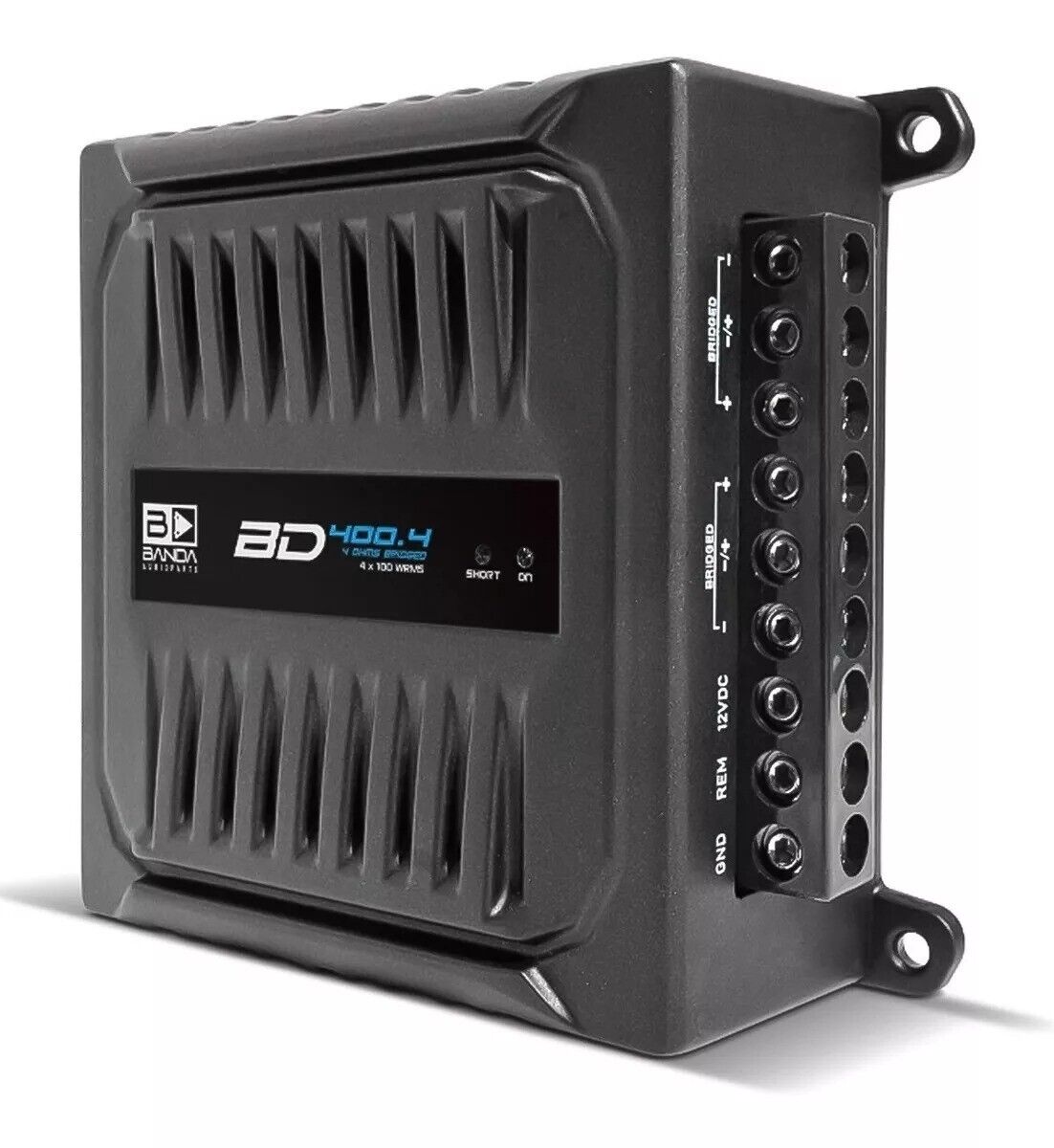

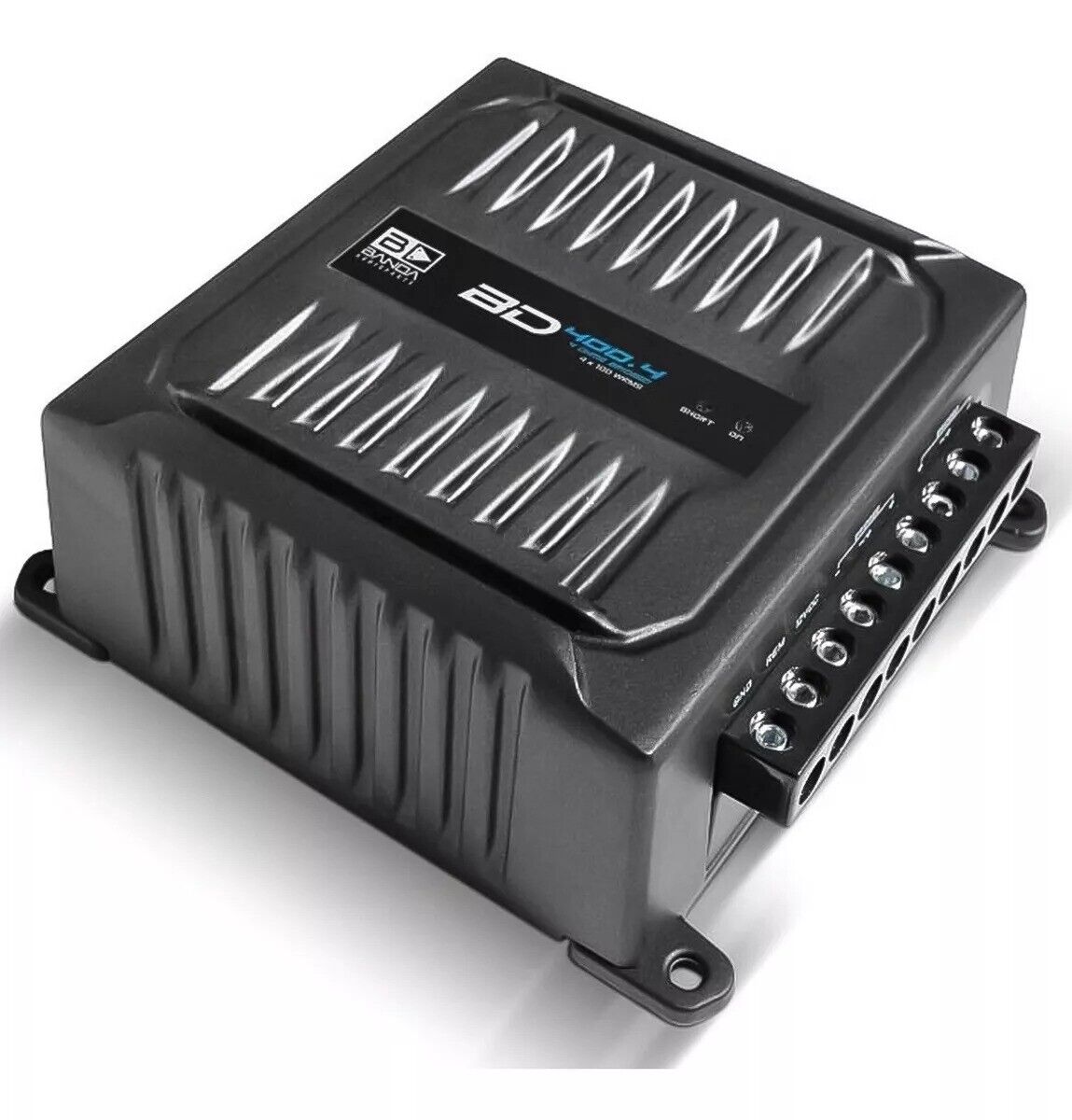

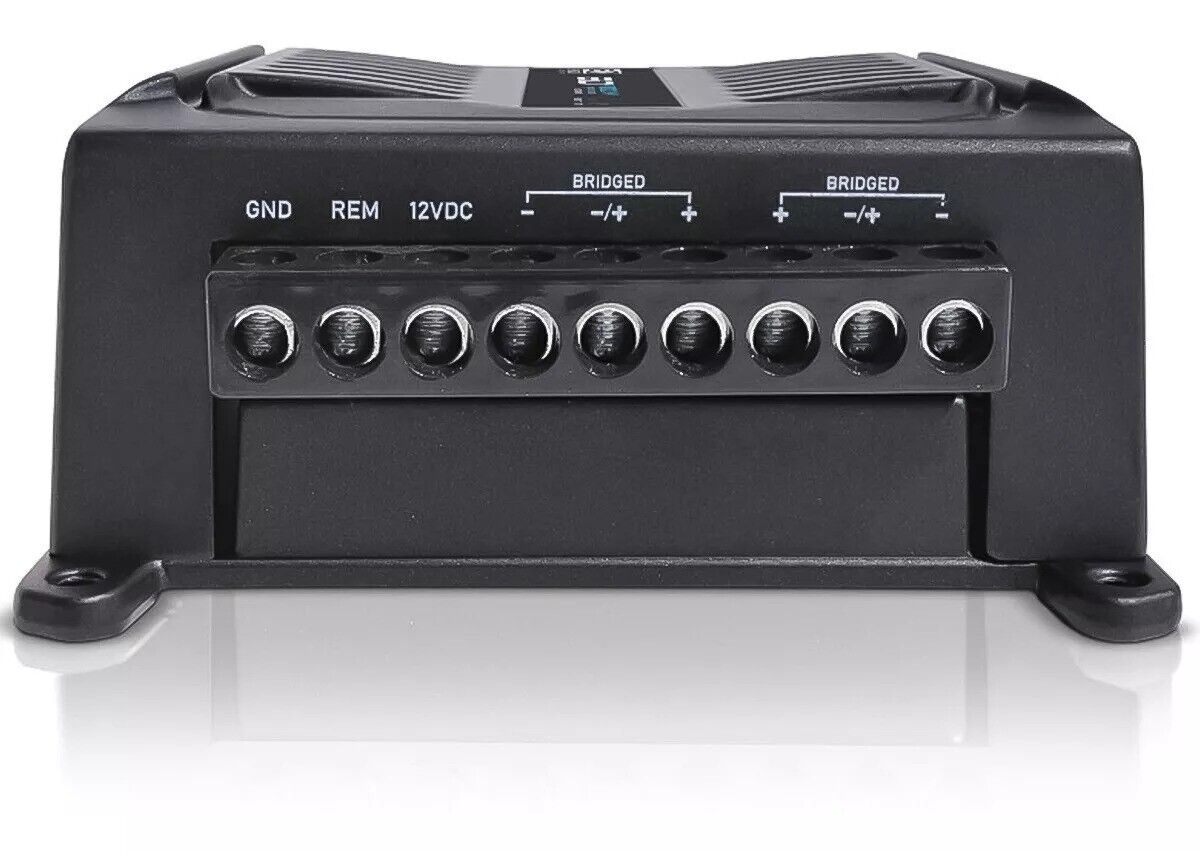

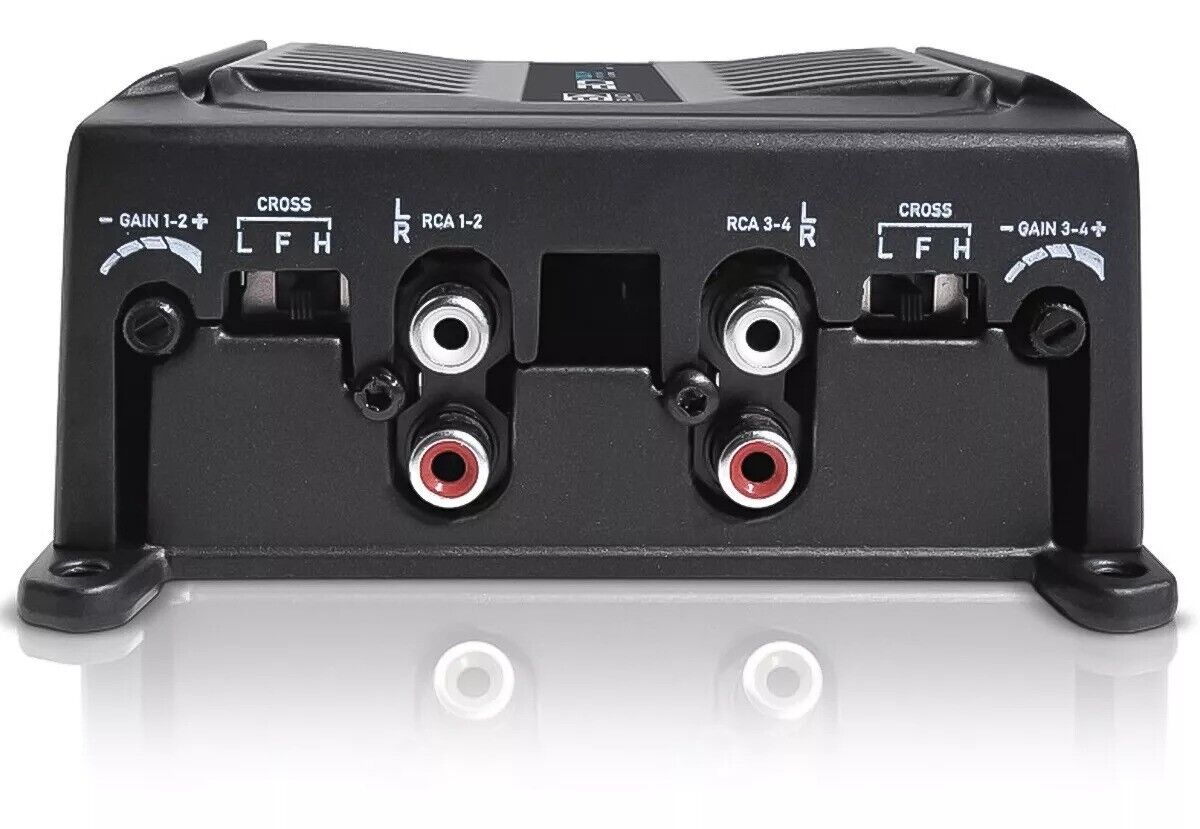

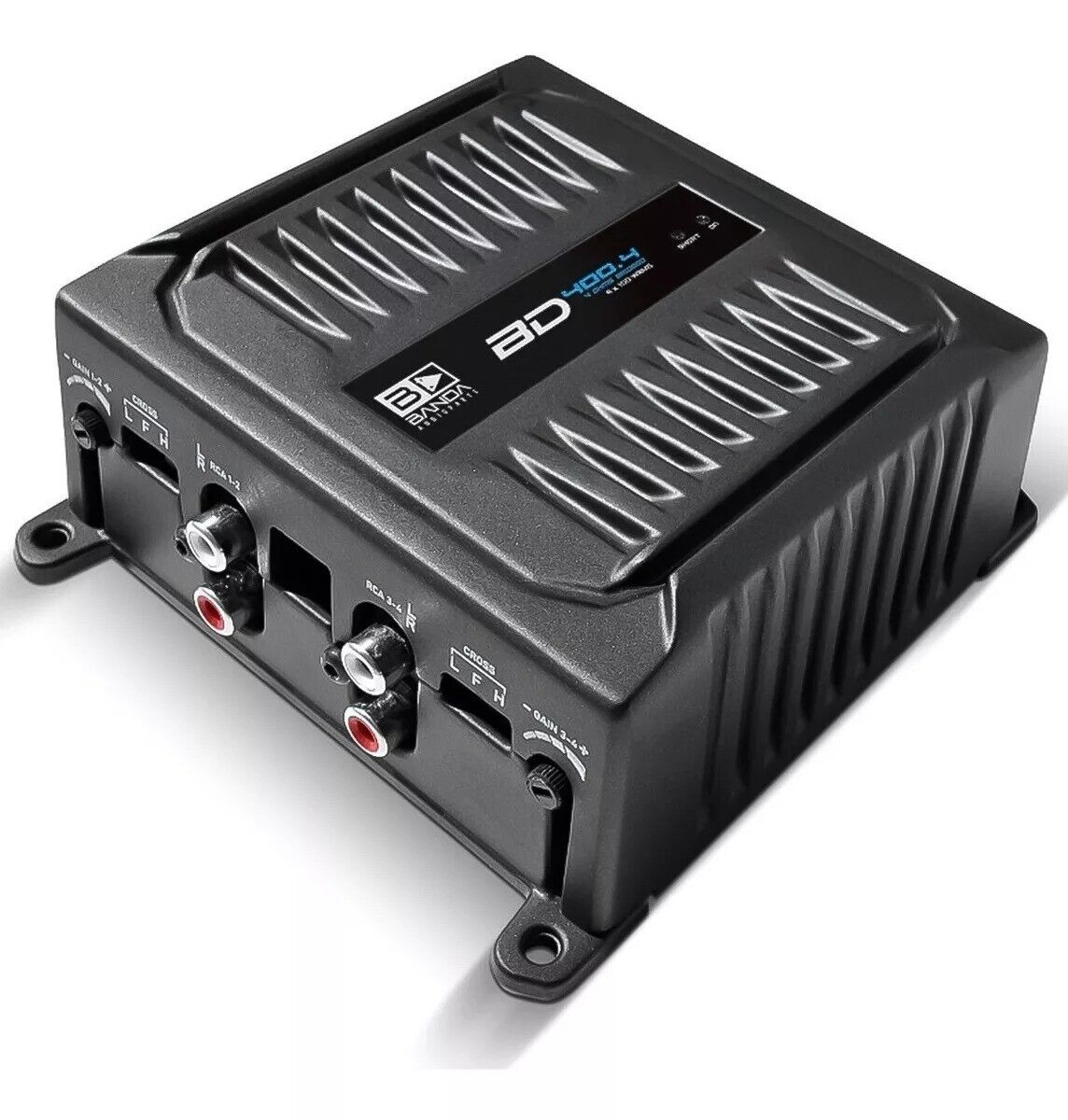

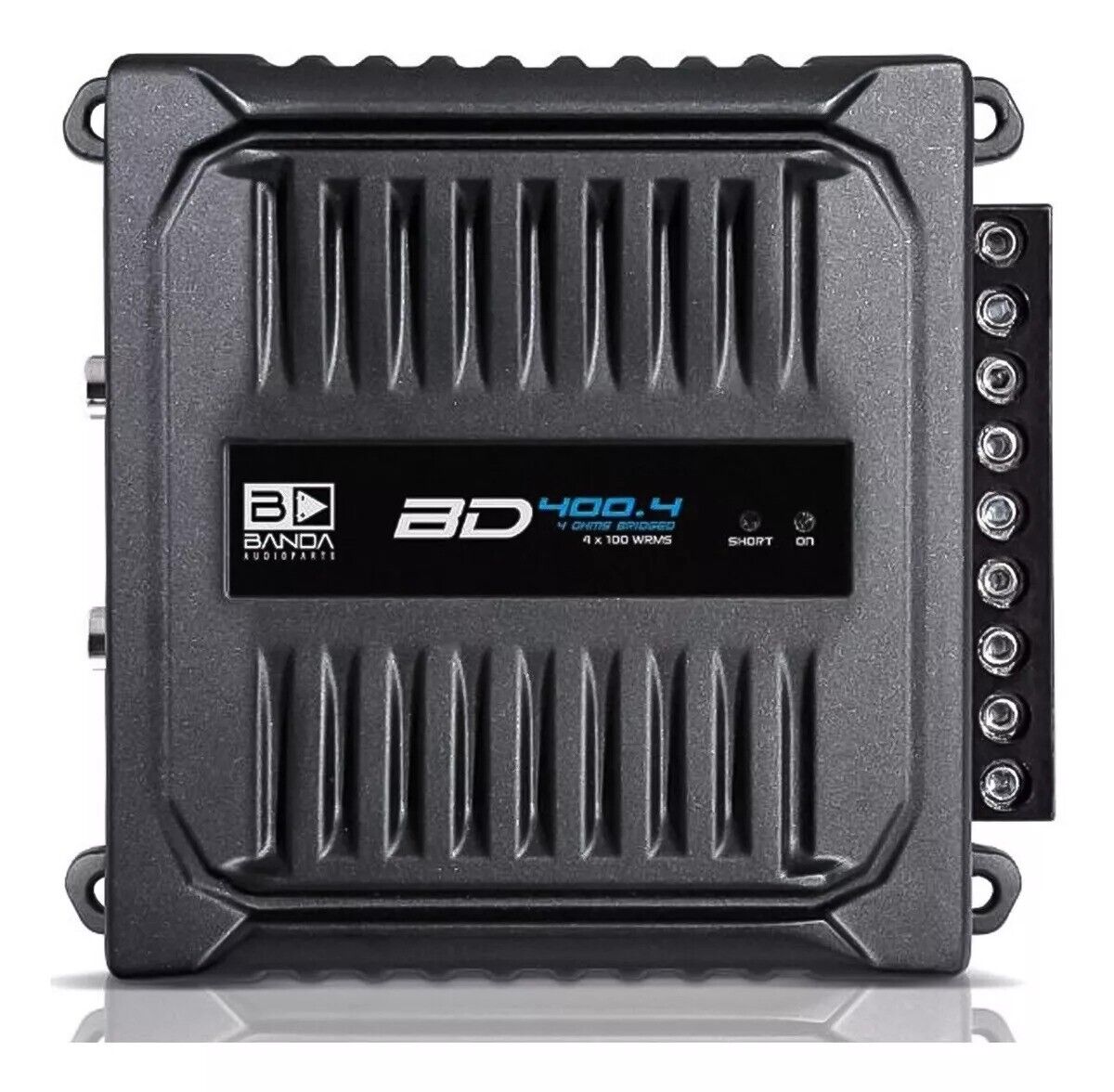

BANDA BD400.4 2OHM CAR AUDIO 400W 4CHANNELS 400X4 AMPLIFIER BANDA AUDIOPARTS
The 400.4 offers 400Wrms with a configuration of 4 channels of 100Wrms at 2 Ohms each, or 2 channels of 200Wrms 4 Ohms in Bridge. This line is widely used for small systems as it accepts various installation configurations, meeting the most diverse market needs, playing any type of loudspeaker, from Subwoofers to Tweeters.
You can equip your mini sound system to ensure daily quality in your tracks. Therefore, the product offers 4 channels with an impedance of 2 ohms and active crossover, in addition to a modern design with a black housing on top.
- Operation Class: D
- Maximum Power 12.6v @ 2 Ohms: 4 x 100 WRMS
- Max Power 12.6v @ 4 Ohms: 4 x 65 WRMS
- Maximum Power 12.6v Bridge @ 4 Ohms: 2 x 200 WRMS
- Max Power 14.4v @ 2 Ohms: 4 x 140 WRMS
- Max Power 14.4v @ 4 Ohms: 4 x 85 WRMS
- Maximum Power 14.4v Bridge @ 4 Ohms: 2 x 280 WRMS
- Key Active Crossover
- Frequency Response: 20Hz to 20kHz
- Low Pass LPF: 20Hz - 90Hz @ 12dB/8th
- High Pass HPF: 90Hz - 20kHz @ 12B/8A
- Band Pass (Flat)
- THD: <1%
- Input Voltage: 9 - 16V
- Recommended fuse: 30A
- Maximum Music Consumption: 20A
- Power Cables (Min.): 10mm / 9 AWG
- Output Cables (Min.): 2 x 1.5mm / 2 x 15 AWG
- Signal Noise Ratio > 85dB
- Input Sensitivity: 180mV - 3.4V
- Input Impedance: 47K Ohms
- Weight (Kg): 0.78
- Height (mm): 116
- Width (mm): 127
- Depth (mm): 53
NOTE: Installation of Banda Audioparts Amplifiers must always be carried out by a trained professional.
