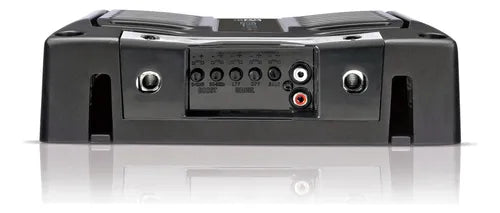

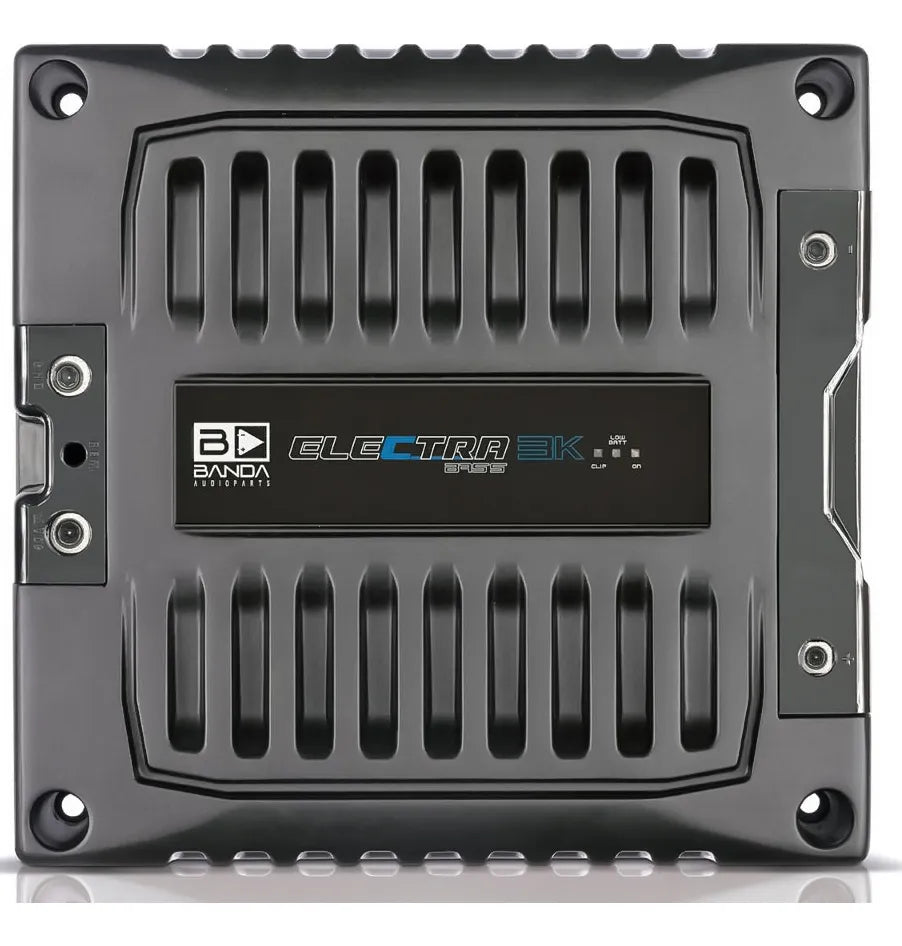

Banda Electra Bass 3K2 Amplifier Module 3000 Watts RMS 2 ohms

Descripción

The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Due to this, the ELECTRA will only play Subwoofers , Bass and part of the mid frequencies. The BASS BOOST @ 45Hz feature is a differentiator, further reinforcing the bass of your system.

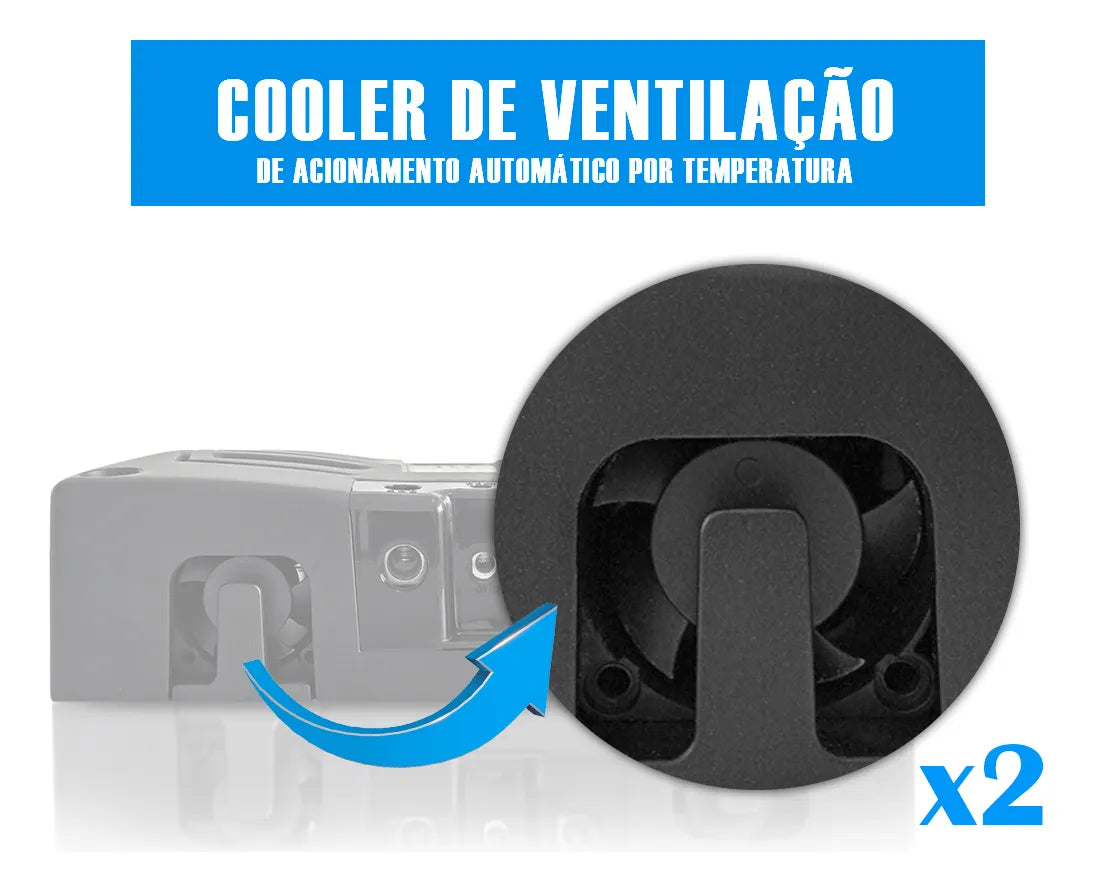

Designed on a 100% aluminum chassis , it works with a power of 3000 WRMS with 1 input channel for connection and an impedance of 2 Ohms. It has very low harmonic distortion (less than 1%) and Clipping indicator, forced ventilation and short circuit protection. Furthermore, it has a bold and clean design, matching any sound system.

Technical specifications

Maximum Power 14.4v @ 2 Ohms

3700 WRMS

Maximum Power 14.4v @ 4 Ohms

2300 WRMS

Maximum Power 12.6v @ 2 Ohms

3000 WRMS

Maximum Power 12.6v @ 4 Ohms

1700 WRMS

Efficiency @ 4 Ohms

84%

Efficiency @ 2 Ohms

80%

Input Voltage

9 – 15V

Input Impedance

100K Ohms

THD+N

0.10%

Input Sensitivity

140mV – 8V

Signal to Noise Ratio

86dB

Frequency Response (Switch OFF)

5 to 500Hz (-3dBs)

Frequency Response

20 to 500Hz (-3dBs)

Bass Boost @ 45Hz

Variable 0 to +18dBs

HPF (Subsonic)

20 to 80Hz @ 12dB/octave Linkwitz-Riley

LPF (Crossover)

80 to 500Hz @ 12dB/octave Linkwitz-Riley

Recommended Fuse

150 A

Rest Current

2A

Maximum Current (sine signal)

315A

Maximum Current (musical signal)

155A

Power Cables (recommended min.)

21mm / 4 AWG

Output Cables (recommended min.)

2 x 4mm / 2 x 11 AWG

Weight (kg)

4.9

Height (mm)

60

Width (mm)

264

Depth (mm)

308


Banda Electra Bass 3K2 Amplifier Module 3000 Watts RMS 2 ohms

Forma del producto

The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Due to... Leer más...

SKU: BAEB53K2
Código de barras: 7776850978341

$299.00 $249.00 Sin IVA
