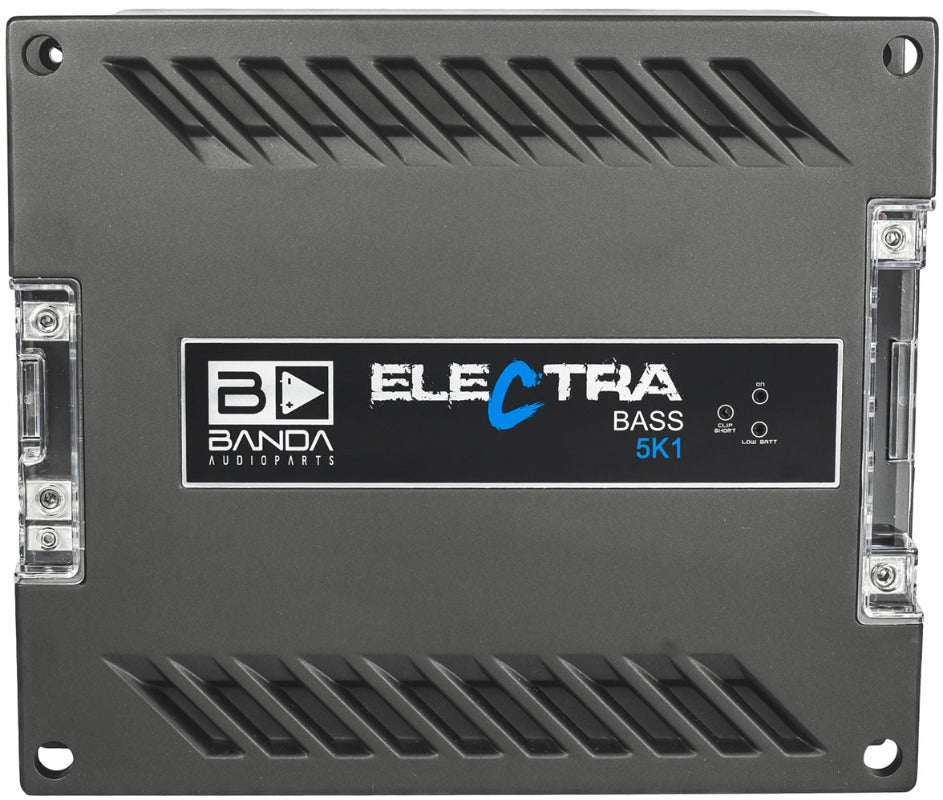

Banda Electra Bass 5K1 Amplifier Audio Car 5000 Watts RMS 1 ohm

Descripción

The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Due to this, the ELECTRA will only play Subwoofers , Bass and part of the mid frequencies. The BASS BOOST @ 45Hz feature is a differentiator, further reinforcing the bass of your system.

Designed on a 100% aluminum chassis , it works with a power of 5000 WRMS with 1 input channel for connection and an impedance of 1 Ohm. It has very low harmonic distortion (less than 1%) and Clipping indicator, forced ventilation and short circuit protection. Furthermore, it has a bold and clean design, matching any sound system.

ELECTRA 5K1

Technical specifications

Maximum Power 14.4v @ 1 Ohm

6200WRMS

Maximum Power 14.4v @ 2 Ohms

4300WRMS

Maximum Power 12.6v @ 1 Ohm

5000WRMS

Maximum Power 12.6v @ 2 Ohms

3600 WRMS

Efficiency @ 2 Ohms

77%

Efficiency @ 1 Ohm

67%

Input Voltage

9 – 15V

Input Impedance

100K Ohms

THD+N

0.10%

Input Sensitivity

40mV – 2V

Signal to Noise Ratio

90dB

Frequency Response (Switch OFF)

5 to 500Hz (-3dBs)

Frequency Response

20 to 500Hz (-3dBs)

Bass Boost @ 45Hz

Variable 0 to +18dBs

HPF (Subsonic)

20 to 80Hz @ 12dB/octave Linkwitz-Riley

LPF (Crossover)

80 to 500Hz @ 12dB/octave Linkwitz-Riley

Recommended Fuse

250 A

Rest Current

3.5A

Maximum Current (sine signal)

600A

Maximum Current (musical signal)

270A

Power Cables (recommended min.)

50mm / 0 AWG

Output Cables (recommended min.)

2 x 6mm / 2 x 3 AWG

Weight (kg)

5.4

Height (mm)

60

Width (mm)

264

Depth (mm)

308

Banda Electra Bass 5K1 Amplifier Audio Car 5000 Watts RMS 1 ohm

Forma del producto

The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Due to... Leer más...

SKU: BAEB5K1
Código de barras: 7777727944919

$520.00 $486.00 Sin IVA
