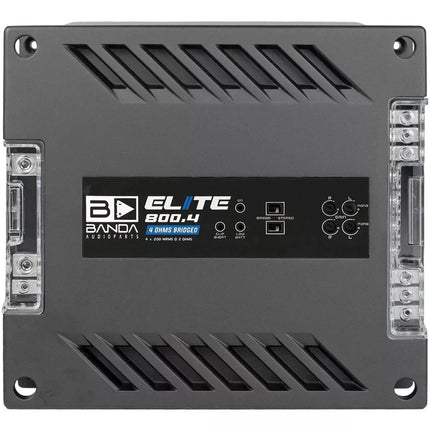

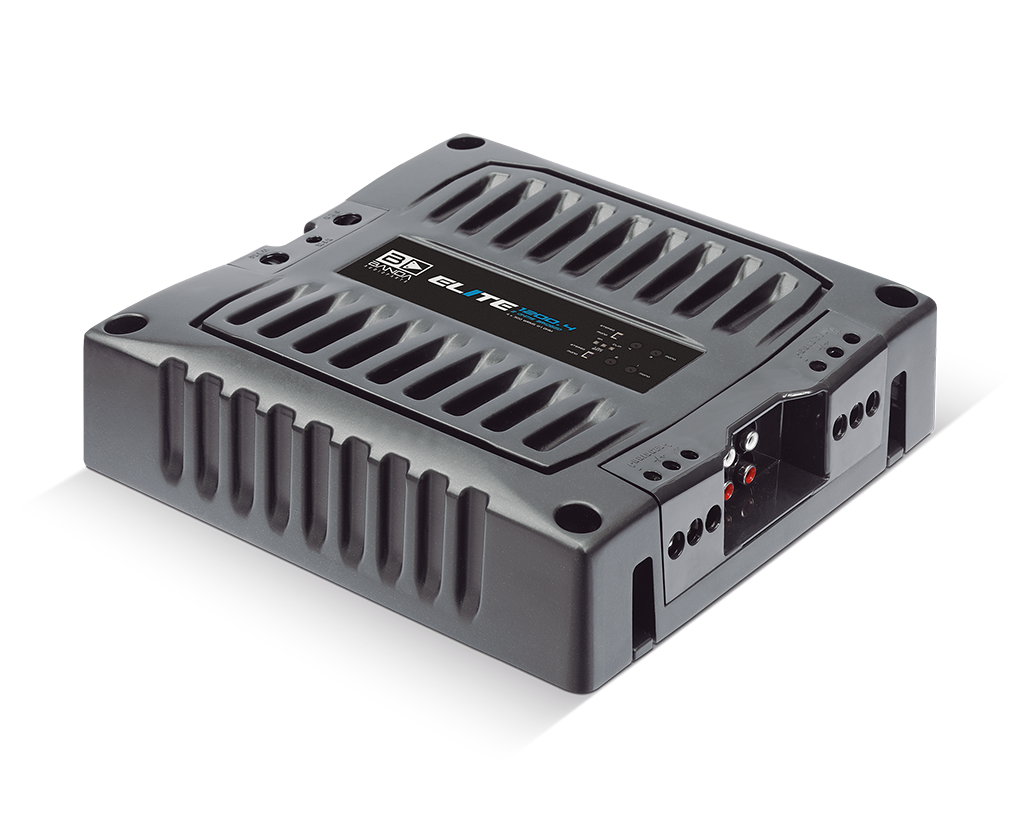

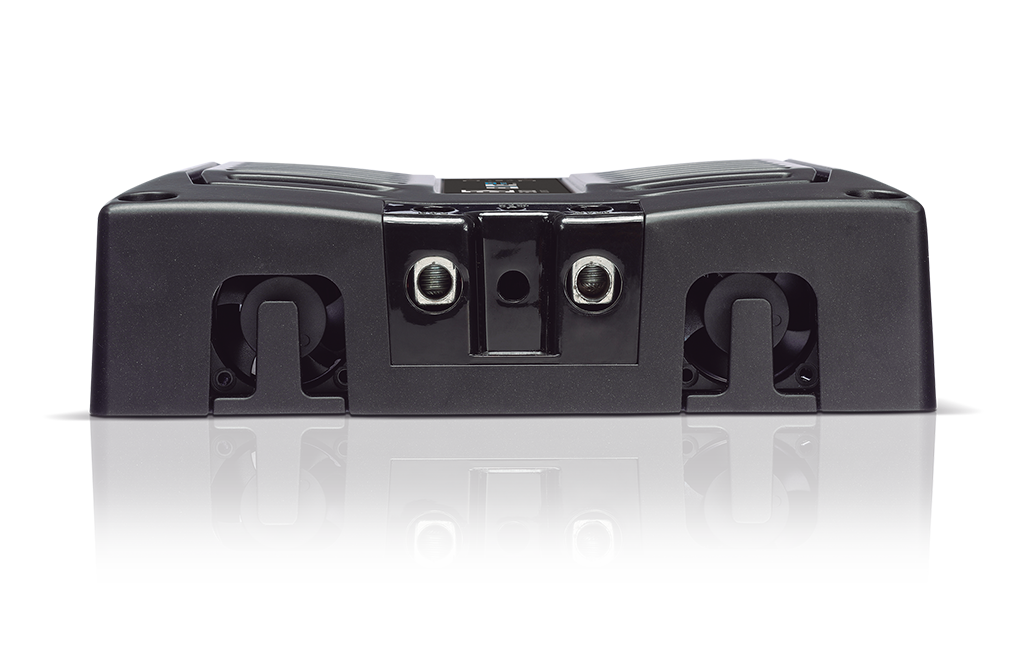

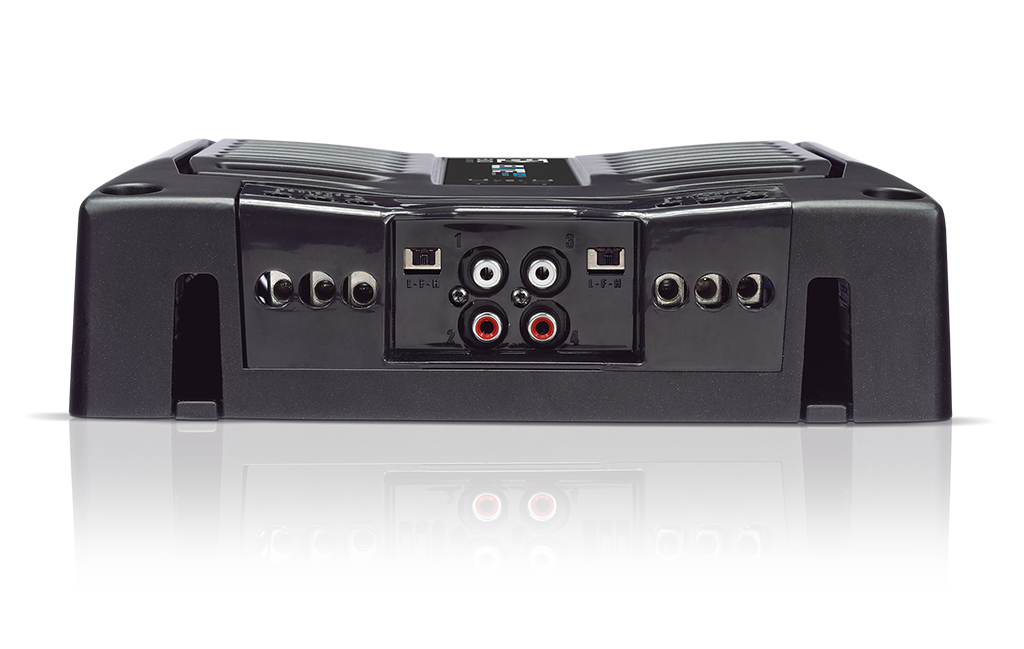

Elite 800.4 - Power and Versatility in a Compact Design
The Elite 800.4 amplifier delivers a robust 800Wrms across 4 channels, providing 200Wrms at 2 Ohms each or 400Wrms at 4 Ohms in Bridge mode. Designed for versatility, this line is a popular choice for small and medium-sized systems, accommodating various installation configurations to meet the diverse needs of the market and amplify any type of speaker.
Technical Specifications:
-
Maximum Power 14.4v @ 2 Ohms: 4 x 250 WRMS
-
Maximum Power 14.4v @ 4 Ohms: 4 x 170 WRMS
-
Maximum Power 14.4v Bridge @ 4 Ohms: 2 x 500 WRMS
-
Efficiency @ 4 Ohms: 84%
-
Efficiency @ 2 Ohms: 78%
-
Input Voltage: 9 - 15V
-
Input Impedance: 22K Ohms
-
THD+N: 0.10%
-
Input Sensitivity: 280mV - 4V
-
Signal to Noise Ratio: 88dB
-
Frequency Response: 5 to 22kHz (-3dBs)
-
HPF (High Pass Filter): 20 to 90Hz @ 12dBs/8° Linkwitz-Riley
-
LPF (Low Pass Filter): 90 to 20kHz @ 12dBs/8° Linkwitz-Riley
-
Recommended fuse: 50 A
-
Resting Current: 1 A
-
Maximum Current (sine signal): 90 A
-
Maximum Current (musical signal): 50 A
-
Power Cables (recommended min): 10mm / 7 AWG
-
Output Cables (recommended min): 2 x 1.5mm / 2 x 15 AWG
-
Weight (Kg): 3.1
-
Height (mm): 54
-
Width (mm): 209
-
Depth (mm): 243
Comments:
-
Warranty: 1 year provided by the manufacturer
-
Illustrative Images: Merely for representation
-
Installation: We strongly recommend professional installation. We are not responsible for poor installation or misuse of the product.
