Descripción

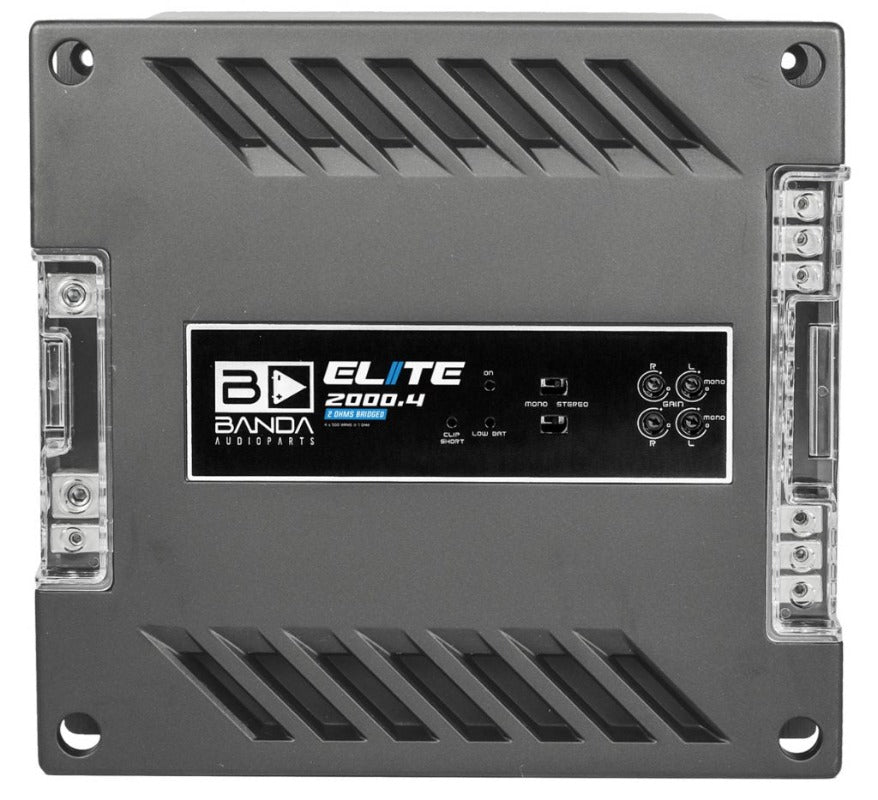

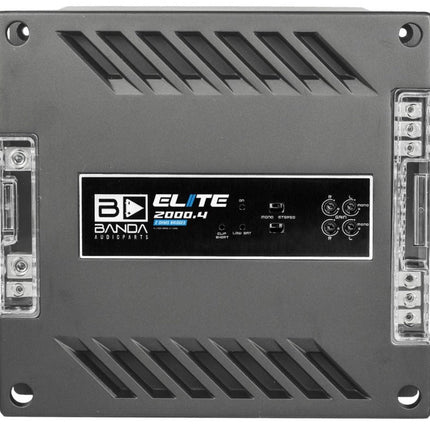

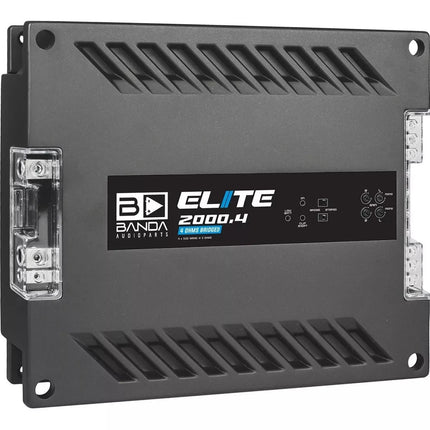

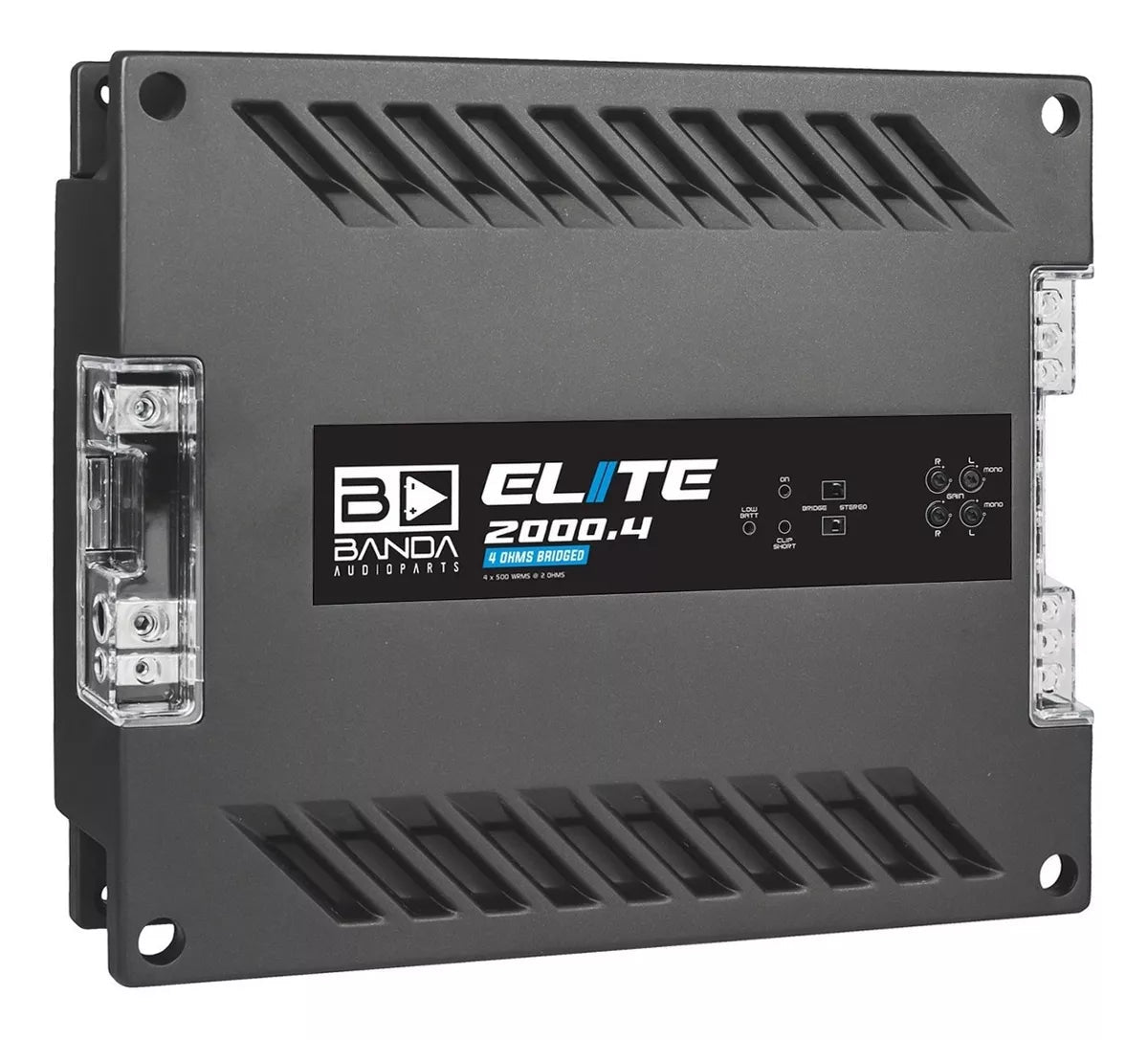

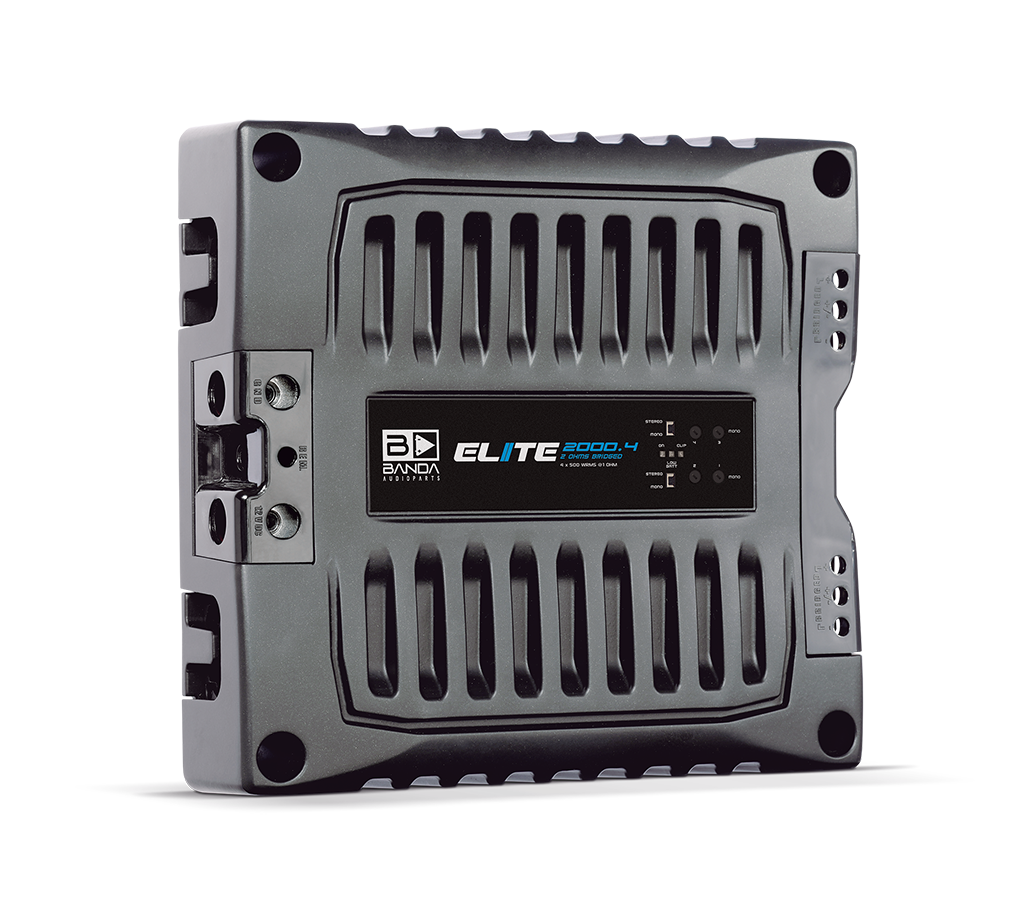

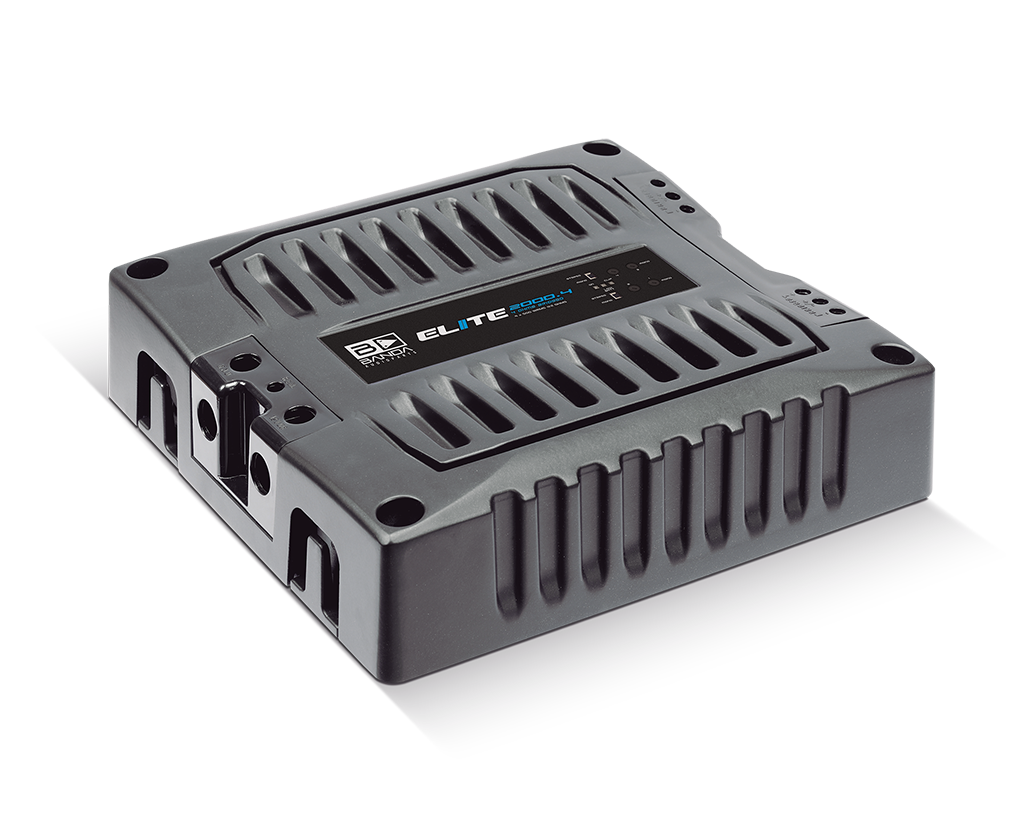

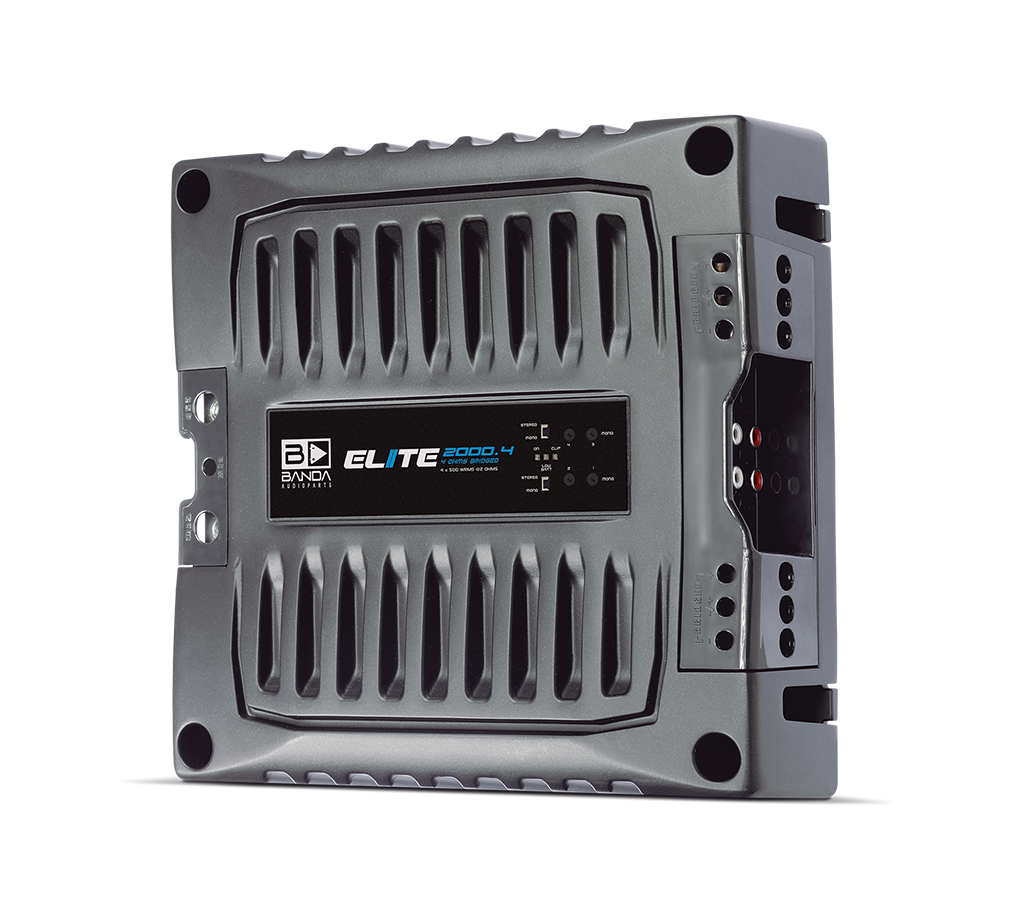

With a powerful 2000 Watts RMS in 4 channels and impedance of 1 or 2 Ohms per channel, the amplifiers of the new ELITE line are very versatile, allowing different types of installation with a single amplifier. Thanks to its FULL-RANGE frequency response range, the ELITE fits into any project with: Subwoofers, Woofers, Low-Mid, Horns or Super Tweeters, and it is also possible to make 4, 3 or 2 channel calls when used. on Bridge connections. With the ELITE 2000.4 it is possible to connect a complete medium-sized sound system, enjoying the audio quality already established by BAND AUDIOPARTS in addition to low consumption.
|
Class
|
D
|
|
Total Power 14,4 @ 2 Ohms
|
4 x 600 WRMS
|
|
Total Power 14,4 @ 4 Ohms
|
4 x 400 WRMS
|
|
Total Power 14,4 Bridged @ 4 Ohms
|
2 x 1250 WRMS
|
|
Total Power 12,6 @ 2 Ohms
|
4 x 500 WRMS
|
|
Total Power 12,6 @ 4 Ohms
|
4 x 300 WRMS
|
|
Total Power 12,6 Bridged @ 4 Ohms
|
2 x 1000 WRMS
|
|
Efficiency @ 4 Ohms
|
86%
|
|
Efficiency @ 2 Ohms
|
80%
|
|
Input Voltage
|
9 – 15V
|
|
Input Impedance
|
100K Ohms
|
|
THD+Noise
|
<1%
|
|
Input Sensitivity
|
220mV – 4V
|
|
SNR
|
80dB
|
|
Frequency Response
|
5 to 22kHz (-3dBs)
|
|
HPF (High Pass Filter)
|
20 to 90Hz @ 12dB/octave Linkwitz-Riley
|
|
LPF (Low Pass Filter)
|
90 to 20kHz @ 12dB/octave Linkwitz-Riley
|
|
Recommended Fuse
|
100 A
|
|
Current at Rest
|
1 A
|
|
Average Current Draw (Sinusoidal)
|
210 A
|
|
Average Current Draw (Music)
|
100 A
|
|
Power Wire Gauge (min. Recommended)
|
21mm / 4 AWG
|
|
Speaker Wire Gauge (min. Recommended)
|
2 x 2,5mm / 2 x 13 AWG
|
|
Weight (Lb)
|
7,2
|
|
Height (in)
|
2,2
|
|
Width (in)
|
8,4
|
|
Depth (in)
|
9,7
|
