Descripción

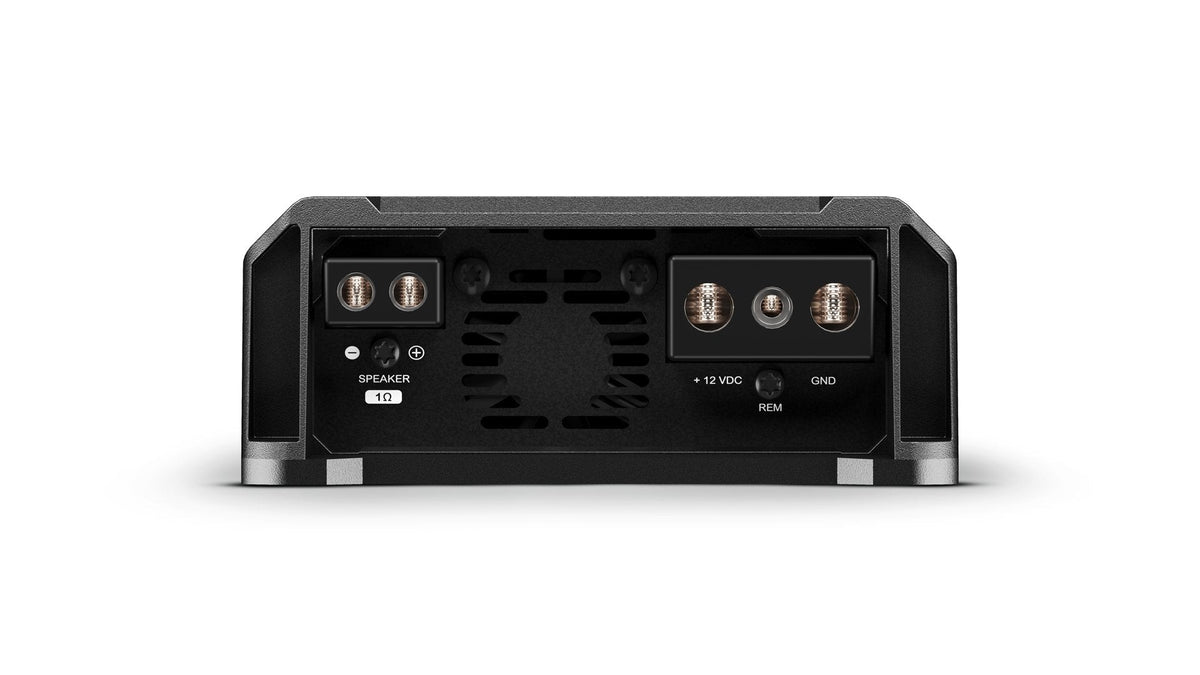

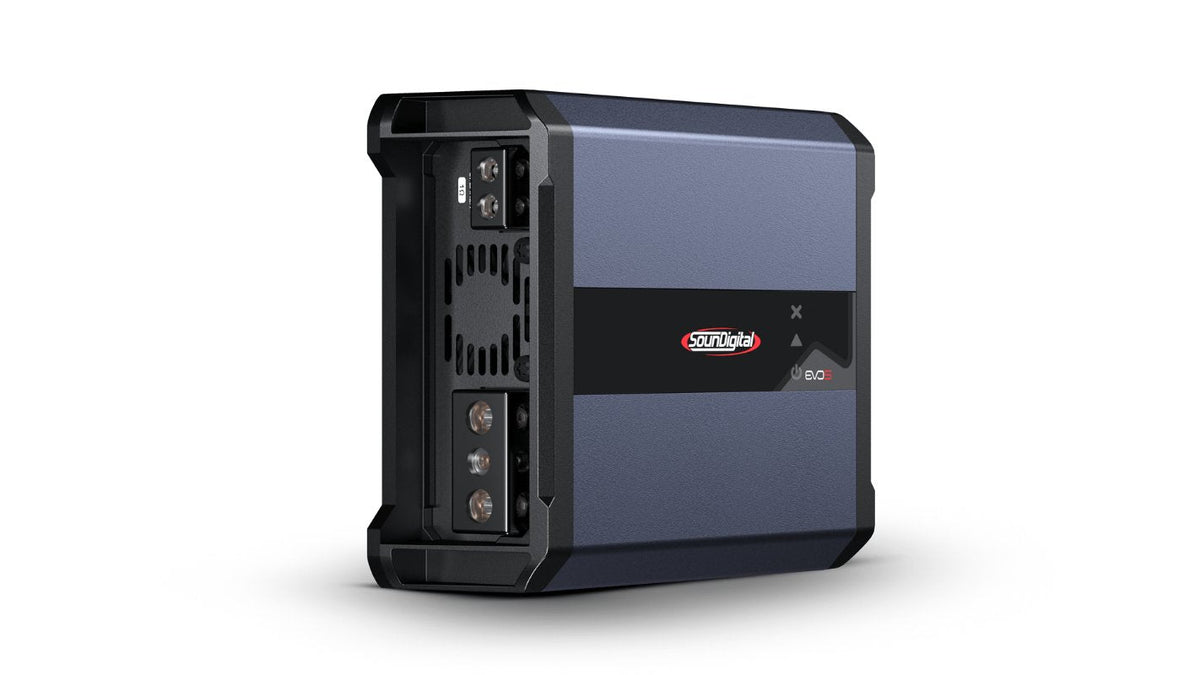

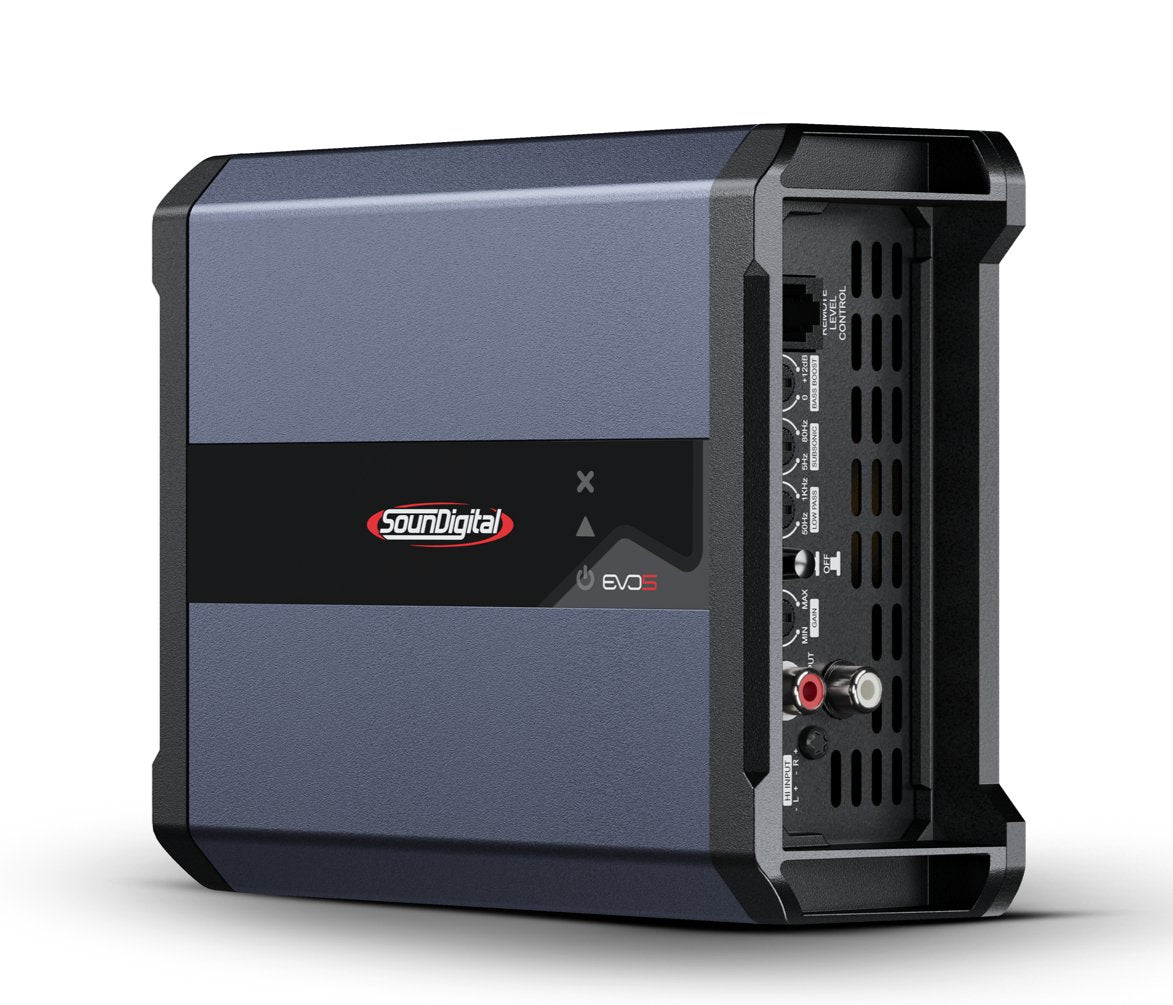

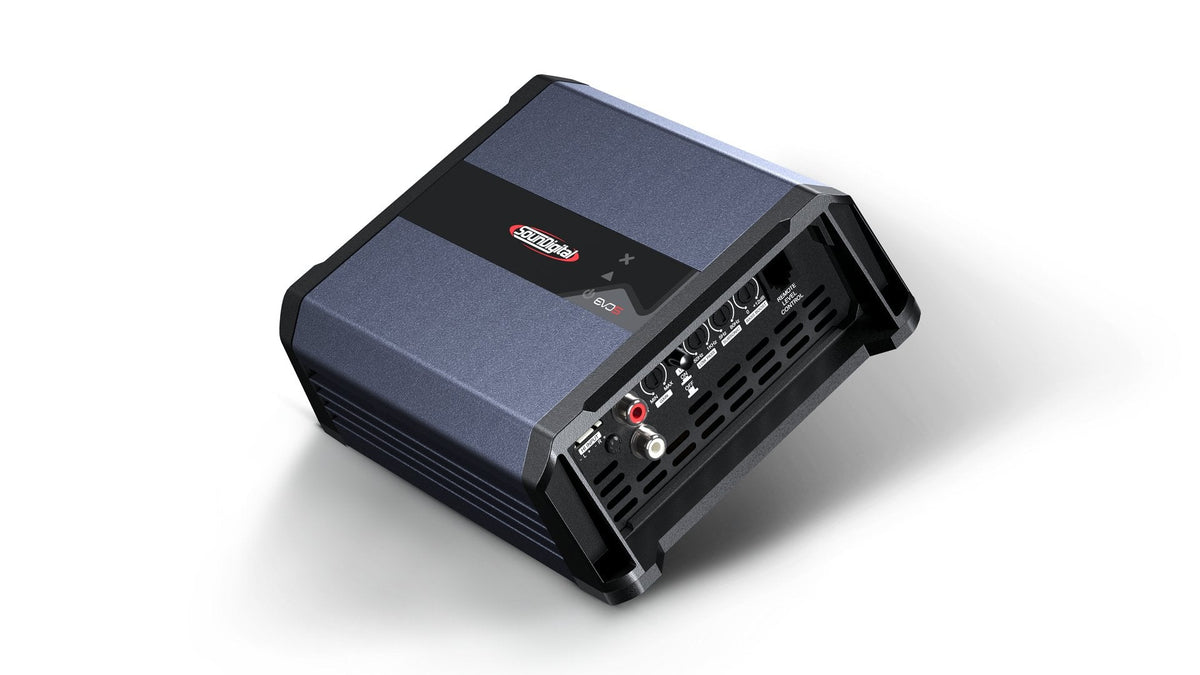

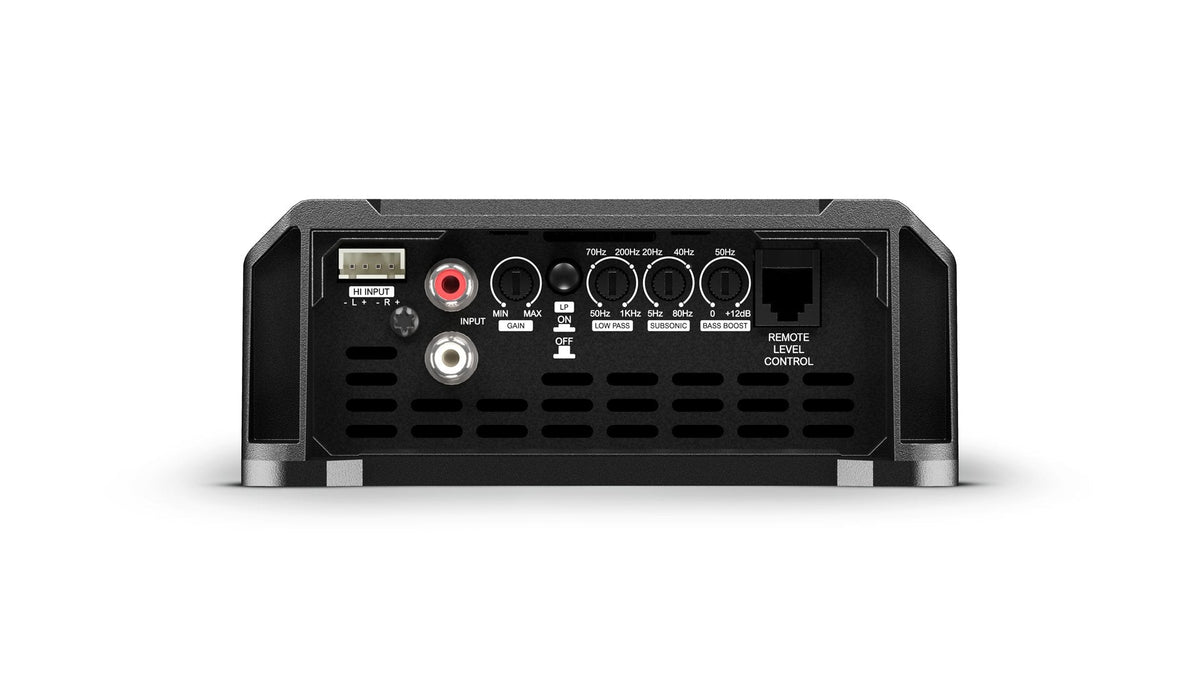

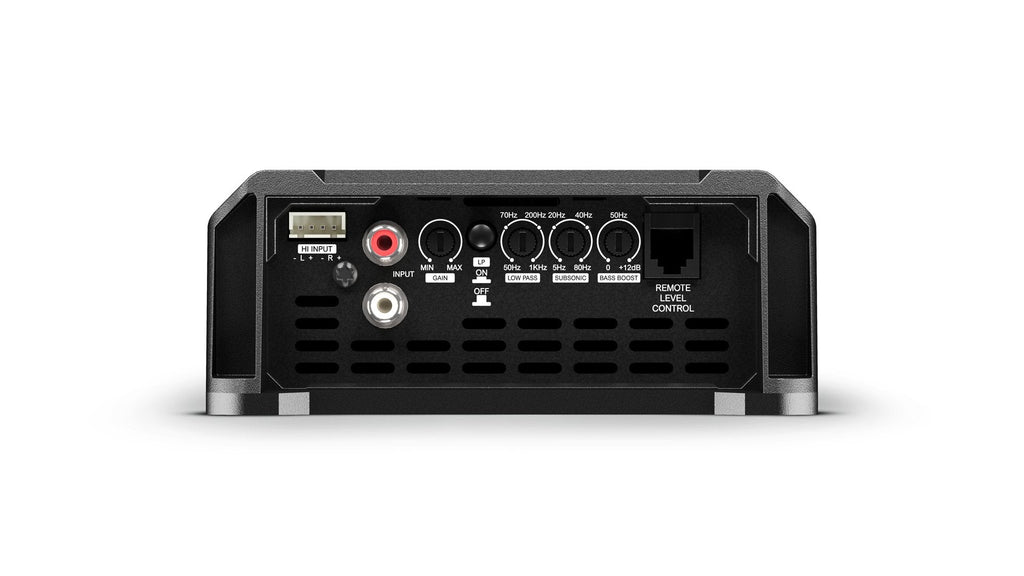

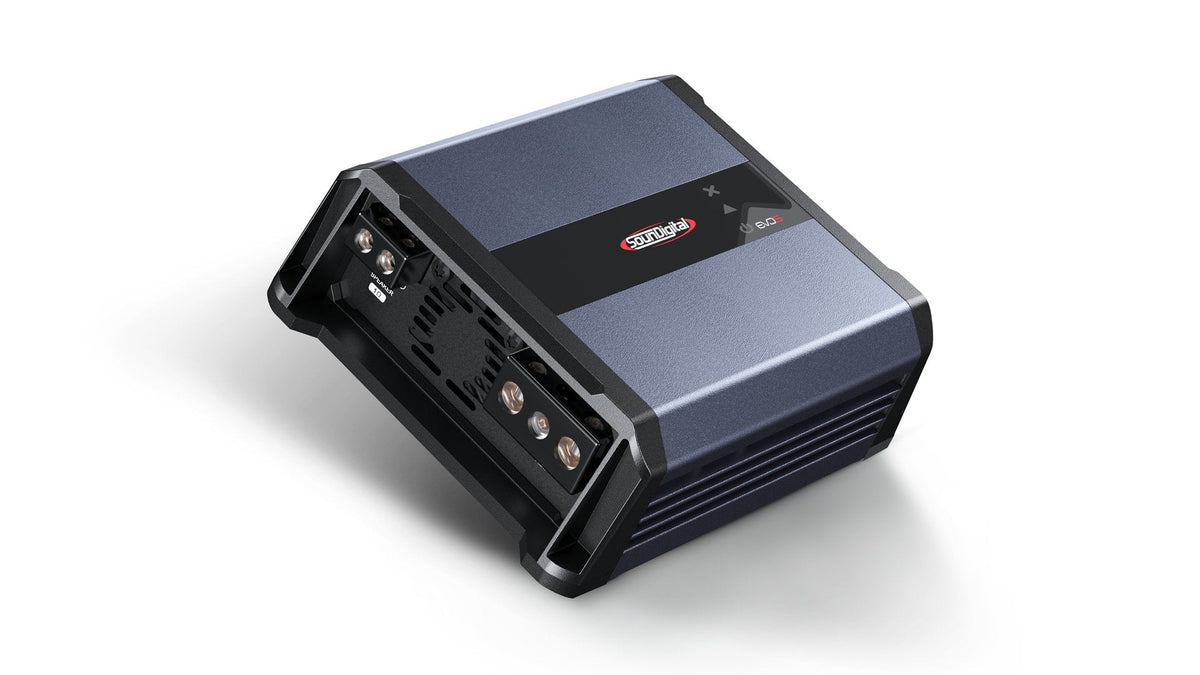

The 1600.1 EVO 5 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
-
Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS
-
Power @ 4Ω: 1 X 1056 WRMS
Power @ 2Ω: 1 X 1600 WRMS
Power @ 1Ω: N/A
-
Power @ 4Ω: 1 X 1600 WRMS
Power @ 2Ω: N/A
Power @ 1Ω: N/A
-
Frequency Response (-3dB): 5Hz ~ 25kHz
-
Subsonic Filter: 5Hz ~ 80Hz
-
Low Pass Filter: 50Hz ~ 1kHz
-
Bass Boost: 0dB ~ 12dB @ 50Hz
-
Operating Voltage: 9V ~ 16V
-
1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB
-
Input Sensitivity: 0.2V ~ 2V
-
-
1Ω: 149A
2Ω: 143A
4Ω: 138.8A
-
-
-
Power Cable: 16mm² (5 AWG)
-
Audio Output Cable: 2 x 1.5 mm² (15 AWG)
-
Recommended Fuse (Music): 80A
-
Recommended Battery: 80Ah
-
-
-
-
