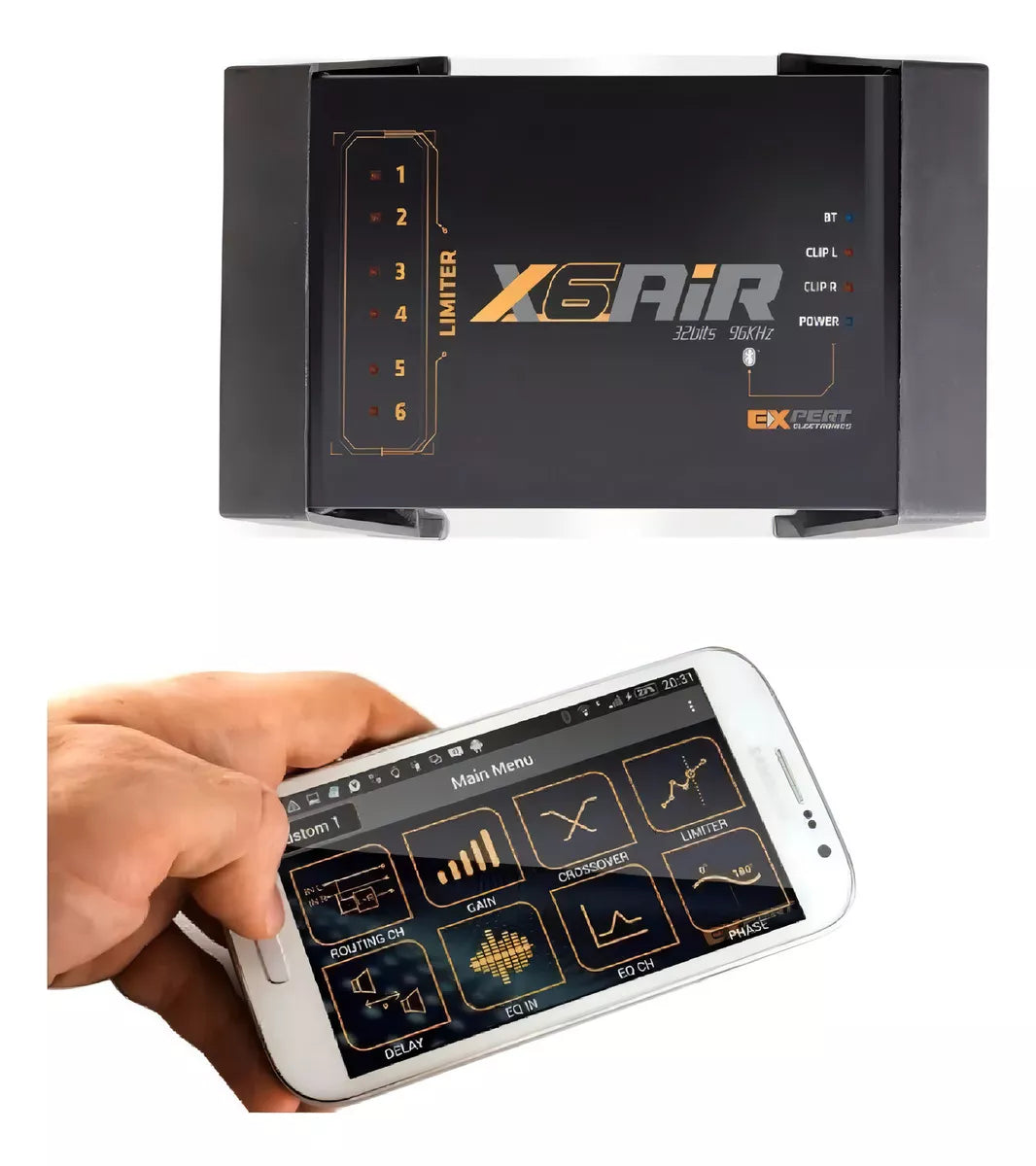

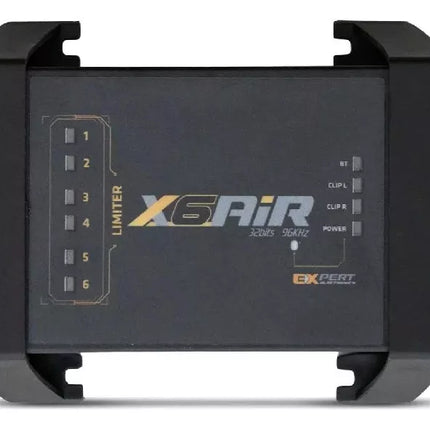

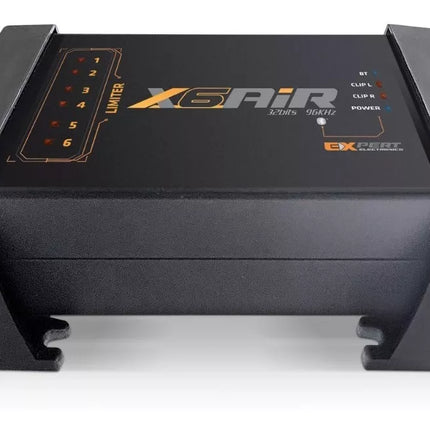

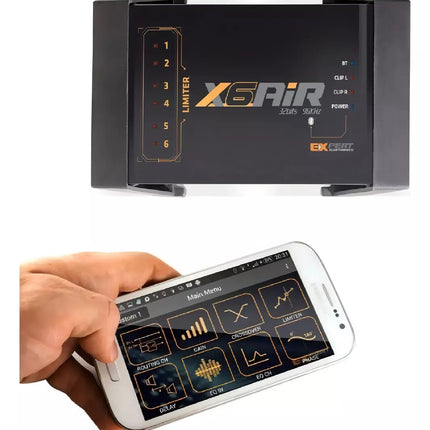

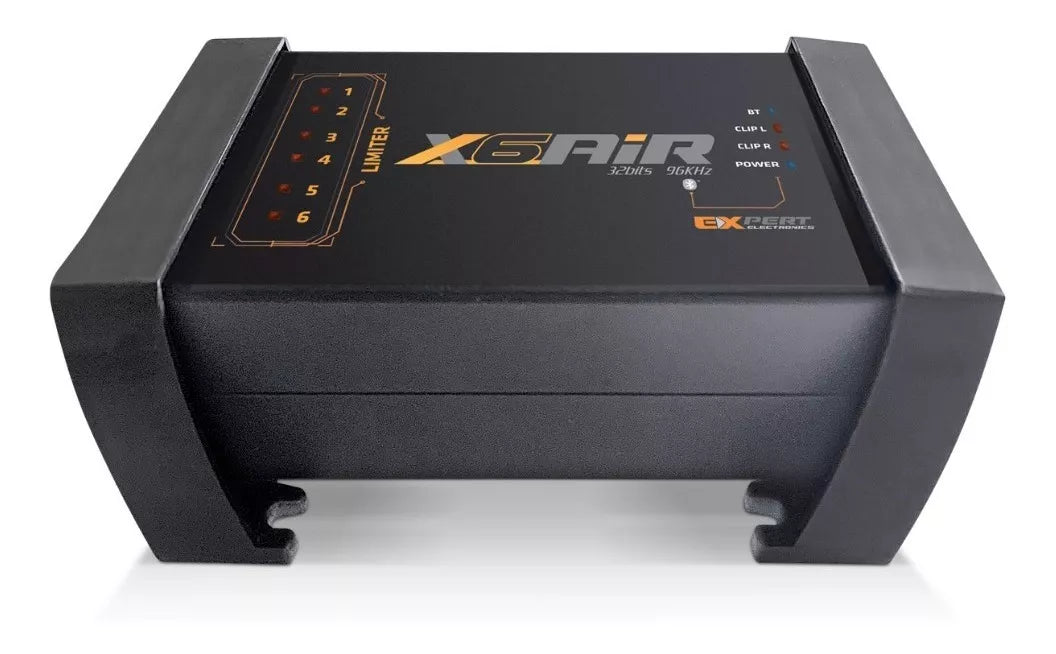

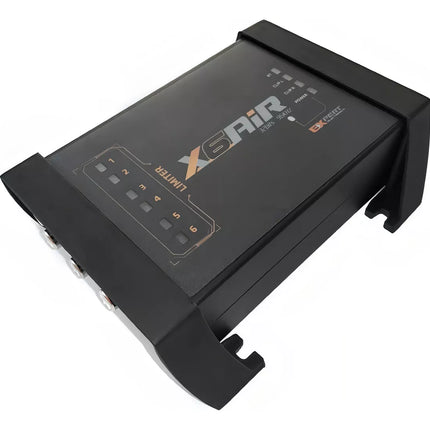

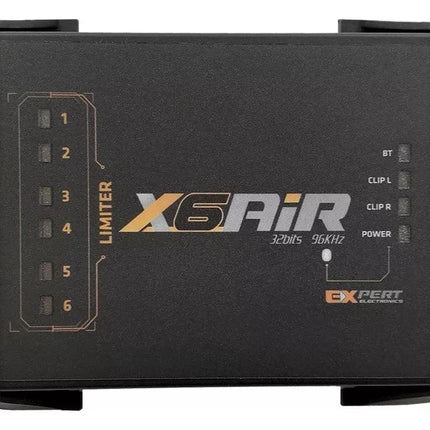

The Crossover Expert X6 AiR is a six-channel digital audio processor, designed to offer advanced control and sound flexibility. Equipped with a modern interface, this device can be controlled via Bluetooth with a range of up to 15 meters, allowing users to even rename the device through the app. The application is compatible with both iOS and Android systems, providing full control and ease of use for precise audio adjustments and customization. Expert is offering this innovative processor through its distributor network.
Technical Specifications:
-
Brand: Expert
-
Model: X6 AiR
-
Channels: 6
- Channel routing
- 28-band input equalization
- 1 parametric equalization band per channel
- Functions: Mute, Phase, Limiter, Gain, Delay, Reset
- Control via app (available for iOS and Android)
- Presets with all saved configurations
-
Crossover Frequency: 20Hz to 20kHz
-
Crossover Types: Linkwitz-Riley / Butterworth / Bessel
-
Attenuation: 6/12/18/24/36/48 dB/8º
-
EQ IN Bands: 28 Bands
-
EQ IN Gain: -12 to +12 dB

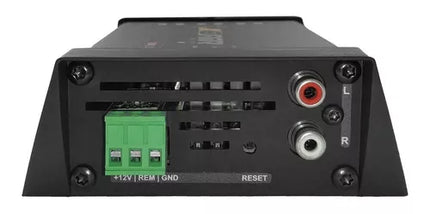

Inputs (Left/Right):
- Number of inputs: 2
- Type: Electronically Balanced
- Connectors: RCA
- Maximum input level: 4.00 Vrms (+14 dBu)
- Input impedance: 100 kOhms

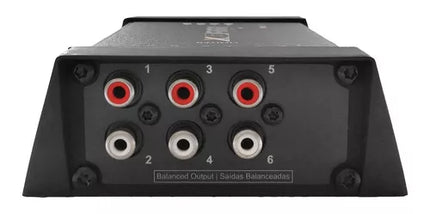

Outputs:
- Number of outputs: 6
- Connectors: RCA
- Type: Electronically Balanced
- Maximum output level: 3.50 Vrms (+13 dBu)
- Output impedance: 100 kOhms
DSP:
- Frequency Response: 10Hz to 24kHz (-1dB)
- THD+N: <0.01%
- Signal latency: <0.6ms
- Bit Rate: 32 Bits
- Sampling frequency: 96kHz
Power Supply:
- DC Voltage: 10~15 VDC
- Maximum consumption: 300mA
Weight and Dimensions:
- Dimensions: 150 x 110 x 43 mm
- Weight: 0.30 kg
