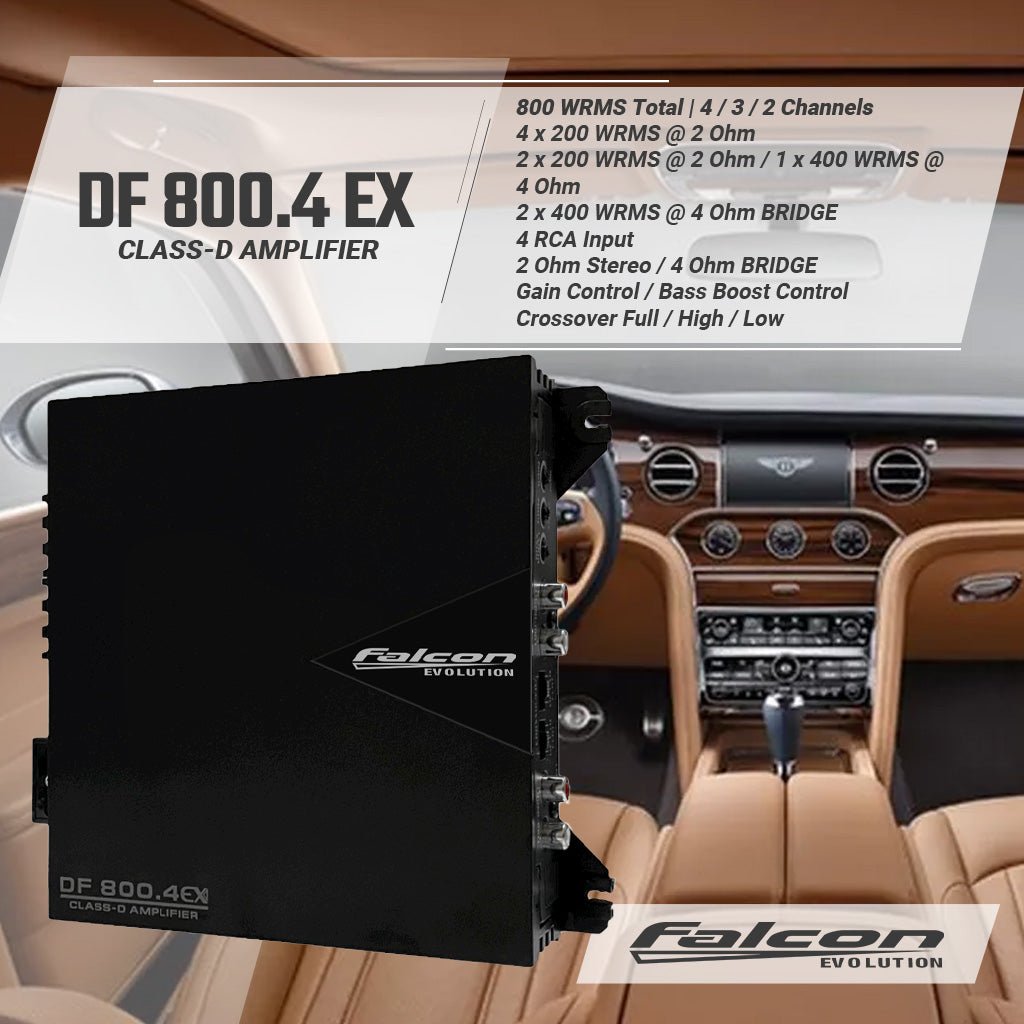

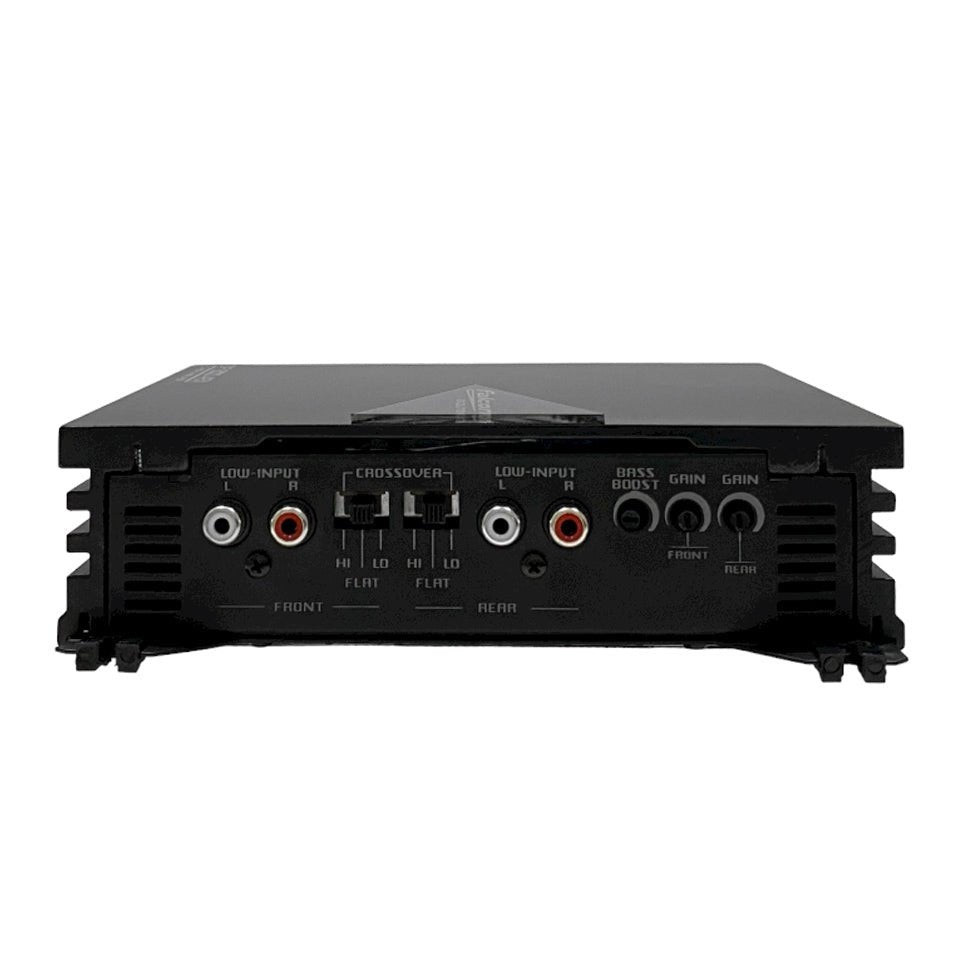

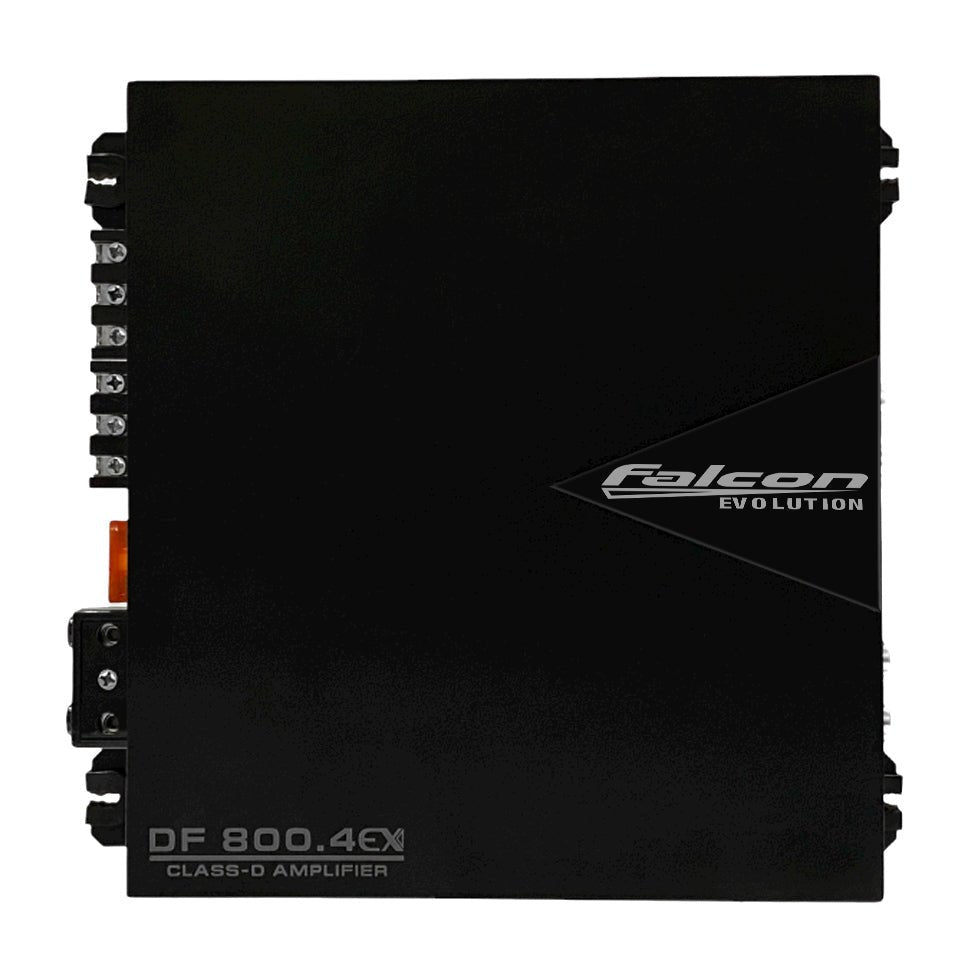

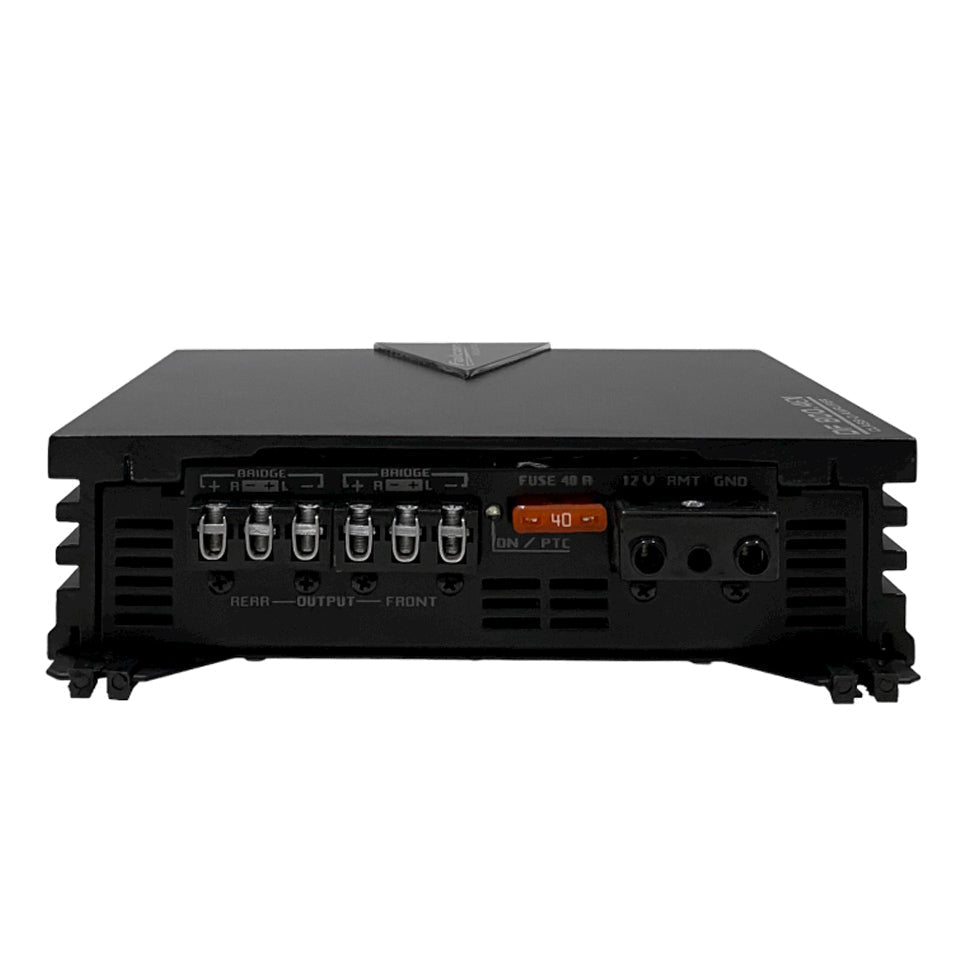

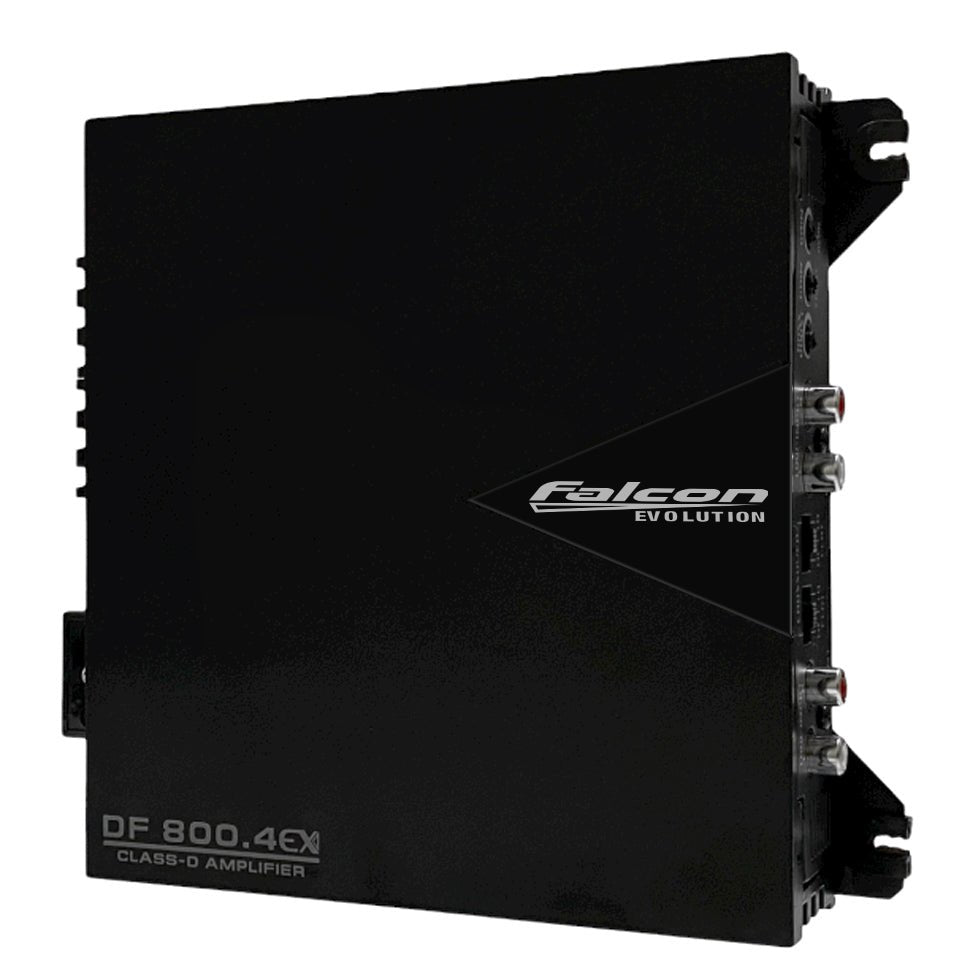

Falcon DF 800.4 EX 4 Channel Automotive Amplifier Module
New model;
Year: 2023.
Falcon's Class D Digital Amplifiers line was developed with the
latest technology used in digital audio processors on the market.
In partnership with one of the largest and most renowned manufacturers of Power Mos-fet and Class D Amplifiers, we have created a line of class D amplifiers with refined audio characteristics, power, efficiency and low cost, aligned with a compact and functional design, guaranteeing our customers an incomparable pleasure when listening to their favorite songs.
Technical Specifications:
Number of channels: 04 / 03 / 02 CHANNELS
Pot. Max @ 13.8VDC : (800 WRMS) 4 x 200 WRMS (2 Ohm) Stereo
Pot. Max @ 13.8VDC : (800 WRMS ) 2 x 200 WRMS ( 2 Ohm ) Stereo / 1 x 400 WRMS (BRIDGE 4 Ohm )
Pot. Max @ 13.8VDC : (800 WRMS ) 2 x 400 WRMS ( BRIDGE 4 Ohm )
Pot. Max @ 13.8VDC : (600 WRMS ) 4 x 150 WRMS ( 4 Ohm ) Stereo
Total Harmonic Distortion (THD) : Less than 0.5 %
Input Sensitivity (RCA) : 200 mV to 3.0 V
Signal Noise Ratio : Greater than 90 dB
Frequency Response : 20 Hz to 30 KHz
Crossover HI-PASS (80 Hz) / FULL (20 Hz to 30 KHz) / LOW-PASS (80 Hz)
Efficiency : Greater than 90 %
Low-in Input Impedance : 22K Ohm
Gain Control : Front / Rear
Thermal Protection / Short : Yes
Supply Voltage Min. : 10.5V
Supply Voltage Max. : 15.6V
Consumption at Rest : 800 mA
Consumption at Max. Power : 40 A
Dimensions : 165 mm x 180 mm x 48 mm ( L x W x H )
Weight : 1.3 Kg
Contents:
DF 800.4 EX 4 Channel Module
Instruction manual Invoice
Warranty: 12 Months
