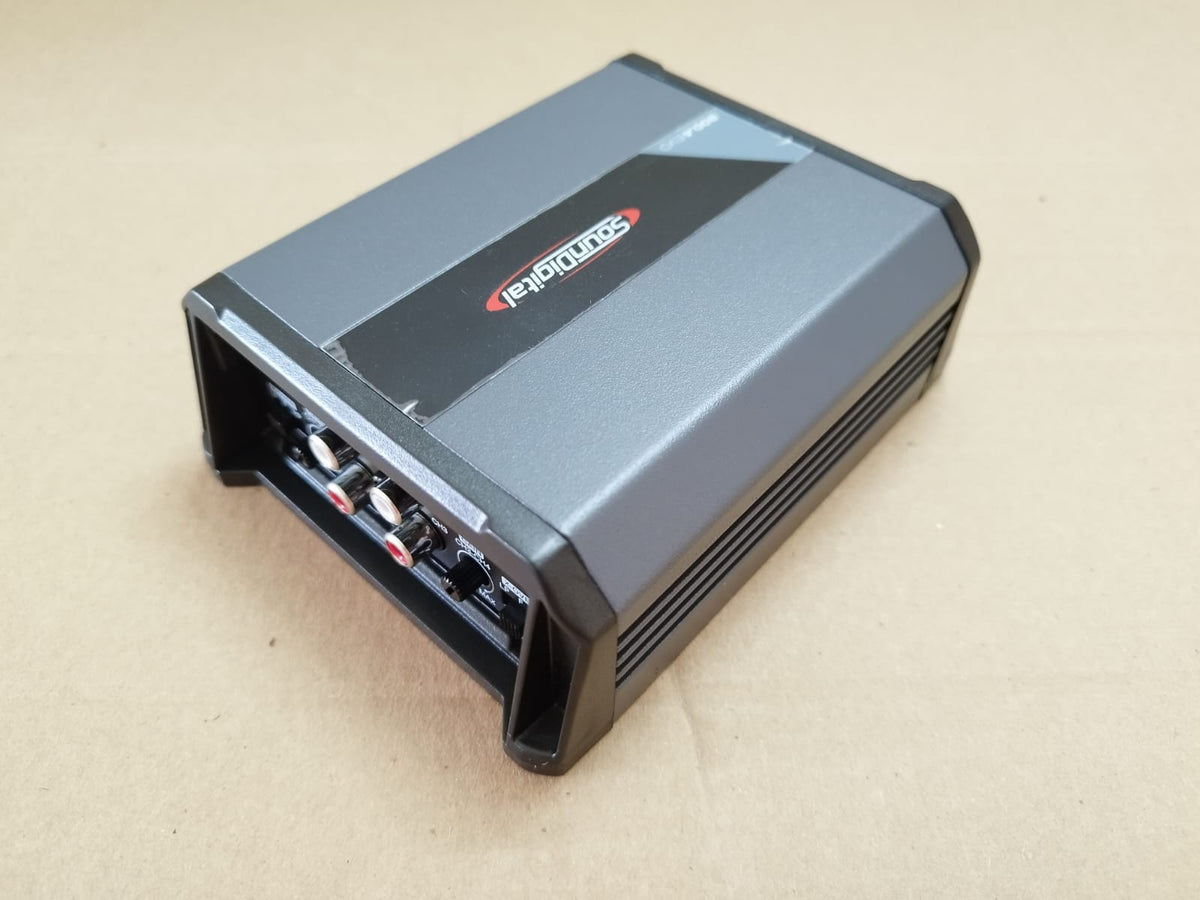

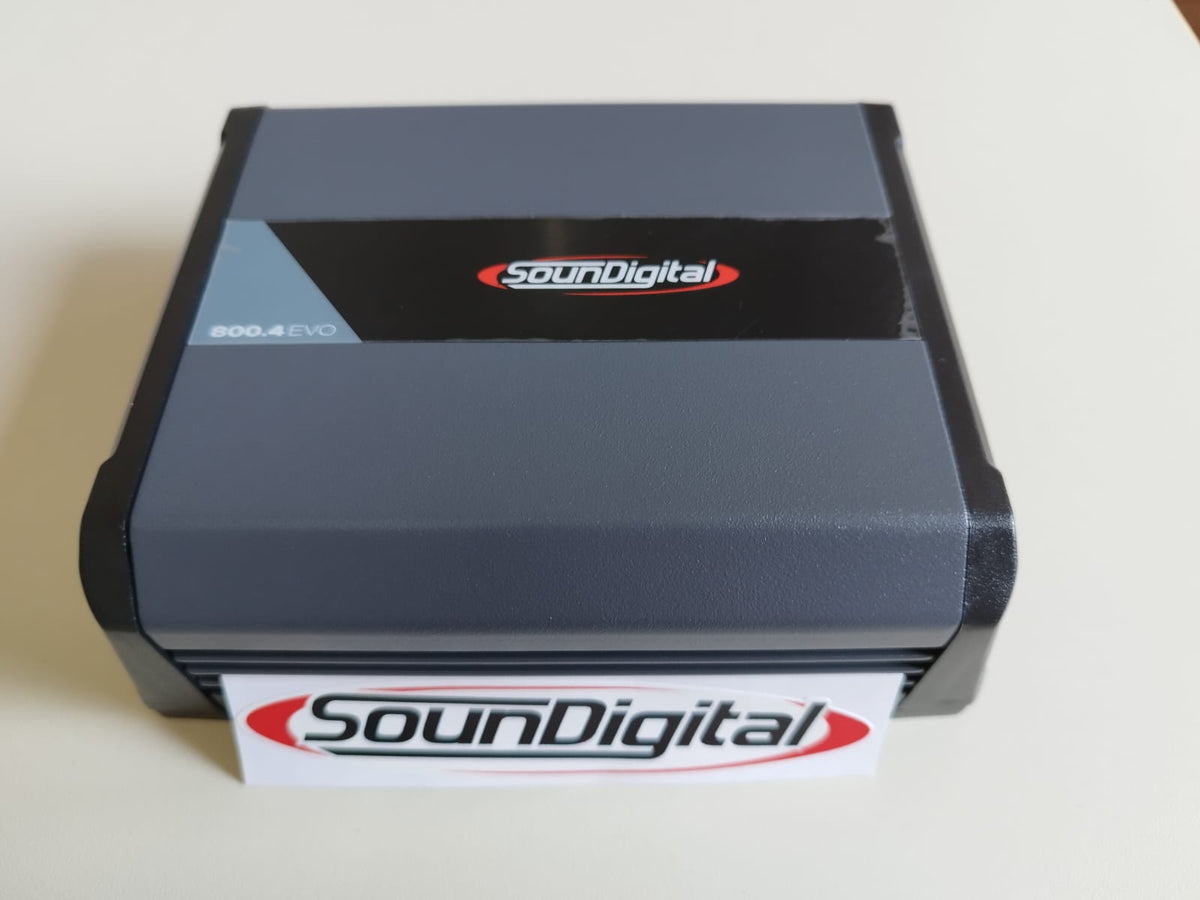

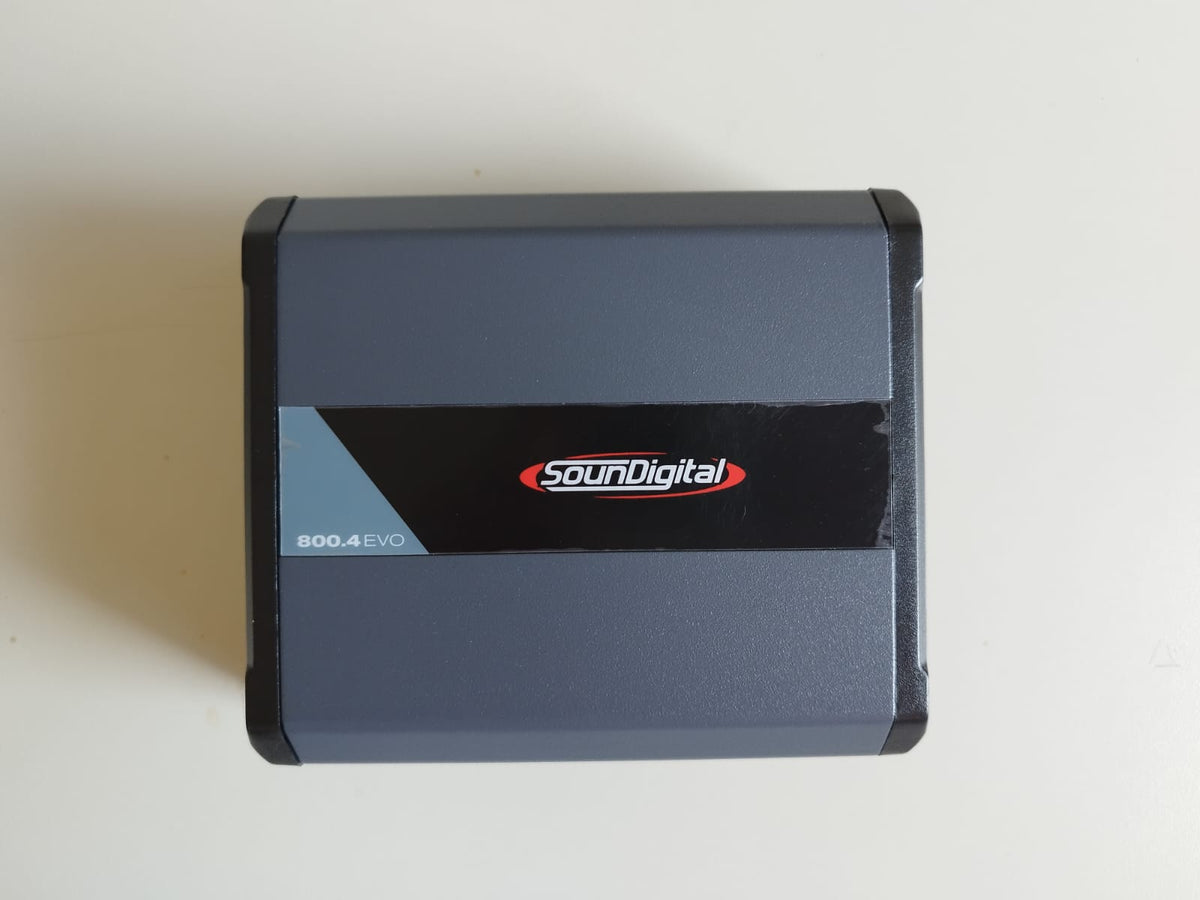

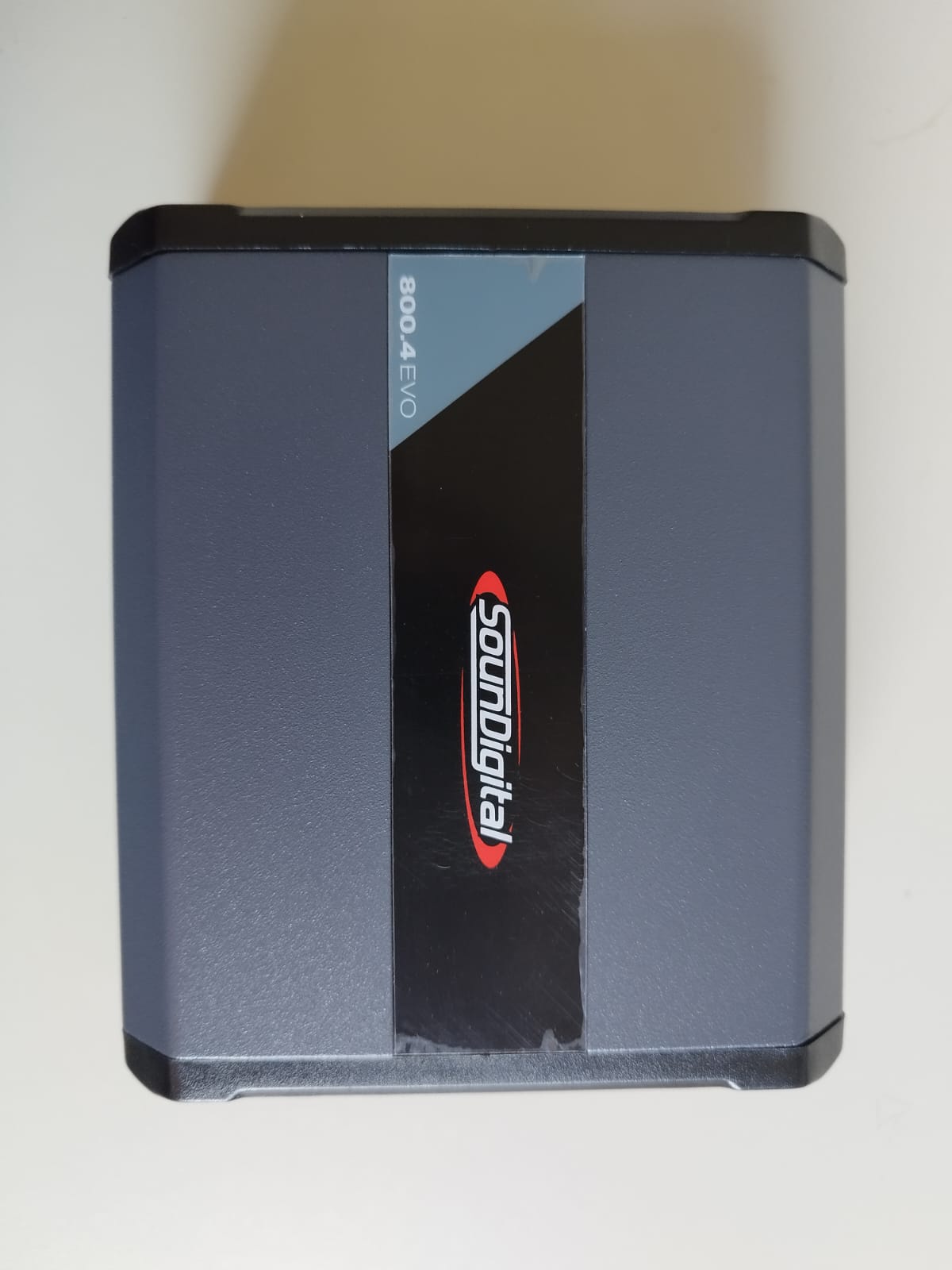

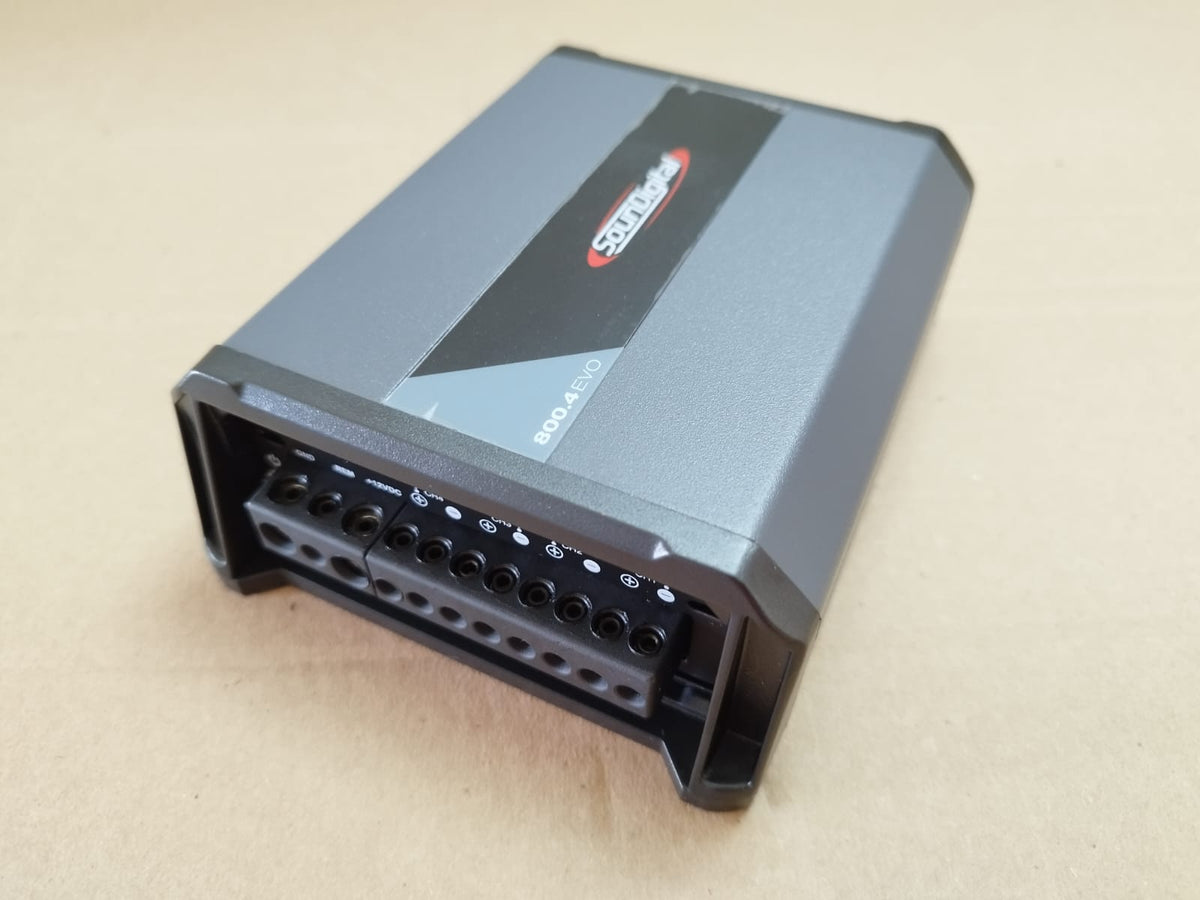

Name: Soundigital SD800.4D EVO 4.0 Black Digital Amplifier Module - 4 Channels 800 Watts RMS 4 ohms
Brand: SOUNDIGITAL
SKU: SD80044OHMS
Price: 249.0 USD
Rating: 5.0 (5 reviews)

Soundigital SD800.4D EVO 4.0 Black Digital Amplifier Module - 4 Channels 800 Watts RMS 4 ohms

Descripción

Details

Sophistication and quality in a single product.
The EVO line promises to revolutionize the SounDigital amplifier line as well as national amplifiers in general.
See below the main differentials of the line:

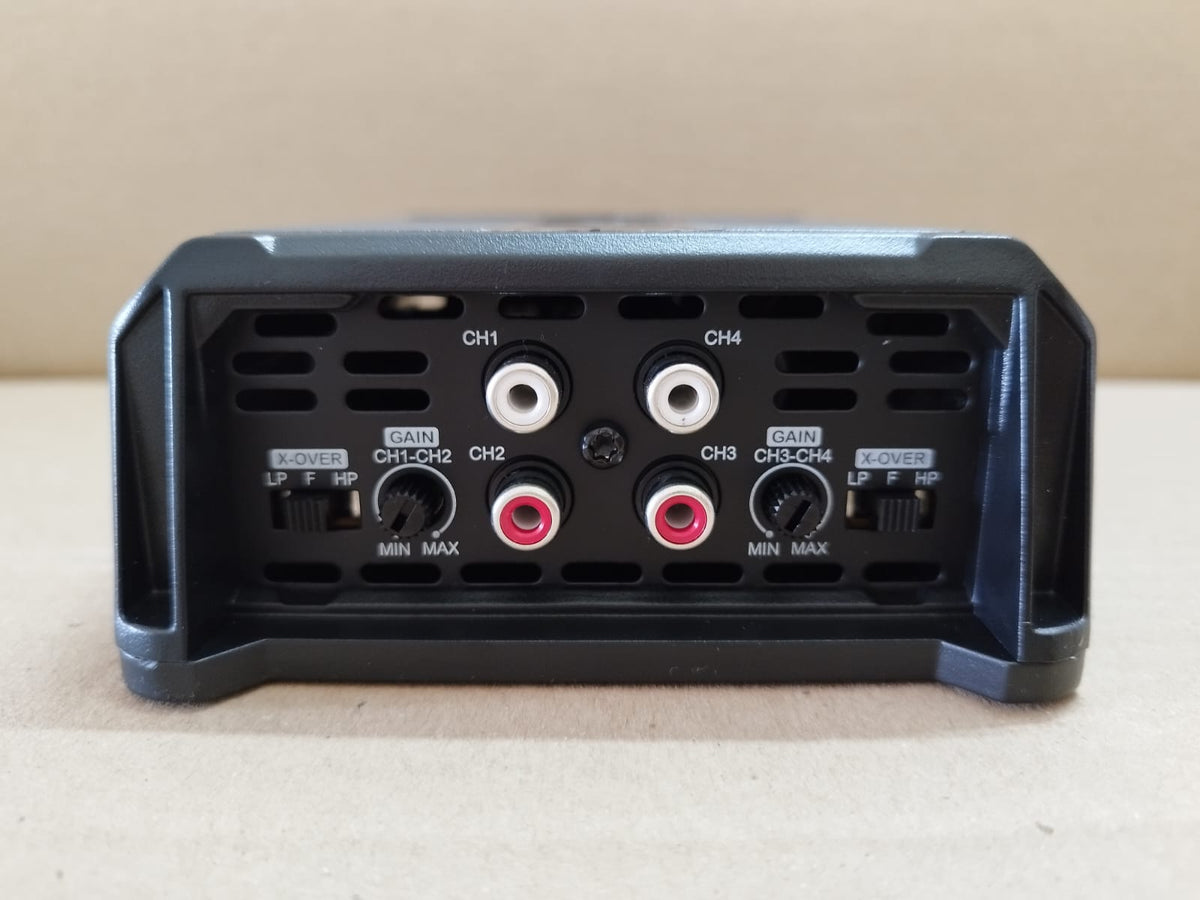

Integrated crossover
THD less than 0.025%
More than 90% proven efficiency;
Hi-Fi (high fidelity) even at high powers
Higher damping factor
Accuracy and linearity

Additional Information

Product SKU Code	ASD8004
Availability	Immediate dispatch
Module Application	For ST horns and mids For light internal sound For subs and woofers For playing the full sound Project Trio
Bass Boost, Bass Boost	Yes
Channels	4 Stereo Channels
Operation Class	Digital Class D
RCA connections	4
Maximum sinusoidal consumption (A)	80
consumption at rest	-
HPF Filter, High Pass	Yes
HPL Filter, Low Pass	Yes
Frequency Response (Hz)	10 - 20000
Impedance Ω	2 Ohms

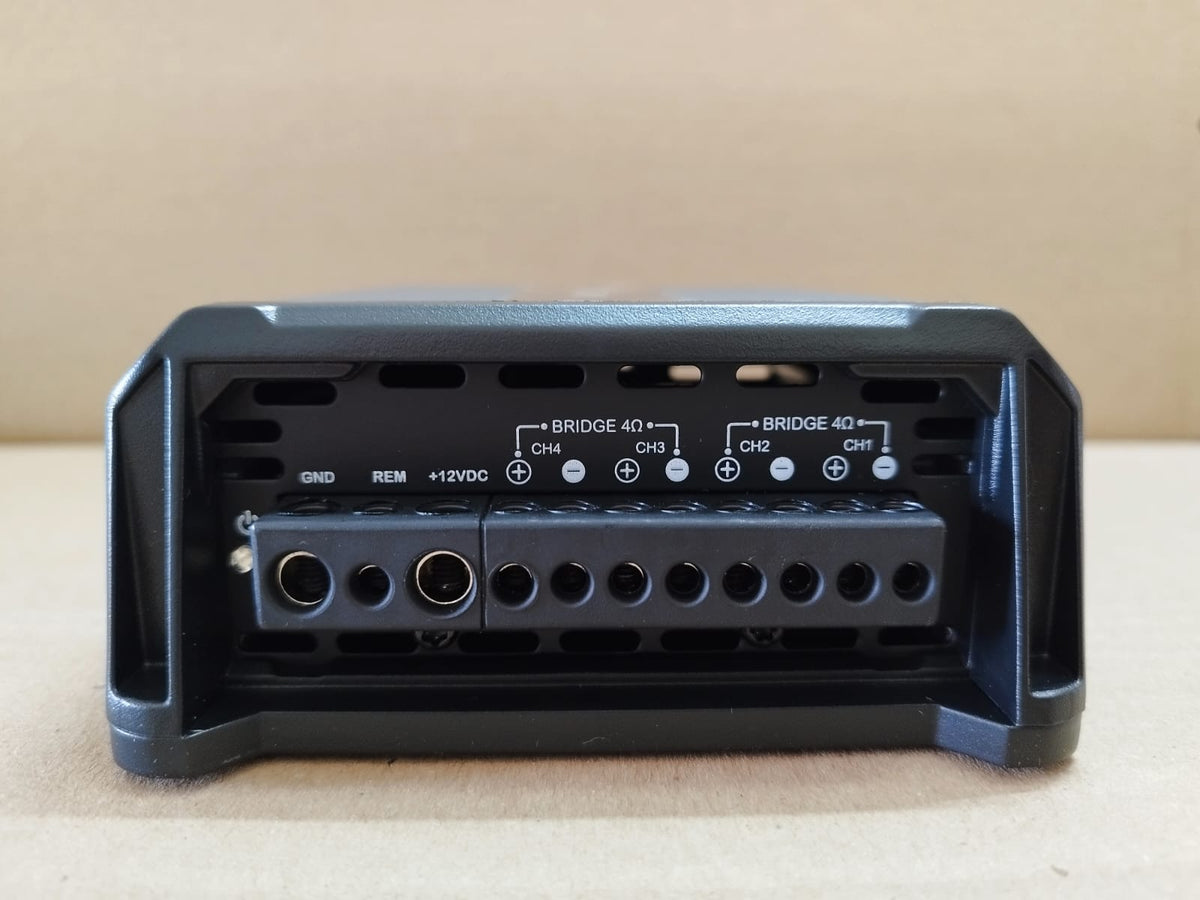

Accept Bridge	Yes
Bridge Impedance Ω	4 Ohms
Led Clip	No
Actual Power Per Channel (Watts RMS)	200
Real Power per Channel with Double the Impedance (Watts RMS)	132
Total Real Power (Watts RMS)	800
Actual Power Per Bridge (Watts RMS)	400
protection systems	High Voltage Heating Low Impedance Low Voltage Output Short Circuit
Input Voltage	12V
THD (Total Harmonic Distortion)	1%
Approximate Product Weight (kg)	0.66

Included Items

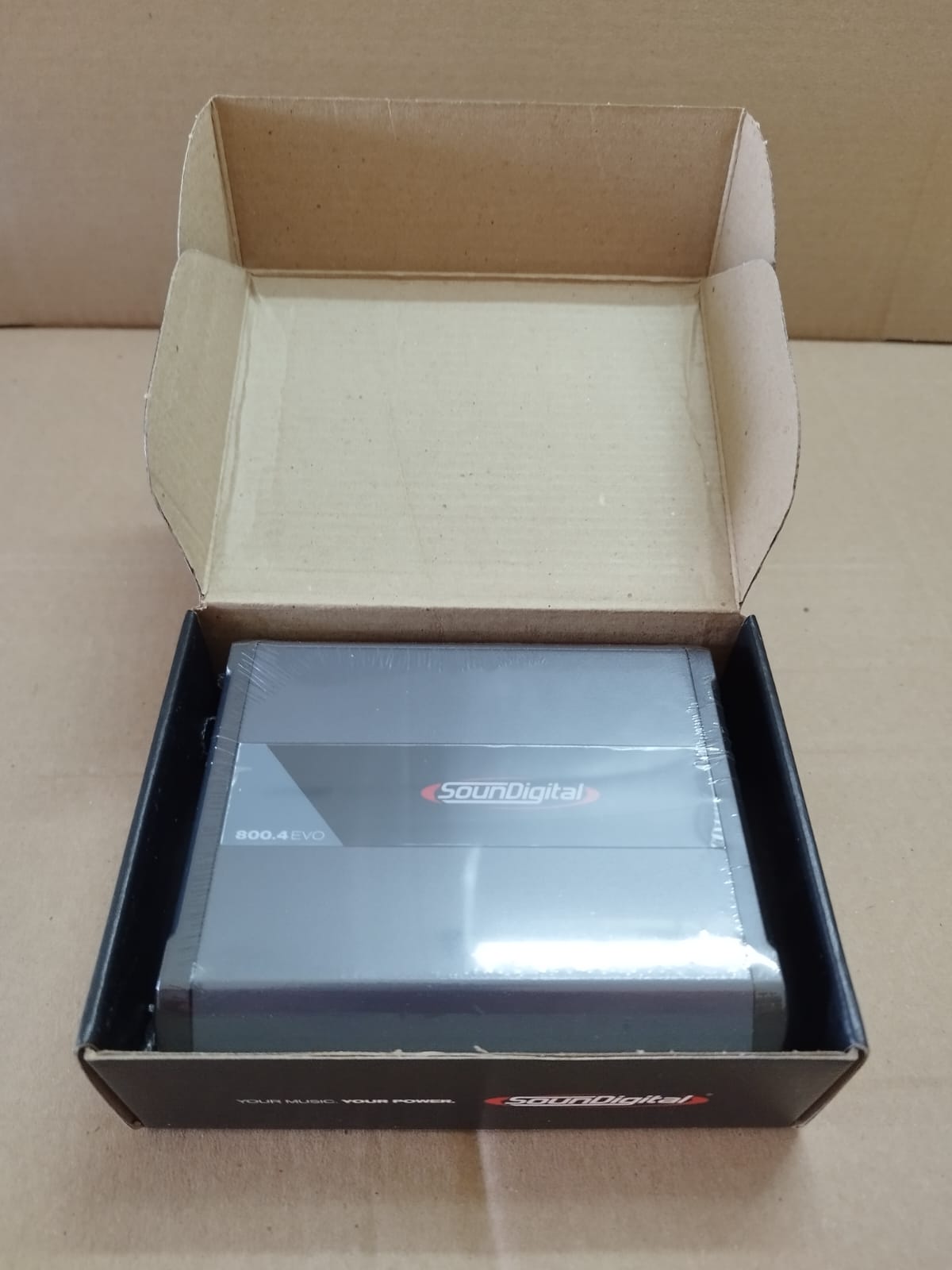

01 SounDigital Digital Amplifier Module

Guarantee

12 months
