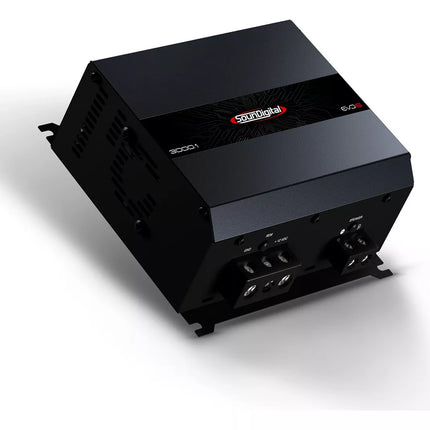

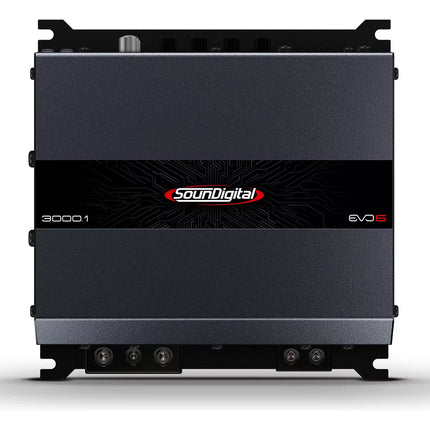

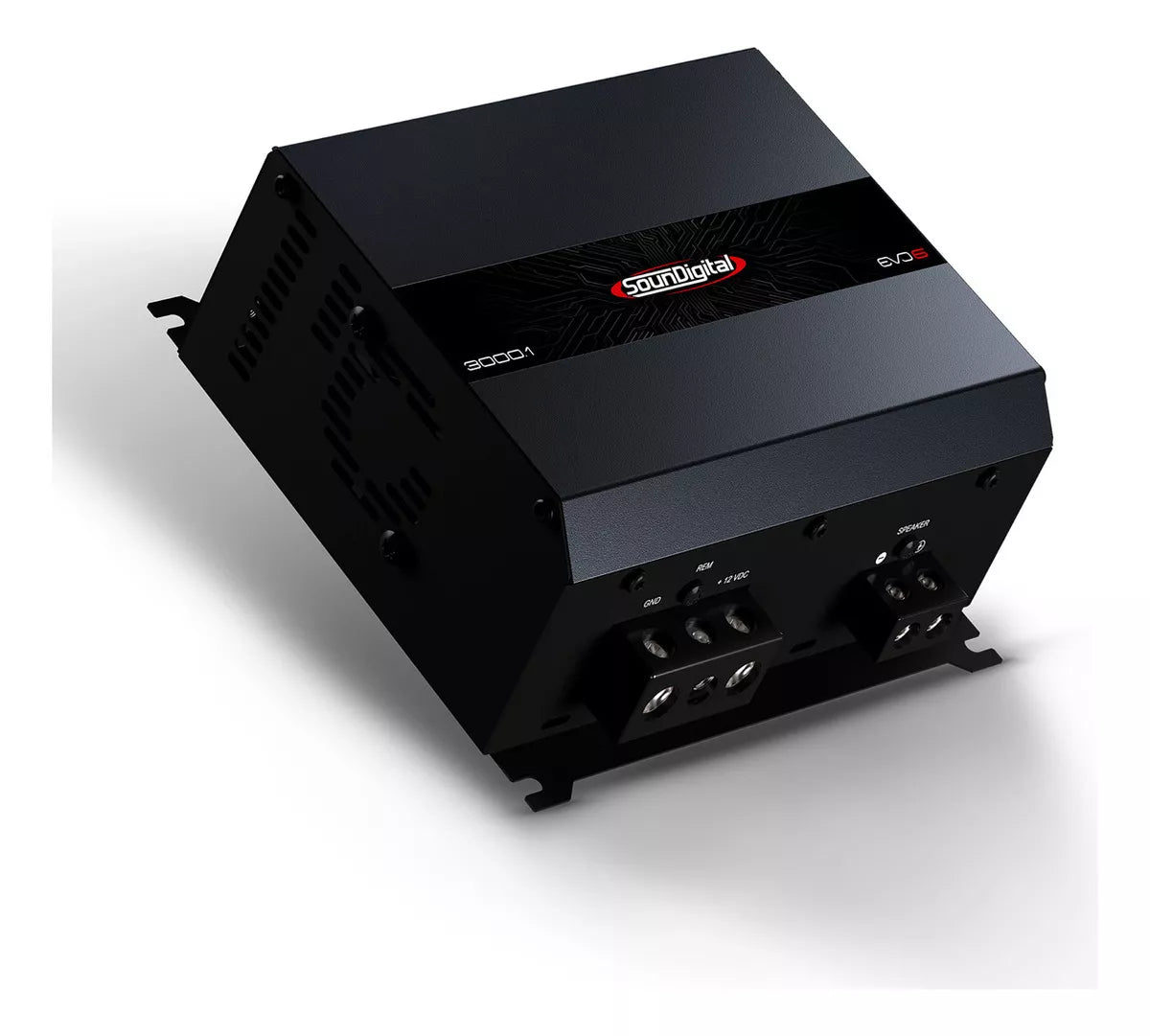

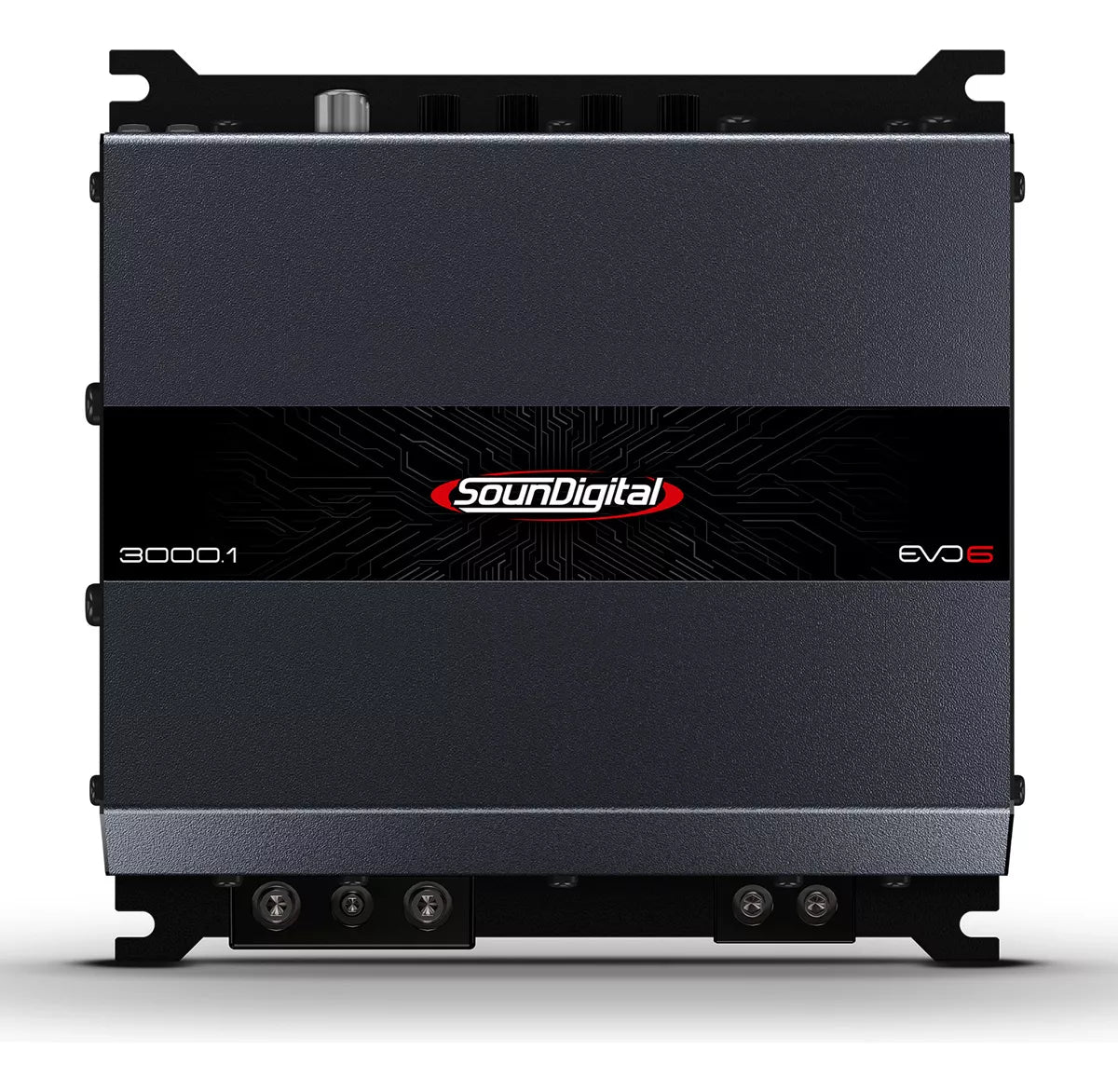

3000 EVO6 - 1OHM
Just like circuits, the passion for innovation is the lifeblood that drives our creations. Introducing the new 3000 EVO6.
The selection and arrangement of components on the board have been optimized to enhance efficiency. AI technology allows for optimized energy usage, making the amplifier as efficient as it is powerful. This product represents the perfect union of quality, durability, performance, and energy efficiency.
Technological innovations developed with artificial intelligence have resulted in more than 5 exclusive patents for SounDigital products.
A sublime auditory experience, where the subtlety of audio fidelity meets cutting-edge technology, refined by artificial intelligence to transcend sonic boundaries.
You've never heard anything like this.
Technical Specifications:
-
Power at 4 ohms: 1 x 1300 WRMS
-
Power at 2 ohms: 1 x 1900 WRMS
-
Power at 1 ohm: 1 x 3000 WRMS
-
High-pass filter (HPF) 12db/octave: 5Hz ~ 80Hz
-
Low-pass filter (LPF) 12db/octave: 80Hz ~ 20kHz
-
Frequency response (-3db): 5Hz - 20kHz
-
Supply voltage: 10V - 16V
-
Minimum input sensitivity (RCA): 200mV
-
Musical current draw: 140A
-
Resistive load current draw: 280A
-
Total efficiency: 88.1%
-
Recommended fuse (musical): 150A
-
Damping factor: >2000
-
Power cable: 35mm² (2 AWG)
-
Speaker cable: 6mm² (9 AWG)
-
SNR: 92dB
-
Recommended battery (minimum): 150Ah
-
Width: 147.5 mm / 14.75 cm
-
Length: 150.5 mm / 15.50 cm
-
Height: 60.6 mm / 6.06 cm
-
Weight: 1.350 kg
Key Features:
-
Impressive Power Output:
-
AI Technology:
-
Adjustable Frequency Filters:
-
High-pass filter (HPF): 5Hz ~ 80Hz (12db/octave)
-
Low-pass filter (LPF): 80Hz ~ 20kHz (12db/octave)
These filters allow precise adjustments to meet specific sound system requirements, ensuring clear and balanced audio reproduction.
-
Wide Frequency Response:
-
High Energy Efficiency:
-
Musical current draw: 140A
-
Resistive load current draw: 280A
-
Recommended fuse (musical): 150A
-
Recommended battery (minimum): 150Ah
These values indicate an amplifier designed to operate efficiently, even at high power, reducing the load on the vehicle's electrical system.
-
Compact and Durable Design:
-
Compact dimensions: 147.5 mm (width) x 150.5 mm (length) x 60.6 mm (height).
-
Lightweight: 1.350 kg, making it easy to install in tight spaces.
-
Robust power and speaker cables: 35mm² (2 AWG) and 6mm² (9 AWG), respectively.
-
Damping Factor:
-
Superior Audio Quality:
-
SNR (Signal-to-Noise Ratio): 92dB, ensuring clean, noise-free audio.
-
Supply voltage: 10V - 16V, compatible with most automotive systems.
Conclusion:
The 3000 EVO6 - 1OHM is an amplifier that redefines performance and efficiency standards. With its AI technology, impressive power output, and compact design, it is ideal for audio enthusiasts seeking the best sound quality without compromising energy efficiency. If you're looking for an amplifier that transcends sonic limits, this is the right product. You truly have never heard anything like this!
