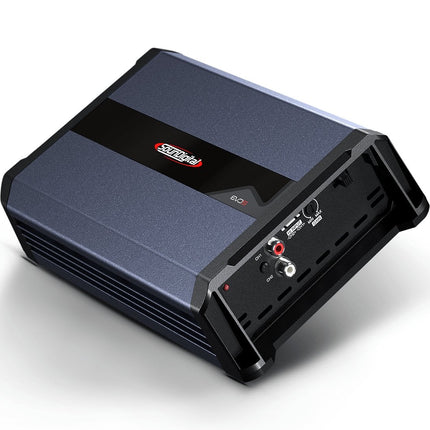

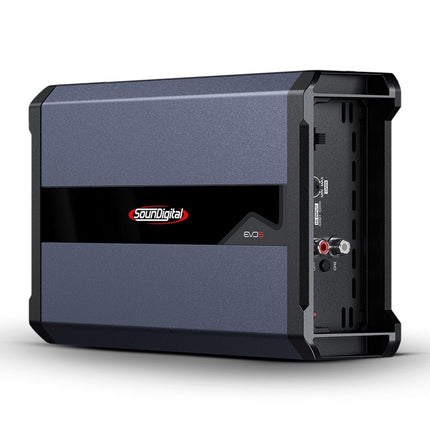

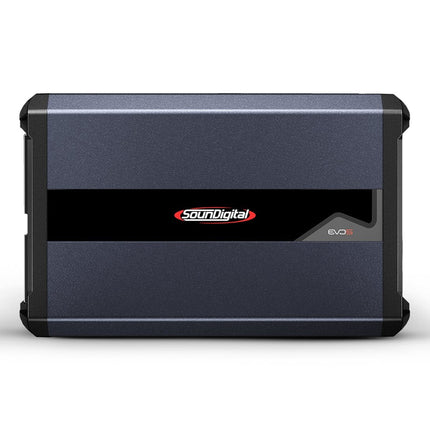

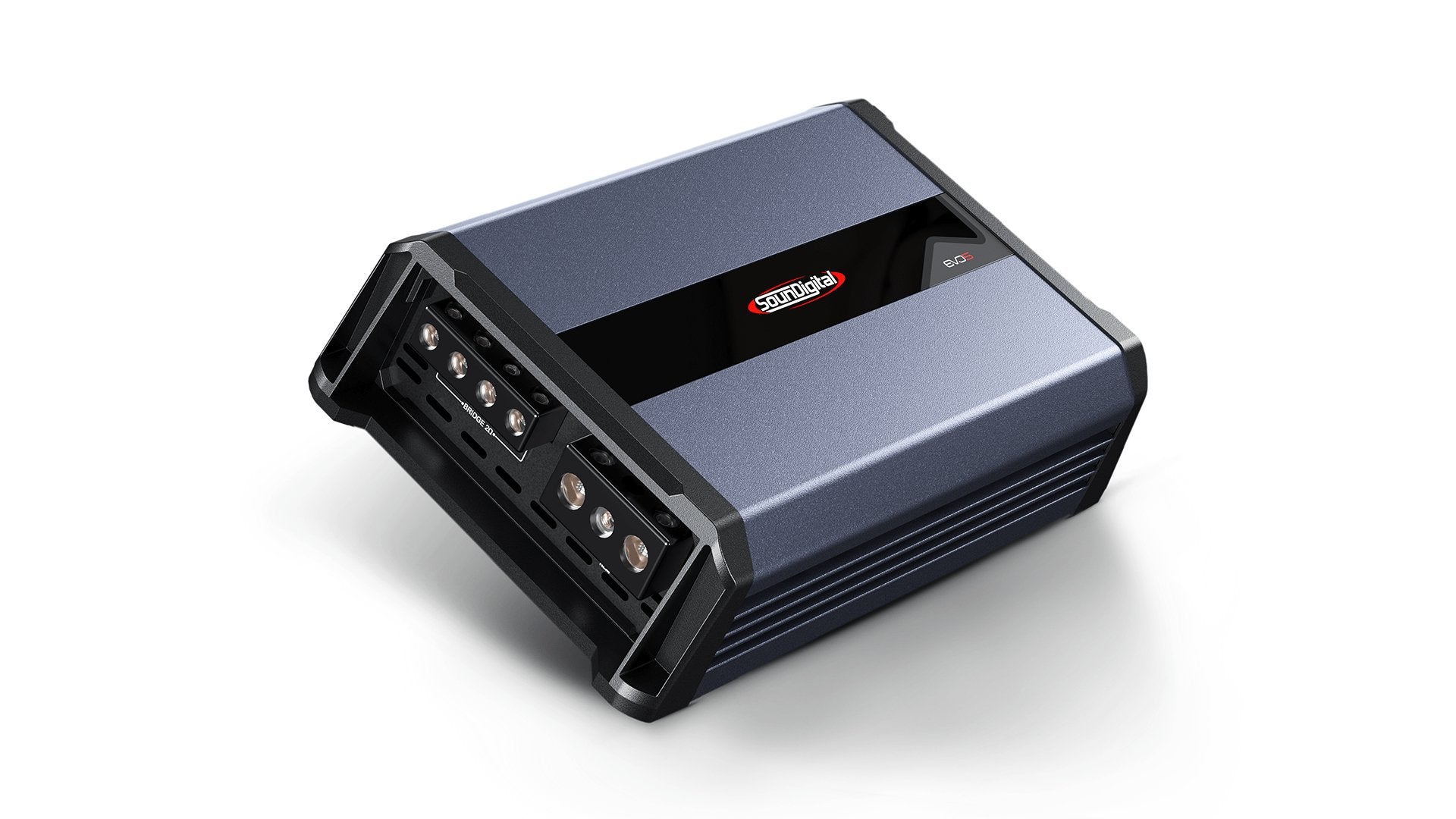

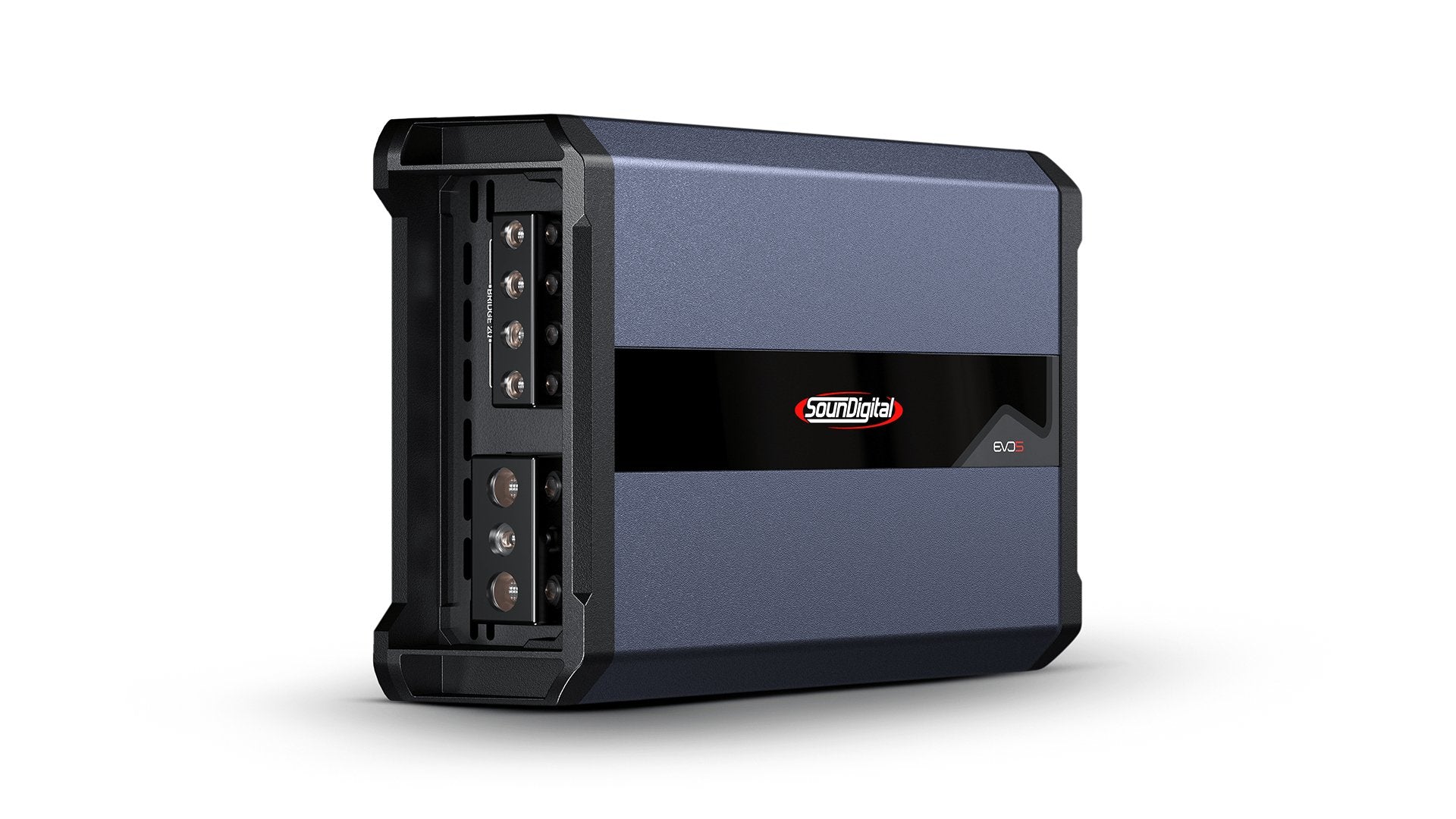

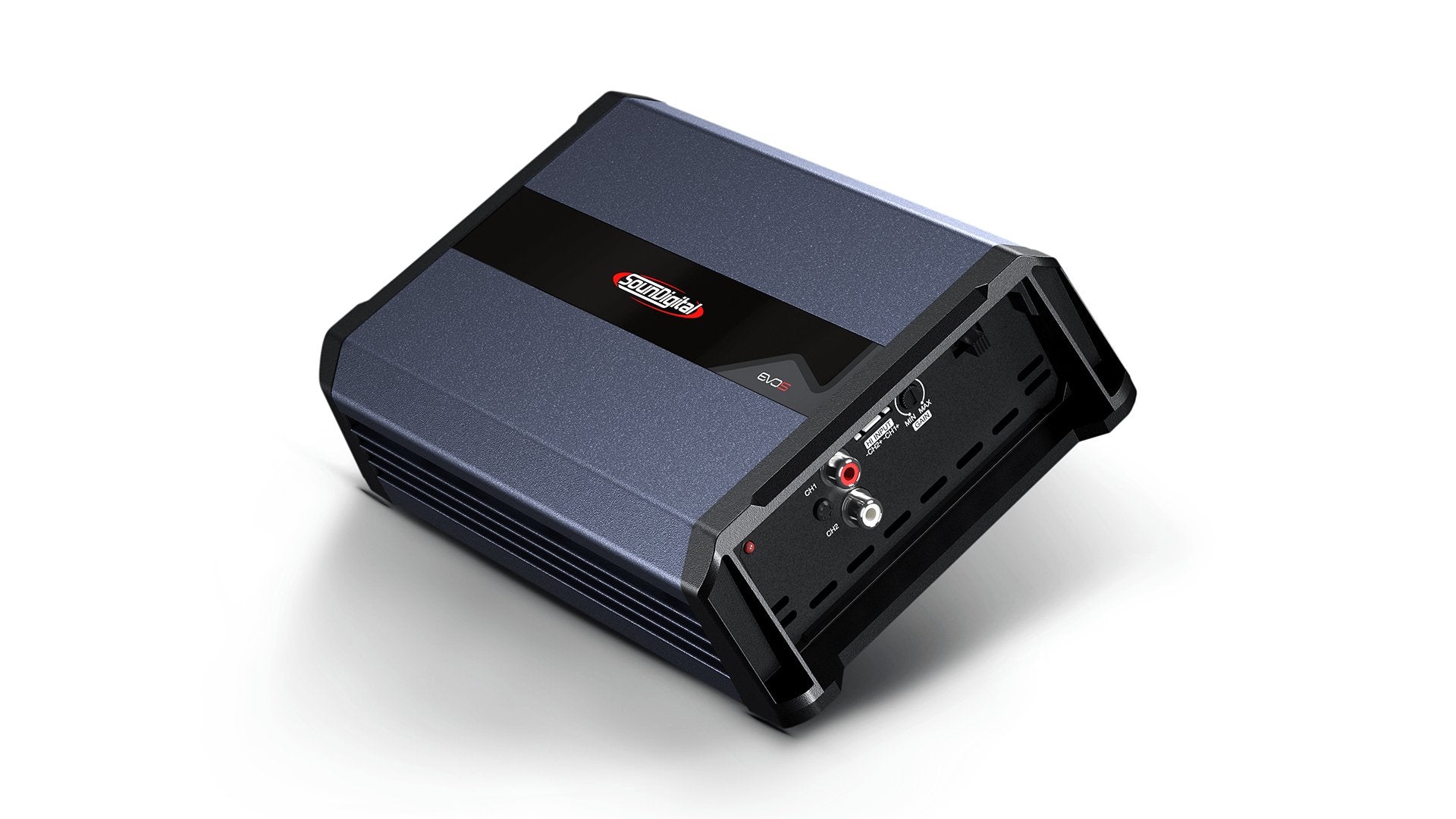

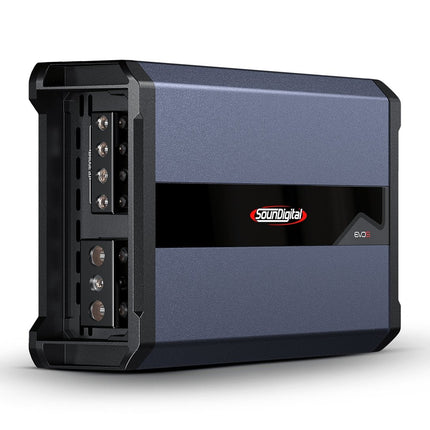

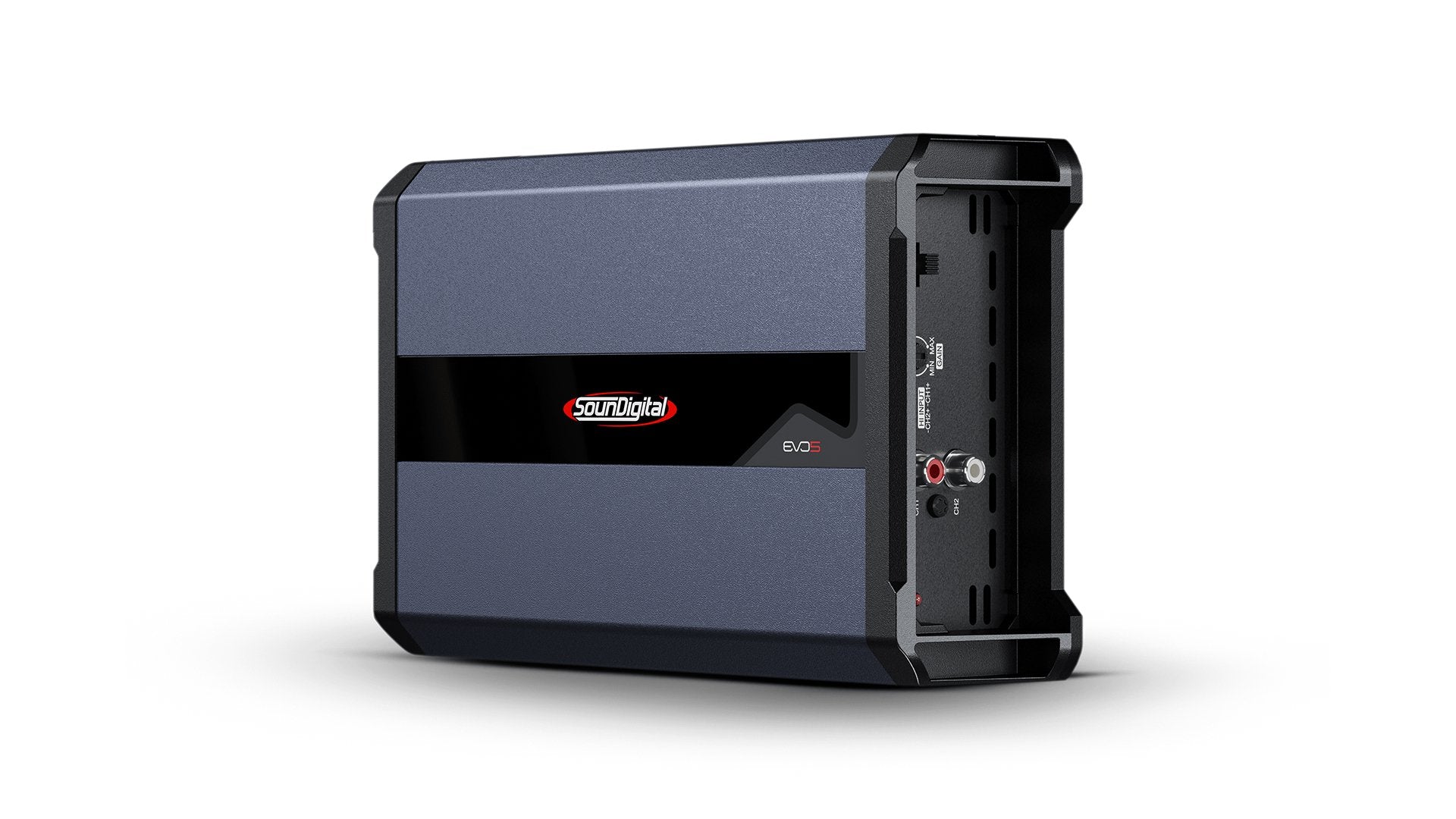

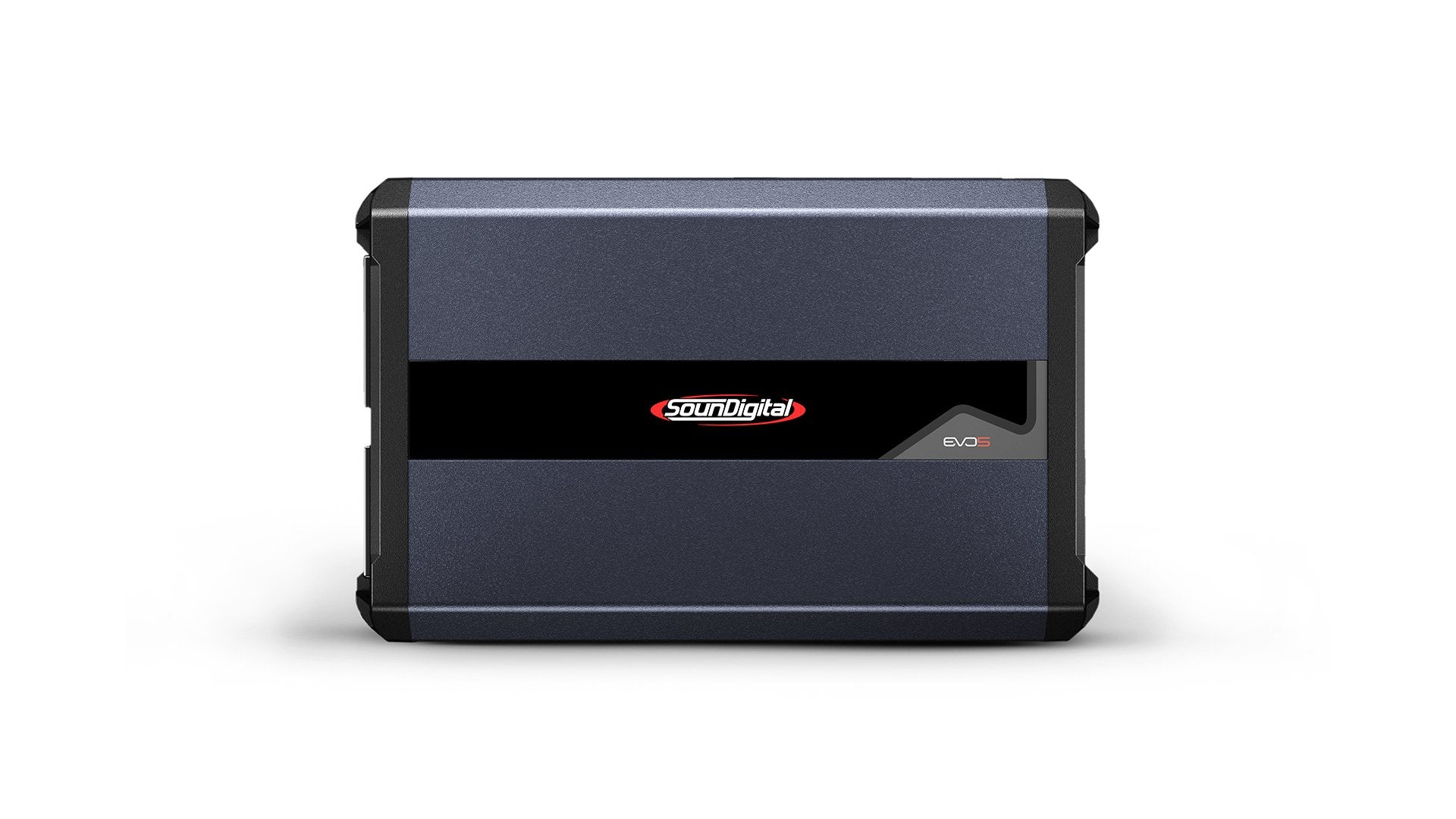

The 2000.2 EVO 5 is an amplifier with a compact and modern design that delivers 2000W RMS of power in 2 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
General Specifications
RMS Power @ 1Ω: 2 X 1000 WRMS
RMS Power @ 2Ω: 2 X 660 WRMS
Bridge RMS Power @ 2Ω: 1 X 2000 WRMS
Bridge RMS Power @ 4Ω: 1 X 1320 WRMS
RMS Power @ 1Ω: N/A
RMS Power @ 2Ω: 2 X 1000 WRMS
RMS Power Bridged @ 2Ω: N/A
RMS Power Bridged @ 4Ω: 1 X 2000 WRMS
-
Response Frequency (-3dB): 10Hz ~ 20kHz
-
Low Pass Filter (LP -12dB/8): 80Hz
-
High Pass Filter (HP -12dB/8): 80Hz
-
Supply Voltage: 8V ~ 16V
-
SNR: 90dB
-

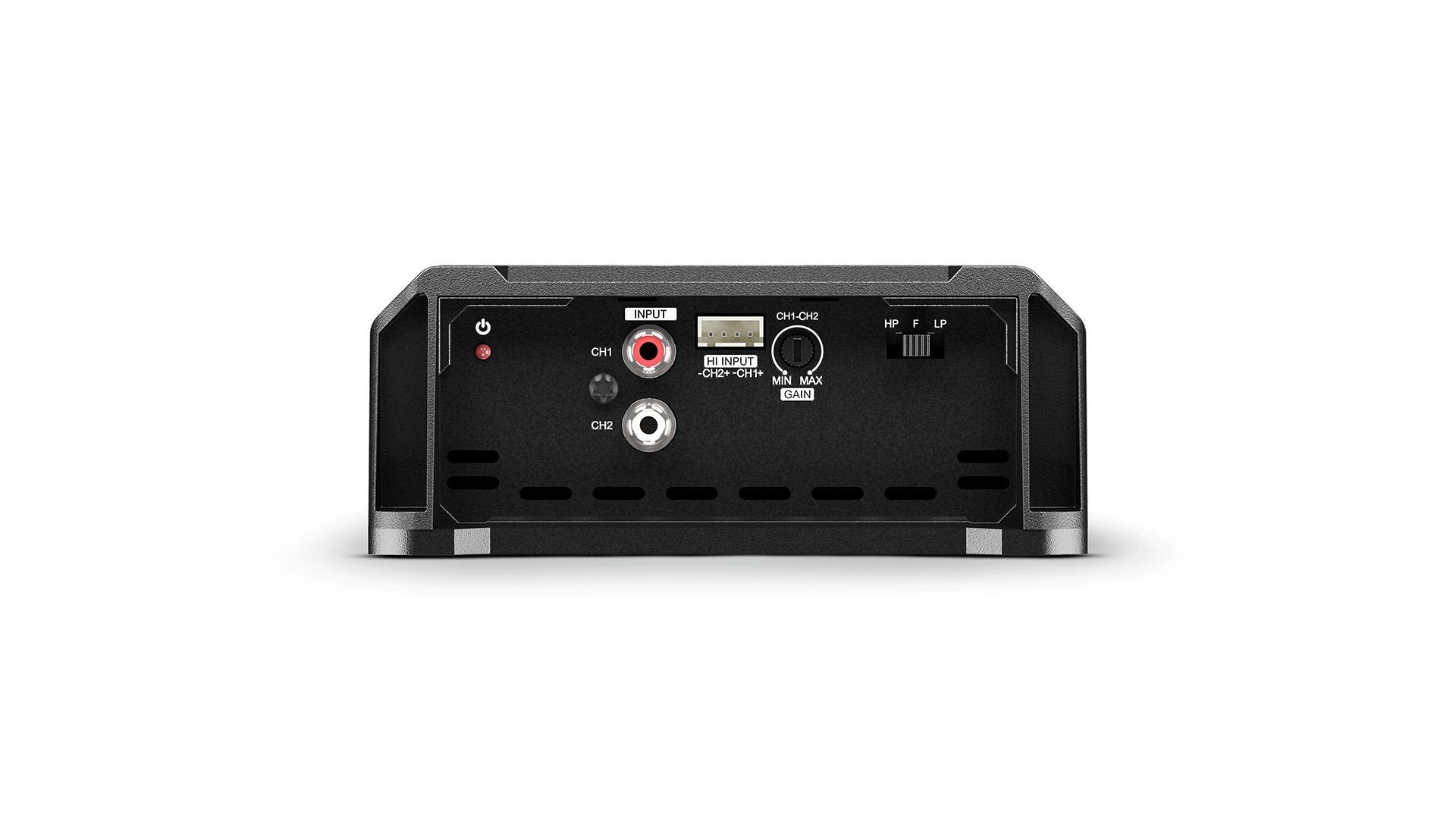

Input Sensitivity: 0.2 ~ 2V
- Consumption With Musical Signal:
- 2Ω: 89A
4Ω: 88A
- Consumption With Resistive Load (1kHz @ 12.6V):
- 2Ω: 178A
4Ω: 176A
- Total Efficiency:
- 2Ω: 89%
4Ω: 90%
-
Damping Factor (@100Hz Nominal Impedance): 200
- Minimum Impedance Per Stereo Channel:
- 2Ω: 1 ohm
4Ω: 2 ohms
- Minimum Impedance Per Bridge:
- 2Ω: 2 ohms
4Ω: 4 ohms
-
Recommended Fuse (Musical): 100A
-
Recommended Battery (Minimum for Music Use): 100Ah
-
Width: 13.6 cm
-
Length: 22.8 cm
-
Height: 5.5 cm
-
Weight: 1.58 kg
Differentials of the EVO 5 Line
Line 5 products have the most modern audio solutions from SounDigital. Modern components, with high performance distributed in intelligent projects guarantee better performance, temperature management and a lot of quality and power.
Flatter and more extensive frequency responses, refined timbre, more accurate bass and treble are the best definition of the performance of SounDigital products. The performance of the products has been substantially improved due to new concepts of sources, output filters and audio processing circuits.
SounDigital products are increasingly robust and reliable. State-of-the-art solutions make the temperature control and vibration resistance of the EVO5 line the best on the market.
- The protections have been modernized, and are more reliable and faster, that is, any failure in the power supply or in a speaker connected to the amplifier will not cause any problem to the amplifier of the EVO5 line, as the intelligent protection systems will protect it.
- Installation solutions:

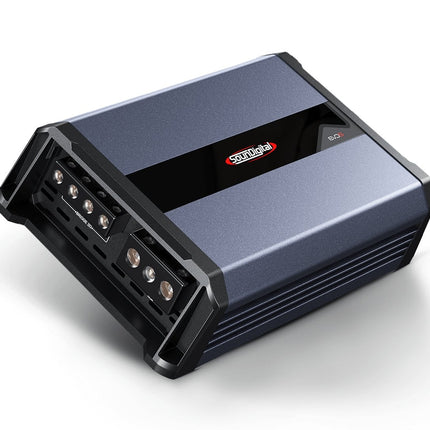

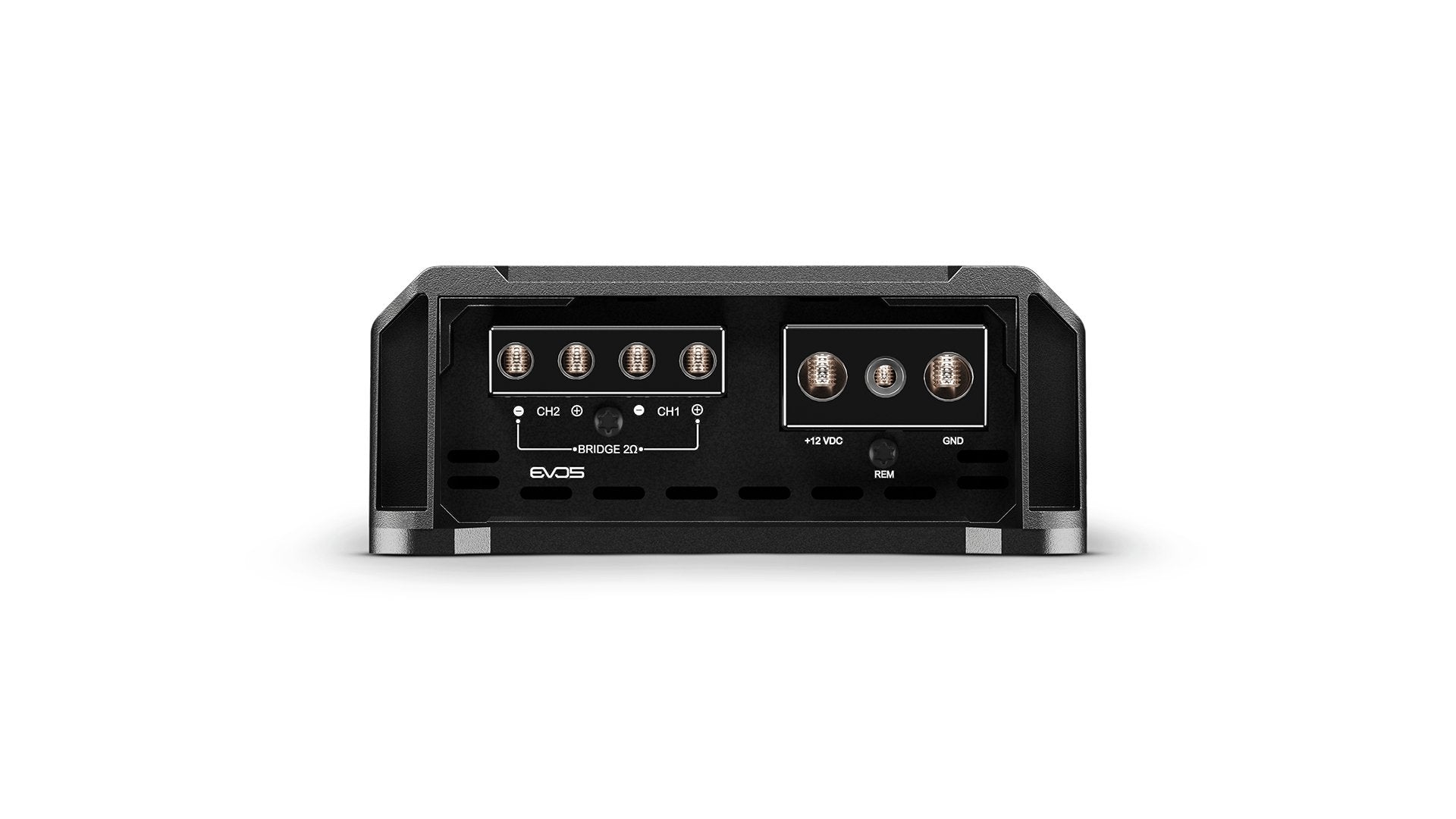

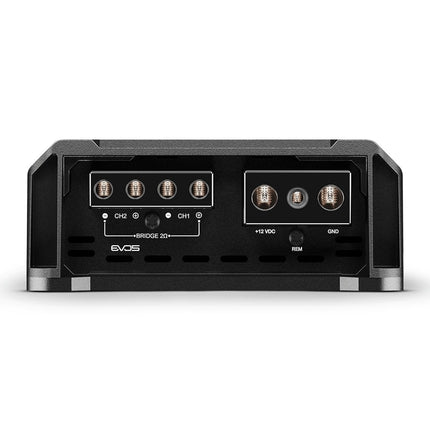

The products of the EVO5 line are designed to facilitate installation, they use solid connectors, with ALLEN steel screws that guarantee the best fixation for the wires, the screws that fix the product to the installation point are protected by removable covers, which guarantee a cleaner and more refined installation.

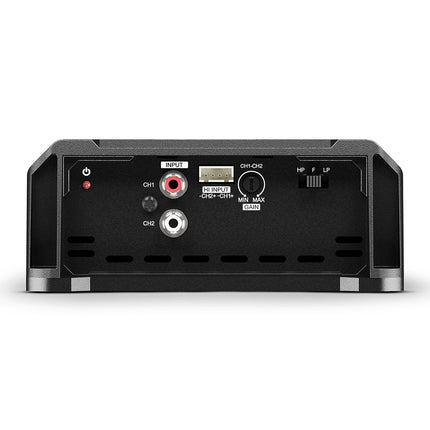

- Some products in the line now have a high signal input with SSS, SounDigital Smart Start, a system that uses the conventional audio outputs of the vehicle's audio units and does not require the use of a remote trigger wire. These and other facilities help in a correct, neat and reliable installation of the product.
