Description

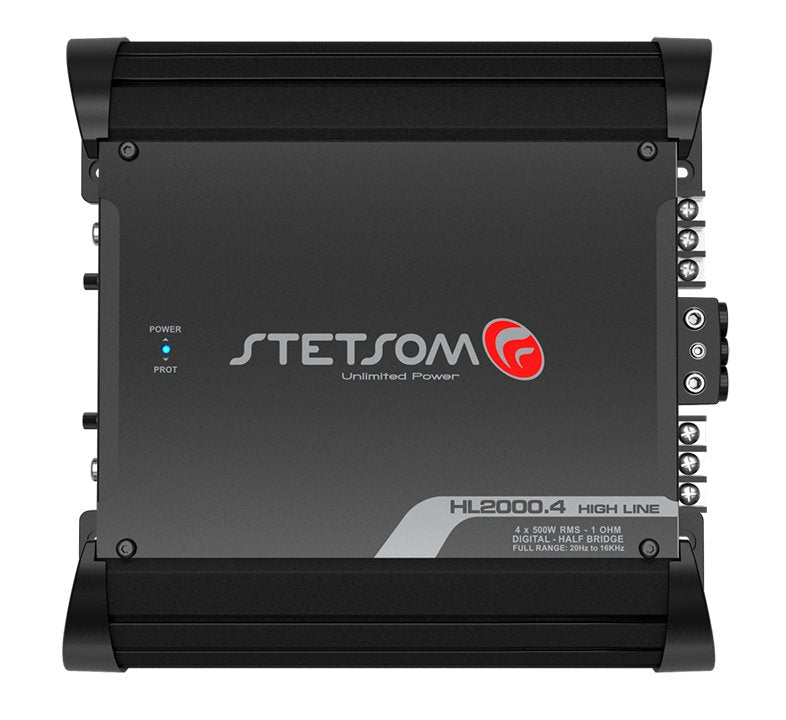

Stetsom HL2000.4 - Power and Versatility in One Amplifier
Designed for those seeking the highest performance and sound fidelity in car amplifiers, the HL2000.4 is a masterpiece delivering 2000W RMS across 4 robust channels of 500W RMS at 2 Ohms each. With versatile installation capabilities catering to diverse audio demands, this amplifier sets a new standard for automotive audio enthusiasts.
Key Features:
-
Impressive Power: With a total power of 2000W RMS, each of the 4 channels delivering 500W RMS at 2 Ohms provides a powerful and immersive sound experience.
-
Versatile Installation: Engineered to adapt to different car audio setups, the HL2000.4 offers exceptional versatility, providing flexibility in installation.
-

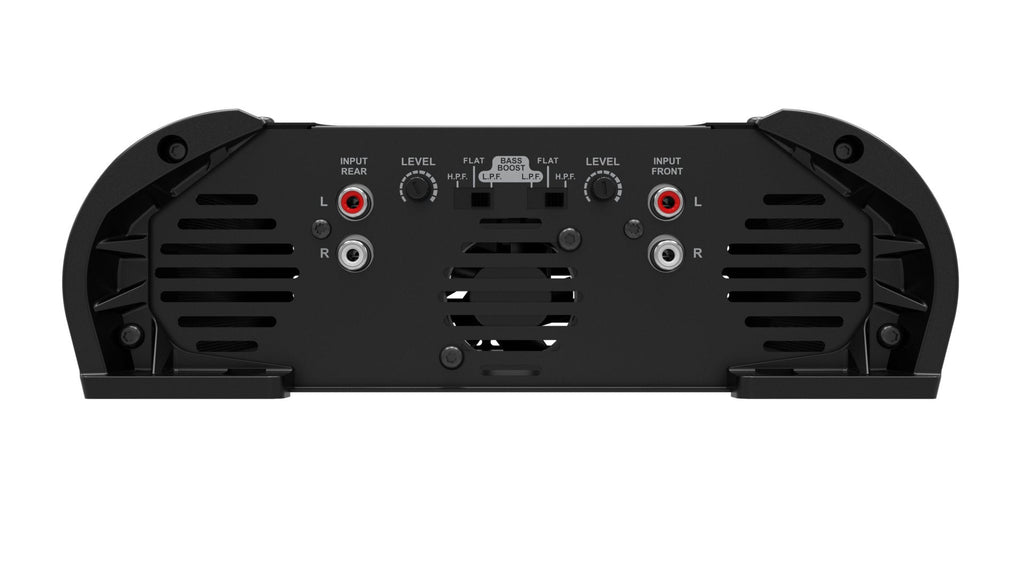

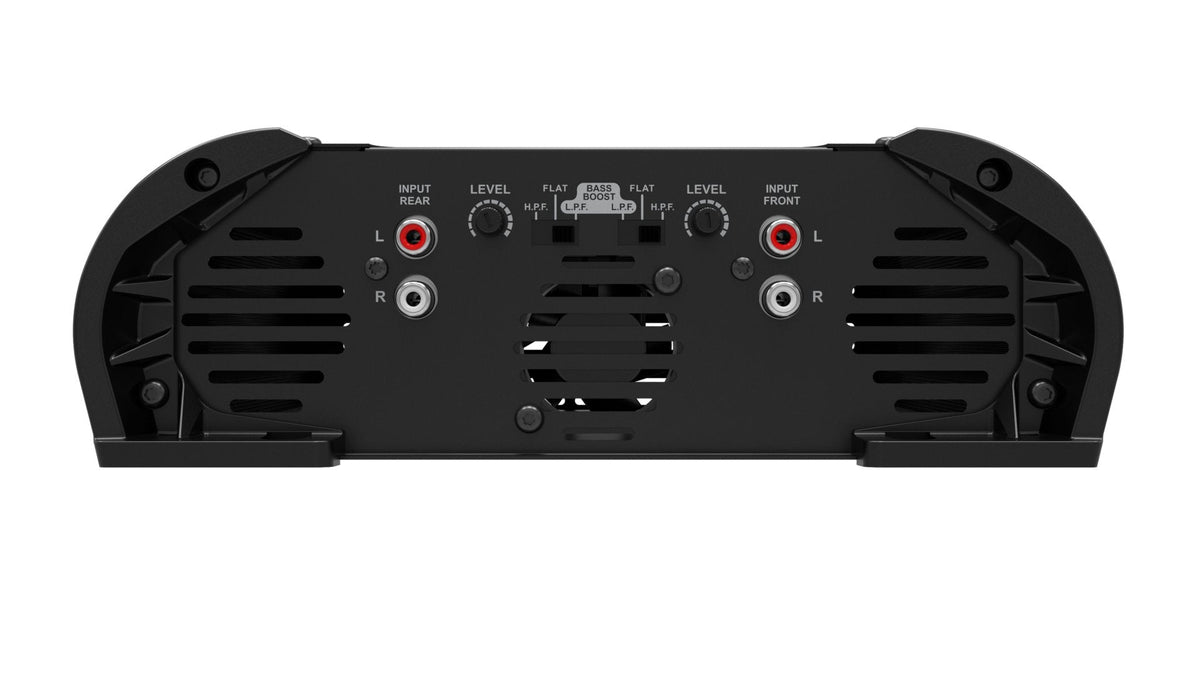

Independent Controls: The Front and Rear channels feature independent controls, including LEVEL for adjusting the input signal level and a Crossover with options for LOW-PASS, HIGH-PASS, or FLAT (FULL-RANGE).
-
Superior Audio Quality: Enjoy unparalleled sound fidelity, allowing every note and musical detail to stand out for an immersive auditory experience.
-
Robust Construction: With Stetsom's renowned quality, the HL2000.4 is built with high-quality materials, ensuring durability and consistent performance over time.
Elevate the standard of your car audio system with the Stetsom HL2000.4 - an amplifier that combines exceptional power with intuitive controls for an unparalleled auditory experience.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS |
HL2000.4 – 1 OHM |
| Number of Channels |
4 |
| RMS Power at 1 Ohm 12.6V |
4 x 435W RMS (STEREO) |
| RMS Power at 2 Ohm 12.6V |
4 x 280W RMS (STEREO) |
| RMS Power at 1 Ohm 14.4V |
4 x 545W RMS |
| RMS Power at 2 Ohm 14.4V |
4 x 365W RMS |
| Power @ 12.6V Bridge 2 Ohms |
2 x 870W RMS |
| Power @ 13.8V Bridge 2 Ohms |
2 x 1100W RMS |
| Supply Voltage |
9V ~15V DC |
| Frequency Response |
20Hz ~16KHz |
| Crossover Low Pass |
90Hz |
| Crossover High Pass |
90Hz |
| Signal to Noise |
>90dB |
| Harmonic Distortion |
>0,3 % THD |
| Input Sensitivity |
200mV |
| Input Impedance |
15K Ohms |
| Impedance Output |
STEREO: 1 OHM / BRIDGE: 2 OHMS |
| Consumption with Signal Musical |
97A |
| Consumption with Signal Bass |
194A |
| Dimensions (H x W x D) mm |
77.5 x 235 x 240.5 mm |
| Weight Kg |
2.8 Kg |
| CHARACTERISTICS |
HL2000.4 – 2 OHMS |
| Number of Channels |
4 |
| RMS Power at 2 Ohm 12.6V |
4 x 500W RMS (STEREO) |
| RMS Power at 4 Ohm 12.6V |
4 x 290W RMS (STEREO) |
| RMS Power at 2 Ohm 13.8V |
4 x 580W RMS (STEREO) |
| RMS Power at 4 Ohm 13.8V |
4 x 364W RMS (STEREO) |
| Power @ 12.6V Bridge 4 Ohms |
2 x 1000W RMS |
| Power @ 13.8V Bridge 4 Ohms |
2 x 1160W RMS |
| Supply Voltage |
9V ~ 15V DC |
| Frequency Response |
19Hz ~ 26KHz |
| Crossover Low Pass |
90Hz |
| Crossover High Pass |
90Hz |
| Signal to Noise |
>90 dB |
| Harmonic Distortion |
>0,3 % THD |
| Input Sensitivity |
200mV |
| Input Impedance |
15K OHMS |
| Impedance Output |
STEREO: 2 OHMS / BRIDGE: 4 OHMS |
| Consumption with Signal Musical |
96A |
| Consumption with Signal Bass |
192A |
| Dimensions (H x W x D) mm |
77.5 x 235 x 240.5 mm |
| Weight Kg |
2,7 Kg |
