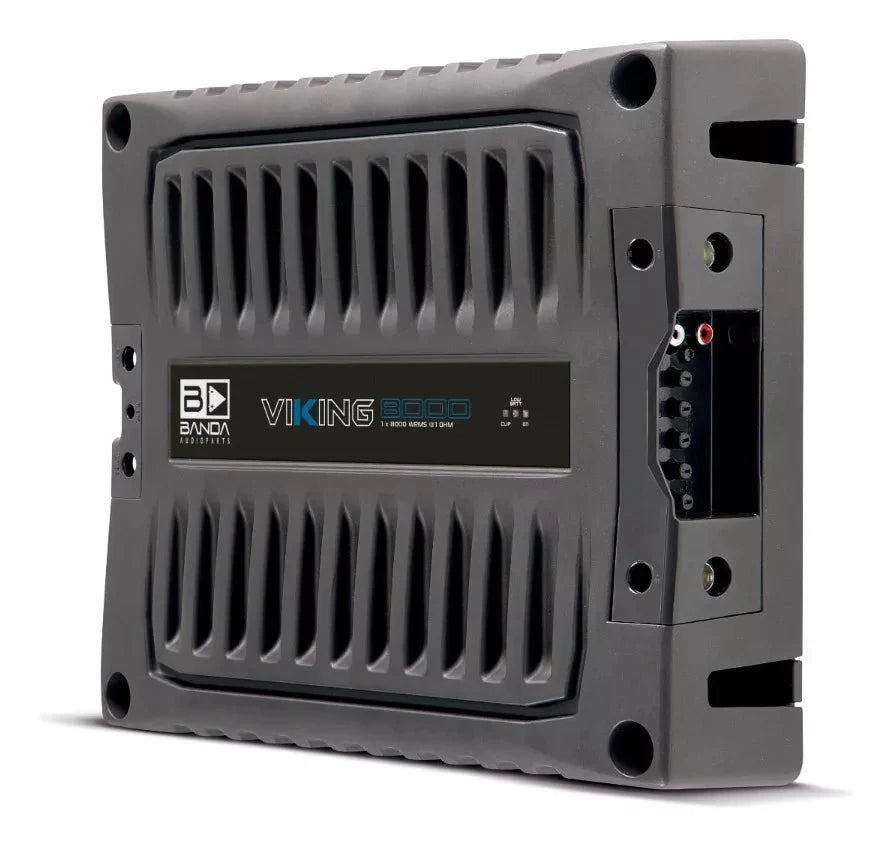

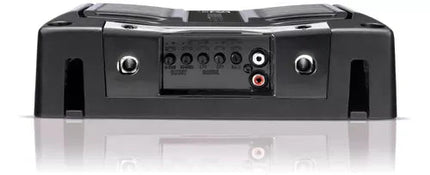

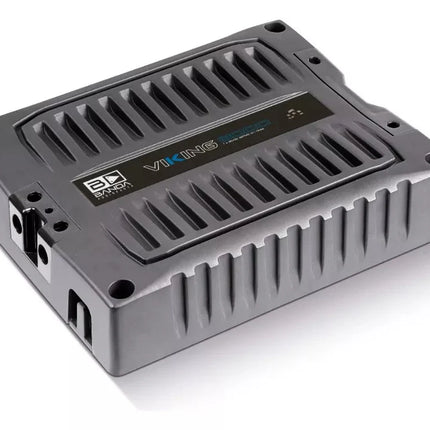

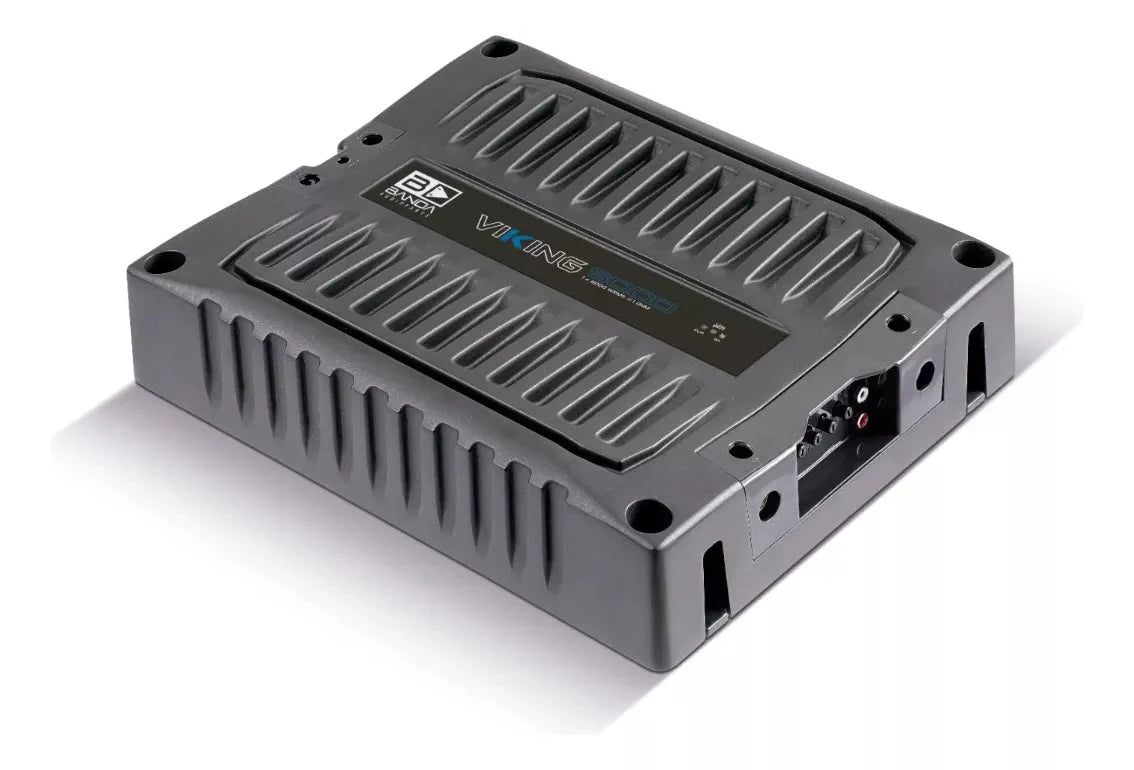

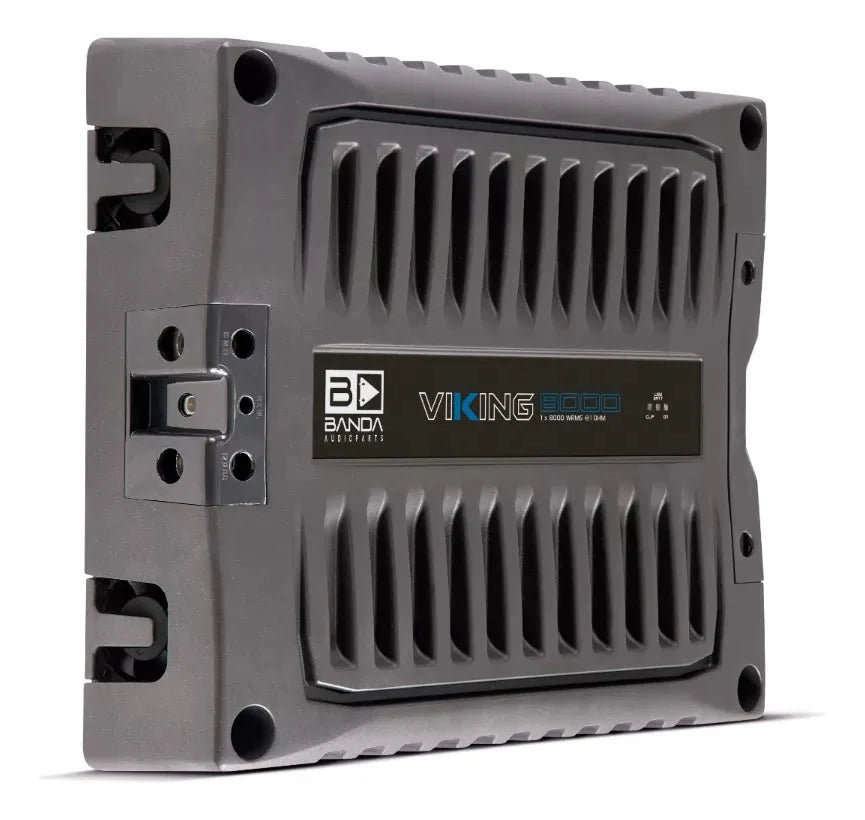

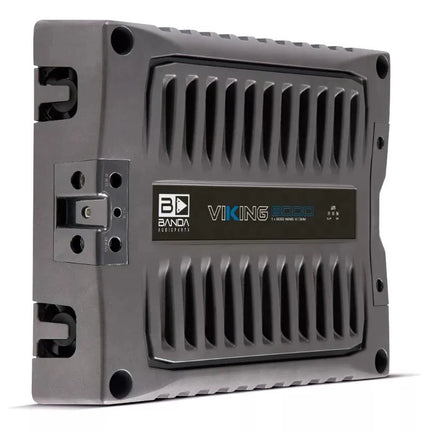

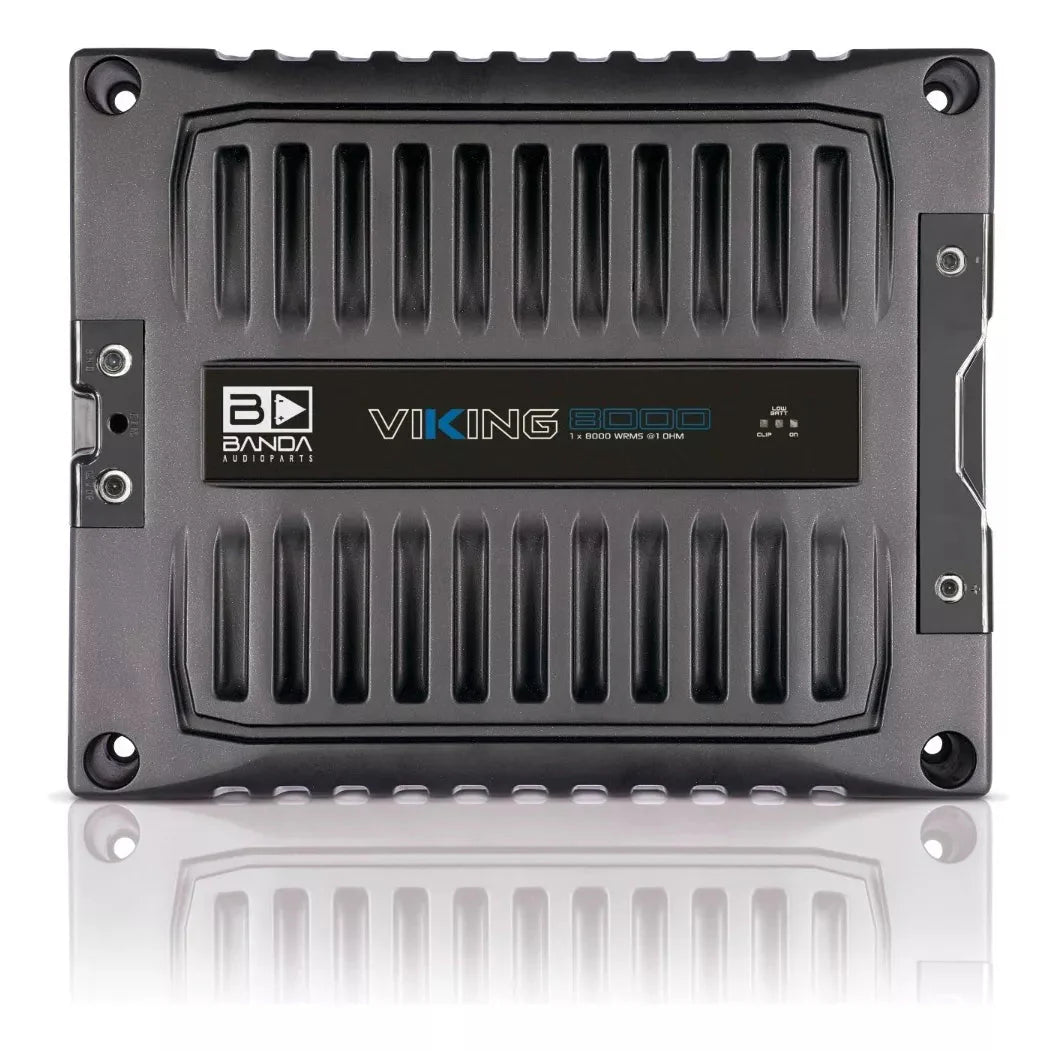

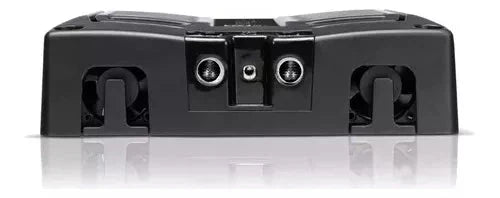

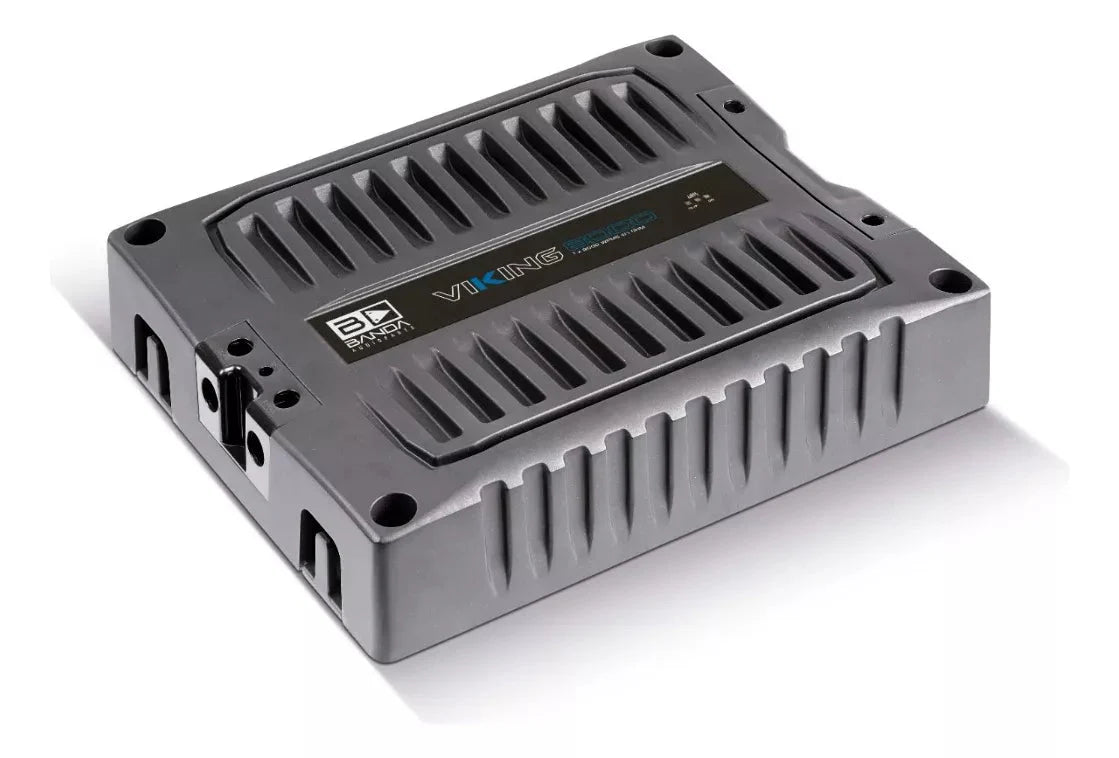

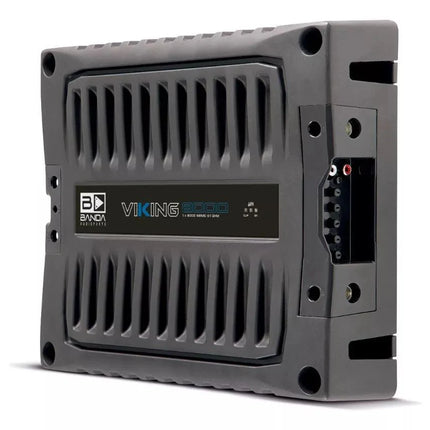

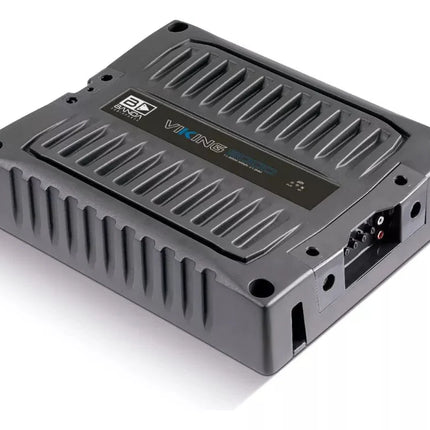

Banda Viking 8000 Watts RMS Amplifier Audio Car 8000 Watts RMS 1 ohm

Description

 Banda Viking 8000 Watts RMS Amplifier Audio Car 9500 Watts RMS 1 ohm



The VIKING line is designed for those who truly seek powerful sound. In this line, we offer models that have earned recognition in global-level competitions.

The Viking 8000 delivers a staggering 8000Wrms in a single channel at 1 Ohm, making it a preferred choice for ambitious projects due to its high-performance capabilities. It boasts a wide frequency response from 16Hz to 16kHz, making it suitable for driving various types of speakers.

Crafted with a 100% aluminum chassis, the Viking 8000 provides superior heat dissipation, resulting in reduced battery consumption and exceptional performance.

Technical Specifications:

  • Operating Class: Class D
  • Maximum Power at 12.6V @ 1 Ohm: 8000 Watts RMS
  • Maximum Power at 12.6V @ 2 Ohms: 5100 Watts RMS
  • Maximum Power at 14.4V @ 1 Ohm: 9000 Watts RMS
  • Maximum Power at 14.4V @ 2 Ohms: 7400 Watts RMS
  • Efficiency @ 2 Ohms: 83%
  • Efficiency @ 1 Ohm: 77%
  • Input Voltage: 9 - 15V
  • Input Impedance: 22K Ohms
  • Total Harmonic Distortion + Noise: ~3%
  • Input Sensitivity: 200mV to 8V
  • Signal-to-Noise Ratio: 80dB
  • Frequency Response: 16 to 16kHz (-3dB)
  • High-Pass Filter (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley
  • Low-Pass Crossover: 50 - 16kHz @ 12dB/octave Linkwitz-Riley
  • Variable Bass Boost: 30 - 80Hz with up to 12dB boost
  • Recommended Fuse: 2 x 225A
  • Standby Current Draw: ~3A
  • Maximum Current Draw (Musical Signal): 400A
  • Sinusoidal Current: 850A
  • Minimum Recommended Power Cable: 70mm / 0 AWG
  • Minimum Recommended Output Cable: 2 x 6mm / 2 x 3 AWG
  • Gain Control
  • Differential Input Signal
  • Forced Ventilation with Micro Fans
  • Weight (Kg): 6.3
  • Height (cm): 7.3
  • Width (cm): 25.6
  • Depth (cm): 31.7


Package Contents:

  • 1 Amplifier Module
  • Manual and Warranty Certificate

Important:

  • 1-year manufacturer's warranty.

Banda Viking 8000 Watts RMS Amplifier Audio Car 8000 Watts RMS 1 ohm

Product form

 Banda Viking 8000 Watts RMS Amplifier Audio Car 9500 Watts RMS 1 ohm   The VIKING line is designed for... Read more

$559.00 $447.00

      Description

       Banda Viking 8000 Watts RMS Amplifier Audio Car 9500 Watts RMS 1 ohm



      The VIKING line is designed for those who truly seek powerful sound. In this line, we offer models that have earned recognition in global-level competitions.

      The Viking 8000 delivers a staggering 8000Wrms in a single channel at 1 Ohm, making it a preferred choice for ambitious projects due to its high-performance capabilities. It boasts a wide frequency response from 16Hz to 16kHz, making it suitable for driving various types of speakers.

      Crafted with a 100% aluminum chassis, the Viking 8000 provides superior heat dissipation, resulting in reduced battery consumption and exceptional performance.

      Technical Specifications:

      • Operating Class: Class D
      • Maximum Power at 12.6V @ 1 Ohm: 8000 Watts RMS
      • Maximum Power at 12.6V @ 2 Ohms: 5100 Watts RMS
      • Maximum Power at 14.4V @ 1 Ohm: 9000 Watts RMS
      • Maximum Power at 14.4V @ 2 Ohms: 7400 Watts RMS
      • Efficiency @ 2 Ohms: 83%
      • Efficiency @ 1 Ohm: 77%
      • Input Voltage: 9 - 15V
      • Input Impedance: 22K Ohms
      • Total Harmonic Distortion + Noise: ~3%
      • Input Sensitivity: 200mV to 8V
      • Signal-to-Noise Ratio: 80dB
      • Frequency Response: 16 to 16kHz (-3dB)
      • High-Pass Filter (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley
      • Low-Pass Crossover: 50 - 16kHz @ 12dB/octave Linkwitz-Riley
      • Variable Bass Boost: 30 - 80Hz with up to 12dB boost
      • Recommended Fuse: 2 x 225A
      • Standby Current Draw: ~3A
      • Maximum Current Draw (Musical Signal): 400A
      • Sinusoidal Current: 850A
      • Minimum Recommended Power Cable: 70mm / 0 AWG
      • Minimum Recommended Output Cable: 2 x 6mm / 2 x 3 AWG
      • Gain Control
      • Differential Input Signal
      • Forced Ventilation with Micro Fans
      • Weight (Kg): 6.3
      • Height (cm): 7.3
      • Width (cm): 25.6
      • Depth (cm): 31.7


      Package Contents:

      • 1 Amplifier Module
      • Manual and Warranty Certificate

      Important:

      • 1-year manufacturer's warranty.
