Description

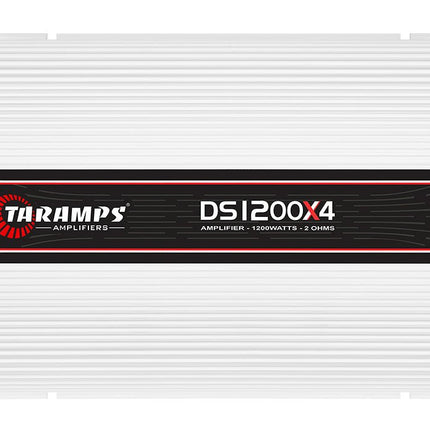

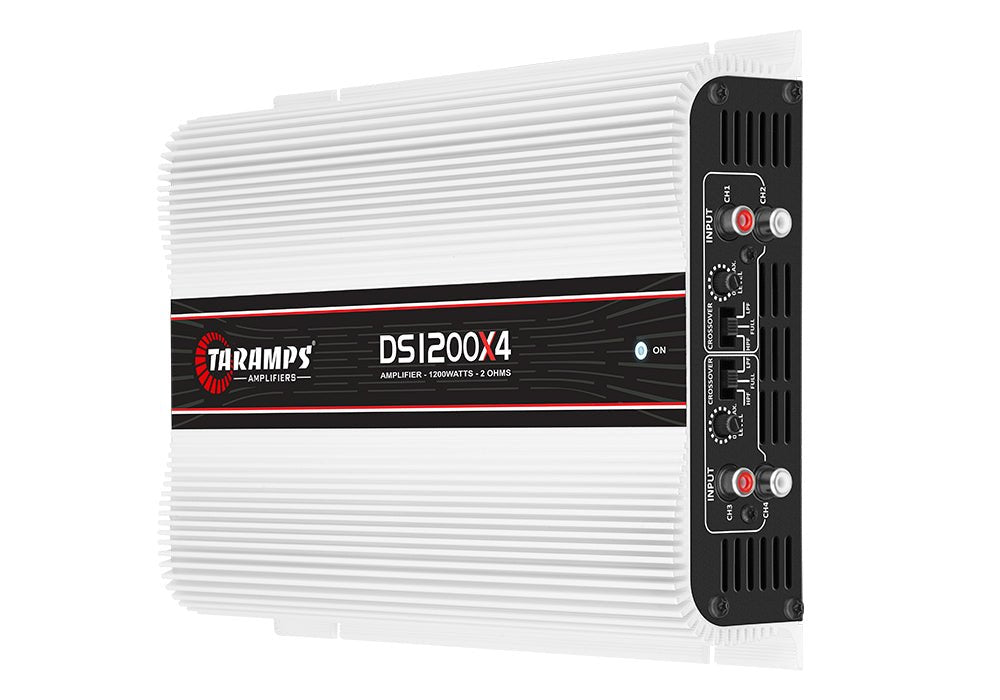

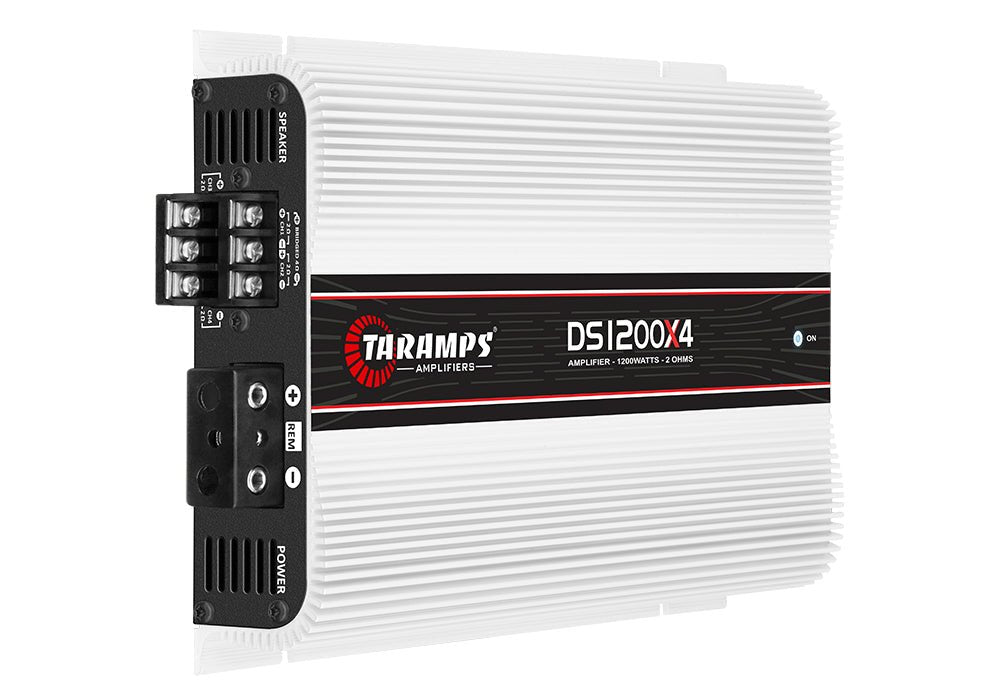

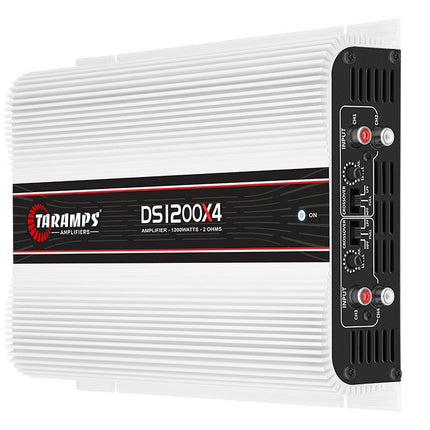

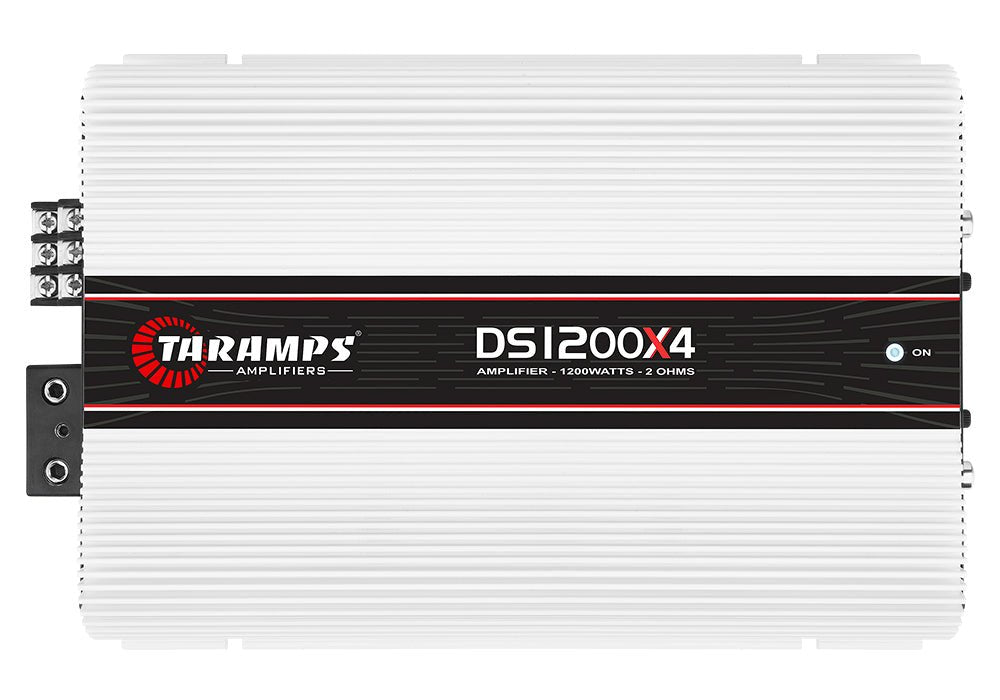

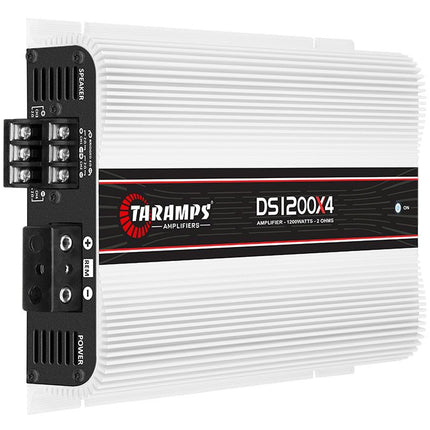

The DS 1200×4 is synonymous with multichannel amplifier. It has 4 channels of 300 Watts RMS, with a maximum power of 1200 Watts RMS, at 2 ohm and is compatible with any frequency, that is to say, it is a FULL RANGE amp. Versatility, efficiency and quality in a single product.
| OPERATION CLASS |
D |
| NUMBER OF CHANNELS |
04 |
| MAXIMUM POWER |
@ 12.6 VDC - 2 OHMS: 1200W RMS (4 x 300W RMS)
@ 12.6 VDC - 4 OHMS: 768W RMS (4 x 192W RMS) |
| INPUT SENSITIVITY |
250mV |
| SIGNAL TO NOISE RATIO |
>88dB |
| FREQUENCY RESPONSE |
9Hz to 27KHz (-3dB) |

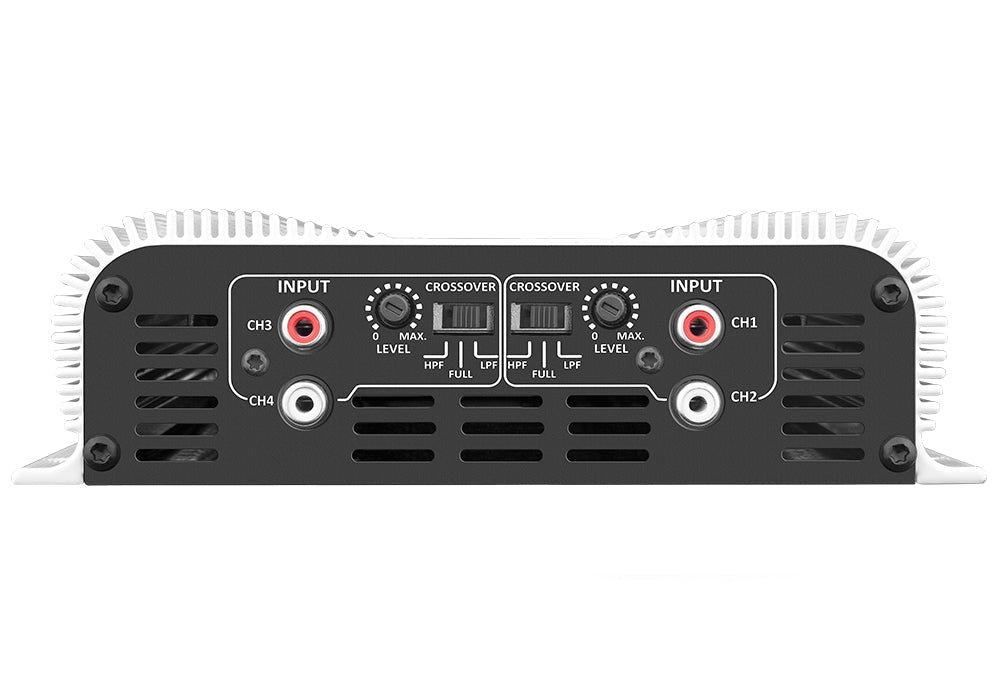

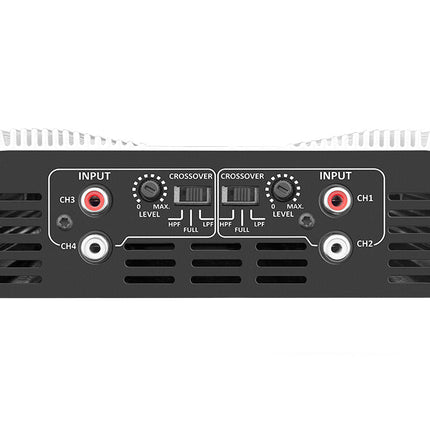

| CROSSOVER HIGH PASS (HPF) |
90Hz (-12dB/8a) Fixed |
| CROSSOVER LOW PASS (LPF) |
90Hz (-12dB/8a) Fixed |
| INPUT IMPEDANCE |
18K Ohms |
| OUTPUT IMPEDANCE |
2 Ohms |
| PROTECTION SYSTEM |
Output overload |
| MIN. SUPPLY VOLTAGE |
9VDC |
| MAXIMUM POWER SUPPLY VOLTAGE |
16VDC |
| CONSUMPTION AT REST |
1.8A |
| MAXIMUM MUSIC CONSUMPTION |
@12.6VDC 67.5A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
135A |
| DIMENSIONS (WXHXD) |
7.17" x 2.05" x 11.06" (182 x 52 x 281mm) |
| WEIGHT |
4.62lb (2,1kg) |
| EAN |
7898556844130 |
