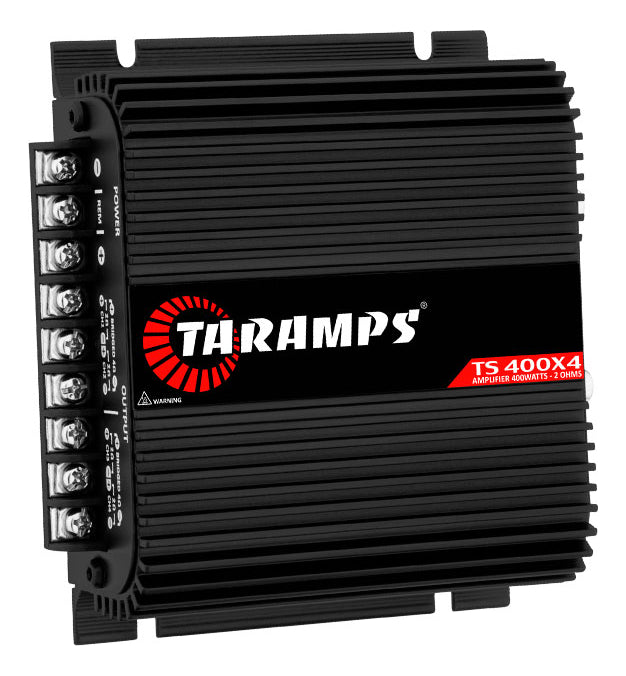

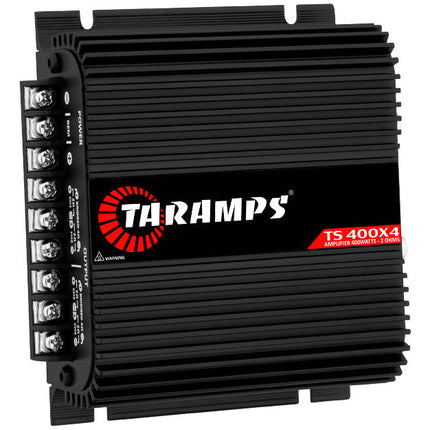

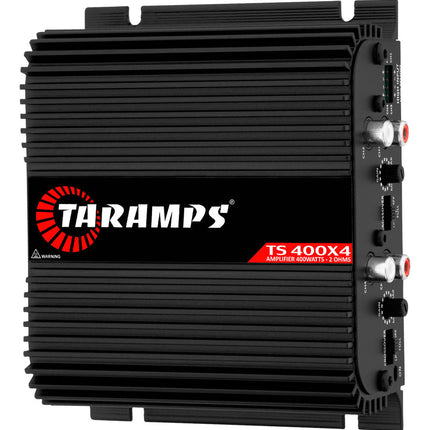

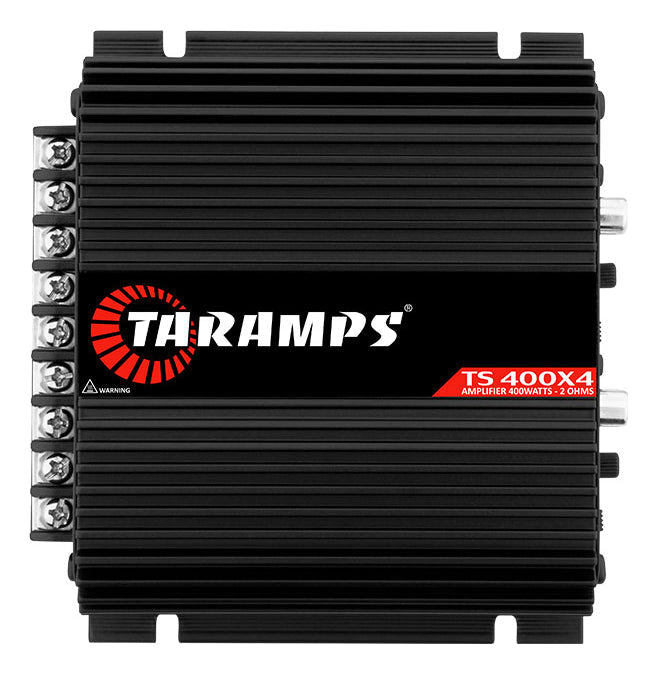

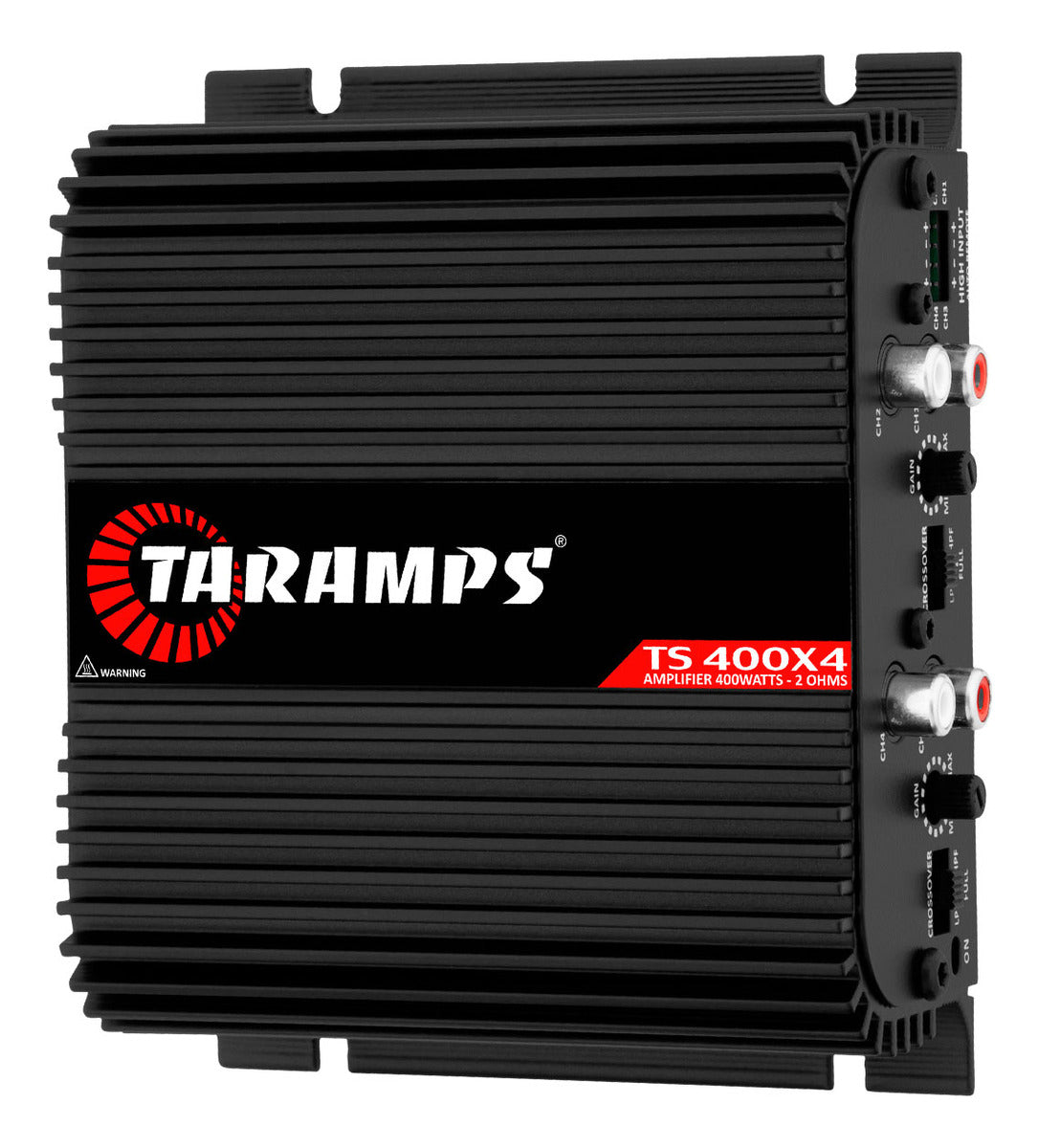

Digital Amplifier TS 400×4 Black – Power and Versatility for Your Audio System

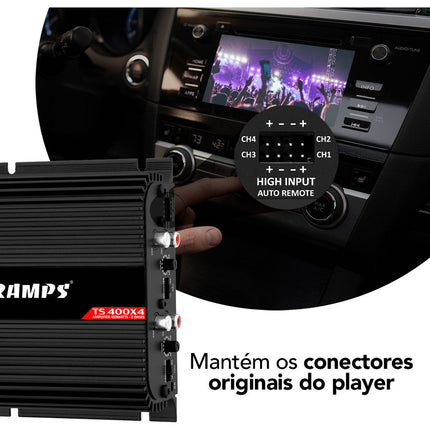

The demand for digital amplifiers compatible with original players and multimedia devices is growing every day. With this in mind, we developed the TS 400×4 Black, an amplifier with a wired input for 4 individual channels and automatic turn-on, eliminating the need for adapters and making it ideal for this type of application.
With 400W of power distributed across 4 channels and bridgeable capability, this amplifier is compatible with various types of speakers, including subwoofers, horns, tweeters, midranges, woofers, mid-bass, and super tweeters.
Key Features:

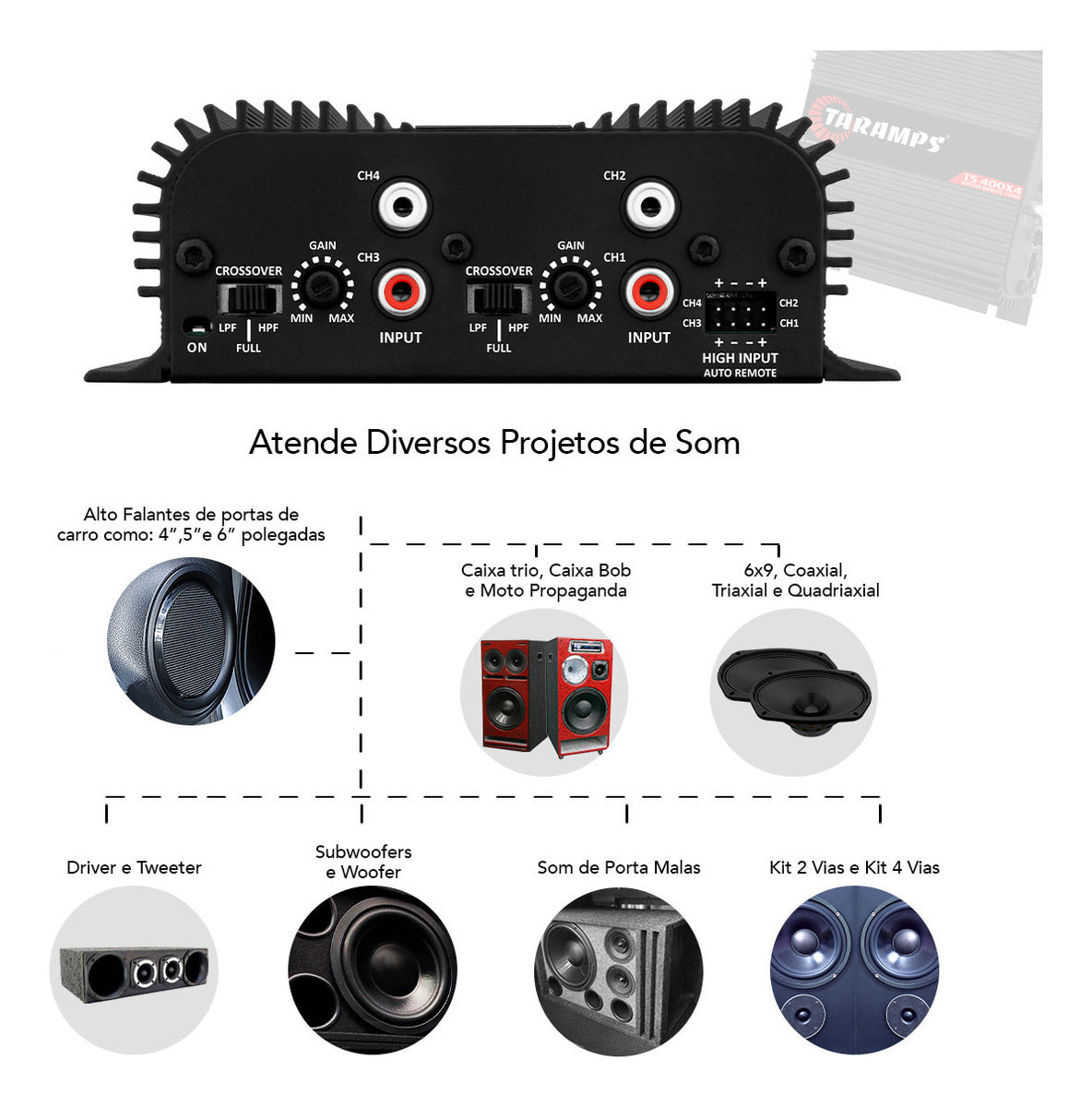

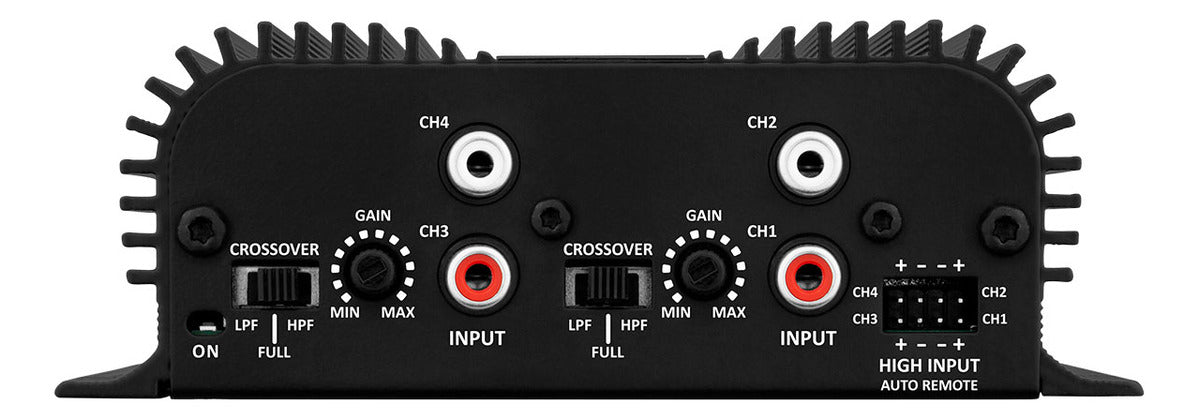

✔ Built-in crossover (HPF, LPF, FULL) – Configures the amplifier’s operating mode.
✔ Gain adjustment – Compatible with output levels from most CD/DVD players and multimedia systems on the market.
✔ LED power indicator – Shows when the amplifier is on.
✔ Wide application – Can be used in cars, trucks, SUVs, motorcycle sound boxes, home audio systems, and more.
✔ Versatility – Ideal for installations in doors, trunks, speaker boxes (2-way, 4-way, coaxial, triaxial, quadaxial), and various speaker sizes (4”, 5”, 6”, 6x9”, 5x7”).
Technical Specifications:
🔹 Class: D (digital) – High efficiency, compact size, and low heat generation.

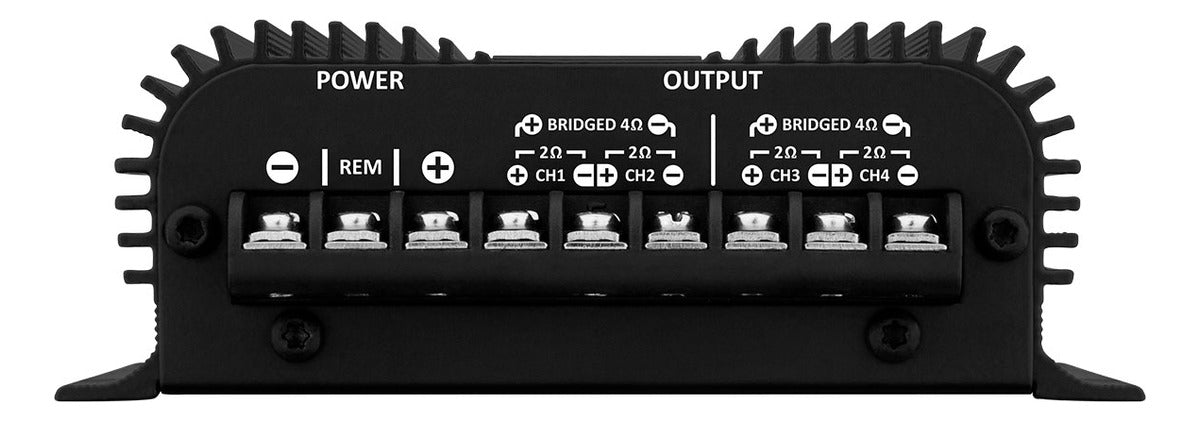

🔹 Channels: 4 (configurable in 4, 3, or 2 channels).
🔹 RMS Power @13.8V:
-
2 ohms (stereo): 4 x 100W
-
4 ohms (bridged): 2 x 200W
🔹 Minimum impedance:
-
Stereo: 2 ohms
-
Bridged: 4 ohms
🔹 Input sensitivity:
-
RCA: 4V (min.) / 250mV (max.)
-
Wire: >10V (min.) / 3V (max.)
🔹 Frequency response (Full Range): 18Hz – 30kHz (-3dB)
🔹 Filters:
-
LPF (Low Pass Filter): 90Hz (fixed)
-
HPF (High Pass Filter): 90Hz (fixed)
🔹 Operating voltage: 8V – 16V
🔹 Power consumption:
-
Idle: 0.8A
-
Max (music): 16.5A @13.8V
-
Max (sine wave): 33A @13.8V
🔹 Protections: Thermal and short-circuit protection.

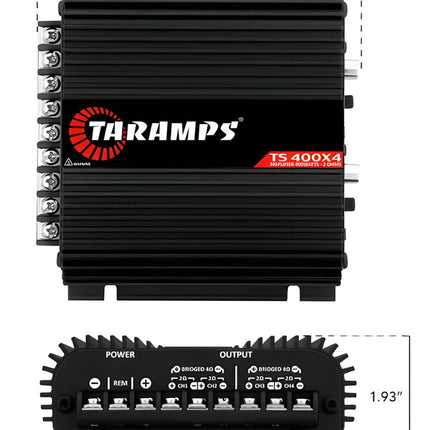

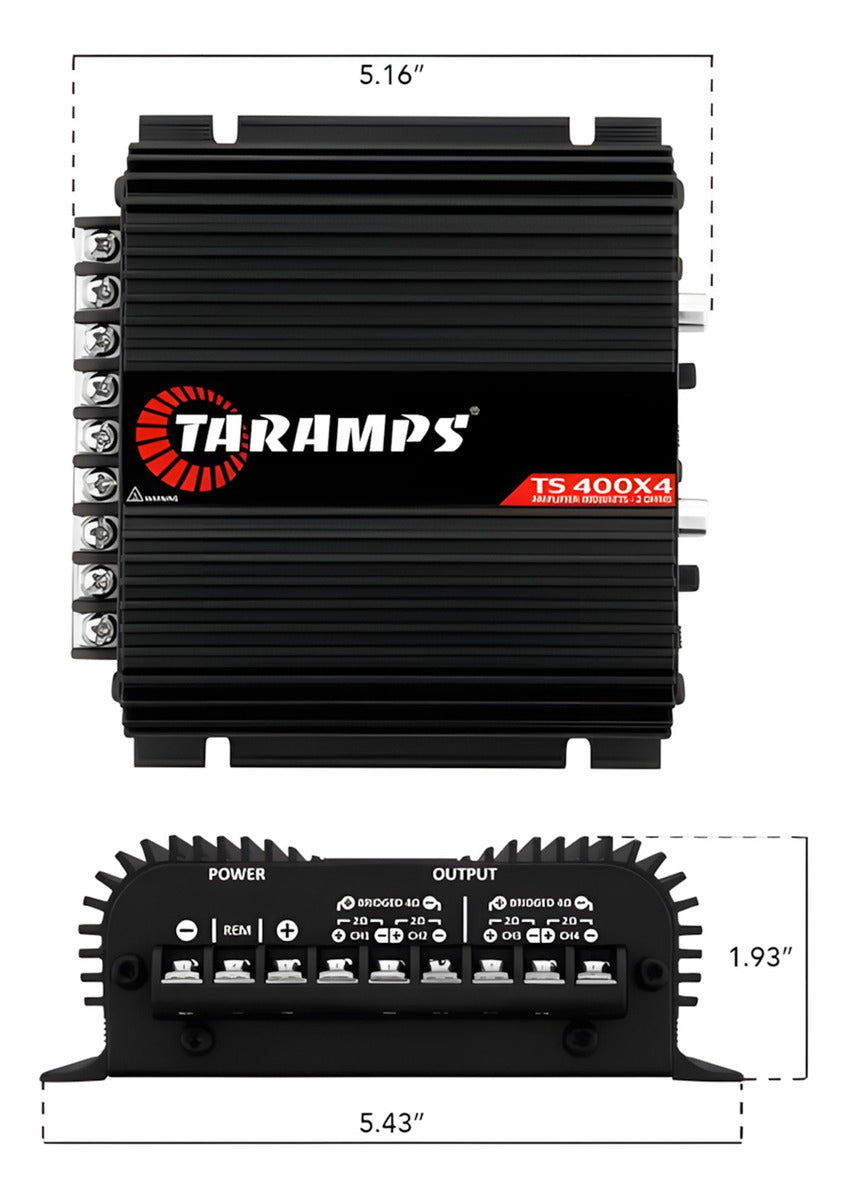

🔹 Dimensions: 13.8cm (W) x 4.9cm (H) x 13.1cm (D)
🔹 Weight: 650g
Package Includes:
-
1 x TS 400×4 Black Amplifier
-
Wired input connector (~20cm cable)
-
QR Code for digital manual
-
Taramps sticker
⚠ Important: We recommend professional installation. We are not responsible for improper use of the product.
Upgrade your sound with quality and performance! 🚗🔊
