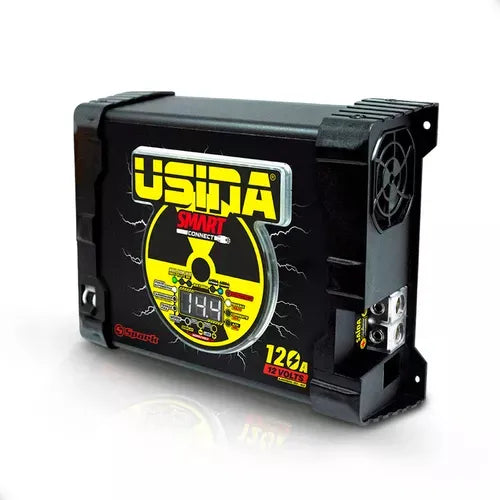

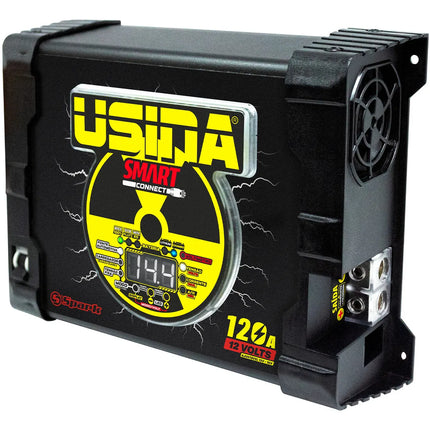

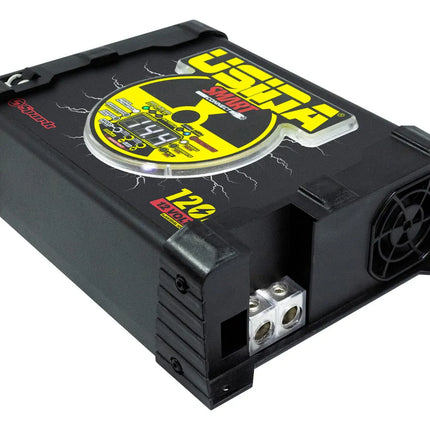

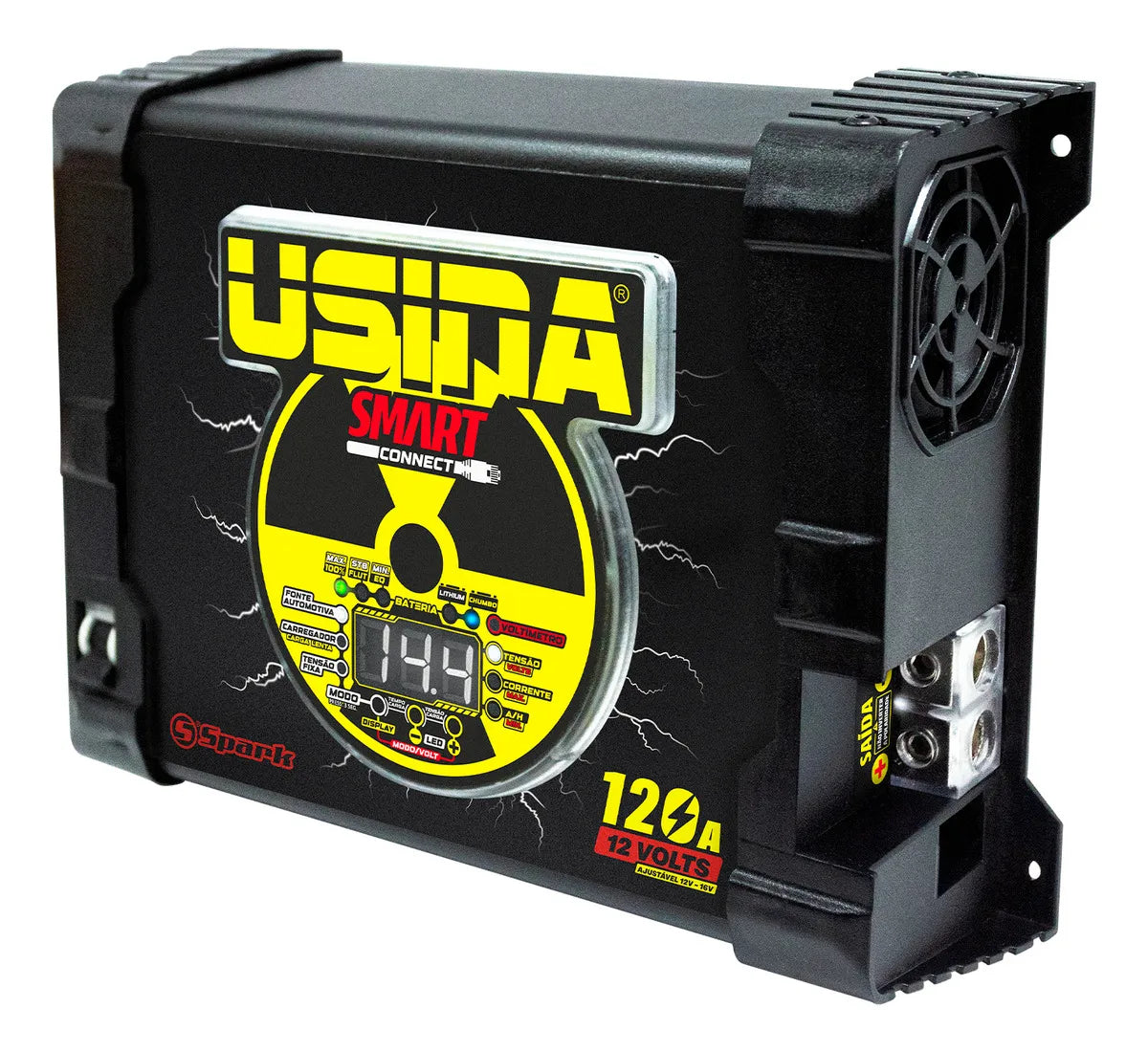

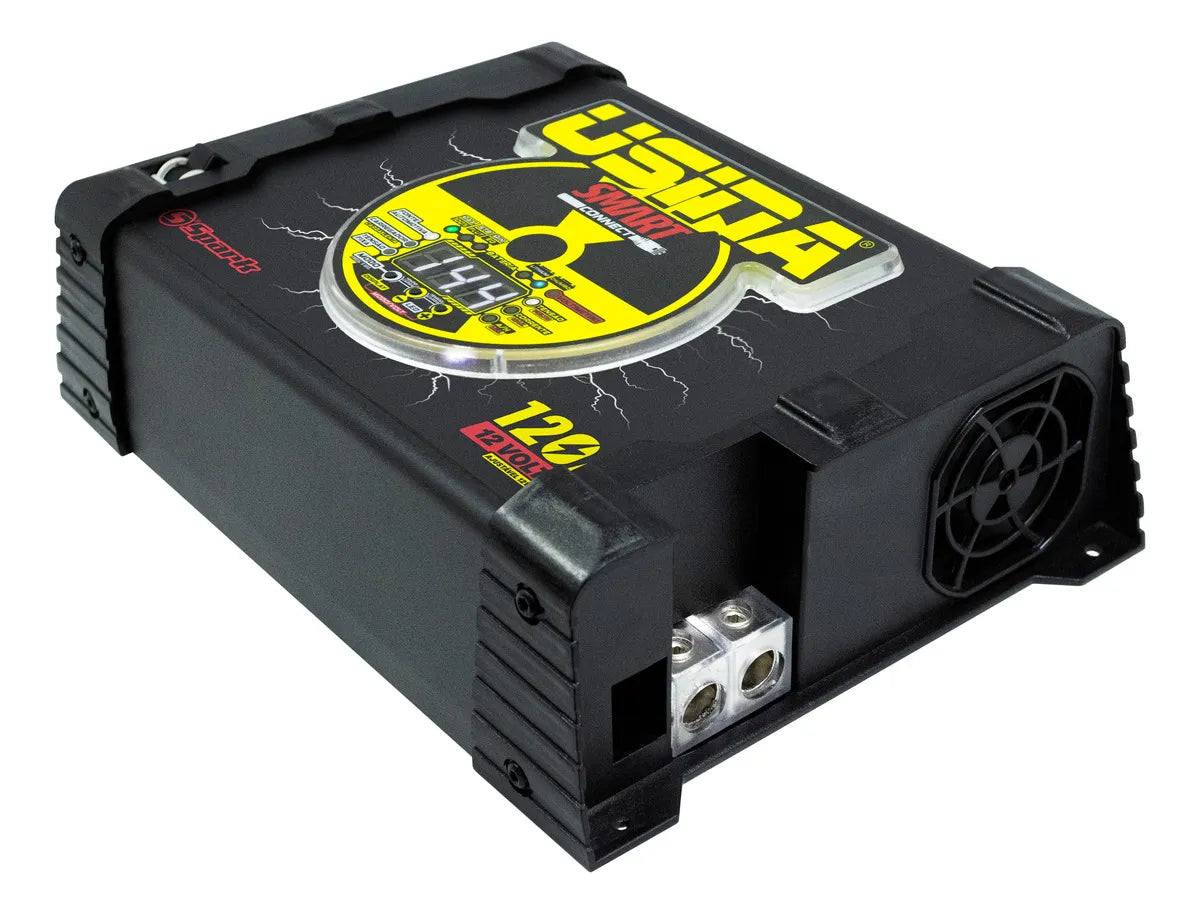

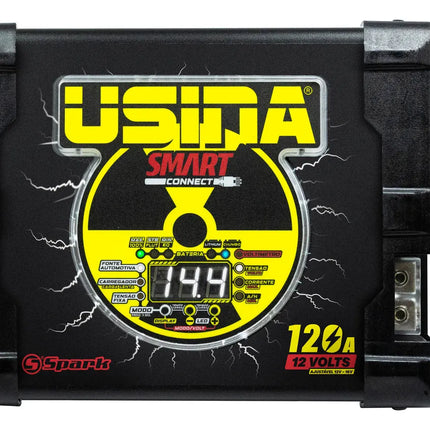

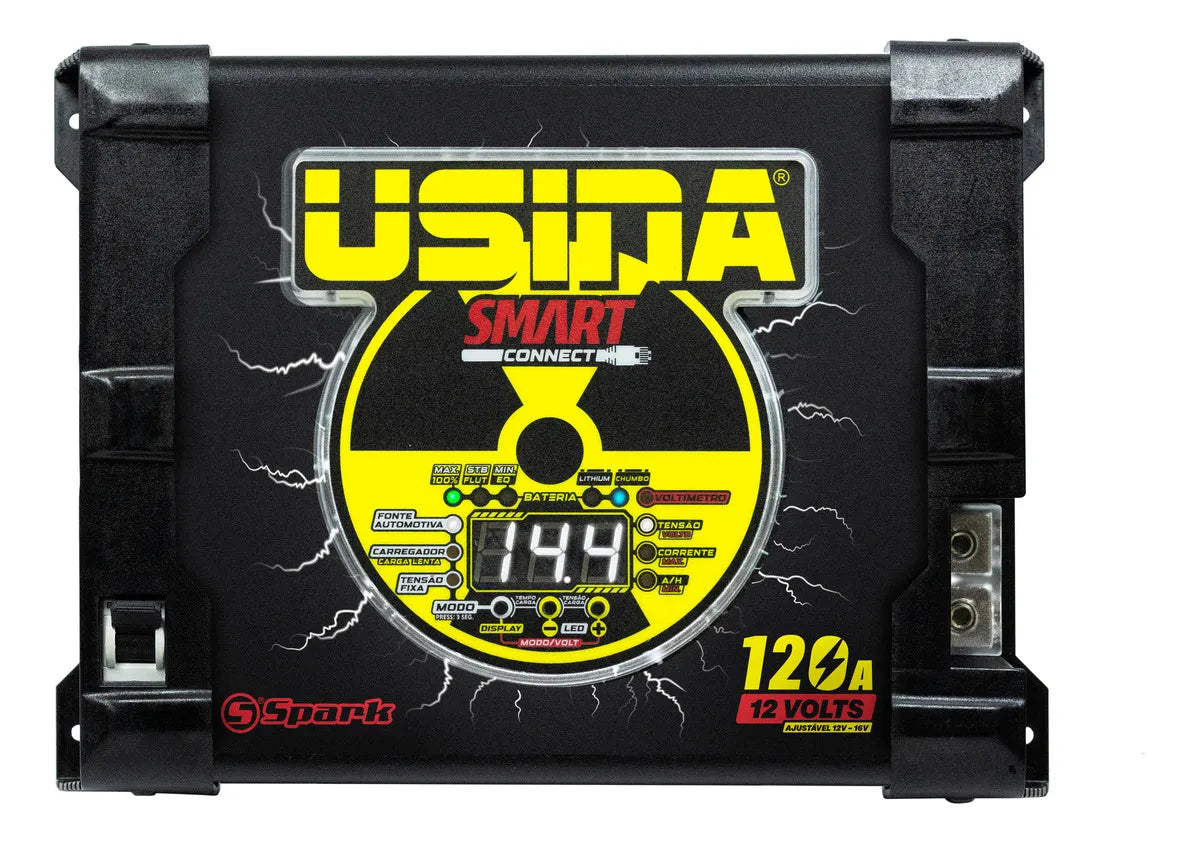

Spark Usina Smart 120A Power Supply and Automotive Charger 12V
Power Supply and Automotive Charger Usina 120A Smart - 12V - Battery Meter
The power supply USINA was created with the main objective of feeding the sound system of the car without letting its batteries discharge, even with the sound playing for several hours. It can also be used as a source and direct power supply (without the use of batteries), feeding CD players, power modules, etc.
Specifications
Input Voltage: Automatic Bivolt
AC 127Vca: 100 @ 140Vca
AC 220Vca: 170 @ 250Vca
Consumption 127Vca: 23A (maximum)
Consumption 220Vca: 13A (maximum)
Output Voltage: 12.5V @ 14.4Vdc (+-1%)
Output Current: 120A @ 12.5Vdc (+-5%)*
Output Power: 1500 Watts (maximum)**
Efficiency: 85%
Input Power: 1800 Watts (maximum) ** Input Cable :
3x1 . (HxWxD): 308mmX186mmX75mm*** Notes: *Current and power measured in resistive load **Output power may vary according to network voltage and usage conditions ***The measurements referring to the dimensions of the sources have a variation of approximately 2mm
