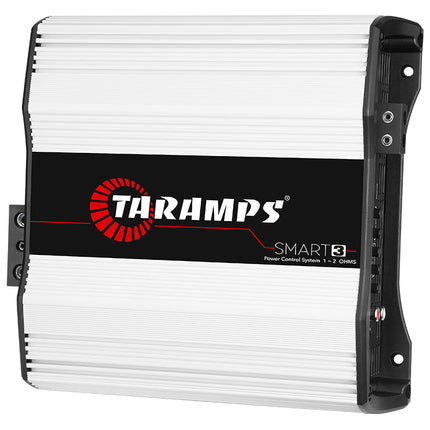

SMART 3, a product developed with the highest technology and performance for automotive sound systems. The main differentials is its multi-impedance function (Power Control System), which allows the work of 1 to 2 ohms in the same product. It is a mono amplifier, with 3000Watts RMS power. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 Ohm: 3000 Watts RMS @ 12.6 VDC - 2 Ohms: 3000 Watts RMS @ 12.6 VDC - 4 Ohms: 2000 Watts RMS INPUT SENSITIVITY 0.22V ~ 4V SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 10KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 10KHz (-12dB/8ª) Variable BASS BOOST Freq.: 35Hz ~ 55Hz / Boost: 0 ~ +10dB EFFICIENCY 79% INPUT IMPEDANCE 10K Ohms PROTECTION SYSTEM Output short circuit, low / high voltage protection and thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 2.40A MAXIMUM MUSIC CONSUMPTION 150A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 300A DIMENSIONS (H X W X D) 8.98" x 2.76" x 9.37" Included Items 1 Module 1 Sticker 1 Manual and warranty certificate. Warranty 12 months
