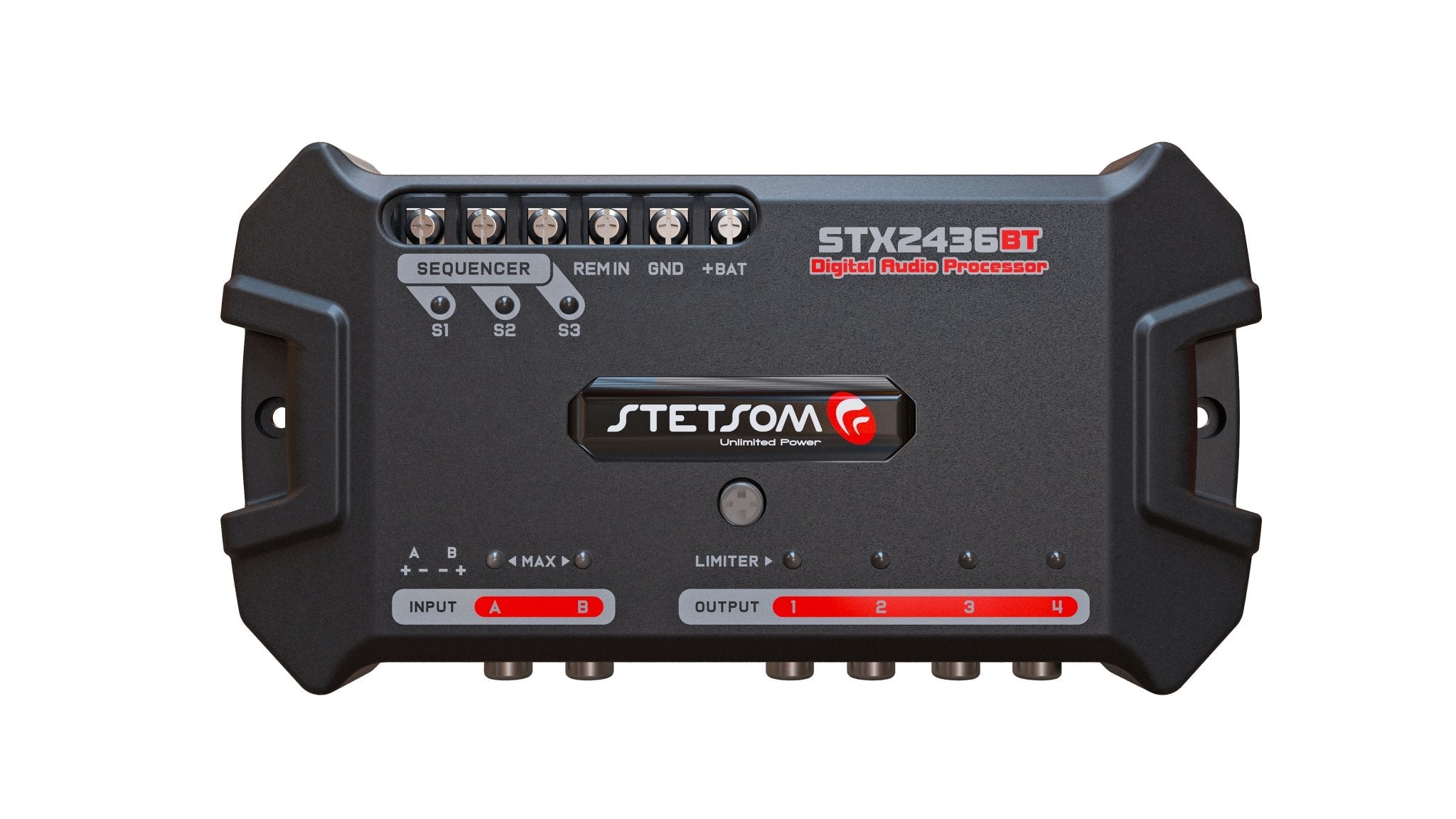

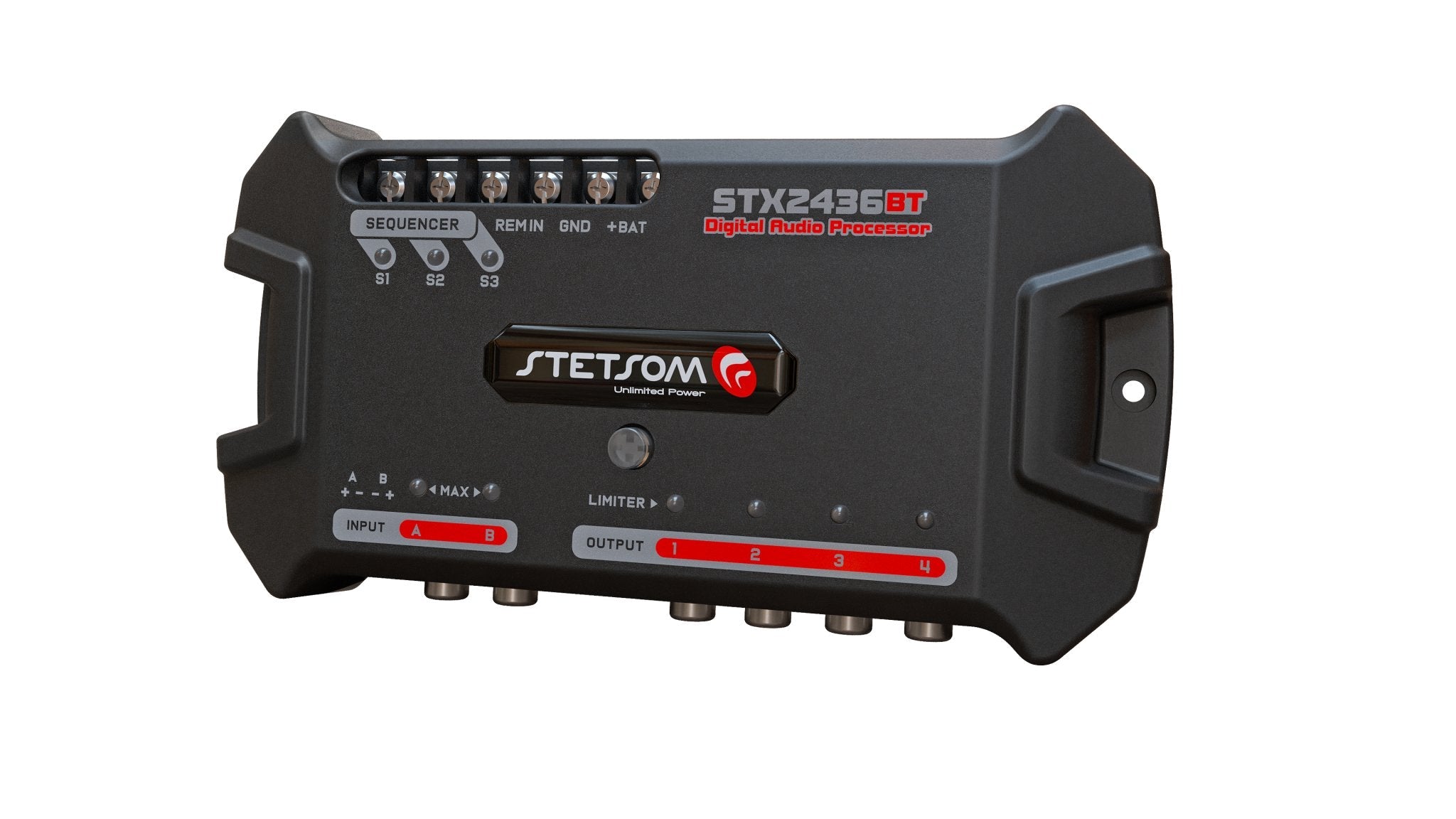

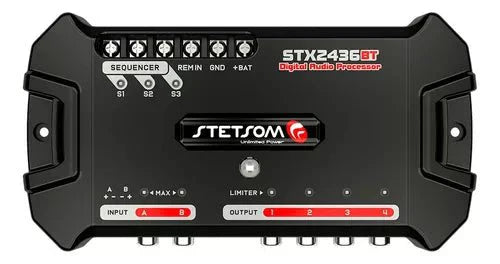

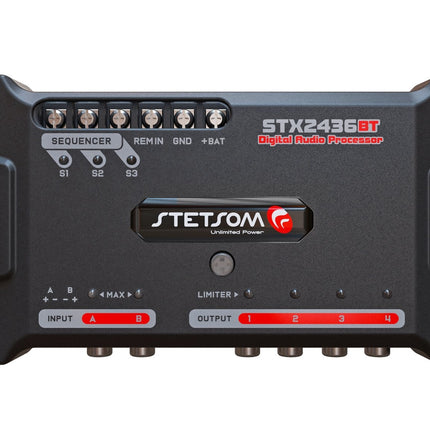

STX2436 Bluetooth Processor - Best Selling, Highest Quality and Easy to Setup
The STX2436BT is a digital audio processor that offers a variety of high-precision adjustments and settings to improve the performance of your audio system.

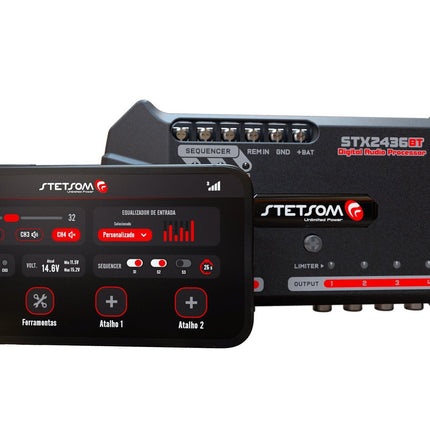

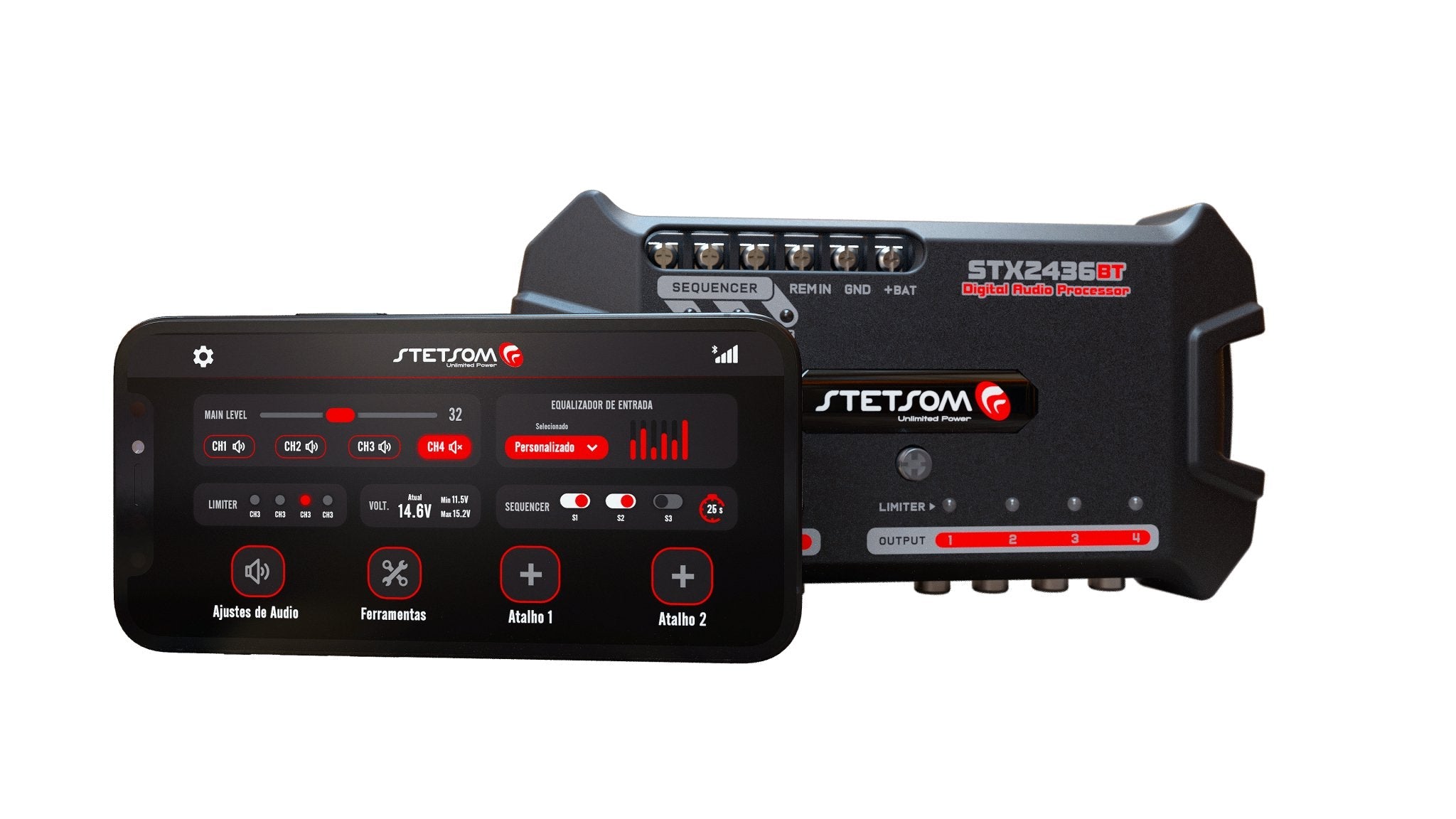

Through Bluetooth communication, processor information can be viewed and configured remotely, using smartphones with Android or iOS systems. Its digital signal processor (DSP) allows real-time modifications of equalization, crossover filters, alignment, gain control, phase inversion, limiter, digital routing of inputs and outputs, among other treatments.

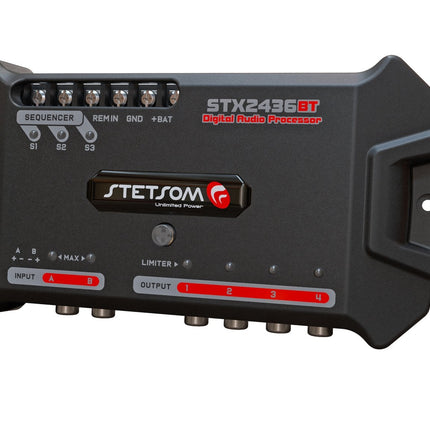

Its unique sequencer feature (SEQUENCER) makes it possible to configure the scheduled start and stop of up to three products from the remote trigger connections (S1, S2 and S3).
Technical specifications:

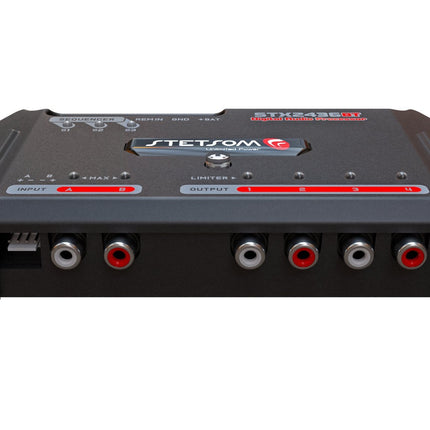

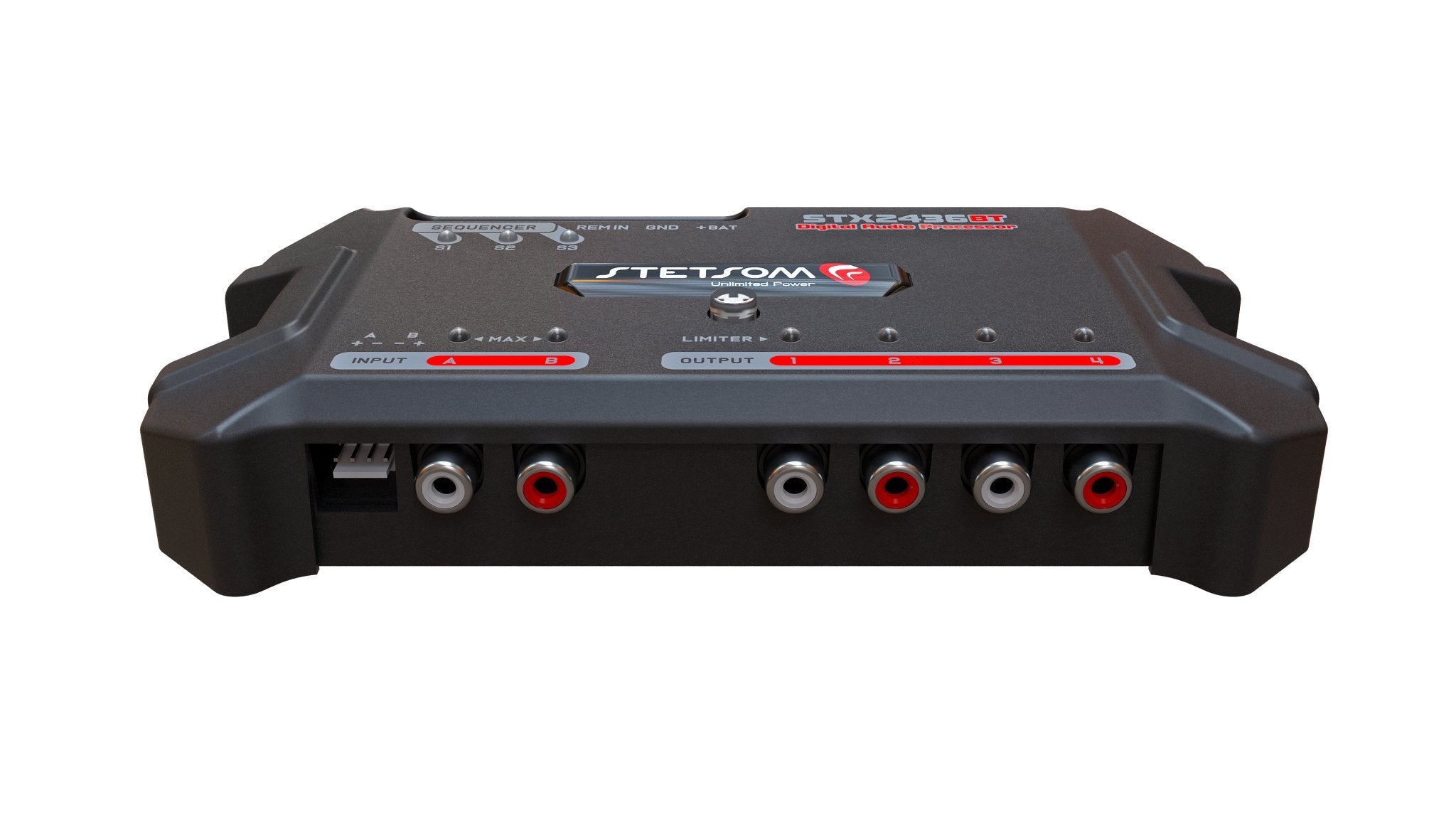

- Number of Channels: Inputs: 2 x RCA (A+B) or 2 x HIGH (A+B)
- Outputs: 4 RCA (1,2,3,4)
- Graphic Equalizer: 15 Bands (gain + 12dB)
- EQ presets. Graphic: 12
- 5 Bands (1 Input + 4 Outputs)
- Crossover with Freq. Variable: Butterworth: 12/18/24/36 dB/8º
Linkwitz-Riley: 12/18/24/36 dB/8º
- Routing between Inputs and Outputs: A, B or A+B
- Phase Inversion: 0º180º
- Threshold : -24dB * 0dB
- Limiter: Attack: 0.1ms * 100.0ms and Release:
-1ms * 1600ms (manual or automatic)
- Output Gain: -45dB * +15dB per output
- Frequency Generator: 10Hz * 22kHz and Level -60 to OdB
- Start and End Frequency: 10Hz * 22kHz
- Pink Noise Generator: Gain: -60dB * 0dB
- Battery voltage monitor: current, minimum and maximum voltage
- Security: 6-digit password
- Input Impedance: RCA: 28 kN / FIO: 1k0
- Output Impedance: a7o
- ?Signal-to-Noise Ratio: >90dB
- Total Harmonic Distortion: <0.01%
- Channel Separation: >80dB
- Frequency Response: 10Hz * 22kHz & 0dB
- Max. Input Voltage: RCA: 5.6 Vpp (+8.2 dBu)
- WIRE: 15 Vpp (+18 dBu)
- Max. Output Voltage: 5.6 Vpp (+8.2 dBu)
- Power Voltage: 10V * 15V DC
- Max. SEQUENCER Output Current: 180 mA per output
- Rated Current Consumption: 170mA & 12.6V DC
- Maximum Current Consumption: 710mA & 12.6V DC
- Protection: Short Circuit (PTC Fuse)
- Bluetooth Version: Low Energy (LE)
- Range: 15 meters*
- Compatibility: Android 5.0 or higher iOS 12 or higher
- Dimensions (H x Wx L): 33.5x99x 189 mm
Package Contents:
- Processor STX-2436 BT
- Harness
- Manual
