Description

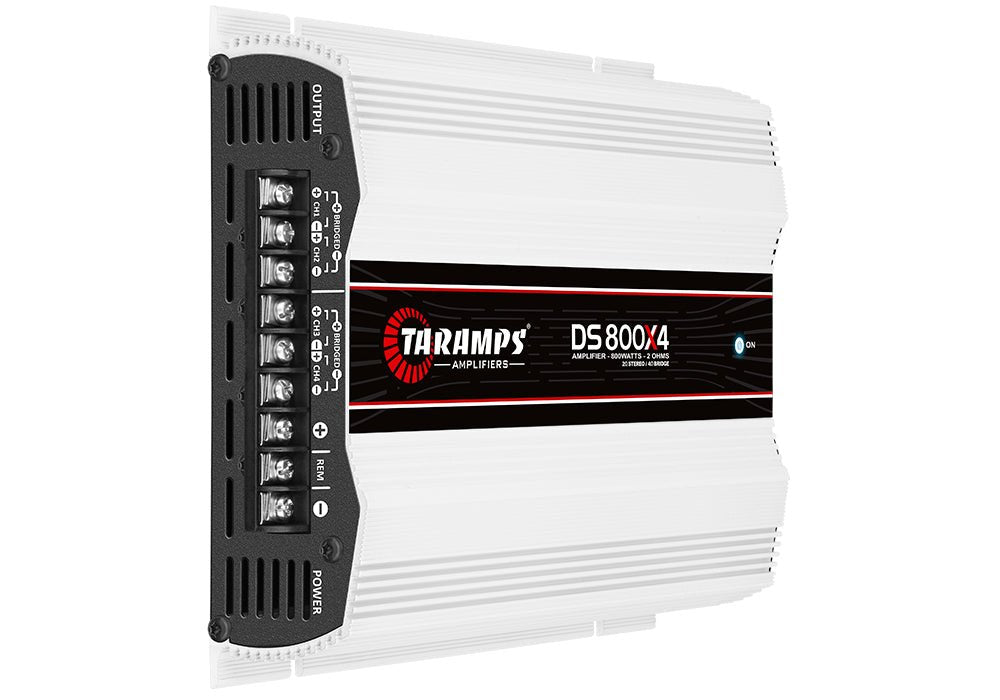

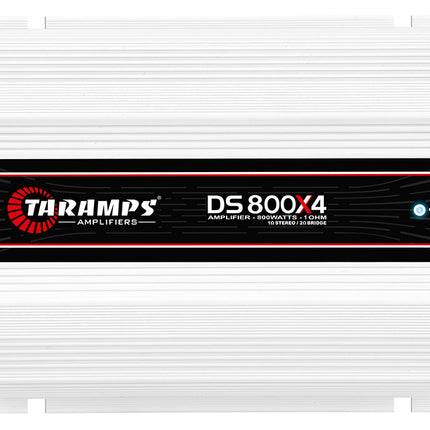

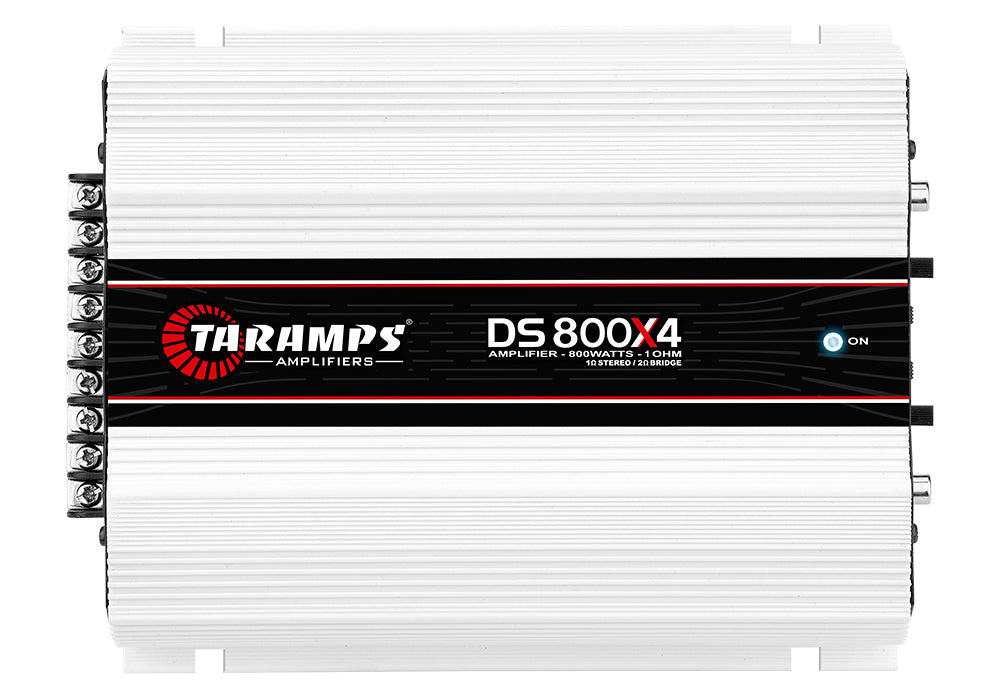

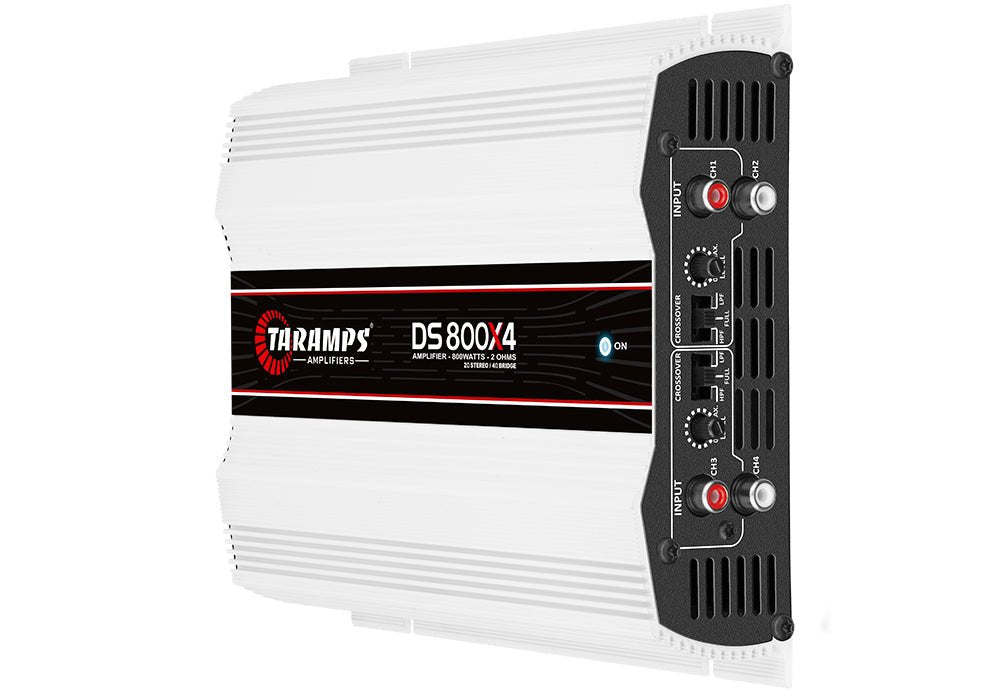

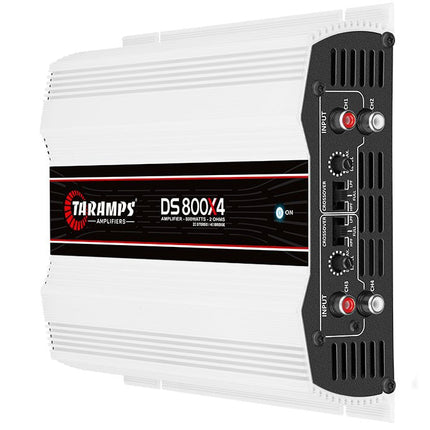

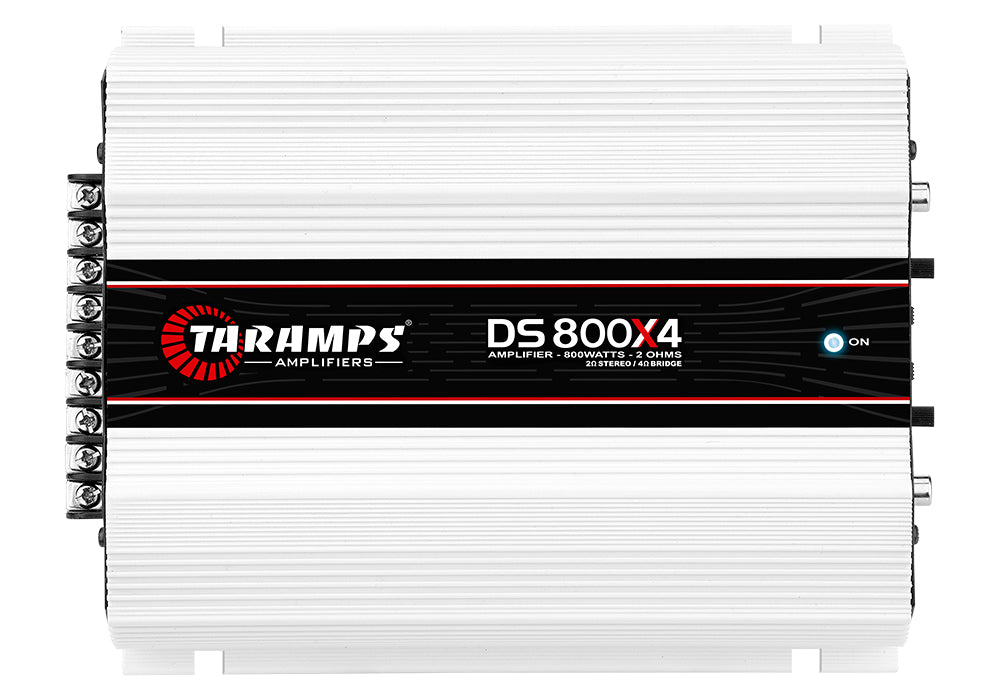

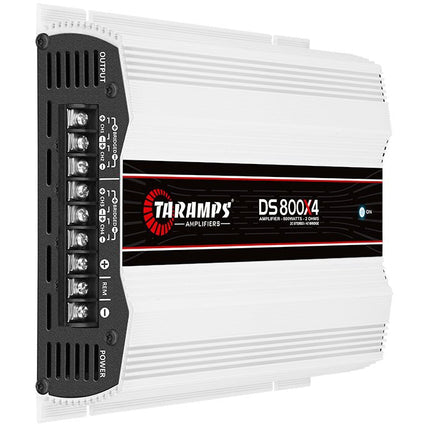

The DS 800×4 is synonymous with multichannel amplifier. It has 4 channels of 200 Watts RMS, with a maximum power of 800 Watts RMS, at 1,2 ohms and is compatible with any frequency, that is to say, it is a FULL RANGE amp. Versatility, efficiency and quality in a single product.
| OPERATION CLASS |
D |
| NUMBER OF CHANNELS |
04 |
| MAXIMUM POWER |
@ 12.6 VDC - 1 OHM: 800W RMS (4 x 200W RMS)
@ 12.6 VDC - 2 OHMS: 544W RMS (4 x 136W RMS)

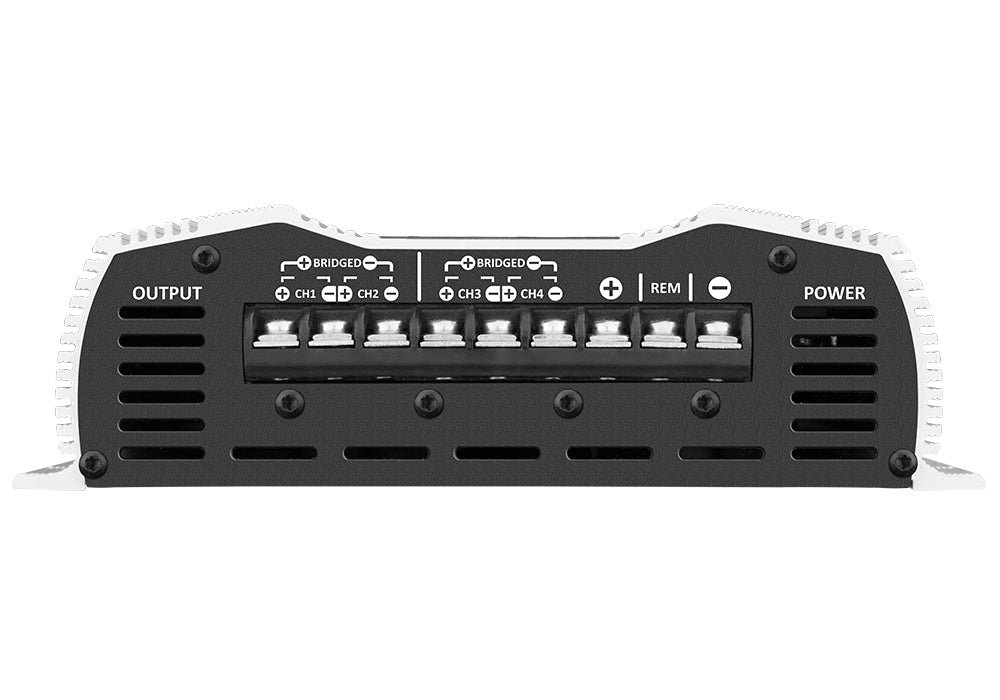

2 bridgeable channels - 1 OHM: 800WRMS (2 x 400WRMS) |
| INPUT SENSITIVITY |
250mV |
| SIGNAL TO NOISE RATIO |
>88dB |
| FREQUENCY RESPONSE |
10Hz to 36KHz(-3dB) |

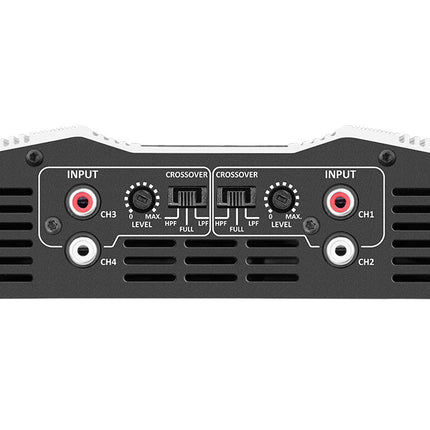

| CROSSOVER HIGH PASS (HPF) |
90Hz (-12dB/8th) Fixed |
| CROSSOVER LOW PASS (LPF) |
90Hz (-12dB/8th) Fixed |
| INPUT IMPEDANCE |
18K Ohms |
| OUTPUT IMPEDANCE |
1 Ohm |
| PROTECTION SYSTEM |
Output overload |
| MIN. SUPPLY VOLTAGE |
9VDC |
| MAXIMUM POWER SUPPLY VOLTAGE |
16VDC |
| CONSUMPTION AT REST |
1,0A |
| MAXIMUM MUSIC CONSUMPTION |
@12.6VDC: 51A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
102A |
| DIMENSIONS (WXHXD) |
7.17" x 2.05" x 8.94" (173 x 52 x 227mm) |
| WEIGHT |
3.52lb (1,43kg) |
| EAN |
7898556844826 |
| OPERATION CLASS |
Class D |
| NUMBER OF CHANNELS |
04 |
| MAXIMUM POWER |
@ 12.6 VDC - 2 OHMS: 800W RMS (4 x 200W RMS)
@ 12.6 VDC - 4 OHMS: 544W RMS (4 x 136W RMS)
2 bridgeable channels - 2 OHMS: 800WRMS (2 x 400WRMS) |
| INPUT SENSITIVITY |
250mV |
| SIGNAL TO NOISE RATIO |
>88dB |
| FREQUENCY RESPONSE |
10Hz to 36KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) |
90Hz (-12dB/8ª) Fixed |
| CROSSOVER LOW PASS (LPF) |
90Hz (-12dB/8ª) Fixed |
| INPUT IMPEDANCE |
18K Ohms |
| OUTPUT IMPEDANCE |
2 Ohms |
| PROTECTION SYSTEM |
Output overload |
| MIN. SUPPLY VOLTAGE |
9VDC |
| MAXIMUM POWER SUPPLY VOLTAGE |
16VDC |
| CONSUMPTION AT REST |
1.4A |
| MAXIMUM MUSIC CONSUMPTION |
@12.6VDC: 43A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
86A |
| DIMENSIONS (WXHXD) |
7.17" x 2.05" x 8.94" (173 x 52 x 227mm) |
| WEIGHT |
3.52lb (1,43kg) |
| EAN |
7898556844369 |
