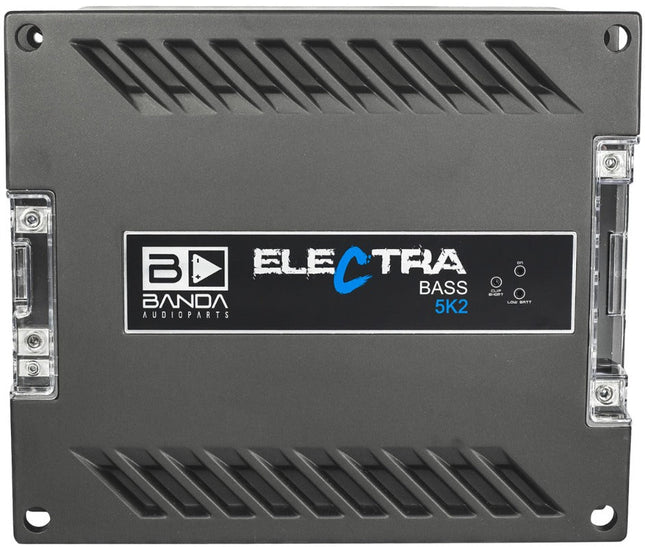

The ELECTRA line was developed especially for those looking for incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Due to this, the ELECTRA will only play Subwoofers , Bass and part of the mid frequencies. The BASS BOOST @ 45Hz feature is a differentiator, further reinforcing the bass of your system. Designed on a 100% aluminum chassis , it works with a power of 5000 WRMS with 1 input channel for connection and an impedance of 2 Ohms. It has very low harmonic distortion (less than 1%) and Clipping indicator, forced ventilation and short circuit protection. Furthermore, it has a bold and clean design, matching any sound system. Technical specifications Maximum Power 14.4v @ 2 Ohms 5500WRMS Maximum Power 14.4v @ 4 Ohms 3600 WRMS Maximum Power 12.6v @ 2 Ohms 5000WRMS Maximum Power 12.6v @ 4 Ohms 3000 WRMS Efficiency @ 4 Ohms 83% Efficiency @ 2 Ohms 78% Input Voltage 9 – 15V Input Impedance 100K Ohms THD+N 0.10% Input Sensitivity 50mV – 2V Signal to Noise Ratio 93dB Frequency Response (Switch OFF) 5 to 500Hz (-3dBs) Frequency Response 20 to 500Hz (-3dBs) Bass Boost @ 45Hz Variable 0 to +18dBs HPF (Subsonic) 20 to 80Hz @ 12dB/octave Linkwitz-Riley LPF (Crossover) 80 to 500Hz @ 12dB/octave Linkwitz-Riley Recommended Fuse 250 A Rest Current 3.5A Maximum Current (sine signal) 500A Maximum Current (musical signal) 270A Power Cables (recommended min.) 50mm / 0 AWG Output Cables (recommended min.) 2 x 6mm / 2 x 3 AWG Weight (kg) 5.4 Height (mm) 60 Width (mm) 264 Depth (mm) 308

Leer Más Menos

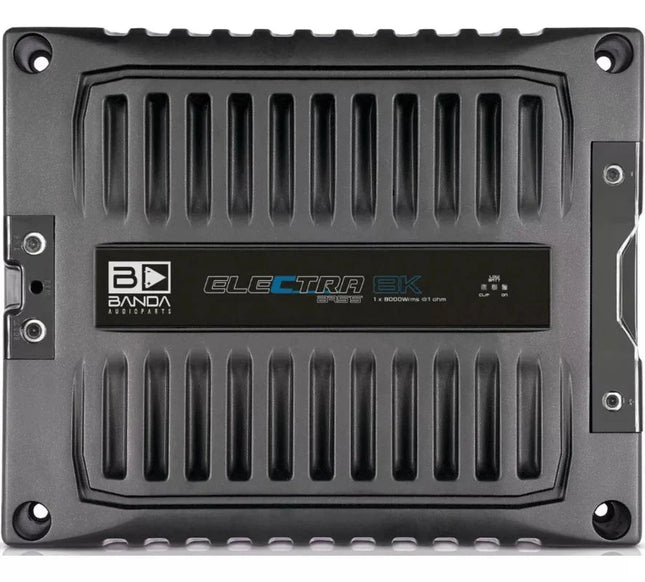

Banda Electra Bass 8K Amplifier Module Power 1 Ohm - 8000 Watts RMS The ELECTRA line has been meticulously crafted for those in pursuit of unmatched, deep bass. It boasts a frequency response spanning from 16 to 500Hz, making it ideal for driving subwoofers and bass with precision. The standout feature is the variable BASS BOOST, adjustable from 30 to 80Hz with an impressive 12dB boost capability, enhancing the low-end performance of your audio system. Key Highlights: Impressive Frequency Response: With a wide frequency response range from 16 to 500Hz, the ELECTRA is perfectly suited for driving subwoofers and bass. It excels in delivering deep, resonant low-frequency tones that bring your audio to life. Variable BASS BOOST: The adjustable BASS BOOST, with a range of 30 to 80Hz and a powerful 12dB boost, allows you to fine-tune your bass to perfection, delivering a powerful and immersive listening experience. Robust Aluminum Construction: Housed in a robust 100% aluminum chassis, the ELECTRA is built to last and efficiently dissipates heat to ensure consistent performance, even during intense use. Impedance and Power: This amplifier is capable of producing 8000 Watts RMS with a 1-ohm impedance, providing the necessary power for impactful bass reproduction. Additional Technical Specifications: Maximum Power at 14.4V @ 1 Ohm: 9000 Watts RMS Maximum Power at 14.4V @ 2 Ohms: 7400 Watts RMS Maximum Power at 12.6V @ 1 Ohm: 8000 Watts RMS Maximum Power at 12.6V @ 2 Ohms: 5100 Watts RMS Efficiency @ 2 Ohms: 83% Efficiency @ 1 Ohm: 77% Input Voltage: 9 - 15V Input Impedance: 100K Ohms Maximum THD at Full Power: <3% Input Sensitivity: 200mV to 8V Signal-to-Noise Ratio: 80dB Frequency Response: 16 to 500Hz (-3dB) High-Pass Filter (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley Low-Pass Crossover (LPF): 50 - 500Hz @ 12dB/octave Linkwitz-Riley Variable Bass Boost: 30 - 80Hz with up to 12dB boost Recommended Fuse: 2 x 225A Standby Current Draw: ~3A Maximum Current Draw (Musical Signal): 400A Maximum Current Draw (Sine Signal): 850A Minimum Recommended Power Cable: 70mm / 0 AWG Minimum Recommended Output Cable: 2 x 6mm / 2 x 3 AWG Weight (Kg): 6.3 Height (mm): 73 Width (mm): 256 Depth (mm): 317 The ELECTRA 8K 1 Ohm Amplifier Module is the ultimate choice for those who demand exceptional bass performance and precision. Elevate your audio experience to new heights with this powerful and versatile amplifier.

Leer Más Menos

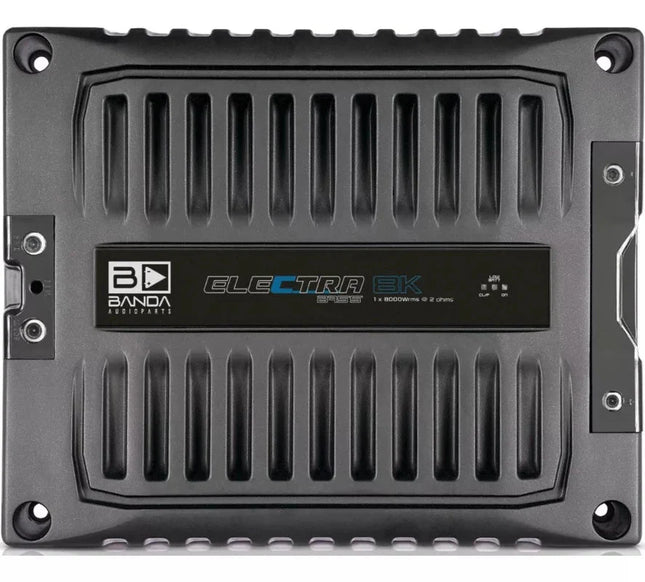

Banda Electra Bass 8K Amplifier Audio Car 8000 Watts RMS 2 ohms The ELECTRA line has been meticulously engineered for those in pursuit of unparalleled bass performance. With a frequency response spanning from 16 to 500Hz, the ELECTRA is designed specifically for subwoofers and bass. The distinguishing feature is the variable BASS BOOST, adjustable from 30 to 80Hz with an impressive 12dB boost capability, enhancing the bass response of your audio system. Key Features: Wide Frequency Response: With a wide frequency response range from 16 to 500Hz, the ELECTRA is perfectly suited for driving subwoofers and bass. It excels in delivering deep, resonant low-frequency tones, immersing you in powerful and immersive sound. Variable BASS BOOST: The adaptable BASS BOOST feature, adjustable between 30 and 80Hz with a powerful 12dB boost, allows you to customize your bass to perfection, delivering a dynamic and impactful listening experience. Robust Aluminum Construction: Housed in a sturdy 100% aluminum chassis, the ELECTRA is built to last and efficiently dissipates heat to ensure consistent performance, even under intense use. Impedance and Power: This amplifier is capable of producing 8000 Watts RMS with a 2-ohm impedance, providing the necessary power for precise bass reproduction. Additional Technical Specifications: Maximum Power at 14.4V @ 2 Ohms: 9500 Watts RMS Maximum Power at 14.4V @ 4 Ohms: 6800 Watts RMS Maximum Power at 12.6V @ 2 Ohms: 8000 Watts RMS Maximum Power at 12.6V @ 4 Ohms: 5100 Watts RMS Efficiency @ 4 Ohms: 88% Efficiency @ 2 Ohms: 79% Input Voltage: 9 - 15V Input Impedance: 100K Ohms Maximum THD at Full Power: <3% Input Sensitivity: 200mV to 8V Signal-to-Noise Ratio: 80dB Frequency Response: 16 to 500Hz (-3dB) High-Pass Filter (Subsonic): 16 - 120Hz @ 12dB/octave Linkwitz-Riley Low-Pass Crossover (LPF): 50 - 500Hz @ 12dB/octave Linkwitz-Riley Variable Bass Boost: 30 - 80Hz with up to 12dB boost Recommended Fuse: 2 x 225A Standby Current Draw: ~3A Maximum Current Draw (Musical Signal): 400A Maximum Current Draw (Sine Signal): 850A Minimum Recommended Power Cable: 70mm / 0 AWG Minimum Recommended Output Cable: 2 x 6mm / 2 x 3 AWG Weight (Kg): 6.3 Height (mm): 73 Width (mm): 256 Depth (mm): 317 The ELECTRA 8K 2 Ohms Amplifier Module is the perfect choice for those who demand exceptional bass performance and precision. Elevate your audio experience to new heights with this powerful and versatile amplifier.

Leer Más Menos

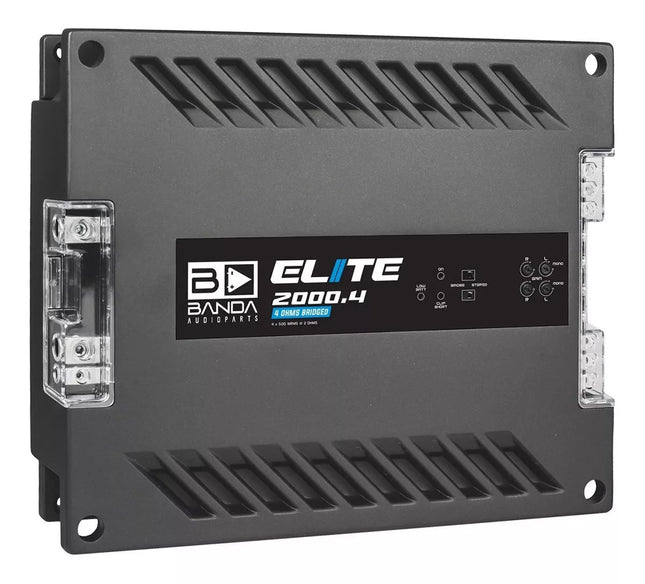

With a powerful 2000 Watts RMS in 4 channels and impedance of 1 or 2 Ohms per channel, the amplifiers of the new ELITE line are very versatile, allowing different types of installation with a single amplifier. Thanks to its FULL-RANGE frequency response range, the ELITE fits into any project with: Subwoofers, Woofers, Low-Mid, Horns or Super Tweeters, and it is also possible to make 4, 3 or 2 channel calls when used. on Bridge connections. With the ELITE 2000.4 it is possible to connect a complete medium-sized sound system, enjoying the audio quality already established by BAND AUDIOPARTS in addition to low consumption. Class D Total Power 14,4 @ 2 Ohms 4 x 600 WRMS Total Power 14,4 @ 4 Ohms 4 x 400 WRMS Total Power 14,4 Bridged @ 4 Ohms 2 x 1250 WRMS Total Power 12,6 @ 2 Ohms 4 x 500 WRMS Total Power 12,6 @ 4 Ohms 4 x 300 WRMS Total Power 12,6 Bridged @ 4 Ohms 2 x 1000 WRMS Efficiency @ 4 Ohms 86% Efficiency @ 2 Ohms 80% Input Voltage 9 – 15V Input Impedance 100K Ohms THD+Noise <1% Input Sensitivity 220mV – 4V SNR 80dB Frequency Response 5 to 22kHz (-3dBs) HPF (High Pass Filter) 20 to 90Hz @ 12dB/octave Linkwitz-Riley LPF (Low Pass Filter) 90 to 20kHz @ 12dB/octave Linkwitz-Riley Recommended Fuse 100 A Current at Rest 1 A Average Current Draw (Sinusoidal) 210 A Average Current Draw (Music) 100 A Power Wire Gauge (min. Recommended) 21mm / 4 AWG Speaker Wire Gauge (min. Recommended) 2 x 2,5mm / 2 x 13 AWG Weight (Lb) 7,2 Height (in) 2,2 Width (in) 8,4 Depth (in) 9,7

Leer Más Menos

With a powerful 4000 Watts RMS in 4 channels and impedance of 1 or 2 Ohms per channel, the amplifiers of the new ELITE line are very versatile, allowing different types of installation with a single amplifier. Thanks to its FULL-RANGE frequency response range, the ELITE fits into any project with: Subwoofers, Woofers, Low-Mid, Horns or Super Tweeters, and it is also possible to make 4, 3 or 2 channel calls when used. on Bridge connections. With the ELITE 4000.4 it is possible to connect a complete medium-sized sound system, enjoying the audio quality already established by BAND AUDIOPARTS in addition to low consumption. Class D Total Power 14,4 @ 2 Ohms 4 x 1200 WRMS Total Power 14,4 @ 4 Ohms 4 x 800 WRMS Total Power 14,4 Bridged @ 4 Ohms 2 x 2400 WRMS Total Power 12,6 @ 2 Ohms 4 x 1000 WRMS Total Power 12,6 @ 4 Ohms 4 x 650 WRMS Total Power 12,6 Bridged @ 4 Ohms 2 x 2000 WRMS Efficiency @ 4 Ohms 92% Efficiency @ 2 Ohms 82% Input Voltage 9 – 15V Input Impedance 100K Ohms THD+Noise 0,10% Input Sensitivity 150mV – 4V SNR 88dB Frequency Response 5 to 22KHz (-3dBs) HPF (High Pass Filter) 20 to 90Hz @ 12dB/octave Linkwitz-Riley LPF (Low Pass Filter) 90 to 20kHz @ 12dB/octave Linkwitz-Riley Recommended Fuse 200 A Current at Rest 1 A Average Current Draw (Sinusoidal) 420 A Average Current Draw (Music) 210 A Power Wire Gauge (min. Recommended) 35mm / 2 AWG Speaker Wire Gauge (min. Recommended) 2 x 4mm / 2 x 11 AWG Weight (Lb) 11,2 Height (in) 2,4 Width (in) 10,6 Depth (in) 12,3

Leer Más Menos

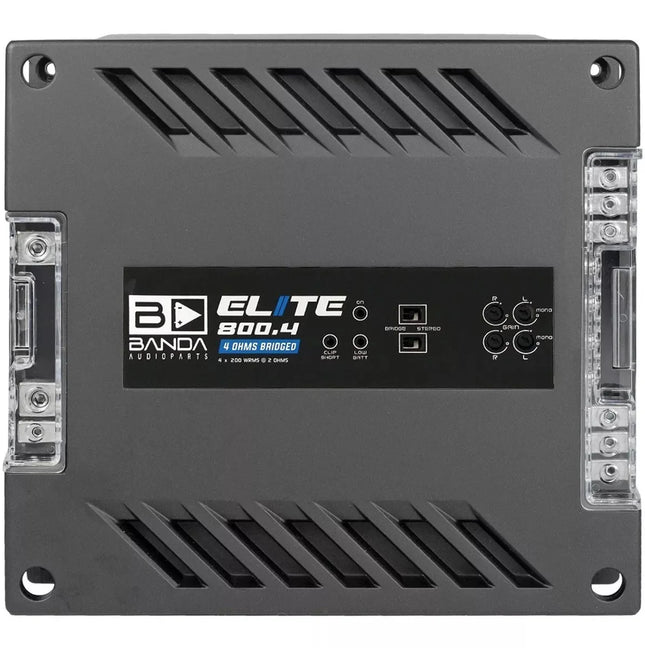

Elite 800.4 - Power and Versatility in a Compact Design The Elite 800.4 amplifier delivers a robust 800Wrms across 4 channels, providing 200Wrms at 2 Ohms each or 400Wrms at 4 Ohms in Bridge mode. Designed for versatility, this line is a popular choice for small and medium-sized systems, accommodating various installation configurations to meet the diverse needs of the market and amplify any type of speaker. Technical Specifications: Maximum Power 14.4v @ 2 Ohms: 4 x 250 WRMS Maximum Power 14.4v @ 4 Ohms: 4 x 170 WRMS Maximum Power 14.4v Bridge @ 4 Ohms: 2 x 500 WRMS Efficiency @ 4 Ohms: 84% Efficiency @ 2 Ohms: 78% Input Voltage: 9 - 15V Input Impedance: 22K Ohms THD+N: 0.10% Input Sensitivity: 280mV - 4V Signal to Noise Ratio: 88dB Frequency Response: 5 to 22kHz (-3dBs) HPF (High Pass Filter): 20 to 90Hz @ 12dBs/8° Linkwitz-Riley LPF (Low Pass Filter): 90 to 20kHz @ 12dBs/8° Linkwitz-Riley Recommended fuse: 50 A Resting Current: 1 A Maximum Current (sine signal): 90 A Maximum Current (musical signal): 50 A Power Cables (recommended min): 10mm / 7 AWG Output Cables (recommended min): 2 x 1.5mm / 2 x 15 AWG Weight (Kg): 3.1 Height (mm): 54 Width (mm): 209 Depth (mm): 243 Comments: Warranty: 1 year provided by the manufacturer Illustrative Images: Merely for representation Installation: We strongly recommend professional installation. We are not responsible for poor installation or misuse of the product.

Leer Más Menos

Banda ICE 1500 Amplifier Module Power 1 Ohms 1500Wrms   DESCRIPTION  Especially developed for those who want power without loss of quality, Amplifier Modules are perfect devices for automotive sound projects, aiming at amplification and performance in audio reproduction.Designed by anyone who understands and invests in technology, the Ice 2500 amplifier module is one of the most efficient and modern modules in the Class D market, with 1500W RMS power, active Crossover by Linkwitz-Riley card, gain control and excellent signal-to-noise ratio, with LED clipping indicator, making it the most complete, modern and efficient equipment for automotive sound enthusiasts. CHARACTERISTICS1 channel 1500Wrms 2ohm / 12.6Vdc1 channel 1900Wrms 2ohm / 14.4Vdc1 channel 1000Wrms 4ohm / 12.6VdcFull Power Current: 79A (Average Music Program)Dimensions ICE 1500: Comp. 243mm / Hr. 54mm / Larg. 209mmWeight: 2.90kgDIMENSIONSDimensions: Comp. 243mm / Hr. 54mm / Larg. 209mm PACKAGE CONTENT• 1 - Band Amplifier 1 Channel ICE1500 - 1500W RMS (2 Ohms)  Important:1 year warranty.Auto Equip recommends that the installation be done by a specialized professional and does not take responsibility for the misuse of the product.

Leer Más Menos

Banda ICE 1500 Amplifier Module Power   2 Ohms 1500Wrms   DESCRIPTION  Especially developed for those who want power without loss of quality, Amplifier Modules are perfect devices for automotive sound projects, aiming at amplification and performance in audio reproduction.Designed by anyone who understands and invests in technology, the Ice 2500 amplifier module is one of the most efficient and modern modules in the Class D market, with 1500W RMS power, active Crossover by Linkwitz-Riley card, gain control and excellent signal-to-noise ratio, with LED clipping indicator, making it the most complete, modern and efficient equipment for automotive sound enthusiasts. CHARACTERISTICS1 channel 1500Wrms 2ohm / 12.6Vdc1 channel 1900Wrms 2ohm / 14.4Vdc1 channel 1000Wrms 4ohm / 12.6VdcFull Power Current: 79A (Average Music Program)Dimensions ICE 1500: Comp. 243mm / Hr. 54mm / Larg. 209mmWeight: 2.90kgDIMENSIONSDimensions: Comp. 243mm / Hr. 54mm / Larg. 209mm PACKAGE CONTENT• 1 - Band Amplifier 1 Channel ICE1500 - 1500W RMS (2 Ohms)  Important:1 year warranty.Auto Equip recommends that the installation be done by a specialized professional and does not take responsibility for the misuse of the product.

Leer Más Menos

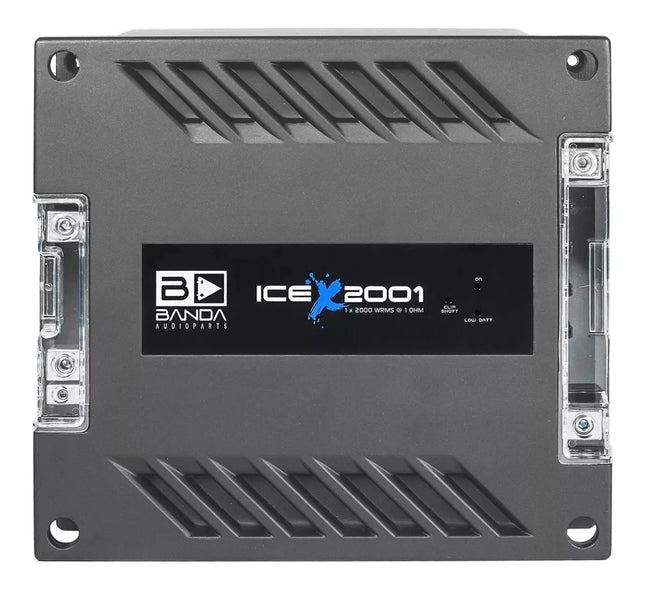

ICE X 2001 The ICE X Line was developed with cutting-edge technology, achieving an impressive level of audio quality, reaching a frequency response of 5Hz to 22kHz. The ICE X 2001 offers 2000 Wrms in 1 channel at 1 Ohm. Because it has an excellent frequency response, it is a great product for large projects and can be used in any speaker model, from Subwoofers to Tweeters. It also has Bass Boost control @ 45Hz, 100% aluminum chassis and forced ventilation. Technical specifications Maximum Power 14.4v @ 1 Ohm 2600WRMS Maximum Power 14.4v @ 2 Ohms 2000 WRMS Maximum Power 12.6v @ 1 Ohm 2000 WRMS Maximum Power 12.6v @ 2 Ohms 1400 WRMS Efficiency @ 2 Ohms 77% Efficiency @ 1 Ohm 65% Input Voltage 9 – 15V Input Impedance 100K Ohms THD+N 0.10% Input Sensitivity 160mV – 4V Signal to Noise Ratio 70dB Frequency Response (Switch OFF) 5 to 22kHz (-3dBs) Frequency Response 20 to 20kHz (-3dBs) Bass Boost @ 45Hz Variable 0 to +18dBs HPF (Subsonic) 20 to 80Hz @ 12dB/octave Linkwitz-Riley LPF (Crossover) 80 to 20kHz @ 12dB/octave Linkwitz-Riley Recommended Fuse 100 A Rest Current 2A Maximum Current (sine signal) 220A Maximum Current (musical signal) 110A Power Cables (recommended min.) 21mm / 4 AWG Output Cables (recommended min.) 2 x 4mm / 2 x 11 AWG Weight (kg) 3.3 Height (mm) 54 Width (mm) 209 Depth (mm) 243 ICE X 2002 The ICE X Line was developed with cutting-edge technology, achieving an impressive level of audio quality, reaching a frequency response of 5Hz to 22kHz. The ICE X 2002 offers 2000 Wrms in 1 channel at 2 Ohms. Because it has an excellent frequency response, it is a great product for large projects and can be used in any speaker model, from Subwoofers to Tweeters. It also has Bass Boost control @ 45Hz, 100% aluminum chassis and forced ventilation. Technical specifications Maximum Power 14.4v @ 2 Ohms 2700 WRMS Maximum Power 14.4v @ 4 Ohms 1800 WRMS Maximum Power 12.6v @ 2 Ohms 2000 WRMS Maximum Power 12.6v @ 4 Ohms 1400 WRMS Efficiency @ 4 Ohms 85% Efficiency @ 2 Ohms 75% Input Voltage 9 – 15V Input Impedance 100K Ohms THD+N 0.10% Input Sensitivity 230mV – 4V Signal to Noise Ratio 86dB Frequency Response (Switch OFF) 5 to 22kHz (-3dBs) Frequency Response 20 to 20kHz (-3dBs) Bass Boost @ 45Hz Variable 0 to +18dBs HPF (Subsonic) 20 to 80Hz @ 12dB/octave Linkwitz-Riley LPF (Crossover) 80 to 20kHz @ 12dB/octave Linkwitz-Riley Recommended Fuse 100 A Rest Current 2A Maximum Current (sine signal) 235A Maximum Current (musical signal) 115A Power Cables (recommended min.) 21mm / 4 AWG Output Cables (recommended min.) 2 x 4mm / 2 x 11 AWG Weight (kg) 3.3 Height (mm) 54 Width (mm) 209 Depth (mm) 243

Leer Más Menos

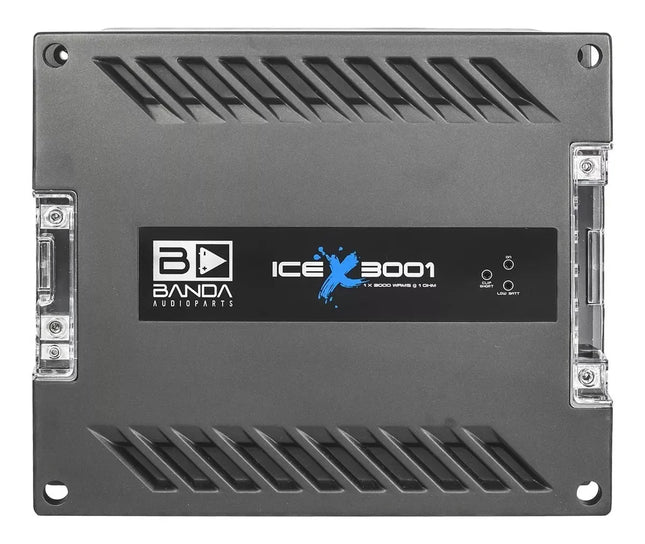

Amplifier Module ICE 3001 Band Power 1 Ohm 3000Wrms DESCRIPTION  The ICE line was developed with state-of-the-art technology to be a high power amplifier and efficiency. With its 100% aluminum chassis, it offers better heat dissipation, resulting in low battery consumption. The ICE 3001 offers 3000Wrms in 1 channel at 1 Ohm, being an amplifier with an excellent frequency response in FULL RANGE (18Hz - 20KHz) that adapts to the most varied sound projects.   Technical specifications  • Model: Ice 3001 • Operation class: Bridge Class D • 1 channel 3000 Wrms 1 Ohms / 12.6Vdc • 1 channel 1800 Wrms 2 Ohms / 12.6Vdc • Total current consumption: 155A (Musical Signal) • Linkwitz-Riley Active Crossover Variable Low Pass from 18Hz to 25KHz (12dB / octave) • Input impedance 22 Kohms • Frequency response 18Hz to 20KHz (-3dB) • Variable subsonic filter from 18Hz to 120Hz • Clipping Indicator • THD less than 0.33% • Signal to Noise Ratio> 74.3 dB • Damping factor> 100 • Input sensitivity from 150mV to 2.1Volts • Gain control • Differential mode signal input • Dimensions WxDxH: 308 x 264 x 60 mm • Use cables of at least 21mm² for power • Blue LED indicator: Power supply and amplifiers on / off • LED indicator red of: Output distortion (Clipping) or output short-circuit • Yellow LED: Battery voltage below specified.   Package Contents: • 1 Ice 3000 Amplifier Module • Manual   Caution: According to Federal Law No. 11,291, prolonged exposure to noise over 85 dB can cause damage to the auditory system.   Important: 1 year warranty. Unitary value.   NOTE: The installation of Audioparts BAND amplifiers should always be performed by a qualified professional.

Leer Más Menos

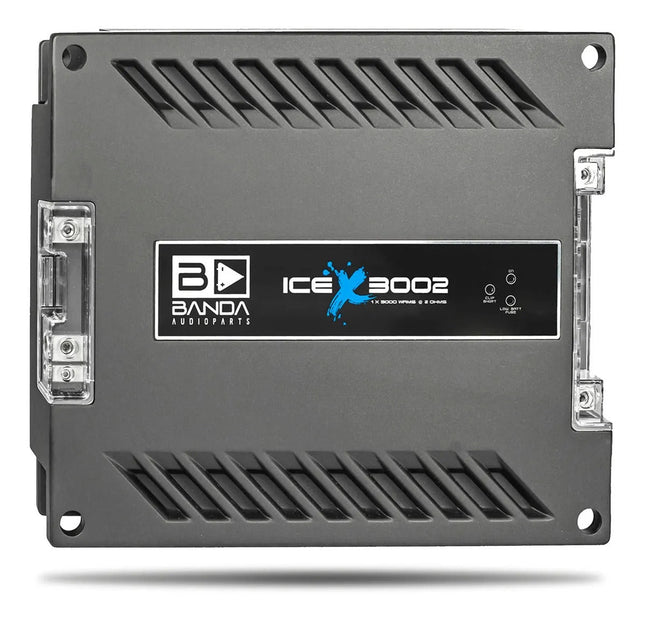

Banda ICE 3002 Amplifier Module Power 2 Ohm 3000Wrms DESCRIPTION The ICE Line has been developed with state-of-the-art technology to be an amplifier of high power and efficiency. With its 100% aluminum chassis, it offers better heat dissipation resulting in low battery consumption.The ICE 3002 offers 3000Wrms in 1 channel at 2 Ohms, being an amplifier with an excellent frequency response in FULL RANGE (18Hz - 20KHz) it suits the most varied sound projects.Technical specifications:• Model: Ice 3002• Operation class: Bridge Class D• 1 channel 3000 Wrms 2 Ohms / 12.6Vdc• 1 channel 1800 Wrms 4 Ohms / 12.6Vdc• Full power consumption current: 155A (Musical Signal)• Linkwitz-Riley Active Crossover Variable Low Pass from 18Hz to 25KHz (12dB / octave)• Input impedance 22 Kohms• Frequency response 18Hz to 20KHz (-3dB)• Variable subsonic filter 18Hz to 120Hz• Clipping Indicator• THD less than 0.33%• Signal to noise ratio> 74.3 dB• Damping factor> 100• Input sensitivity from 150mV to 2.1Volts• Gain control• Differential mode signal input• Dimensions LxWxH: 308 x 264 x 60 mm• Use cables of at least 21mm² for power• Blue LED indicator: Source and amplifiers on / On• Red LED indicator of: Output distortion (Clipping) or output short-circuit• Yellow LED indicator: Battery voltage below specified. Package content:• 1 Ice 3000 Amplifier Module• ManualCaution: According to Federal Law No. 11,291, prolonged exposure to noise exceeding 85 dB can cause damage to the hearing system.Important:1 Year Warranty.Unitary value. NOTE: Installation of Audioparts BAND amplifiers must always be performed by a qualified professional.

Leer Más Menos

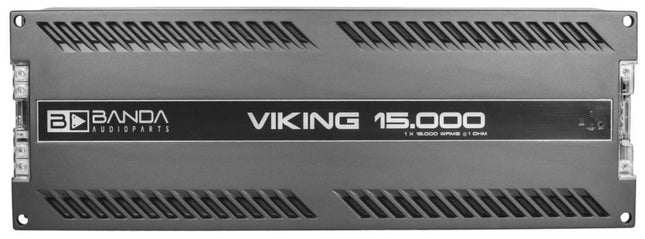

Technical Specifications Total Power 12,6 @ 1 Ohm 1 x 15000 WRMS Total Power 12,6 @ 2 Ohms 1 x 9800 WRMS Input Voltage 9 – 15V Input Impedance 17 kOhms THD+Noise <1% Input Sensitivity 160mV – 6V SNR 82dB Frequency Response 13 to 2kHz (-3dBs) Variable Subsonic Filter 13Hz – 120Hz @ 12dB/octave Linkwitz-Riley Recommended Fuse 125A (x6) + 60A (x1) Current at Rest 3,5 A Average Current Draw (Music) 630 A Weight (Lb) 30,5 Height (in) 2,5 Width (in) 30,1 Depth (in) 10,4
