Description The DS 800×4 is synonymous with multichannel amplifier. It has 4 channels of 200 Watts RMS, with a maximum power of 800 Watts RMS, at 1,2 ohms and is compatible with any frequency, that is to say, it is a FULL RANGE amp. Versatility, efficiency and quality in a single product. TECHNICAL INFORMATION OPERATION CLASS D NUMBER OF CHANNELS 04 MAXIMUM POWER @ 12.6 VDC - 1 OHM: 800W RMS (4 x 200W RMS)@ 12.6 VDC - 2 OHMS: 544W RMS (4 x 136W RMS)2 bridgeable channels - 1 OHM: 800WRMS (2 x 400WRMS) INPUT SENSITIVITY 250mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz to 36KHz(-3dB) CROSSOVER HIGH PASS (HPF) 90Hz (-12dB/8th) Fixed CROSSOVER LOW PASS (LPF) 90Hz (-12dB/8th) Fixed INPUT IMPEDANCE 18K Ohms OUTPUT IMPEDANCE 1 Ohm PROTECTION SYSTEM Output overload MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1,0A MAXIMUM MUSIC CONSUMPTION @12.6VDC: 51A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 102A DIMENSIONS (WXHXD) 7.17" x 2.05" x 8.94" (173 x 52 x 227mm) WEIGHT 3.52lb (1,43kg) EAN 7898556844826 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 04 MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 800W RMS (4 x 200W RMS)@ 12.6 VDC - 4 OHMS: 544W RMS (4 x 136W RMS)2 bridgeable channels - 2 OHMS: 800WRMS (2 x 400WRMS) INPUT SENSITIVITY 250mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz to 36KHz (-3dB) CROSSOVER HIGH PASS (HPF) 90Hz (-12dB/8ª) Fixed CROSSOVER LOW PASS (LPF) 90Hz (-12dB/8ª) Fixed INPUT IMPEDANCE 18K Ohms OUTPUT IMPEDANCE 2 Ohms PROTECTION SYSTEM Output overload MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.4A MAXIMUM MUSIC CONSUMPTION @12.6VDC: 43A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 86A DIMENSIONS (WXHXD) 7.17" x 2.05" x 8.94" (173 x 52 x 227mm) WEIGHT 3.52lb (1,43kg) EAN 7898556844369

Read more less

Description Taramps proudly presents the HD2000, an amplifier with the tradition and quality of one of the most renowned Taramps lines. If you are looking for power and versatility, It’s the perfect amplifier for you. But, what about its power? It delivers 2000 WRMS at 12.6V DC (Nominal power with sinusoidal signal from 60Hz to 1KHz and THD <= 1% at the output). Right! But why is it versatile? To start with, it is available at 1 Ohm, 2 Ohms and 4 Ohms. Certainly, one of them will match your sound project. It has a wide frequency response, which allows you to use it to run: Subwoofers, woofers, midrange, midrange 6×9”, full range speakers, phenolic drivers, titanium drivers, super tweeters, among others. It means that you can use it in car audio, trunk speakers, sound walls, 3-way systems, residential speakers, etc. Feel free to use your creativity to make the most of this incredible product. And there is more. It also features Level, Crossover (HPF and LPF) and Bass boost adjustment to Boost up the bass. All made to get your sound well tuned and reach the perfect beat. And we couldn’t miss the On, Clip and protection LED indicators, which are replicated by the M1 LED monitor, an exclusive accessory that comes as a courtesy. Now It will be easy to check what´s going on with your amplifier while it is operating. Live a fantastic sound experience, with the best cost benefit! TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @12.6VDC - 1 Ohm: 2000 Watts RMS@12.6VDC - 2 Ohms: 1100 Watts RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20 kHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80 Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50 Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) INPUT IMPEDANCE 10K Ohms OUTPUT IMPEDANCE 1 Ohm PROTECTION SYSTEM Output Short circuit / High or Low supply voltage / Thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.5A MAXIMUM MUSIC CONSUMPTION @12,6VDC: 117.5A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 235 A DIMENSIONS (WXHXD) 228 x 64 x 186mm (8.98" x 2.52" x 7.32" WEIGHT 1.92 Kg (4.22lb) EAN 7898556848152 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @12,6 VDC - 2 Ohms: 2000W RMS@12,6 VDC - 4 Ohms: 1400 Watts RMS@12,6 VDC - 8 Ohms: 515 Watts RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10 ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50 Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) INPUT IMPEDANCE 10K Ohms OUTPUT IMPEDANCE 2 Ohms PROTECTION SYSTEM Output Short circuit / High or Low supply voltage / Thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.6A MAXIMUM MUSIC CONSUMPTION @12,6VDC: 100A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 200A DIMENSIONS (WXHXD) 228 x 64 x 186mm (8.98" x 2.52" x 7.32") WEIGHT 1.92 Kg (4.22lb) EAN 7898556848169 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @12,6 VDC - 4 Ohms: 2000 Watts RMS@12,6 VDC - 8 Ohms: 1300 Watts RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10 ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50 Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) INPUT IMPEDANCE 10K Ohms OUTPUT IMPEDANCE 4 Ohms PROTECTION SYSTEM Output Short circuit / High or Low supply voltage / Thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.9A MAXIMUM MUSIC CONSUMPTION @12,6VDC: 100A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 200A DIMENSIONS (WXHXD) 228 x 64 x 186mm (8.98" x 2.52" x 7.32") WEIGHT 1.92 Kg (4.22lb) EAN 7898556848176

Read more less

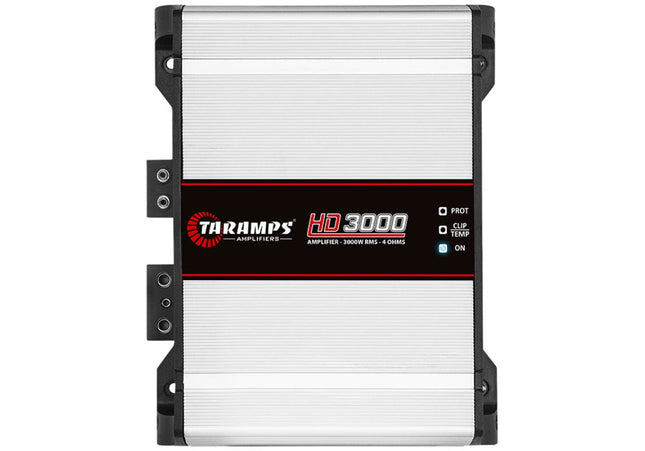

Description  With a maximum power of 3000 Watts RMS, the HD3000 is mono; 1-ohm and has 1 channel. Compatible with all types of speakers, drivers and tweeters. With a maximum power of 3000 Watts RMS, the HD3000 is mono; 2-ohms and has 1 channel. Compatible with all types of speakers, drivers and tweeters. With a maximum power of 3000 Watts RMS, the HD3000 is mono; 4-ohms and has 1 channel. Compatible with all types of speakers, drivers and tweeters. * This product comes with an M1 LED Monitor TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @12.6VDC - 1 Ohm: 3000 Watts RMS@12.6VDC - 2 Ohms: 2025 Watts RMS@12.6VDC - 4 Ohms: 1140 Watts RMS INPUT SENSITIVITY 230mV SIGNAL TO NOISE RATIO 89dB FREQUENCY RESPONSE 10Hz Hz ~ 20 kHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80 Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50 Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 79% INPUT IMPEDANCE 18K ohms OUTPUT IMPEDANCE 1 Ohm PROTECTION SYSTEM Output Short circuit / High or Low supply voltage / Thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.8A MAXIMUM MUSIC CONSUMPTION @12.6VDC: 150.5A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @12.6VDC (1kHz): 301A DIMENSIONS (WXHXD) 9"x 2.56" x 7.32" (229 x 65 x 186mm) WEIGHT 4.4lbs (2kg) EAN 7898556840903 TECHNICAL INFORMATION OPERATION CLASS Clase D NUMBER OF CHANNELS 01 MAXIMUM POWER @12.6 VDC 2 Ohms: 3000 Watts RMS@12.6 VDC 4 Ohms: 2025 Watts RMS@12.6 VDC 8 Ohms: 1140 Watts RMS INPUT SENSITIVITY 230mV SIGNAL TO NOISE RATIO 89dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (temperature-driven or audio cooler, with 3 speeds) EFFICIENCY 83% INPUT IMPEDANCE 18K Ohms OUTPUT IMPEDANCE 2 Ohms PROTECTION SYSTEM Output Short circuit / High or Low Supply Voltage / Thermal Protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.7A MAXIMUM MUSIC CONSUMPTION @12.6VDC: 143.5A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @12.6VDC (1KHz): 287A DIMENSIONS (WXHXD) 9" x 2.56" x 7.32" (229 x 65 x 186mm) WEIGHT 2.0Kg EAN 7898556840880 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @12.6VDC - 4 Ohms: 3000 Watts RMS@12.6VDC - 8 Ohms: 2025 Watts RMS INPUT SENSITIVITY 230mV SIGNAL TO NOISE RATIO 89dB FREQUENCY RESPONSE 10Hz ~ 20kHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50 Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 80% INPUT IMPEDANCE 18K Ohms OUTPUT IMPEDANCE 4 Ohms PROTECTION SYSTEM Output Short circuit / High or Low supply voltage / Thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.9A MAXIMUM MUSIC CONSUMPTION @12.6VDC: 149A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @12.6VDC (1kHz): 298A DIMENSIONS (WXHXD) 9"x 2.56" x 7.32" (229 x 65 x 186mm) WEIGHT 4.4lbs (2kg) EAN 7898556844925

Read more less

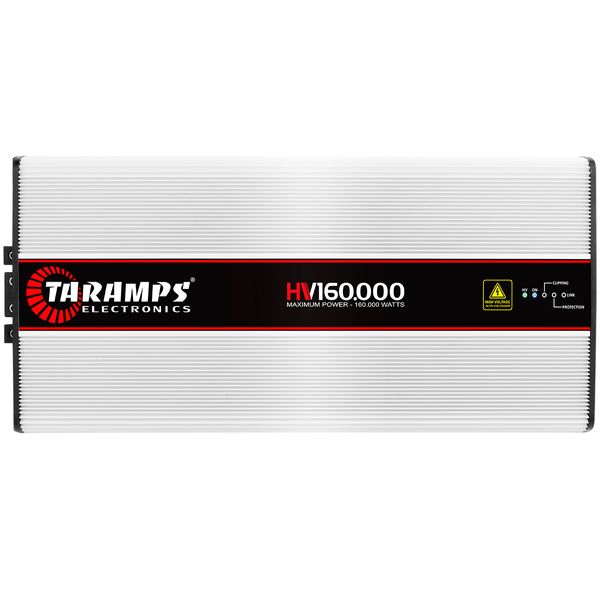

Details The car sound monster ! Simply the strongest Taramps ever made to date.With 0.25 Ohms of final impedance and operation at 300 volts, resulting in the connection of batteries in series, this module is capable of generating an incredible 160,000 Watts RMS of power!It has low harmonic distortion and a frequency response ranging from 5 Hz to 15 Khz. It has variable Crossovers at 12dB/8A, to precisely regulate the sound system.   Additional Information Product SKU Code 1307600 Availability Made to Order - Add 5 to 15 business days to delivery time Module Application For subs and woofers Channels 1 Mono Channel Operation Class DigitalClass D RCA connections two Maximum musical consumption (A) 280 Maximum sinusoidal consumption (A) 560 consumption at rest 125mA Frequency Response (Hz) 10Hz - 15000Hz Ω impedance 0,5 Ohms Bridge impedance Ω Does not accept bridge Led Clip Yes Actual Power per Channel (Watts RMS) 160000 True Power per Channel with Double Impedance (Watts RMS) 80000 Total Real Power (Watts RMS) 160000 Signal-to-noise ratio (dB) 95 protection systems High VoltageHeatingLow VoltageShort Circuit at Output Input Voltage High voltage THD (Total Harmonic Distortion) 0.2% Approximate Product Weight (kg) 7.64 Included Items 1 Taramps Digital Amplifier Module T-160 KW High Voltage - 160000 Watts RMS ManualBox Guarantee 12 months

Read more less

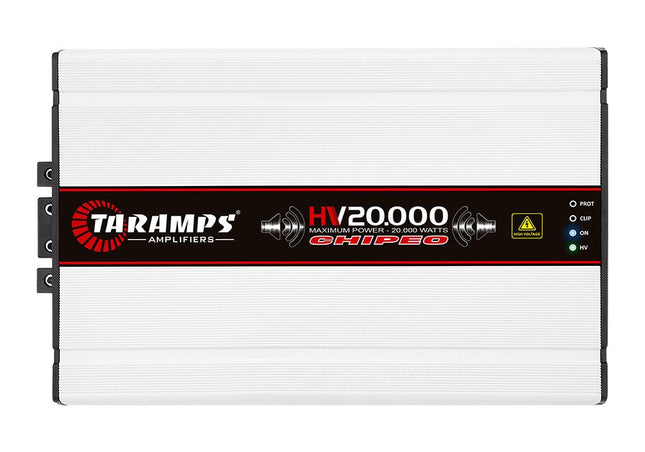

Description Power, efficiency and high performance are some of the synonyms of this module. It has a maximum power of 20,000 Watts RMS at 0.5 ohm, thermal protection and anti-short-circuit. It is powered by batteries in series, as it uses batteries as its source of power. It is a unique line in its category, delivering extremely high power in mid and large car audio systems. Stands out in quality from sub-bass to mid-highs. High performance in timbres Description Power, efficiency and high performance are some of the synonyms of this module. It has a maximum power of 20,000 Watts RMS at 0.5 ohm, thermal protection and anti-short-circuit. It is powered by batteries in series, as it uses batteries as its source of power. It is a unique line in its category, delivering extremely high power in mid and large car audio systems. Stands out in quality from sub-bass to mid-highs. High performance in timbres and audio quality.   TECHNICAL INFORMATION NUMBER OF CHANNELS 01 OUTPUT VOLTAGE 164VDC @ 0.5 Ohm - 13 Batteries INPUT SENSITIVITY 330mV ( Level 100%) @ 0.5 Ohm AUX INPUT STANDARD 0.2% SIGNAL TO NOISE RATIO >98dB FREQUENCY RESPONSE 10Hz ~ 10KHz (1dB) EFFICIENCY 91% @ 0.5 Ohm (full power) INPUT IMPEDANCE 22K Ohms PROTECTION SYSTEM Short-Circuit to Output,Short on output compared to GND,Low impedance at output,High/Low supply voltageThermal protection** POWER SUPPLY VOLTAGE 100VDC POWER SUPPLY VOLTAGE 190VDC CONSUMPTION AT REST 150mA MAXIMUM MUSIC CONSUMPTION @ 0.5 OHM 67A MAXIMUM SINUSOIDAL CONSUMPTION @ 0.5 OHM (100HZ) 134A DIMENSIONS (H X W X D) 8.98" x 2.52" x 14.09" (228 x 64 x 358mm) WEIGHT 7.92lb (3.60Kg) MAXIMUM OUTPUT POWER @ 164VDC- 0.5 OHM* 20.000W RMS EAN 7898556845007

Read more less

Description The Taramps MD 1200 in the 1,2,4-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 1200-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 OHM: 1200W RMS@ 12.6 VDC - 2 OHMS: 1000W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz to 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB(50Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 77% INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 1 ohm PROTECTION SYSTEM Output Short circuitHigh or Low supply voltageThermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1.7A MAXIMUM MUSIC CONSUMPTION @ 12,6 VDC: 62A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL @ 12,6VDC: 124A DIMENSIONS (WXHXD) 8.98" x 2.76" x 6.22" (228 x 70 x 158mm) WEIGHT 3.96lb (1,80Kg) EAN 7898556844802   TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 1200W RMS@ 12.6 VDC - 4 OHMS: 800W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variável CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variável BASS BOOST 0 ~ 10,5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (Cooler acionado por temperatura ou áudio em 3 velocidades EFFICIENCY 80% INPUT IMPEDANCE 10K OHMS OUTPUT IMPEDANCE 2 OHMS PROTECTION SYSTEM Curto na saída / Tensão de alimentação baixa e alta / Proteção térmica MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16 VDC CONSUMPTION AT REST 1,8 A MAXIMUM MUSIC CONSUMPTION 60 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 119 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 6.22" WEIGHT 3.96 lbs (1,80Kg) EAN 7898556844604   TECHNICAL INFORMATION OPERATION CLASS D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 4 OHMS: 1200W RMS@ 12.6 VDC - 8 OHMS: 855W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 82% INPUT IMPEDANCE 10K Ohms OUTPUT IMPEDANCE 4 Ohms PROTECTION SYSTEM Output short circuit / High or Low supply voltage / Thermal protection MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.8A MAXIMUM MUSIC CONSUMPTION 58A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 116A DIMENSIONS (WXHXD) 8.98" x 2.76" x 6.22" (228 x 70 x 158mm) WEIGHT 3.96lb (1,80kg) EAN 7898556844819

Read more less

Description Taramps presents the amplifier module MD 12000.1 in the 0.5 ohm version. It has been carefully designed with the highest technology, offering high performance and quality for most types  of car audio systems, covering the whole frequency range, in other words, it is a FULL RANGE module. It is a mono amplifier, has a channel with a maximum power of 12000 Watts RMS. Welcome to the audio world by Taramps. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 0.5 OHM: 12000W RMS@ 12.6 VDC - 1 OHM: 7200W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >95dB FREQUENCY RESPONSE 10 Hz ~5 kHz (-3dB) CROSSOVER HIGH PASS (HPF) 10 Hz ~90 Hz (-12dB/8th) Variable CROSSOVER LOW PASS (LPF) 90 Hz ~5 kHz (-12dB/8th) Variable BASS BOOST Freq.: 35 Hz ~55 HzBoost: 0 ~10dB EFFICIENCY 79% INPUT IMPEDANCE 15K ohms OUTPUT IMPEDANCE 0.5 ohm PROTECTION SYSTEM Output Short circuit, Output Short circuit in relation to the GND, Low Impedance Protection / High or Low voltage Protection / Thermal protection MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 3.6A MAXIMUM MUSIC CONSUMPTION 602.5A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 1205A DIMENSIONS (WXHXD) 8.98" x 2.75" x 21.65" (228 x 70 x 550mm) WEIGHT 17.52 lbs (7.95 kg) EAN 7898556845113

Read more less

Description The Taramps MD 1800.1 in the 1,2,4-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 1800-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 OHM: 1800W RMS@ 12.6 VDC - 2 OHMS: 1410W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 78% INPUT IMPEDANCE 10k OHMS OUTPUT IMPEDANCE 1 OHM PROTECTION SYSTEM Output Short / High/Low Supply Voltage / Thermal Protection MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.7 A MAXIMUM MUSIC CONSUMPTION 91 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 182 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 7.40" (228 x 70 x 188mm) WEIGHT 4.80lb (2.18kg) EAN 7898556844390 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 1800W RMS@ 12.6 VDC - 4 OHMS: 1100W RMS@ 12.6 VDC - 8 OHMS: 515W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) THERMAL MANAGEMENT Smart Cooler (Cooler powered by temperature or audio at 3 speeds) EFFICIENCY 78% INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 2 ohms PROTECTION SYSTEM Short circuit at the output, low/high supply voltage, thermal protection. MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.7 A MAXIMUM MUSIC CONSUMPTION 91 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 182 A DIMENSIONS (WXHXD) 8.6" x 2.75" x 7.40" (228 x 70 x 188mm) WEIGHT 4.80lb (2,18kg) EAN 7898556844376 TECHNICAL INFORMATION OPERATION CLASS Classe D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 4 OHMS: 1800W RMS@ 12.6 VDC - 8 OHMS: 1050W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >88dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10.5dB (50Hz) THERMAL MANAGEMENT Smart Cooler (fan controlled by temperature or audio, with 3 speeds) EFFICIENCY 84% INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 4 ohms PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection. MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.5 A MAXIMUM MUSIC CONSUMPTION 85 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 170 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 7.40" (228 x 70 x 188mm) WEIGHT 4.80lb (2,18Kg) EAN 7898556844383

Read more less

Description The Taramps MD 250.1 in the 4, 2-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the entire frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 250-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 13.8 VDC - 2 OHMS: 250W RMS@ 13.8 VDC - 4 OHMS: 160W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 2 ohms PROTECTION SYSTEM Output short-circuit / thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 0.5 A MAXIMUM MUSIC CONSUMPTION 12.5 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 25 A DIMENSIONS (WXHXD) 5.43" x 1.92" x 5.19" (138 x 49 x 132mm) WEIGHT 1.43lb (0,65kg) EAN 7898556845090   TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 13.8 VDC - 2 OHMS: 250W RMS@ 13.8 VDC - 4 OHMS: 160W RMS INPUT SENSITIVITY 220mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 20KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 80Hz ~ Full (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) INPUT IMPEDANCE 10K ohms OUTPUT IMPEDANCE 4 ohms PROTECTION SYSTEM Short-circuit and thermal protection MIN. SUPPLY VOLTAGE 9 VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 0.55 A MAXIMUM MUSIC CONSUMPTION 12 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 24 A DIMENSIONS (WXHXD) 5.43" x 1.92" x 5.19" (138 x 49 x 132mm) WEIGHT 1.43lb (0,65kg) EAN 7898556845106

Read more less

Description The Taramps MD 3000.1 in the 1,2,4-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is to say that it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 3000-Watts RMS. Welcome to Taramps audio world. TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 1 OHM: 3000W RMS@ 12.6 VDC - 2 OHMS: 1920W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55) EFFICIENCY 79% INPUT IMPEDANCE 15K Ohms OUTPUT IMPEDANCE 1 OHM PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.0 A MAXIMUM MUSIC CONSUMPTION 150 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 300 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 8.58" (228 x 70 x 218mm) WEIGHT 5.5lb (2,5kg) EAN 7898556844628 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 3000W RMS@ 12.6 VDC - 4 OHMS: 1920W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) Freq. Variable (35 ~ 55) EFFICIENCY 82% INPUT IMPEDANCE 15K Ohms OUTPUT IMPEDANCE 2 OHMS PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection. MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.50 A MAXIMUM MUSIC CONSUMPTION 145 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 290 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 8.58" (228 x 70 x 218mm) WEIGHT 5.5lb (2,5kg) EAN 7898556844710 TECHNICAL INFORMATION OPERATION CLASS Class D NUMBER OF CHANNELS 01 MAXIMUM POWER @ 12.6 VDC - 4 OHMS: 3000W RMS@ 12.6 VDC - 8 OHMS: 1920W RMS INPUT SENSITIVITY 220 mV SIGNAL TO NOISE RATIO >90dB FREQUENCY RESPONSE 10Hz ~ 18KHz (-3dB) CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable CROSSOVER LOW PASS (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable BASS BOOST 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55) EFFICIENCY 85% INPUT IMPEDANCE 15K Ohms OUTPUT IMPEDANCE 4 OHMS PROTECTION SYSTEM Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection. MIN. SUPPLY VOLTAGE 9VDC MAXIMUM POWER SUPPLY VOLTAGE 16VDC CONSUMPTION AT REST 1.2 A MAXIMUM MUSIC CONSUMPTION 138.8 A MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 277.7 A DIMENSIONS (WXHXD) 8.98" x 2.76" x 8.58" (228 x 70 x 218mm) WEIGHT 5.5lb (2,5kg) EAN 7898556844666

Read more less
